d&b audiotechnik 40D: 4 Channel 2 RU Installation Amplifier with DSP and Touchscreen, US/CA/KR Version
Model
:
40D (US/CA/KR)
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

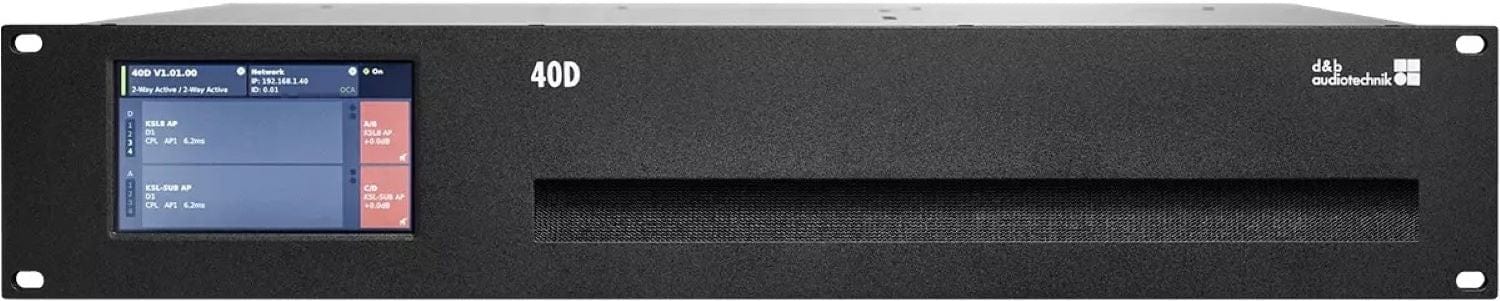

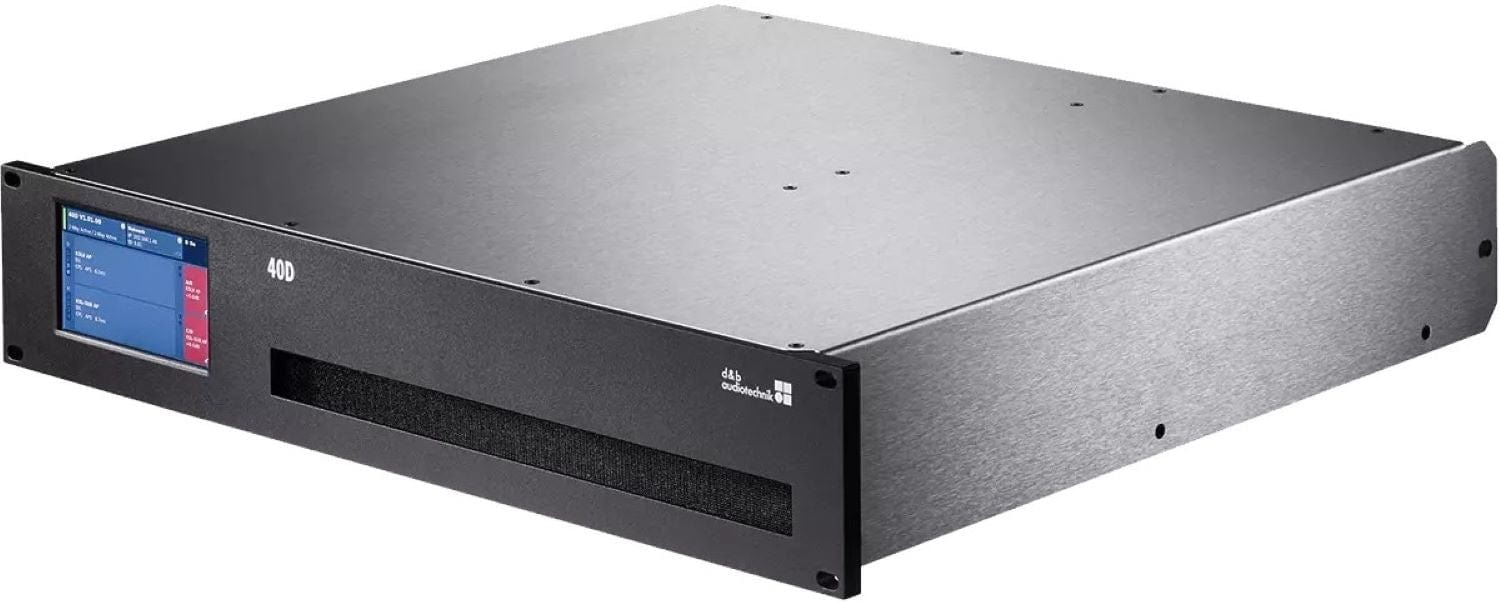

d&b audiotechnik 40D 4 Channel Installation Amplifier, US/CA/KR Version
The d&b audiotechnik 40D is a 2 RU four channel installation amplifier with powerful onboard signal processing, separate input gain per channel, GPIO and a general fault connector. Input and load monitoring make it suitable for emergency systems, and a 4.3 inch colour touchscreen shows configuration and status. This listing is the US/CA/KR version; Trianze Tech supplies the 40D in Dubai, Abu Dhabi and across the UAE and GCC and will confirm the right regional version for your project.
Key Features:
- Four channel 2 RU installation amplifier
- 4.3 inch colour touchscreen for configuration and status
- Separate input gain control for each input channel
- GPIO and general fault connector
- Input and load monitoring for emergency systems
- 2 x 16-band PEQ with notch, shelving and asymmetric filters
Technical Specifications:
| Spec | Value |
|---|---|
| Model | 40D, US/CA/KR version |
| Type | 4 channel installation amplifier with DSP |
| Format | 2 RU, 19 inch |
| Equalizer | 2 x 16-band PEQ/notch/shelving/asymmetric |
| Latency | 0.3 ms analog and digital inputs |
| Delay Setting | 0.3 ms to 10 s |

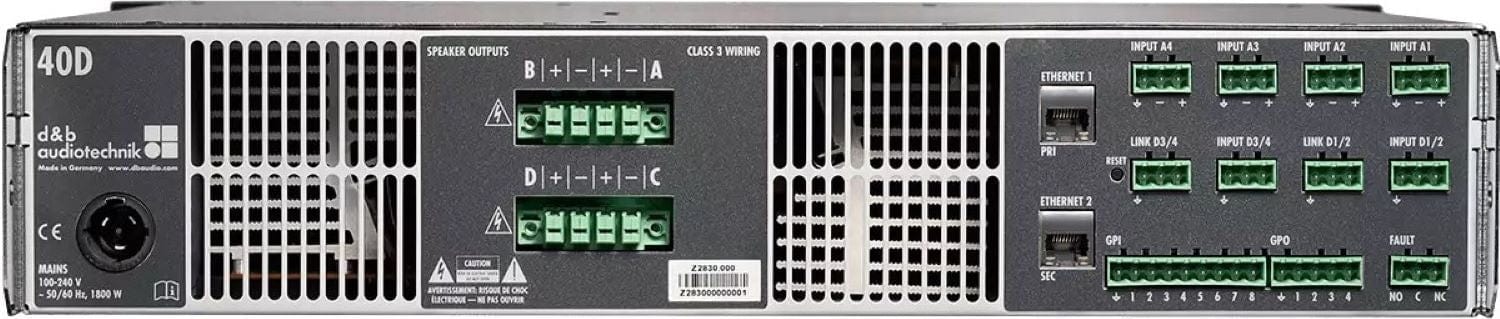

| Analog Inputs | 4 x 3-pin Phoenix Euroblock (A1 to A4), plus analog link |
| Digital Inputs | AES3 on 3-pin Phoenix Euroblock, 44.1/48/96/192 kHz |
| Speaker Outputs | 4-pin Phoenix Euroblock |
| Network | 2 x RJ45, 1 Gbit/100 Mbit |
| Mains | powerCON TRUE1 TOP, 100 to 127 / 208 to 240 V, 50 to 60 Hz |
| Power Supply | Autosensing switch mode with active PFC |
| Depth | 465 mm |
| Weight | 13.3 kg (29.3 lb) |
Why Buy the d&b audiotechnik 40D (US/CA/KR) from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the 40D (US/CA/KR) with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik 40D is a four channel installation amplifier in a 2 RU, 19 inch chassis, with analog inputs A1 to A4 and AES3 digital inputs.
The d&b audiotechnik 40D has configurations for current d&b loudspeakers, except the GSL, SL-SUB, J-Series and M2.
Yes. The d&b audiotechnik 40D includes input monitoring, load monitoring and a general fault connector, which support use in emergency and voice alarm systems.
This d&b audiotechnik 40D listing is the version for the US, Canada and Korea markets. Trianze Tech will confirm the correct regional version and mains connection for a UAE installation.
The d&b audiotechnik 40D has 2 x 16-band PEQ with notch, shelving and asymmetric filters, delay from 0.3 ms to 10 s, a pink noise and sine generator, and 0.3 ms latency.
Trianze Tech supplies the d&b audiotechnik 40D (US/CA/KR) in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
