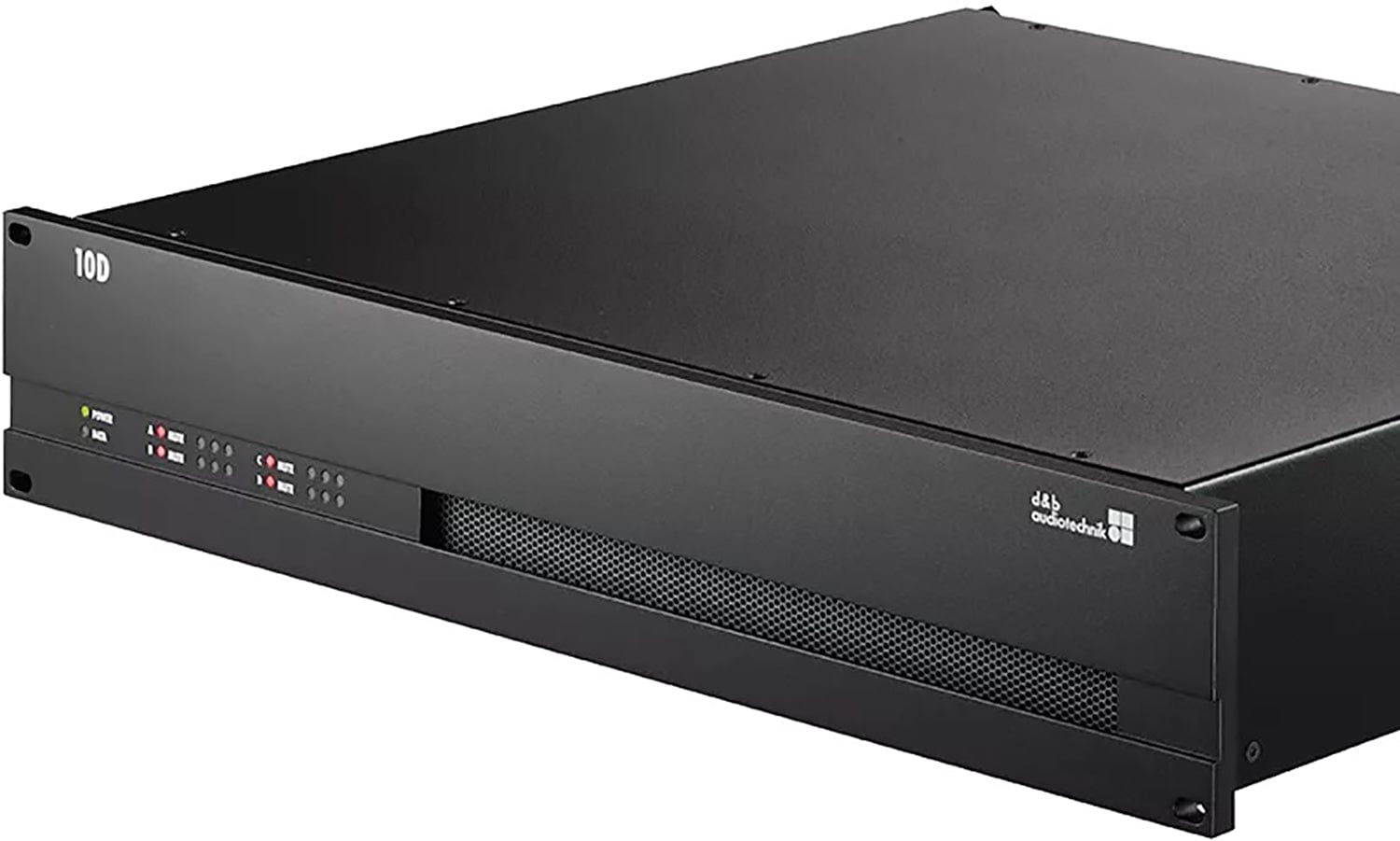

  • d&b audiotechnik 10D installation amplifier

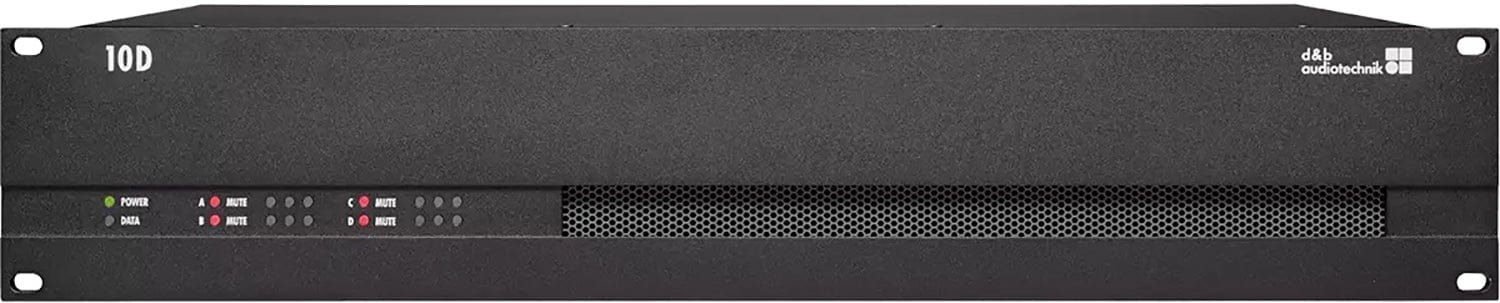

  • d&b audiotechnik 10D installation amplifier, view 2

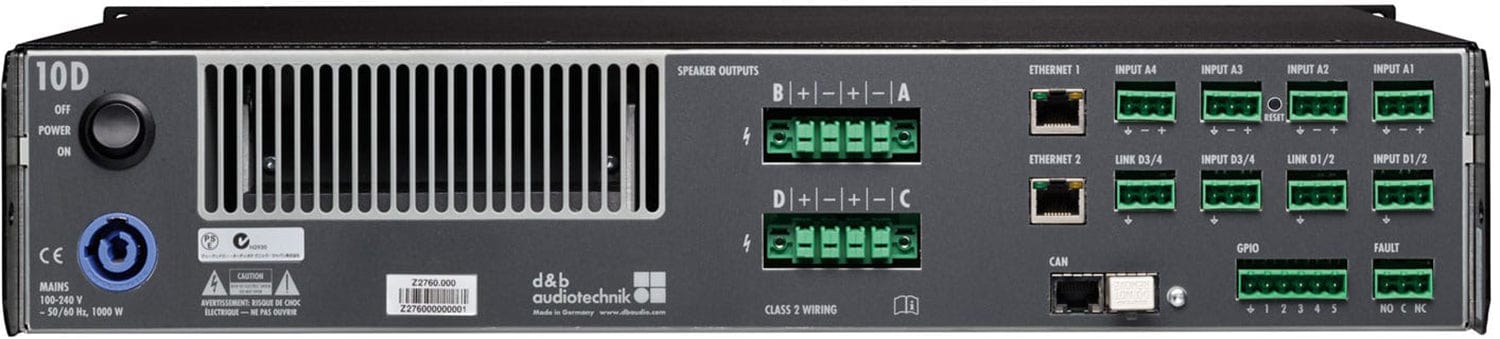

  • d&b audiotechnik 10D installation amplifier, view 3
1 3

d&b audiotechnik 10D: 4 Channel 2 RU Installation Power Amplifier with DSP, 4 x 700 W, US Version

  • 4 channel installation amplifier
  • 4 x 700 W into 4 ohms
  • Integrated DSP and GPIO
  • US version
Brand :d&b audiotechnik
Model : 10D US

View full details
Genuine Products

Genuine Products

Original Brand Warranty

Original Brand Warranty

Product Training

Product Training

Installation, Maintenance & Support

Installation, Maintenance & Support

Request a Quote

Applications & Use Cases

  • Installed sound systems
  • Conference and meeting venues
  • Houses of worship
  • Hospitality and retail
d&b audiotechnik 10D installation amplifier, view 2
d&b audiotechnik 10D US
  • Specifications
  • Details

Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

d&b audiotechnik 10D 4 Channel Installation Amplifier, US Version

The d&b audiotechnik 10D is a 2 RU, four channel installation amplifier for applications that need lower SPL capability. It adds input management with separate input gain per channel, five assignable GPIOs plus a general fault connector, and input and load monitoring suited to emergency applications. The integrated DSP provides d&b loudspeaker management, two 16 band equalizers and up to 10 s of delay per channel, and LoadMatch compensates for loudspeaker cable properties. It is controlled via the integrated web interface or d&b R1 over Ethernet (OCA) or CAN. This listing is the US version. Trianze Tech supplies the 10D in Dubai, Abu Dhabi and across the UAE and GCC.

Key Features:

  • Four channels, up to 4 x 700 W into 4 ohms
  • Integrated DSP with two 16 band equalizers and up to 10 s delay
  • Input and load monitoring with GPIO and fault connector
  • LoadMatch cable compensation
  • Web interface and R1 control via OCA or CAN
  • Euroblock input and output connectors

Technical Specifications:

Spec Value
Model 10D (US version)
Type 4 channel installation amplifier, 2 RU
Output Power 4 x 700 W into 4 ohms, 4 x 350 W into 8 ohms
DSP 2 x 16 band PEQ, notch, shelving, asymmetric
Latency 0.3 ms
Delay 0.3 ms to 10 s
Sampling Rate 96 kHz, 27 bit ADC, 24 bit DAC
Inputs 4 x analog and AES3 digital, Phoenix Euroblock
Outputs Phoenix Euroblock
Control 2 x RJ45 Ethernet (OCA), 2 x RJ45 CAN, GPIO, fault
S/N Ratio over 101 dBr analog, over 103 dBr digital
Mains 100 to 240 V, 50 to 60 Hz, active PFC
Weight 10.6 kg (23.4 lb)

Why Buy the d&b audiotechnik 10D US from Trianze Tech?

  • Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
  • System design help matching the 10D US with compatible d&b loudspeakers, amplifiers and rigging
  • Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
  • Pre-sales guidance for touring, live event and installed sound projects

Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

Package Contents

  • 1 x d&b audiotechnik 10D amplifier, US version
  • Confirm mains cable and plug type for the UAE with Trianze Tech at time of order

Warranty

  • d&b audiotechnik manufacturer warranty, terms confirmed by Trianze Tech at time of order
  • Local UAE support from the Trianze Tech audio team

Sustainability

  • Active PFC power supply for stable output on weak mains
  • Class D amplification for efficient operation

Expandability

  • Use the 30D for A, J, SL and V-Series, the M2 and the B22-SUB
  • d&b R1 remote control integration

Distribution

  • Available from Trianze Tech with delivery across Dubai, Abu Dhabi, the UAE and the GCC
  • Contact us to confirm current stock and lead time for the 10D US

Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

Frequently asked

Questions our clients ask before signing.

If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik 10D is a 2 RU four channel amplifier for permanent installations that need lower SPL capability, with configurations for smaller d&b loudspeakers and a linear mode.
The d&b audiotechnik 10D delivers up to 4 x 700 W into 4 ohms or 4 x 350 W into 8 ohms.
The d&b audiotechnik 30D is required for the A-Series, J-Series, SL-Series, V-Series, the M2 monitor, the B22-SUB and systems that need higher SPL.
The d&b audiotechnik 10D is controlled through its integrated web interface or d&b R1 Remote control software, over Ethernet using OCA or over CAN-Bus.
This listing is the US version of the d&b audiotechnik 10D. Its universal supply accepts 100 to 240 V, and Trianze Tech confirms the mains plug configuration at time of order.
