d&b audiotechnik D90 4 Channel High Power Amplifier with Milan
The d&b audiotechnik D90 is a four channel high power amplifier delivering up to 4 x 5400 W into 4 ohms, with increased system efficiency and power saving features that keep internal temperatures low at full output. Milan networking allows redundant setups for audio transport, with fallback for all inputs and device communication. Trianze Tech supplies the D90 for touring and large installations in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Up to 4 x 5400 W into 4 ohms, 4 x 2700 W into 8 ohms
- Maximum output 210 V peak and 78 A peak
- Milan networking with redundant audio transport
- Fallback for all inputs and device communication

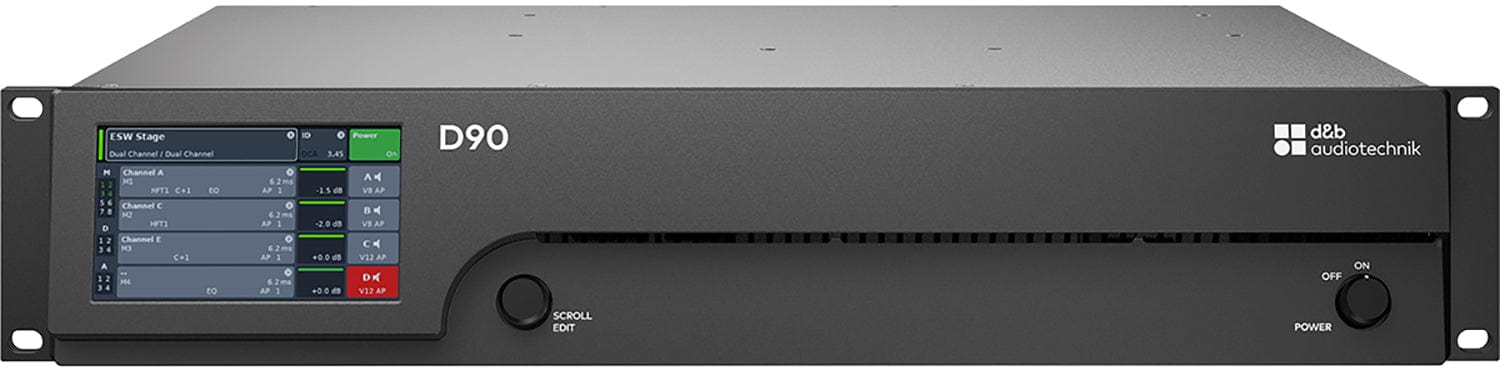

- 4.35 inch colour TFT touchscreen
- NL4 and NL8 outputs, powerCON HC mains
Technical Specifications:
| Spec | Value |
|---|---|
| Model | D90 |
| Type | 4 channel high power amplifier with DSP and Milan |
| Maximum Output Power | 4 x 5400/2700 W (4/8 ohms, CF 12 dB) |
| Maximum Output Voltage/Current | 210 V peak / 78 A peak |
| Equalizer | 2 x 16-band PEQ/notch/shelving/asymmetric |
| Latency | 0.3 ms |
| Delay Setting | 0.3 ms to 10 s |
| Inputs | 4 x analog XLR, 2 x AES3 XLR, with link outputs |
| Speaker Outputs | 4 x NL4, 2 x NL4 mix/2-way, 1 x NL8 |
| Network | 2 x RJ45, 1 Gbit/100 Mbit |
| Mains | powerCON HC, 100 to 127 / 208 to 240 V, active PFC |
| Dimensions | 2 RU x 19 inch x 512 mm |
| Weight | 18.8 kg (41.5 lb) |
Why Buy the d&b audiotechnik D90 from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the D90 with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik D90 delivers up to 4 x 5400 W into 4 ohms or 4 x 2700 W into 8 ohms, with a maximum output of 210 V peak and 78 A peak.
Yes. The d&b audiotechnik D90 incorporates Milan networking for redundant audio transport, with fallback capabilities for all inputs and device communication.
The d&b audiotechnik D90 holds setups for all current d&b loudspeakers.

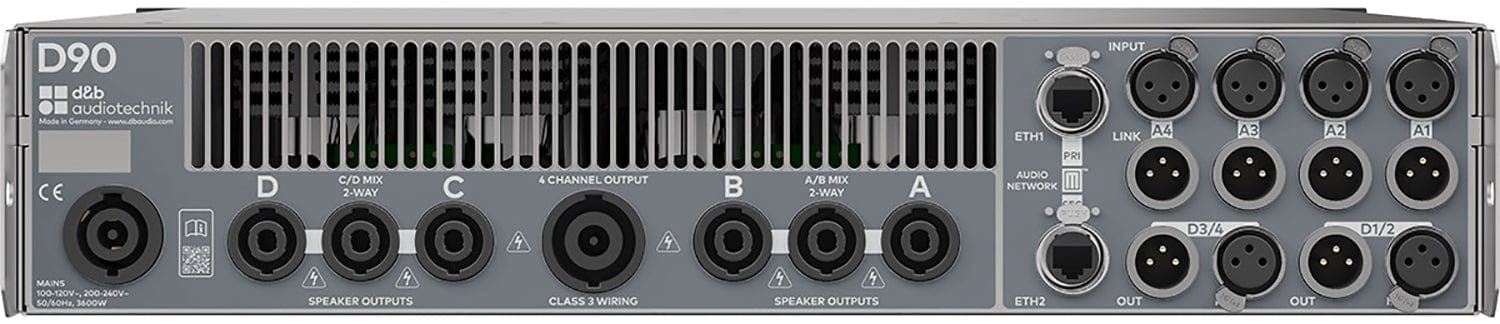

The d&b audiotechnik D90 has four analog XLR inputs, two AES3 inputs with link outputs, four NL4 speaker outputs, two NL4 mix outputs and one NL8 output.
The d&b audiotechnik D90 is a 2 RU, 19 inch unit 512 mm deep and weighs 18.8 kg (41.5 lb).
