d&b audiotechnik D80: 4 Channel High Power Touring and Installation Amplifier with DSP and LoadMatch
Model
:
D80
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
d&b audiotechnik D80 4 Channel High Power Amplifier with LoadMatch
The d&b audiotechnik D80 is a 2 RU four channel high power density amplifier for mobile and installation use, with configurations for all d&b loudspeakers and a linear mode. It delivers up to 4 x 4000 W into 4 ohms, offers delay up to 10 s per channel, and its LoadMatch function compensates for loudspeaker cable properties over lengths up to 70 m. Trianze Tech supplies the D80 for touring and installed systems in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Up to 4 x 4000 W into 4 ohms
- Configurations for all d&b loudspeakers plus linear mode
- LoadMatch cable compensation up to 70 m

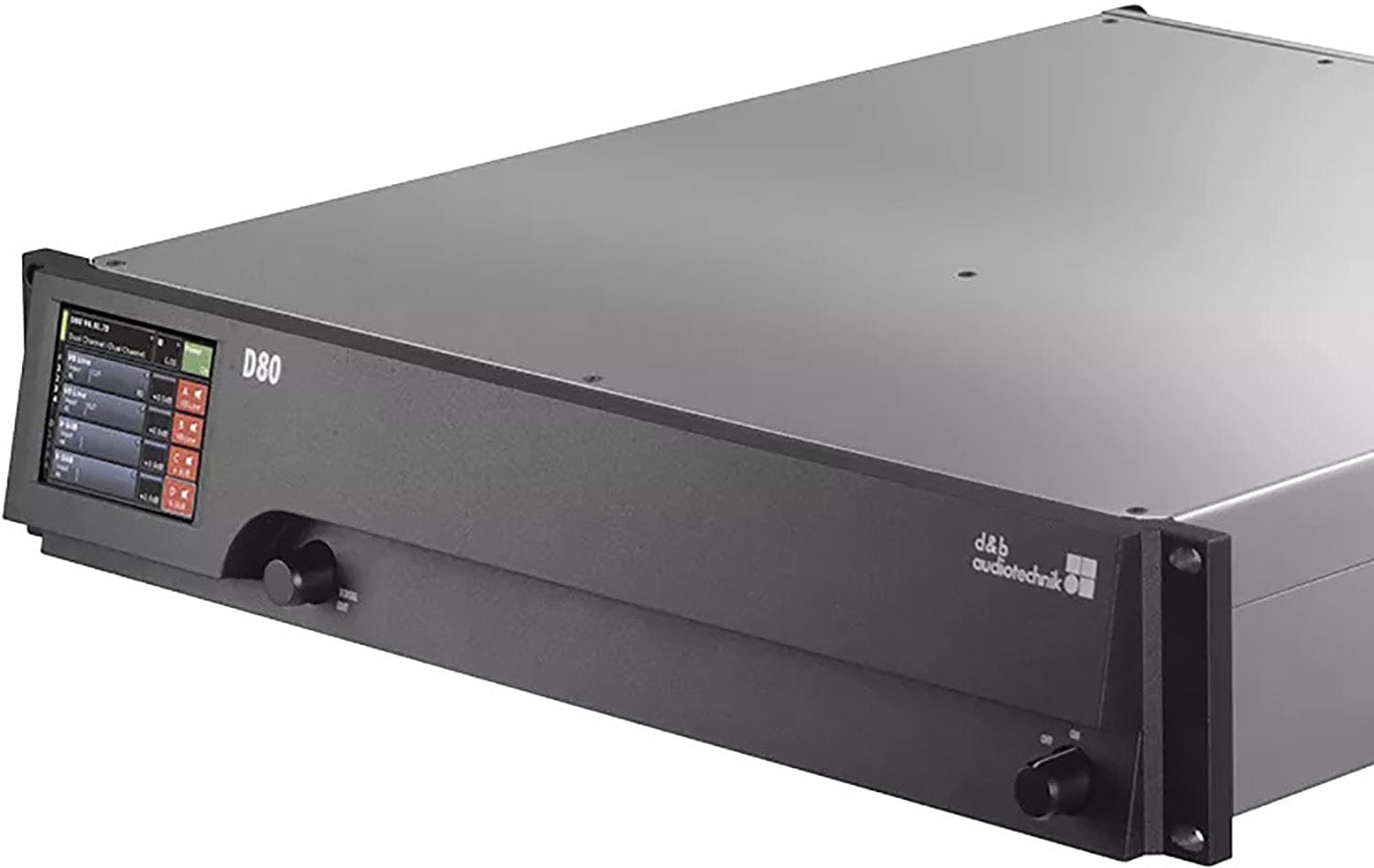

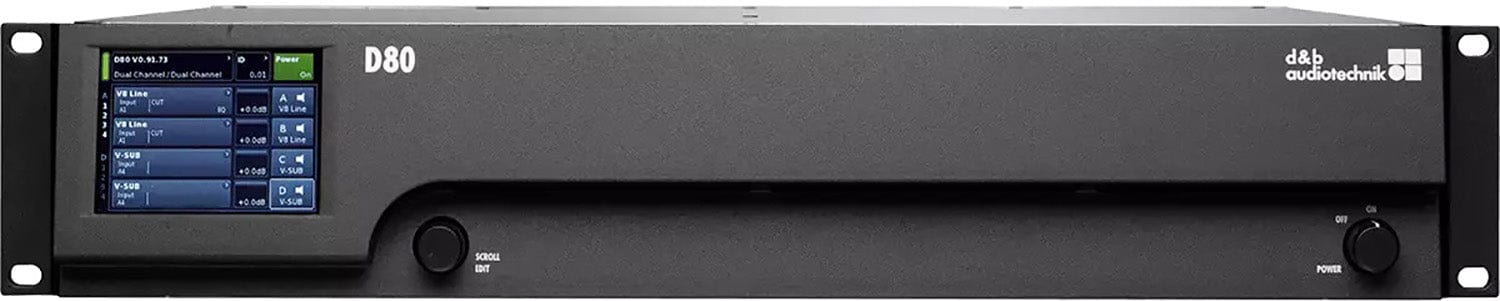

- Tilted front panel with 3.5 inch colour touchscreen
- Delay up to 10 s per channel
- NL4 and NL8 outputs, CAN and Ethernet remote
Technical Specifications:
| Spec | Value |
|---|---|
| Model | D80 |
| Type | 4 channel high power Class D amplifier with DSP |
| Maximum Output Power | 4 x 4000/2000 W (4/8 ohms, CF 12 dB), 4 x 2600/2000 W (CF 6 dB) |
| S/N Ratio | Over 114 dBr (digital input) |
| Equalizer | 2 x 16-band PEQ/notch/shelving/asymmetric |
| Latency | 0.3 ms |
| Delay Setting | 0.3 to 10000 ms |
| Inputs | 4 x analog XLR, 2 x AES3 XLR, with link outputs |

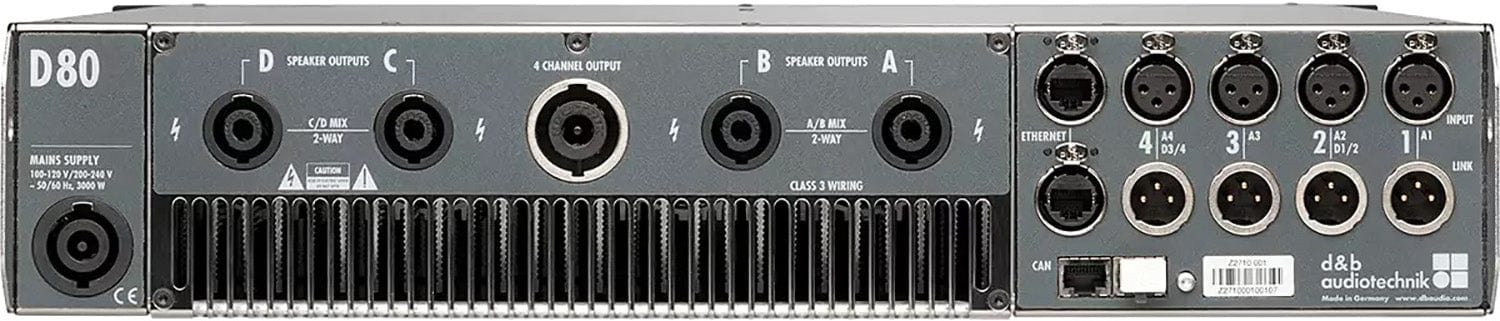

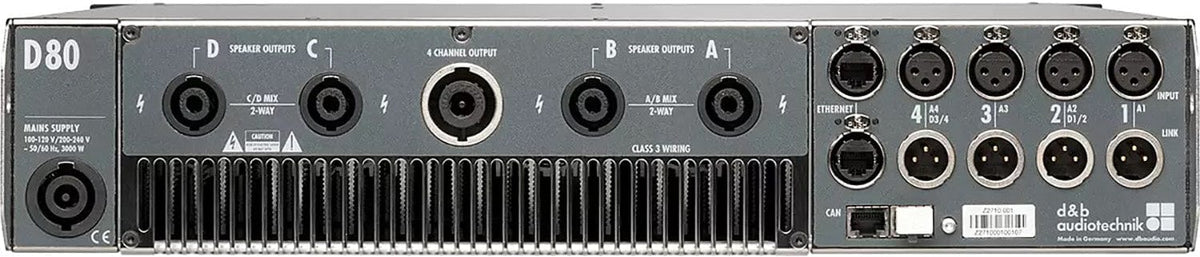

| Speaker Outputs | 4 x NL4, 1 x NL8 |
| Remote | 2 x RJ45 CAN, 2 x etherCON Ethernet |
| Mains | powerCON HC, 100 to 127 / 208 to 240 V, active PFC |
| Dimensions | 2 RU x 19 inch x 530 mm |
| Weight | 19 kg (42 lb) |
Why Buy the d&b audiotechnik D80 from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the D80 with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik D80 delivers up to 4 x 4000 W into 4 ohms or 4 x 2000 W into 8 ohms at crest factor 12 dB, with all channels driven.
LoadMatch on the d&b audiotechnik D80 electrically compensates for loudspeaker cable properties without an extra conductor, keeping tonal balance up to 20 kHz on cable runs up to 70 m.
The d&b audiotechnik D80 contains configurations for all d&b loudspeakers, plus a linear mode.
The d&b audiotechnik D80 connects to the d&b Remote network via CAN-Bus on RJ45 and to OCA/AES70 via its etherCON Ethernet ports.
The d&b audiotechnik D80 is a 2 RU, 19 inch unit 530 mm deep and weighs 19 kg (42 lb).
