d&b audiotechnik D40: 4 Channel Class D Touring and Installation Amplifier with DSP and Touchscreen
Model
:
D40
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
d&b audiotechnik D40 4 Channel Class D Amplifier with DSP
The d&b audiotechnik D40 is a four channel Class D amplifier with DSP for loudspeaker specific configurations, user definable setups, equalization and delay. Its high voltage output drives applicable d&b loudspeakers including the KSL System, with up to 4 x 2400 W into 4 ohms, and advanced voltage management improves system efficiency. Trianze Tech supplies the D40 for touring and installed systems in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Four channel Class D amplifier with DSP
- High voltage output for d&b loudspeakers including the KSL System
- 4 x 2400 W into 4 ohms, 4 x 2000 W into 8 ohms
- 4.35 inch colour TFT touchscreen
- Analog and AES3 digital inputs with link outputs
- Dual Ethernet ports and powerCON TRUE1 TOP mains
Technical Specifications:
| Spec | Value |
|---|---|
| Model | D40 |
| Type | 4 channel Class D amplifier with DSP |
| Maximum Output Power | 4 x 2400 W (4 ohms), 4 x 2000 W (8 ohms), CF 12 dB |
| Equalizer | 2 x 16-band PEQ/notch/shelving/asymmetric |
| Latency | 0.3 ms |
| Delay Setting | 0.3 ms to 10 s |

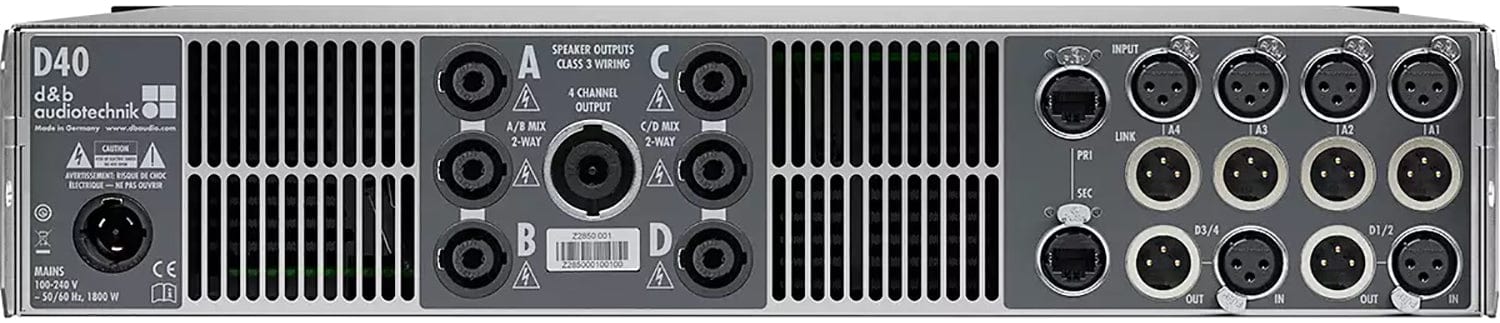

| Inputs | 4 x analog XLR, 2 x AES3 XLR, with link outputs |
| Speaker Outputs | 4 x NL4, 2 x NL4 mix/2-way, 1 x NL8 |
| Network | 2 x RJ45, 1 Gbit/100 Mbit |

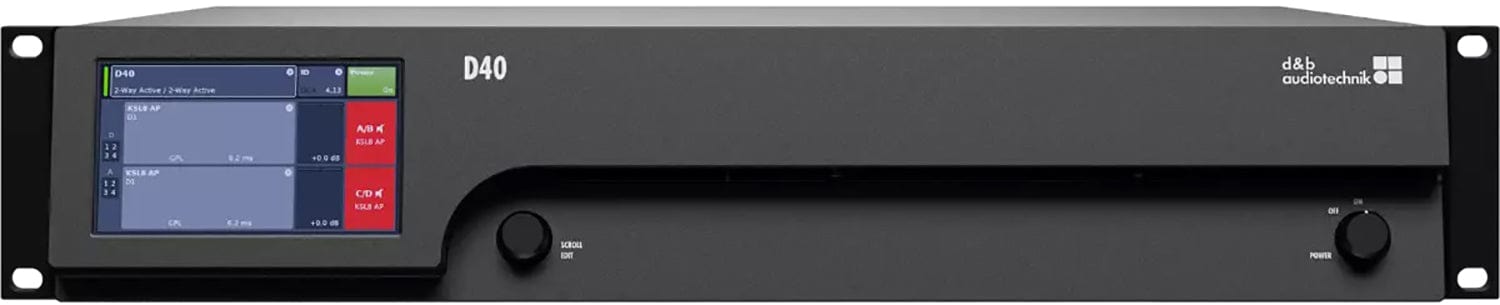

| Display | 4.35 inch colour TFT touchscreen |
| Mains | powerCON TRUE1 TOP, 100 to 127 / 208 to 240 V, active PFC |
| Dimensions | 2 RU x 19 inch x 512 mm |
| Weight | 13.8 kg (30.4 lb) |
Why Buy the d&b audiotechnik D40 from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the D40 with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik D40 delivers up to 4 x 2400 W into 4 ohms or 4 x 2000 W into 8 ohms (THD+N under 0.5 percent, all channels driven, crest factor 12 dB).
Yes. The d&b audiotechnik D40 has a high voltage output suited to applicable d&b loudspeakers including the KSL System.
The d&b audiotechnik D40 has four analog XLR inputs with link outputs, two AES3 digital inputs (D1/2, D3/4) and an AES3 digital link output.
The d&b audiotechnik D40 has configurations for current d&b loudspeakers except the GSL, SL-SUB, J-Series and M2.
The d&b audiotechnik D40 is a 2 RU, 19 inch unit 512 mm deep and weighs 13.8 kg (30.4 lb).
Trianze Tech supplies the d&b audiotechnik D40 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
