d&b audiotechnik 5D: 4 Channel Class D Installation Amplifier with DSP and Dante, Half Rack 1 RU
Model
:
5D
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
d&b audiotechnik 5D 4 Channel Class D Installation Amplifier with Dante
The d&b audiotechnik 5D is a compact Class D installation amplifier with flexible power distribution across its four output channels. Its DSP holds loudspeaker specific setups for smaller d&b loudspeakers from the E-Series, xS-Series, xC-Series and T-Series, plus a linear setup, with equalization and delay. Trianze Tech supplies the 5D for installed sound projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Four output channels with flexible power distribution
- DSP with d&b loudspeaker specific configurations and a linear setup
- Dante network input on 2 x RJ45
- 111 dB dynamic range (Dante input, unweighted)
- Half rack 1 RU, 9.5 inch chassis
- Wide range power supply with active PFC
Technical Specifications:
| Spec | Value |
|---|---|
| Model | 5D |
| Type | 4 channel Class D installation amplifier with DSP |
| Configurations | Selected E-Series, xS-Series, xC-Series and T-Series loudspeakers, linear setup |
| Dynamic Range | 111 dB (Dante input, unweighted) |
| Latency | 1.1 ms analog, under 3 ms Dante |
| Network | 2 x RJ45 Ethernet and Dante, 1 Gbit/100 Mbit |

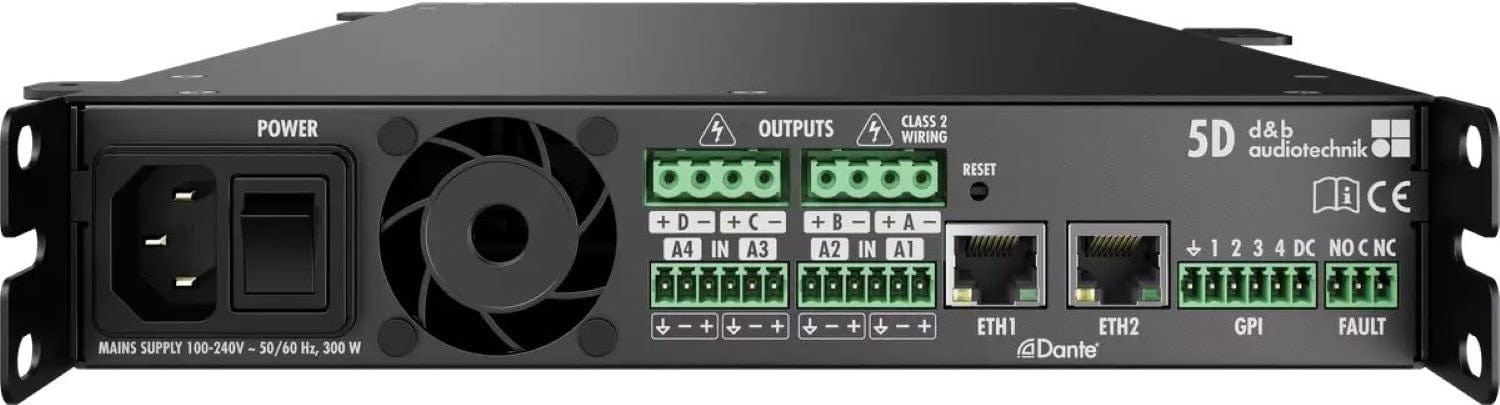

| Analog Inputs/Link | 2 x 6-pin Euroblock (A1 to A4) |
| Speaker Outputs | 2 x 4-pin Euroblock 5.08 mm |
| GPI and Fault | 6-pin GPI, 3-pin fault contact |
| Indicators | LED |
| Mains | IEC, 100 to 240 V, 50 to 60 Hz, active PFC |
| Dimensions | 1 RU x 9.5 inch x 435 mm |
| Weight | 4.6 kg (10 lb) |
Why Buy the d&b audiotechnik 5D from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the 5D with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik 5D has DSP configurations for selected loudspeakers from the E-Series, xS-Series, xC-Series and T-Series, plus a linear setup for other passive loudspeakers.
Yes. The d&b audiotechnik 5D has two RJ45 ports for Ethernet and Dante network audio input, with under 3 ms latency on the Dante input.
The d&b audiotechnik 5D is a half rack 1 RU unit measuring 9.5 inches wide and 435 mm deep, and it weighs 4.6 kg (10 lb).
The d&b audiotechnik 5D has a dynamic range of 111 dB with the Dante input, unweighted.
The d&b audiotechnik 5D has a wide range switched mode power supply with active PFC for 100 to 240 V, 50 to 60 Hz, via an IEC mains connector.
Trianze Tech supplies the d&b audiotechnik 5D in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
