Shure MXP-5: Microflex Shallow Ceiling Mount Passive Loudspeaker with 4 Inch Driver and 1 Inch Tweeter, 70/100V or 8 Ohm, White
Model
:
MXP-5W
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

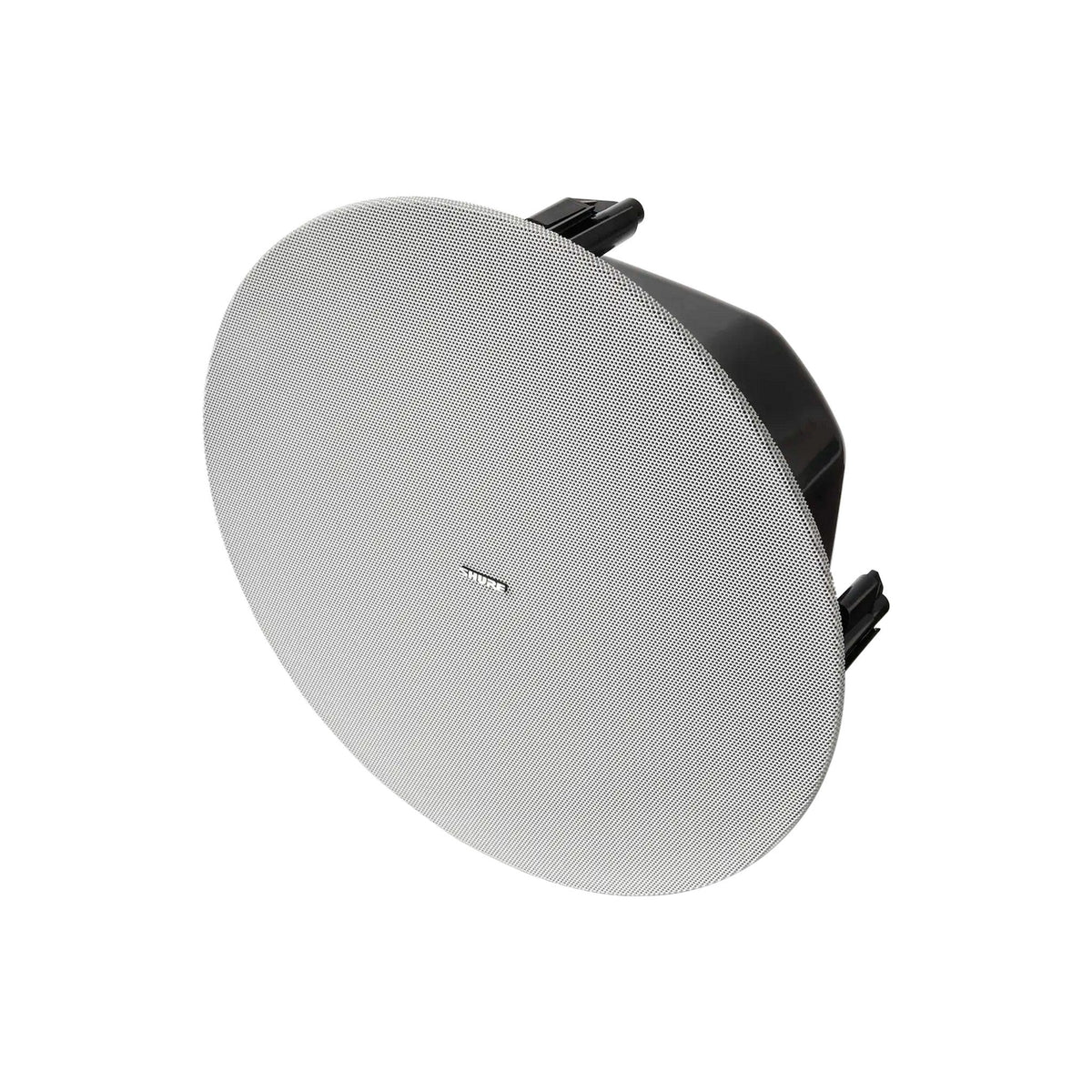

Shure MXP-5 Microflex Ceiling Mount Passive Loudspeaker
The Shure MXP-5 is a shallow depth passive ceiling loudspeaker designed for retrofit in existing meeting rooms. A dual-driver design with a 4 inch main driver and 1 inch neodymium tweeter delivers full-fidelity speech and program audio, and a front switch selects 70/100V or 8 ohm operation. It matches the MXA901 diameter for a clean ceiling in rooms across Dubai, Abu Dhabi and the UAE and GCC.
Key Features:

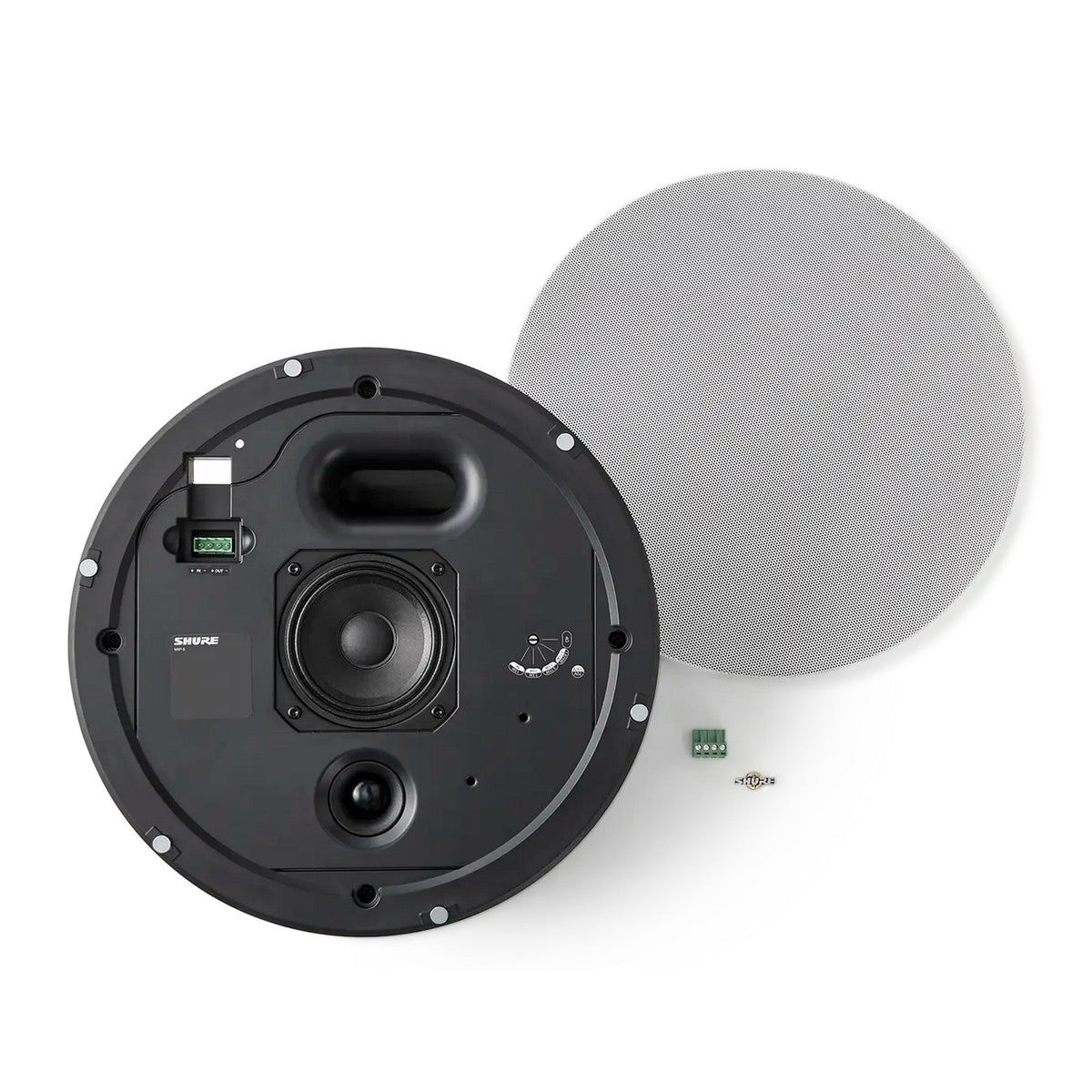

- Dual-driver design: 4 inch main driver and 1 inch neodymium tweeter
- Shallow depth for retrofit and limited ceiling space
- Front faceplate switch for 70/100V or 8 ohm operation
- Voiced identically to the MXP-6 pendant for blended installs
- Similar diameter to the MXA901 ceiling array for a symmetrical ceiling
- Up to eight MXP-5 per MXN-AMP in 70/100V mode
- Optional A-MXP-5-TB tile bridge and A-MXP-5-NCB new construction bracket
Technical Specifications:
| Spec | Value |
|---|---|
| Model | MXP-5W (white) |
| Type | Passive ceiling mount loudspeaker |
| Drivers | 4 in main driver, 1 in neodymium tweeter |
| Operation | 70/100V or 8 ohm, front switch |
| Amplifier Pairing | Up to 8 per MXN-AMP in 70/100V mode |
| Connection | 4-pin block connector |
| Mounting Options | A-MXP-5-TB tile bridge, A-MXP-5-NCB bracket (optional) |
| Finish | White, paintable |
Why Buy the Shure MXP-5 from Trianze Tech?
- Genuine Shure product supplied through authorized channels with local UAE support
- Speaker layout and MXN-AMP amplifier pairing advice for your room
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance from our AV team on system design and compatible Shure accessories
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Both. A switch on the MXP-5 front faceplate selects 70/100V transformer operation or 8 ohm operation, so it works with constant voltage or low impedance systems.
Up to eight MXP-5 loudspeakers can be used with one Shure MXN-AMP PoE+ multichannel amplifier in 70/100V mode.
The MXP-5 uses a 4 inch main driver with a large, well-vented motor and a 1 inch tweeter with a neodymium magnet and heatsink fins, voiced identically to the MXP-6 pendant.
Yes. Its shallow depth suits retrofit and limited ceiling space, and its diameter is similar to the MXA901 so existing tiles can often be reused by enlarging the mounting hole.
Shure offers the A-MXP-5-TB tile bridge and A-MXP-5-NCB new construction bracket. Shure recommends an additional safety tether for overhead components.
Trianze Tech supplies the Shure MXP-5 Ceiling Loudspeaker in Dubai with delivery across the UAE, Abu Dhabi and the GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
