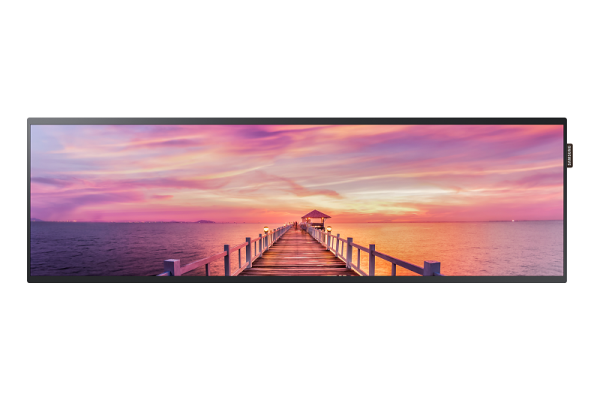

Samsung SH37F SHF Series 37" 32:9 Ultra-Wide Stretched Widescreen 700-Nit 24/7 Professional Commercial Signage LED Display
Samsung SH37F SHF Series 37" 32:9 Ultra-Wide Stretched Widescreen 700-Nit 24/7 Professional Commercial Signage LED Display
Samsung SH37F SHF Series 37" 32:9 Ultra-Wide Stretched Widescreen 700-Nit 24/7 Professional Commercial Signage LED Display
Brand
:
Samsung
Model
:
SH37F (LH37SHFPLBB/EN / LH37SHFPLBB)
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Key Features
The Samsung SH37F represents a significant engineering breakthrough for specialized visual infrastructure across the United Arab Emirates. By departing from the traditional 16:9 aspect ratio, Samsung has provided Dubai’s interior contractors and retail designers with a 32:9 ultra-wide canvas that fits into the narrowest architectural apertures. The SH37F is specifically designed for environments where standard displays are too bulky, such as retail shelf edges, transit wayfinding headers, and elevator interiors. Equipped with a 700-nit high-brightness panel and an advanced non-glare coating, the SHF Series ensures that critical informational messaging and high-end promotional graphics remain perfectly visible from all viewing angles, regardless of the harsh overhead lighting common in GCC shopping centers.
Technical Specifications & Performance Detail
- Global Inventory and Asset Identifiers: Classified officially under the commercial model identifier code SH37F, featuring the primary Middle East manufacturer part number code LH37SHFPLBB/ZN alongside international engineering validation stock codes LH37SHFPLBB/EN and LH37SHFPLBB/GO.
- Visual Panel and Backlight Architecture: Features a specialized 37-inch 32:9 "Stretched" Edge LED professional panel achieving a unique native resolution of 1920 x 540 pixels.
- Luminance and Anti-Glare Properties: Delivers a continuous peak brightness output of 700 nits, complemented by a 44 percent haze anti-reflective coating specifically engineered to diffuse harsh light reflections and maintain high contrast.
- Contrast Performance and Color Depth: Engineered around a native 4000:1 static contrast ratio that utilizes 8-bit color processing to represent 16.7 million unique color coordinates for professional-grade visual accuracy.
- Integrated Processing and Rotation Hardware: Equipped with a built-in image processor that supports a 90-degree image rotation feature, allowing for native portrait-mode content without external graphic cards.
- Physical Enclosure and Mounting Mechanics: Features a slim-profile symmetrical bezel frame measuring 12.0mm (Top/Bottom) and 5.7mm (Left/Right), with centered VESA 200 x 200 millimeter mounting points for flexible spatial positioning.
- Signal and Management Interface Ports: Configured with physical HDMI 2.0 input ports, one DisplayPort 1.2 interface terminal, one downstream USB 2.0 media slot, an industrial RJ-45 Ethernet connection, and dedicated RS-232C control input/output loops.
- Environmental Durability: Certified for 24/7 continuous operation with internal hardware designed to resist dust ingress and thermal accumulation in enclosed specialized niches.
Enterprise Software & UC Platform Ecosystem Compatibility
- Content Management Readiness: Fully validated for native integration with Samsung MagicINFO for specialized ultra-wide content scheduling and remote hardware health monitoring.
- Wayfinding Platform Support: Optimized for integration with professional transport wayfinding and flight information display systems (FIDS) used across UAE transit hubs.
- Automation Control Integration: Direct structural compatibility with Crestron Connected, Extron, and AMX automated boardroom and building control architectures.
Regional Regulatory & Electrical Compliance
- UAE Market Standardization: Fully certified with the UAE Ministry of Industry and Advanced Technology (MoIAT) regulatory safety standards and ESMA requirements.
- Local Power Optimization: Outfitted with a native UK standard 3-pin Type G electrical power cord configured specifically for the UAE national grid (220V - 240V at 50/60Hz).
- International Sign-Off: Holds official international CB Scheme, CE, and RoHS safety certifications for immediate corporate and government facility acceptance.
Logistics, Packaging & Spatial Handling Parameters
- Net Unpacked Hardware Dimensions: Measures a structural width of 924.5 millimeters, a total frame height of 282.8 millimeters, and an absolute physical depth thickness of 39.9 millimeters.
- Gross Protective Shipping Dimensions: Encased in heavy-duty commercial freight boxes tracking an outer shipping layout width of 1030 millimeters, an overall box height of 405 millimeters, and a package depth of 150 millimeters.
- Net Hardware Mass Displacement: Tracks an unmounted, standalone display unit weight of exactly 6.3 kilograms to enable easy installation in custom retail joinery and transport headers.
- Gross Freight Transit Weight Infrastructure: Computes an aggregated total package mass scale of 8.5 kilograms per single boxed asset to ensure seamless freight dispatching through industrial regional logistics routes.
Key Features
The Samsung SH37F represents a significant engineering breakthrough for specialized visual infrastructure across the United Arab Emirates. By departing from the traditional 16:9 aspect ratio, Samsung has provided Dubai’s interior contractors and retail designers with a 32:9 ultra-wide canvas that fits into the narrowest architectural apertures. The SH37F is specifically designed for environments where standard displays are too bulky, such as retail shelf edges, transit wayfinding headers, and elevator interiors. Equipped with a 700-nit high-brightness panel and an advanced non-glare coating, the SHF Series ensures that critical informational messaging and high-end promotional graphics remain perfectly visible from all viewing angles, regardless of the harsh overhead lighting common in GCC shopping centers.
Technical Specifications & Performance Detail
- Global Inventory and Asset Identifiers: Classified officially under the commercial model identifier code SH37F, featuring the primary Middle East manufacturer part number code LH37SHFPLBB/ZN alongside international engineering validation stock codes LH37SHFPLBB/EN and LH37SHFPLBB/GO.
- Visual Panel and Backlight Architecture: Features a specialized 37-inch 32:9 "Stretched" Edge LED professional panel achieving a unique native resolution of 1920 x 540 pixels.
- Luminance and Anti-Glare Properties: Delivers a continuous peak brightness output of 700 nits, complemented by a 44 percent haze anti-reflective coating specifically engineered to diffuse harsh light reflections and maintain high contrast.
- Contrast Performance and Color Depth: Engineered around a native 4000:1 static contrast ratio that utilizes 8-bit color processing to represent 16.7 million unique color coordinates for professional-grade visual accuracy.
- Integrated Processing and Rotation Hardware: Equipped with a built-in image processor that supports a 90-degree image rotation feature, allowing for native portrait-mode content without external graphic cards.
- Physical Enclosure and Mounting Mechanics: Features a slim-profile symmetrical bezel frame measuring 12.0mm (Top/Bottom) and 5.7mm (Left/Right), with centered VESA 200 x 200 millimeter mounting points for flexible spatial positioning.
- Signal and Management Interface Ports: Configured with physical HDMI 2.0 input ports, one DisplayPort 1.2 interface terminal, one downstream USB 2.0 media slot, an industrial RJ-45 Ethernet connection, and dedicated RS-232C control input/output loops.
- Environmental Durability: Certified for 24/7 continuous operation with internal hardware designed to resist dust ingress and thermal accumulation in enclosed specialized niches.
Enterprise Software & UC Platform Ecosystem Compatibility
- Content Management Readiness: Fully validated for native integration with Samsung MagicINFO for specialized ultra-wide content scheduling and remote hardware health monitoring.
- Wayfinding Platform Support: Optimized for integration with professional transport wayfinding and flight information display systems (FIDS) used across UAE transit hubs.
- Automation Control Integration: Direct structural compatibility with Crestron Connected, Extron, and AMX automated boardroom and building control architectures.
Regional Regulatory & Electrical Compliance
- UAE Market Standardization: Fully certified with the UAE Ministry of Industry and Advanced Technology (MoIAT) regulatory safety standards and ESMA requirements.
- Local Power Optimization: Outfitted with a native UK standard 3-pin Type G electrical power cord configured specifically for the UAE national grid (220V - 240V at 50/60Hz).
- International Sign-Off: Holds official international CB Scheme, CE, and RoHS safety certifications for immediate corporate and government facility acceptance.
Logistics, Packaging & Spatial Handling Parameters
- Net Unpacked Hardware Dimensions: Measures a structural width of 924.5 millimeters, a total frame height of 282.8 millimeters, and an absolute physical depth thickness of 39.9 millimeters.
- Gross Protective Shipping Dimensions: Encased in heavy-duty commercial freight boxes tracking an outer shipping layout width of 1030 millimeters, an overall box height of 405 millimeters, and a package depth of 150 millimeters.
- Net Hardware Mass Displacement: Tracks an unmounted, standalone display unit weight of exactly 6.3 kilograms to enable easy installation in custom retail joinery and transport headers.
- Gross Freight Transit Weight Infrastructure: Computes an aggregated total package mass scale of 8.5 kilograms per single boxed asset to ensure seamless freight dispatching through industrial regional logistics routes.
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Book a call
You can purchase the Samsung SH37F directly from the official Trianze Tech B2B e-commerce platform at trianzetech.ae. For enterprise corporate pricing models, regional project quotes, bulk commercial procurement orders, or immediate installation support across Dubai, Abu Dhabi, and the wider GCC region, please reach out directly to our dedicated sales and distribution team via email at avsupport@trianzetech.ae, connect through our official website portal, or call our B2B account support line directly at +971 58 161 3661.
Displays deployed in train terminals, bus depots, or airport walkways are subject to continuous structural building vibration and mechanical shock waves. Standard screens can experience internal weld fractures, bracket fatigue, or panel matrix alignment shifts under these stresses. The SH37F features an IEC 61373 certified design, indicating it has passed industrial shock and vibration testing to ensure reliable 24/7 operations on transit pathways across Africa and the CIS region.
Standard commercial screens typically feature a low 10% to 25% haze coating, which can still allow strong overhead lights to cast clear white reflection patches over text. The SH37F addresses this with an advanced 44% heavy-duty glass haze layer. This dense micro-surface disperses reflections across a much broader angle, ensuring that small text strings, train times, and pricing updates stay completely legible for passengers standing at sharp angles.
Yes. Running wide-format content on legacy monitors often requires an external computer configured with custom graphic resolution software. The SH37F removes this extra point of failure by leveraging the SSSP Gen 3 platform driven by an internal quad-core CPU and MagicINFO Player S3. This integrated hardware platform reads, decodes, and plays native 1920 x 540 stretched files directly from local flash storage, lowering infrastructure costs at sites in Almaty or Cairo.
When mounting a sequence of multiple stretched screens down a long corridor or ticket line, routing separate video cables from a central splitter matrix to each monitor can be a major logistical challenge. The LH37SHFPLBB/EN includes built-in DisplayPort 1.2 input and digital loop-out routing. This allows installation teams to loop an uncompressed video signal from screen to screen down the line sequentially, reducing cable clutter and ensuring perfect content synchronization.
