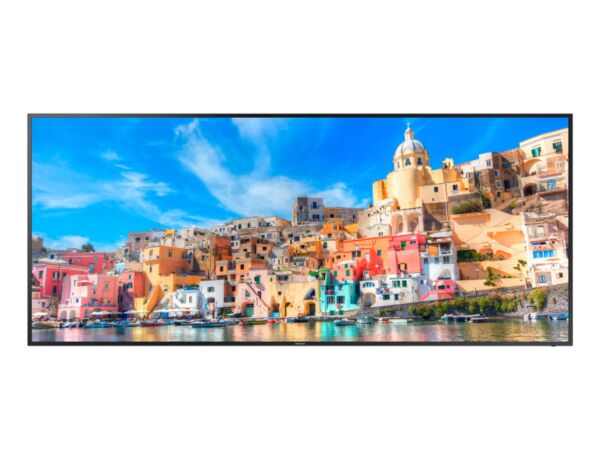

Samsung QM-D Series 105" 5K Ultra HD 21:9 Panoramic Professional 24/7 Commercial Signage LED Display | Dubai, UAE
Samsung QM-D Series 105" 5K Ultra HD 21:9 Panoramic Professional 24/7 Commercial Signage LED Display | Dubai, UAE
Samsung QM-D Series 105" 5K Ultra HD 21:9 Panoramic Professional 24/7 Commercial Signage LED Display | Dubai, UAE
Brand
:
Samsung
Model
:
QM105D (QM105D-G) / LH105QMDNC/UE / LH105QMDNC/EN
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Key Features
The Samsung LH105QMDNC/UE represents a monumental design breakthrough for digital infrastructure across the United Arab Emirates. By shifting the internal hardware layout to a 21:9 panoramic configuration, Samsung has provided Dubai’s executive suites and government situational rooms with a massive canvas that perfectly captures the modern "Front Row" hybrid meeting standard. This ultra-wide format enables simultaneous viewing of life-sized video feeds, interactive chat columns, and ultra-high-resolution presentations on a single, seamless 5K surface. Built on a hardened industrial cooling architecture, the QM-D 105" ensures that massive-scale digital communication remains vibrant and consistent 24 hours a day, providing a prestigious visual anchor for the GCC's most high-profile corporate real estate.
Technical Specifications & Performance Detail
- Global Inventory and Asset Identifiers: Classified officially under the professional flagship model identifier LH105QMDNC/UE, featuring the primary Middle East manufacturer part number code LH105QMDNC/ZN alongside international engineering validation stock codes for GCC and CIS distribution. Trianze Tech maintains local inventory in Dubai to ensure rapid fulfillment for high-value government and institutional project tenders.
- Visual Panel and Backlight Architecture: Features a monumental 105-inch Slim Direct-Lit LED professional-grade panel achieving a native 5K resolution of 5120 x 2160 pixels at a standard 60Hz refresh rate.
- Luminance and Anti-Glare Properties: Delivers a continuous peak brightness output of 450-500 nits, coupled with an advanced anti-reflective glass coating that diffuses harsh light reflections from Dubai’s floor-to-ceiling glass facades to maintain perfect text legibility.
- Contrast Performance and Color Depth: Engineered around a high static contrast ratio utilizing a 10-bit internal color processing engine to represent 1.07 billion unique color coordinates across a professional NTSC spectrum.
- Integrated Multi-Screen Processing: Equipped with a high-performance internal processor that supports Picture-by-Picture (PBP) and Picture-in-Picture (PIP) logic, allowing for up to four separate Full HD signals to be viewed concurrently on one panoramic screen.
- Signal and Management Interface Ports: Configured with physical HDMI 1.4/2.0 input ports, DisplayPort 1.2 interface terminals, industrial RJ-45 Ethernet network connection jacks, and dedicated RS-232C control input/output loops for centralized boardroom automation.
- Physical Enclosure and Mounting Mechanics: Features a symmetrical, ultra-slim professional bezel frame, complemented by heavy-duty, reinforced mounting points calibrated to distribute the weight of the 105-inch panoramic chassis evenly for secure landscape installation.
Enterprise Software & UC Platform Ecosystem Compatibility
- Unified Communications Platform Readiness: Fully validated for native integration with Microsoft Teams Rooms (MTR) Front Row and Zoom Rooms panoramic collaborative experiences in UAE corporate hubs.
- Collaborative Management Support: Native structural compatibility with Samsung VXT and MagicINFO for centralized content scheduling and hardware health monitoring across multi-site regional offices.
- Automation Control Integration: Direct structural compatibility and driver availability for Crestron Connected, Extron IP Link, and AMX automated boardroom control architectures.
Regional Regulatory & Electrical Compliance
- UAE Market Standardization: Fully certified with the UAE Ministry of Industry and Advanced Technology (MoIAT) regulatory safety standards and ESMA requirements.
- Local Power Optimization: Outfitted with a native UK-standard 3-pin Type G electrical power cord specifically configured for the UAE national grid (220V - 240V at 50/60Hz).
- International Facilities Sign-Off: Holds official international CB Scheme, CE, and RoHS safety certifications for immediate corporate and government facility acceptance in Dubai and Abu Dhabi.
Logistics, Packaging & Spatial Handling Parameters
-
- Net Unpacked Hardware Dimensions: Measures a massive structural width of approximately 2490 millimeters, a total frame height of 1095 millimeters, and an absolute physical depth thickness of 64 millimeters.
- Gross Protective Shipping Dimensions: Encased in specialized industrial crates tracking an outer shipping layout width of 2680 millimeters, an overall crate height of 1280 millimeters, and a package depth of 380 millimeters.
- Net Hardware Mass Displacement: Tracks an unmounted, standalone display unit weight of approximately 92.0 kilograms, requiring specialized structural wall reinforcement for UAE fit-out projects.
- Gross Freight Transit Weight Infrastructure: Computes an aggregated total package mass scale of approximately 120.0 kilograms per single crated cargo asset box to ensure seamless freight dispatching through industrial regional logistics routes across the GCC.
Key Features
The Samsung LH105QMDNC/UE represents a monumental design breakthrough for digital infrastructure across the United Arab Emirates. By shifting the internal hardware layout to a 21:9 panoramic configuration, Samsung has provided Dubai’s executive suites and government situational rooms with a massive canvas that perfectly captures the modern "Front Row" hybrid meeting standard. This ultra-wide format enables simultaneous viewing of life-sized video feeds, interactive chat columns, and ultra-high-resolution presentations on a single, seamless 5K surface. Built on a hardened industrial cooling architecture, the QM-D 105" ensures that massive-scale digital communication remains vibrant and consistent 24 hours a day, providing a prestigious visual anchor for the GCC's most high-profile corporate real estate.
Technical Specifications & Performance Detail
- Global Inventory and Asset Identifiers: Classified officially under the professional flagship model identifier LH105QMDNC/UE, featuring the primary Middle East manufacturer part number code LH105QMDNC/ZN alongside international engineering validation stock codes for GCC and CIS distribution. Trianze Tech maintains local inventory in Dubai to ensure rapid fulfillment for high-value government and institutional project tenders.
- Visual Panel and Backlight Architecture: Features a monumental 105-inch Slim Direct-Lit LED professional-grade panel achieving a native 5K resolution of 5120 x 2160 pixels at a standard 60Hz refresh rate.
- Luminance and Anti-Glare Properties: Delivers a continuous peak brightness output of 450-500 nits, coupled with an advanced anti-reflective glass coating that diffuses harsh light reflections from Dubai’s floor-to-ceiling glass facades to maintain perfect text legibility.
- Contrast Performance and Color Depth: Engineered around a high static contrast ratio utilizing a 10-bit internal color processing engine to represent 1.07 billion unique color coordinates across a professional NTSC spectrum.
- Integrated Multi-Screen Processing: Equipped with a high-performance internal processor that supports Picture-by-Picture (PBP) and Picture-in-Picture (PIP) logic, allowing for up to four separate Full HD signals to be viewed concurrently on one panoramic screen.
- Signal and Management Interface Ports: Configured with physical HDMI 1.4/2.0 input ports, DisplayPort 1.2 interface terminals, industrial RJ-45 Ethernet network connection jacks, and dedicated RS-232C control input/output loops for centralized boardroom automation.

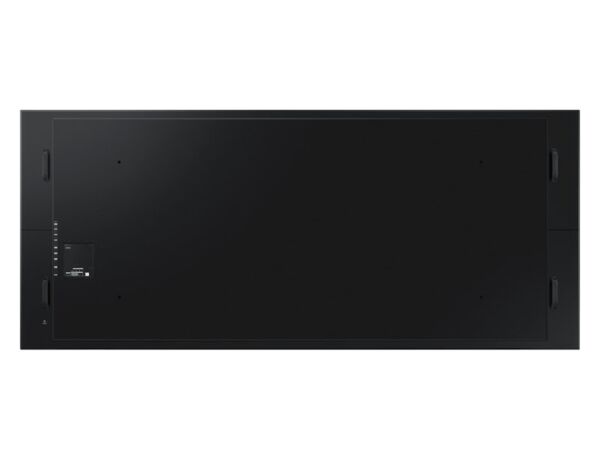

- Physical Enclosure and Mounting Mechanics: Features a symmetrical, ultra-slim professional bezel frame, complemented by heavy-duty, reinforced mounting points calibrated to distribute the weight of the 105-inch panoramic chassis evenly for secure landscape installation.
Enterprise Software & UC Platform Ecosystem Compatibility
- Unified Communications Platform Readiness: Fully validated for native integration with Microsoft Teams Rooms (MTR) Front Row and Zoom Rooms panoramic collaborative experiences in UAE corporate hubs.
- Collaborative Management Support: Native structural compatibility with Samsung VXT and MagicINFO for centralized content scheduling and hardware health monitoring across multi-site regional offices.
- Automation Control Integration: Direct structural compatibility and driver availability for Crestron Connected, Extron IP Link, and AMX automated boardroom control architectures.
Regional Regulatory & Electrical Compliance
- UAE Market Standardization: Fully certified with the UAE Ministry of Industry and Advanced Technology (MoIAT) regulatory safety standards and ESMA requirements.
- Local Power Optimization: Outfitted with a native UK-standard 3-pin Type G electrical power cord specifically configured for the UAE national grid (220V - 240V at 50/60Hz).
- International Facilities Sign-Off: Holds official international CB Scheme, CE, and RoHS safety certifications for immediate corporate and government facility acceptance in Dubai and Abu Dhabi.
Logistics, Packaging & Spatial Handling Parameters
-
- Net Unpacked Hardware Dimensions: Measures a massive structural width of approximately 2490 millimeters, a total frame height of 1095 millimeters, and an absolute physical depth thickness of 64 millimeters.
- Gross Protective Shipping Dimensions: Encased in specialized industrial crates tracking an outer shipping layout width of 2680 millimeters, an overall crate height of 1280 millimeters, and a package depth of 380 millimeters.
- Net Hardware Mass Displacement: Tracks an unmounted, standalone display unit weight of approximately 92.0 kilograms, requiring specialized structural wall reinforcement for UAE fit-out projects.
- Gross Freight Transit Weight Infrastructure: Computes an aggregated total package mass scale of approximately 120.0 kilograms per single crated cargo asset box to ensure seamless freight dispatching through industrial regional logistics routes across the GCC.
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Book a call
You can purchase the Samsung QM-D Series 105" directly from the official Trianze Tech B2B e-commerce platform at trianzetech.ae. For enterprise corporate pricing models, regional project quotes, bulk commercial procurement orders, or immediate installation support across Dubai, Abu Dhabi, and the wider GCC region, please reach out directly to our dedicated sales and distribution team via email at avsupport@trianzetech.ae, connect through our official website portal, or call our B2B account support line directly at +971 58 161 3661.
A standard 16:9 4K screen forces content into a taller frame, requiring you to constantly toggle between application tabs or settle for cropped views during video calls. The 21:9 aspect ratio of the QM105D provides an ultra-wide panoramic canvas. It allows a business to run a standard 16:9 video presentation while leaving an independent, auxiliary 5:9 side space open for persistent data feeds, active video streams, or a live chat column—completely changing the flow of hybrid team collaborations.
Legacy video standards lack the required data bandwidth to carry 5K resolutions (5120 X 2160) at standard operational frame speeds. For instance, running a 5K display over HDMI 1.4 capped the signal at a jerky 30Hz refresh rate, causing mouse cursor trailing and blurred text during data navigation. The QM105D includes dual DisplayPort 1.2 interface slots that natively support full 60Hz uncompressed 5K content streaming, keeping rapid telemetry indicators and scrolling text perfectly crisp.
Displaying multiple separate computer video feeds on a single large screen typically requires purchasing an external hardware multi-window processor or an active matrix switch, which adds hardware costs and cabling complications. The QM105D removes this overhead with an integrated, chip-level Quad-FHD PBP processing matrix. The screen accepts four separate input devices straight into its terminal backplate, cleanly tiling them into four independent 1080p panels on the single 105" screen
The QM105D is a specialized, industrial-grade piece of infrastructure that weighs 108.8 kg (240 lbs) unmounted, with its shipping box reaching 157.7 kg. Because of this significant load, standard office drywall installations require structural reinforcement behind the mount placement area. To support this massive display profile, the panel features a wide VESA 1600 X 600 mm layout. Our team at Trianze Tech includes an engineered, heavy-duty structural mount bundled with the screen to ensure a secure, flush wall installation.
