Samsung QM98C QMC Series 98" UHD 4K 24/7 Professional Smart Signage Commercial Display
Samsung QM98C QMC Series 98" UHD 4K 24/7 Professional Smart Signage Commercial Display
Samsung QM98C QMC Series 98" UHD 4K 24/7 Professional Smart Signage Commercial Display
Brand
:
Samsung
Model
:
QM98C (LH98QMCEBGCXZA / LH98QMCEBGCXUE)
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Key Features

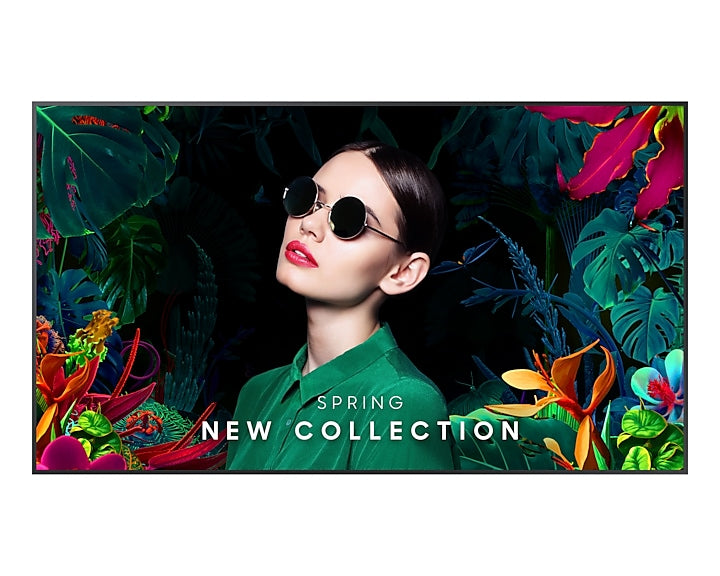

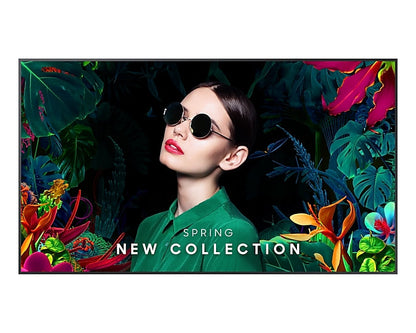

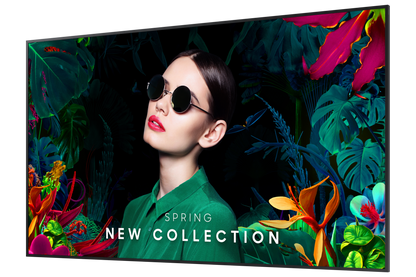

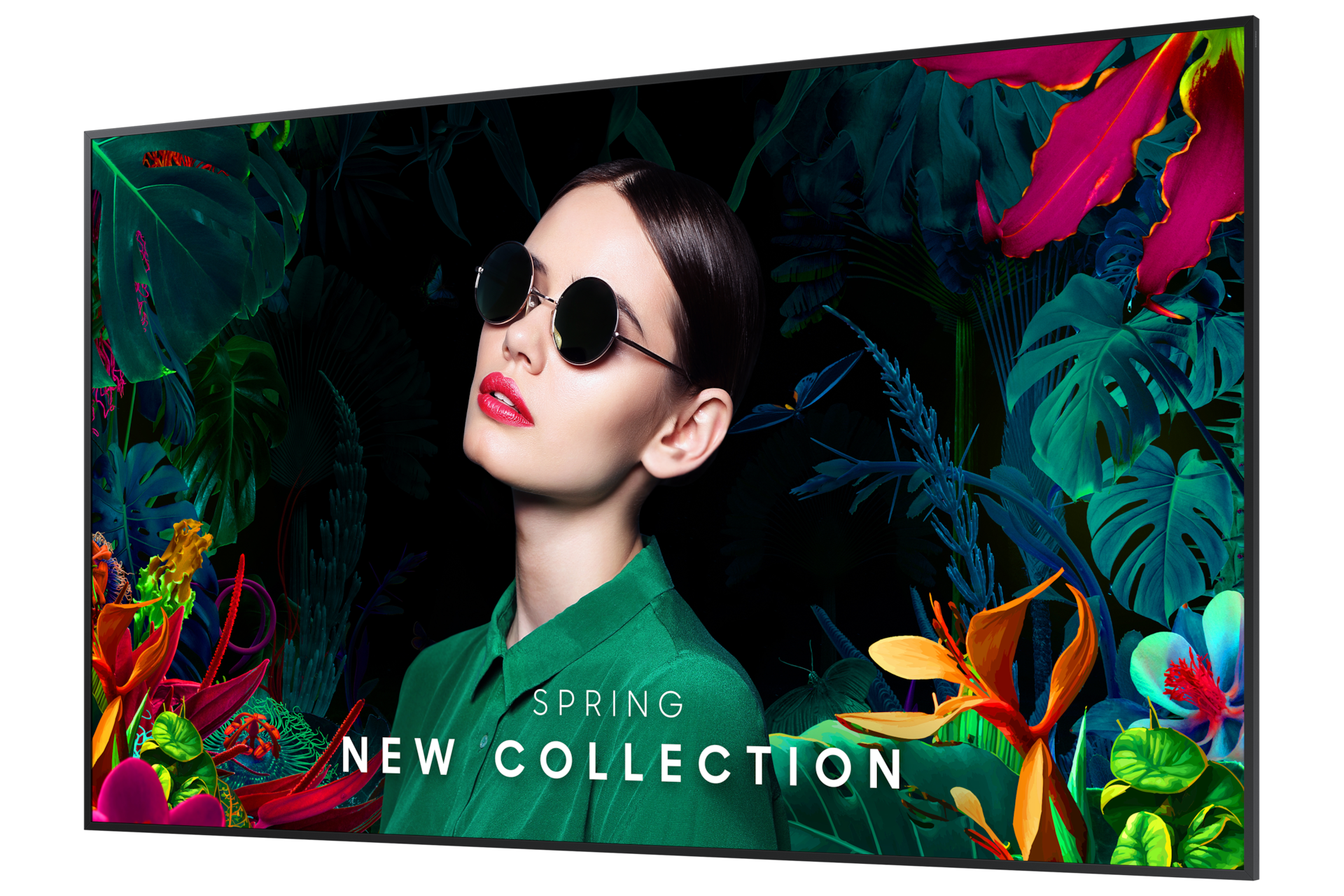

The Samsung QM98C represents a major design breakthrough for large-format digital infrastructure across the United Arab Emirates. By shifting the internal hardware layout, Samsung engineers reduced the structural chassis depth to an industry-leading profile for a 98-inch screen, making it the most sophisticated display in its class. Built-in SmartView+ allows up to four concurrent users to share active client content wirelessly across mixed-operating systems without physical HDMI matrix routing hardware. Additionally, the QM98C features an intelligent 4K AI upscaling engine that enhances legacy content to professional UHD standards, guaranteeing flawless brand compliance across diverse corporate real estate configurations in Dubai and Abu Dhabi.
Technical Specifications & Performance Detail
- Global Inventory and Asset Identifiers: Classified officially under the commercial model identifier code QM98C, featuring the primary Middle East manufacturer part number code LH98QMCEBGCXUE (often referred to locally as the ZN variant) alongside international engineering validation stock codes LH98QMCEBGCXGO and LH98QMCEBGCXXS.
- Visual Panel and Backlight Architecture: Features a monumental 98-inch professional-grade panel that achieves a native resolution of 3840 x 2160 pixels (4K UHD) at a standard 60Hz refresh rate.
- Luminance and Anti-Glare Properties: Delivers a continuous peak brightness output of 450-500 nits, coupled with an advanced 25 percent haze non-glare glass coating that diffuses harsh light reflections to maintain text legibility.
- Contrast Performance and Color Depth: Engineered around a native 4000:1 static contrast ratio that utilizes ten-bit color depth processing to represent over one billion unique color coordinates across the Dynamic Crystal Color spectrum.
- Integrated Computing and SoC Processing: Equipped with an uncompressed Quantum Processor 4K system-on-chip that runs Tizen 7.0 operating system firmware, supported by expanded onboard flash storage memory.

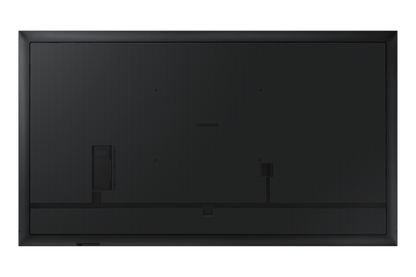

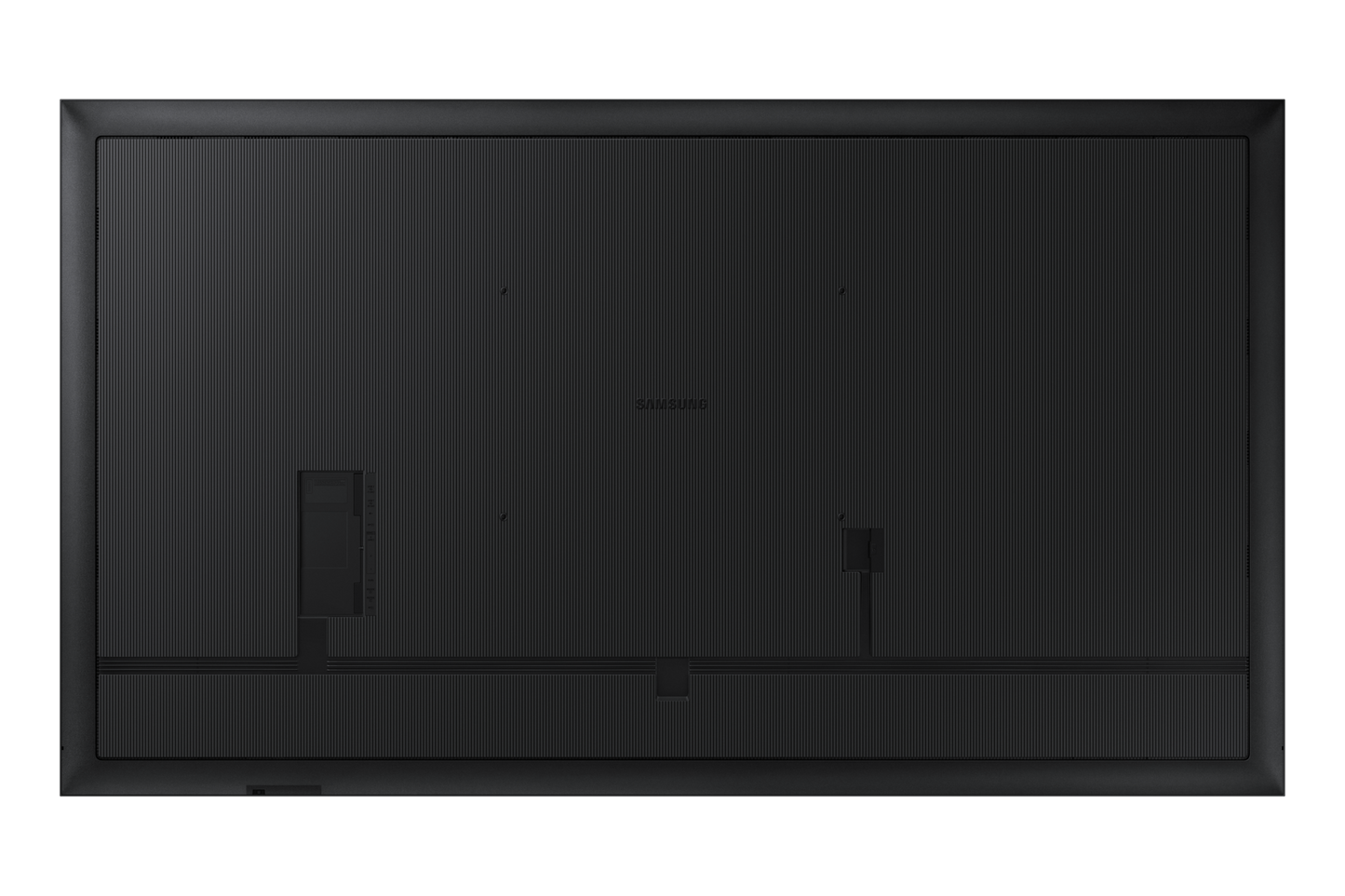

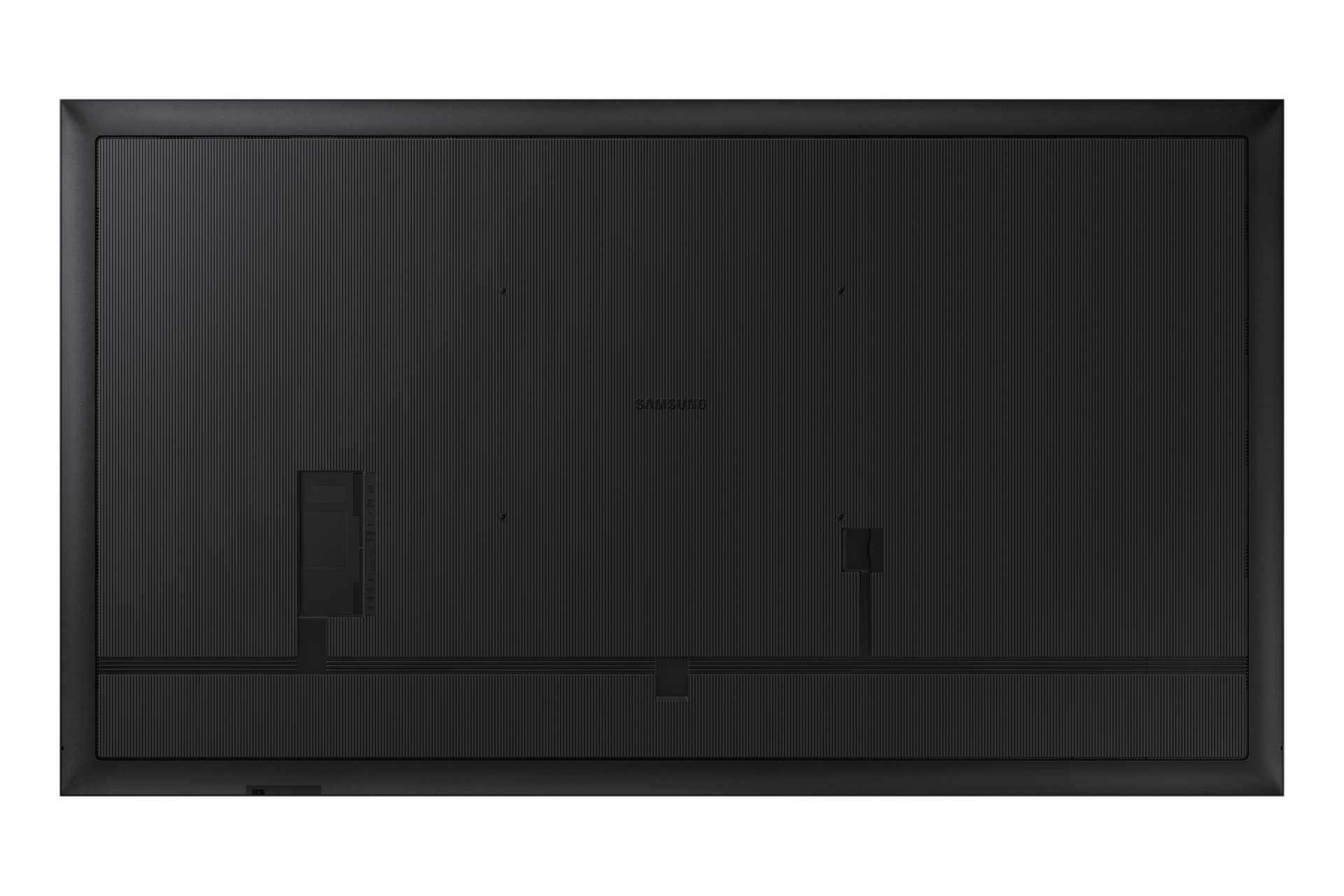

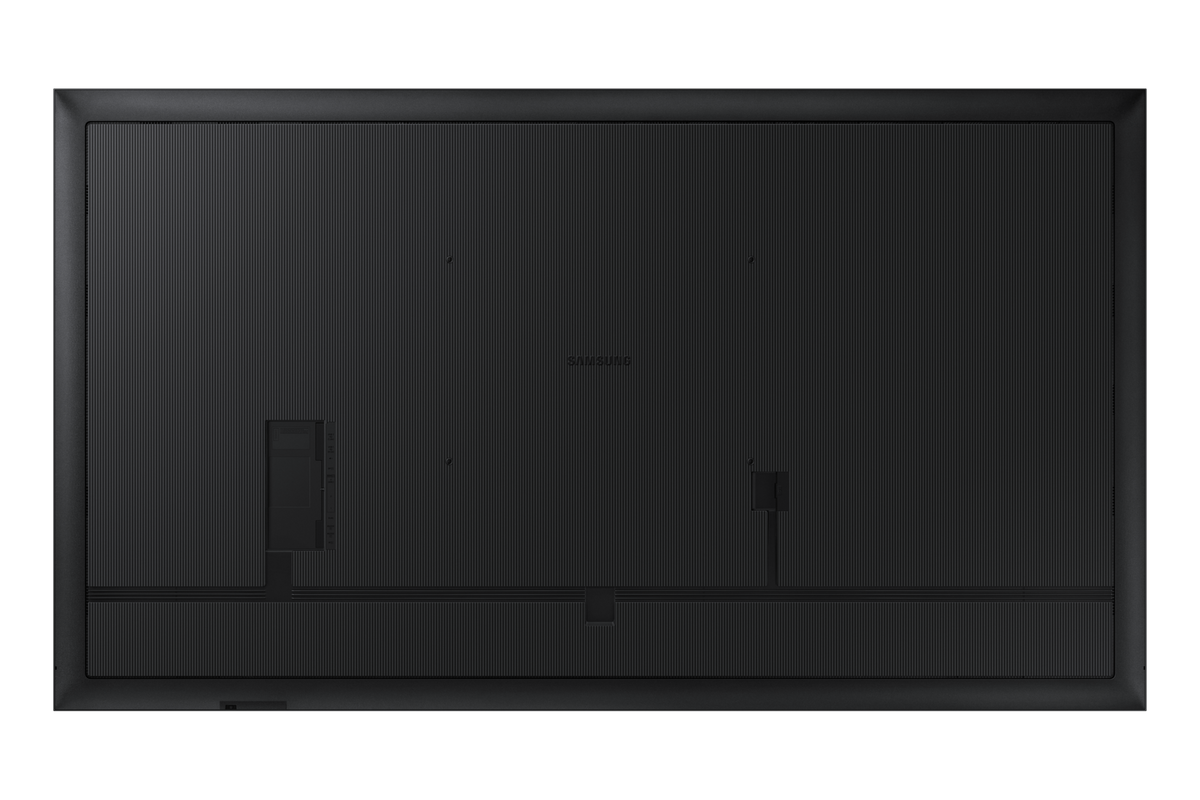

- Physical Enclosure and Mounting Mechanics: Features a symmetrical, even bezel frame designed to minimize visual distraction, complemented by heavy-duty VESA 600 x 400 millimeter physical mounting points calibrated for the weight of the 98-inch chassis.
- Signal and Management Interface Ports: Configured with three physical HDMI 2.0 input ports, one DisplayPort 1.2 interface terminal, two downstream USB 2.0 media slots, an industrial RJ-45 Ethernet connection jack, and dedicated RS-232C control input/output loops.
Enterprise Software & UC Platform Ecosystem Compatibility
- Unified Communications Platform Readiness: Fully validated for native integration with Microsoft Teams Rooms (MTR) and Zoom Rooms hardware configurations as a primary large-format endpoint.
- Collaborative Endpoint Support: Built-in web-engine support for Cisco Webex endpoints and wireless screen-sharing protocols for DIFC executive boardrooms.
- Automation Control Integration: Direct structural compatibility with Crestron Connected, Extron IP Link, and AMX automated boardroom control architectures.
Regional Regulatory & Electrical Compliance
- UAE Market Standardization: Fully certified with the UAE Ministry of Industry and Advanced Technology (MoIAT) regulatory safety standards and ESMA requirements.
- Local Power Optimization: Outfitted with a native UK standard 3-pin Type G electrical power cord configured specifically for the UAE national grid (220V - 240V at 50/60Hz).
- International Sign-Off: Holds official international CB Scheme, CE, and RoHS safety certifications for immediate corporate facility acceptance.
Logistics, Packaging & Spatial Handling Parameters

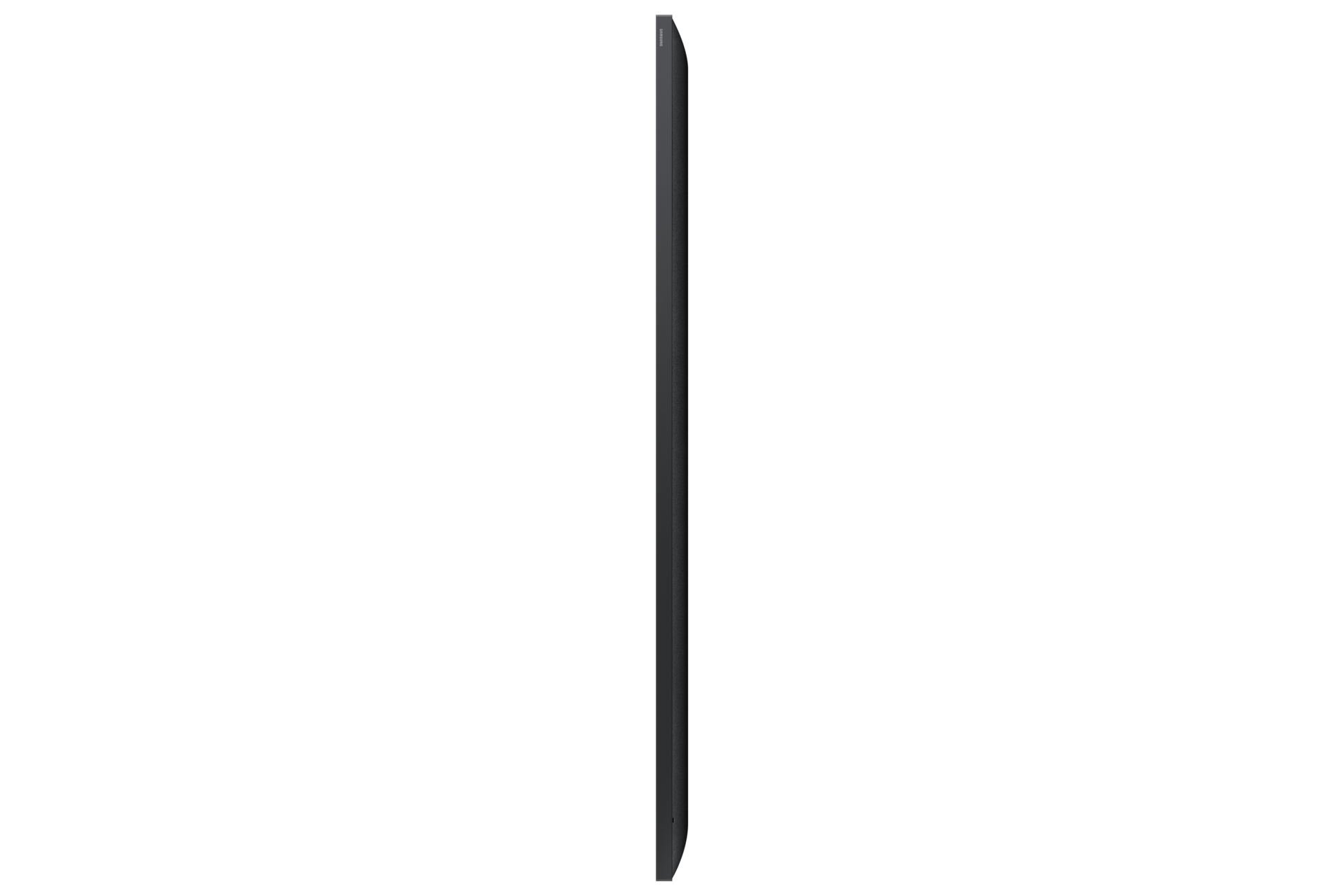

- Net Unpacked Hardware Dimensions: Measures a structural width of 2180.6 millimeters, a total frame height of 1243.9 millimeters, and an absolute physical depth thickness of just 48.4 millimeters.
- Gross Protective Shipping Dimensions: Encased in specialized heavy-duty commercial freight crates tracking an outer shipping layout width of 2369 millimeters, an overall box height of 1405 millimeters, and a package depth of 350 millimeters.
- Net Hardware Mass Displacement: Tracks an unmounted, standalone display unit weight of exactly 54.4 kilograms, ensuring a lighter structural load for high-end UAE interior fit-out projects.
- Gross Freight Transit Weight Infrastructure: Computes an aggregated total package mass scale of approximately 78.4 kilograms per crated cargo box to ensure seamless freight dispatching through industrial regional logistics routes.
Key Features
The Samsung QM98C represents a major design breakthrough for large-format digital infrastructure across the United Arab Emirates. By shifting the internal hardware layout, Samsung engineers reduced the structural chassis depth to an industry-leading profile for a 98-inch screen, making it the most sophisticated display in its class. Built-in SmartView+ allows up to four concurrent users to share active client content wirelessly across mixed-operating systems without physical HDMI matrix routing hardware. Additionally, the QM98C features an intelligent 4K AI upscaling engine that enhances legacy content to professional UHD standards, guaranteeing flawless brand compliance across diverse corporate real estate configurations in Dubai and Abu Dhabi.
Technical Specifications & Performance Detail
- Global Inventory and Asset Identifiers: Classified officially under the commercial model identifier code QM98C, featuring the primary Middle East manufacturer part number code LH98QMCEBGCXUE (often referred to locally as the ZN variant) alongside international engineering validation stock codes LH98QMCEBGCXGO and LH98QMCEBGCXXS.
- Visual Panel and Backlight Architecture: Features a monumental 98-inch professional-grade panel that achieves a native resolution of 3840 x 2160 pixels (4K UHD) at a standard 60Hz refresh rate.
- Luminance and Anti-Glare Properties: Delivers a continuous peak brightness output of 450-500 nits, coupled with an advanced 25 percent haze non-glare glass coating that diffuses harsh light reflections to maintain text legibility.
- Contrast Performance and Color Depth: Engineered around a native 4000:1 static contrast ratio that utilizes ten-bit color depth processing to represent over one billion unique color coordinates across the Dynamic Crystal Color spectrum.
- Integrated Computing and SoC Processing: Equipped with an uncompressed Quantum Processor 4K system-on-chip that runs Tizen 7.0 operating system firmware, supported by expanded onboard flash storage memory.
- Physical Enclosure and Mounting Mechanics: Features a symmetrical, even bezel frame designed to minimize visual distraction, complemented by heavy-duty VESA 600 x 400 millimeter physical mounting points calibrated for the weight of the 98-inch chassis.
- Signal and Management Interface Ports: Configured with three physical HDMI 2.0 input ports, one DisplayPort 1.2 interface terminal, two downstream USB 2.0 media slots, an industrial RJ-45 Ethernet connection jack, and dedicated RS-232C control input/output loops.
Enterprise Software & UC Platform Ecosystem Compatibility
- Unified Communications Platform Readiness: Fully validated for native integration with Microsoft Teams Rooms (MTR) and Zoom Rooms hardware configurations as a primary large-format endpoint.
- Collaborative Endpoint Support: Built-in web-engine support for Cisco Webex endpoints and wireless screen-sharing protocols for DIFC executive boardrooms.
- Automation Control Integration: Direct structural compatibility with Crestron Connected, Extron IP Link, and AMX automated boardroom control architectures.
Regional Regulatory & Electrical Compliance
- UAE Market Standardization: Fully certified with the UAE Ministry of Industry and Advanced Technology (MoIAT) regulatory safety standards and ESMA requirements.
- Local Power Optimization: Outfitted with a native UK standard 3-pin Type G electrical power cord configured specifically for the UAE national grid (220V - 240V at 50/60Hz).
- International Sign-Off: Holds official international CB Scheme, CE, and RoHS safety certifications for immediate corporate facility acceptance.
Logistics, Packaging & Spatial Handling Parameters
- Net Unpacked Hardware Dimensions: Measures a structural width of 2180.6 millimeters, a total frame height of 1243.9 millimeters, and an absolute physical depth thickness of just 48.4 millimeters.
- Gross Protective Shipping Dimensions: Encased in specialized heavy-duty commercial freight crates tracking an outer shipping layout width of 2369 millimeters, an overall box height of 1405 millimeters, and a package depth of 350 millimeters.
- Net Hardware Mass Displacement: Tracks an unmounted, standalone display unit weight of exactly 54.4 kilograms, ensuring a lighter structural load for high-end UAE interior fit-out projects.
- Gross Freight Transit Weight Infrastructure: Computes an aggregated total package mass scale of approximately 78.4 kilograms per crated cargo box to ensure seamless freight dispatching through industrial regional logistics routes.
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Book a call
You can purchase the Samsung QM98C directly from the official Trianze Tech B2B e-commerce platform at trianzetech.ae. For enterprise corporate pricing models, regional project quotes, bulk commercial procurement orders, or immediate installation support across Dubai, Abu Dhabi, and the wider GCC region, please reach out directly to our dedicated sales and distribution team via email at avsupport@trianzetech.ae, connect through our official website portal, or call our B2B account support line directly at +971 58 161 3661.
Standard commercial IPS screens feature a lower static contrast ratio, typically hovering around 1200:1. In brightly lit meeting spaces or dim control rooms, this can cause dark text strings to blend into backgrounds, causing operator eye strain. The QM98C uses an advanced VA panel with an industry-leading 5500:1 static contrast ratio. This deep separation between deep blacks and sharp whites ensures fine telemetry lines and spreadsheets remain perfectly legible.
When rotating standard large displays into portrait layouts, off-center mounting patterns can create uneven weight distribution, causing the screen to tilt forward or warp its frame over time. The mechanical chassis of the QM98C features a perfectly centered VESA hole array ($600 \times 400$ mm). This design evenly distributes its 56.3 kg weight, ensuring complete structural balance and straight alignment whether oriented vertically or horizontally across Africa and the CIS region.
Yes. To project laptop screens simultaneously during collaboration meetings, legacy setups require external wireless receiver boxes, which can introduce connection lag and extra failure points. The QM98C uses Tizen 7.0 Enterprise OS backed by SmartView+ technology. This software allows meeting administrators to wirelessly cast up to four unique user devices (Windows, Android, or iOS) side-by-side natively, streamlining workspace interactions at sites in Almaty or Cairo.
Running a massive display around the clock inside high-traffic transit lines or commercial spaces generates strong static fields that pull floating dust and airborne micro-particles through cooling paths. Over time, internal buildup can insulate circuits, leading to thermal stress and component wear. The QM98C incorporates an IP5X certified dust-proof housing structure that seals off sensitive optical systems, preventing hot spots and ensuring reliable performance over long deployment cycles.
