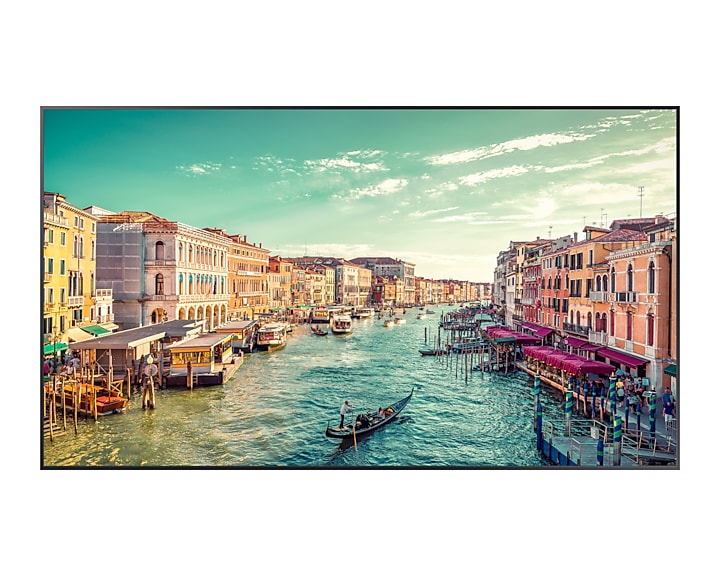

Samsung QM85R QMR Series 85" UHD 4K 500-Nit 24/7 Smart Tizen Professional Commercial Signage LED Display
Samsung QM85R QMR Series 85" UHD 4K 500-Nit 24/7 Smart Tizen Professional Commercial Signage LED Display
Samsung QM85R QMR Series 85" UHD 4K 500-Nit 24/7 Smart Tizen Professional Commercial Signage LED Display
Brand
:
Samsung
Model
:
QM85R (LH85QMRBGCXEN / LH85QMRBGCXGO)
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Key Features
The Samsung QM85R represents a major design breakthrough for large-format visual communication across the United Arab Emirates. By shifting the internal hardware layout to achieve a slim-depth profile, Samsung engineers have created an 85-inch display that integrates seamlessly into high-end retail storefronts and corporate boardrooms without protruding from the wall. The QMR Series is specifically hardened for the GCC climate, utilizing a non-glare panel that diffuses harsh light reflections from Dubai’s floor-to-ceiling glass facades. Built-in SmartView+ allows for wireless screen sharing, making it the definitive choice for collaborative executive suites in DIFC and ADGM where cabling clutter must be eliminated.
Technical Specifications & Performance Detail
- Global Inventory and Asset Identifiers: Classified officially under the professional model identifier code QM85R, featuring the primary Middle East manufacturer part number code LH85QMRPLGC/ZN alongside international engineering validation stock codes LH85QMRPLGC/EN and LH85QMRPLGC/GO.
- Visual Panel and Backlight Architecture: Features a premium 85-inch Edge LED professional-grade panel achieving a native 4K resolution of 3840 x 2160 pixels at a standard 60Hz refresh rate.
- Luminance and Anti-Glare Properties: Delivers a continuous peak brightness output of 500 nits, coupled with an advanced anti-reflective glass coating that diffuses harsh reflections to maintain high contrast levels.
- Contrast Performance and Color Depth: Engineered around a native 4000:1 static contrast ratio that utilizes Dynamic Crystal Color processing to represent over one billion unique color coordinates with 10-bit depth.
- Integrated Computing and SoC Processing: Equipped with a Quad-Core system-on-chip running Tizen 4.0 OS, supported by 8GB of onboard flash storage memory for standalone content scheduling and playback.
- Physical Enclosure and Mounting Mechanics: Features a symmetrical, professional bezel frame measuring just 12.0 millimeters on all sides, complemented by perfectly centered VESA 600 x 400 millimeter mounting points.
- Signal and Management Interface Ports: Configured with two physical HDMI 2.0 input ports, one DisplayPort 1.2 terminal, two downstream USB 2.0 media slots, an industrial RJ-45 Ethernet connection, and dedicated RS-232C control loops.
Enterprise Software & UC Platform Ecosystem Compatibility
- Unified Communications Platform Readiness: Fully validated as a primary visual endpoint for Microsoft Teams Rooms (MTR) and Zoom Rooms conferencing environments.
- Collaborative Management Support: Native structural compatibility with Samsung MagicINFO and VXT for centralized content scheduling across multi-site UAE regional offices.
- Automation Control Integration: Direct structural compatibility with Crestron Connected, Extron IP Link, and AMX automated boardroom control architectures.
Regional Regulatory & Electrical Compliance
- UAE Market Standardization: Fully certified with the UAE Ministry of Industry and Advanced Technology (MoIAT) regulatory safety standards and ESMA requirements.
- Local Power Optimization: Outfitted with a native UK standard 3-pin Type G electrical power cord configured specifically for the UAE national grid (220V - 240V at 50/60Hz).
- International Sign-Off: Holds official international CB Scheme, CE, and RoHS safety certifications for immediate corporate facility acceptance.
Logistics, Packaging & Spatial Handling Parameters
- Net Unpacked Hardware Dimensions: Measures a structural width of 1897.8 millimeters, a total frame height of 1080.8 millimeters, and an absolute physical depth thickness of 56.7 millimeters.
- Gross Protective Shipping Dimensions: Encased in heavy-duty commercial freight boxes tracking an outer shipping layout width of 2090 millimeters, an overall box height of 1247 millimeters, and a package depth of 260 millimeters.
- Net Hardware Mass Displacement: Tracks an unmounted, standalone unit weight of exactly 48.4 kilograms, ensuring manageable installation for specialized wall-mount surfaces.
- Gross Freight Transit Weight Infrastructure: Computes an aggregated total package mass scale of 63.7 kilograms per single boxed asset to ensure seamless freight dispatching through GCC regional logistics routes.
Key Features
The Samsung QM85R represents a major design breakthrough for large-format visual communication across the United Arab Emirates. By shifting the internal hardware layout to achieve a slim-depth profile, Samsung engineers have created an 85-inch display that integrates seamlessly into high-end retail storefronts and corporate boardrooms without protruding from the wall. The QMR Series is specifically hardened for the GCC climate, utilizing a non-glare panel that diffuses harsh light reflections from Dubai’s floor-to-ceiling glass facades. Built-in SmartView+ allows for wireless screen sharing, making it the definitive choice for collaborative executive suites in DIFC and ADGM where cabling clutter must be eliminated.
Technical Specifications & Performance Detail
- Global Inventory and Asset Identifiers: Classified officially under the professional model identifier code QM85R, featuring the primary Middle East manufacturer part number code LH85QMRPLGC/ZN alongside international engineering validation stock codes LH85QMRPLGC/EN and LH85QMRPLGC/GO.
- Visual Panel and Backlight Architecture: Features a premium 85-inch Edge LED professional-grade panel achieving a native 4K resolution of 3840 x 2160 pixels at a standard 60Hz refresh rate.
- Luminance and Anti-Glare Properties: Delivers a continuous peak brightness output of 500 nits, coupled with an advanced anti-reflective glass coating that diffuses harsh reflections to maintain high contrast levels.
- Contrast Performance and Color Depth: Engineered around a native 4000:1 static contrast ratio that utilizes Dynamic Crystal Color processing to represent over one billion unique color coordinates with 10-bit depth.
- Integrated Computing and SoC Processing: Equipped with a Quad-Core system-on-chip running Tizen 4.0 OS, supported by 8GB of onboard flash storage memory for standalone content scheduling and playback.
- Physical Enclosure and Mounting Mechanics: Features a symmetrical, professional bezel frame measuring just 12.0 millimeters on all sides, complemented by perfectly centered VESA 600 x 400 millimeter mounting points.
- Signal and Management Interface Ports: Configured with two physical HDMI 2.0 input ports, one DisplayPort 1.2 terminal, two downstream USB 2.0 media slots, an industrial RJ-45 Ethernet connection, and dedicated RS-232C control loops.
Enterprise Software & UC Platform Ecosystem Compatibility
- Unified Communications Platform Readiness: Fully validated as a primary visual endpoint for Microsoft Teams Rooms (MTR) and Zoom Rooms conferencing environments.
- Collaborative Management Support: Native structural compatibility with Samsung MagicINFO and VXT for centralized content scheduling across multi-site UAE regional offices.
- Automation Control Integration: Direct structural compatibility with Crestron Connected, Extron IP Link, and AMX automated boardroom control architectures.
Regional Regulatory & Electrical Compliance
- UAE Market Standardization: Fully certified with the UAE Ministry of Industry and Advanced Technology (MoIAT) regulatory safety standards and ESMA requirements.
- Local Power Optimization: Outfitted with a native UK standard 3-pin Type G electrical power cord configured specifically for the UAE national grid (220V - 240V at 50/60Hz).
- International Sign-Off: Holds official international CB Scheme, CE, and RoHS safety certifications for immediate corporate facility acceptance.
Logistics, Packaging & Spatial Handling Parameters
- Net Unpacked Hardware Dimensions: Measures a structural width of 1897.8 millimeters, a total frame height of 1080.8 millimeters, and an absolute physical depth thickness of 56.7 millimeters.
- Gross Protective Shipping Dimensions: Encased in heavy-duty commercial freight boxes tracking an outer shipping layout width of 2090 millimeters, an overall box height of 1247 millimeters, and a package depth of 260 millimeters.
- Net Hardware Mass Displacement: Tracks an unmounted, standalone unit weight of exactly 48.4 kilograms, ensuring manageable installation for specialized wall-mount surfaces.
- Gross Freight Transit Weight Infrastructure: Computes an aggregated total package mass scale of 63.7 kilograms per single boxed asset to ensure seamless freight dispatching through GCC regional logistics routes.
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Book a call
You can purchase the Samsung QM85R directly from the official Trianze Tech B2B e-commerce platform at trianzetech.ae. For enterprise corporate pricing models, regional project quotes, bulk commercial procurement orders, or immediate installation support across Dubai, Abu Dhabi, and the wider GCC region, please reach out directly to our dedicated sales and distribution team via email at avsupport@trianzetech.ae, connect through our official website portal, or call our B2B account support line directly at +971 58 161 3661.
Standard large-format displays often feature deep, bulky housings that jut out past 100mm from walls, creating physical obstacles that can violate local accessibility safety regulations. The QM85R packs its direct-lit panel and Tizen smart processor into an ultra-slim 49.1mm chassis thickness profile. Combined with a symmetrical 13.9mm even bezel, this design ensures a flat, low-profile wall installation that keeps public walkways clear across Africa and the CIS region.
Modern corporate offices and transit centers use high-output LED overhead lights or feature floor-to-ceiling glass windows that can cast blinding mirror reflections onto glossy screens. The QM85R features an advanced 28% anti-glare haze surface coating that scatters incoming light reflection blocks evenly across the screen. This allows operators and visitors to easily read data charts and text without struggling against distracting glare blooms.
Yes. Running external computers behind multiple screens creates physical cable vulnerabilities and exposes networks to operating system entry points. The QM85R eliminates these hazards by using an embedded Tizen 4.0 Smart SoC Platform backed by Knox hardware-level security protection. Knox secures the root system directory, shields active data streams, and isolates application environments, ensuring full network compliance at corporate sites in Almaty or Cairo.
When setting up multiple large informational screens across a public space or venue, running individual video lines back to a central matrix controller can dramatically increase your cabling costs. The LH85QMRBGCXEN includes hardware-accelerated HDMI 2.0 input and digital loop-out routing. This allows installation crews to pipe an uncompressed 4K master signal into the first panel and cascade it down the display line sequentially, ensuring perfectly synchronized content playback with minimal cable clutter.
