Samsung QM85R-B QMR-B Series 85" Crystal UHD 4K 500-Nit 24/7 Smart Professional Commercial Signage LED Display | Dubai UAE
Samsung QM85R-B QMR-B Series 85" Crystal UHD 4K 500-Nit 24/7 Smart Professional Commercial Signage LED Display | Dubai UAE
Samsung QM85R-B QMR-B Series 85" Crystal UHD 4K 500-Nit 24/7 Smart Professional Commercial Signage LED Display | Dubai UAE
Brand
:
Samsung
Model
:
QM85R-B (QM85RB / LH85QMRBPGCXZA / LH85QMRBPGCXUE)
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Key Features

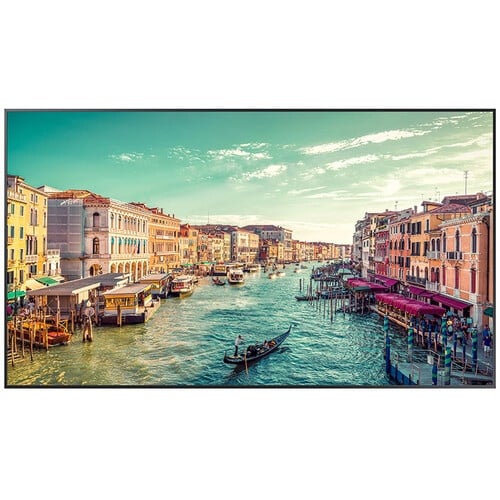

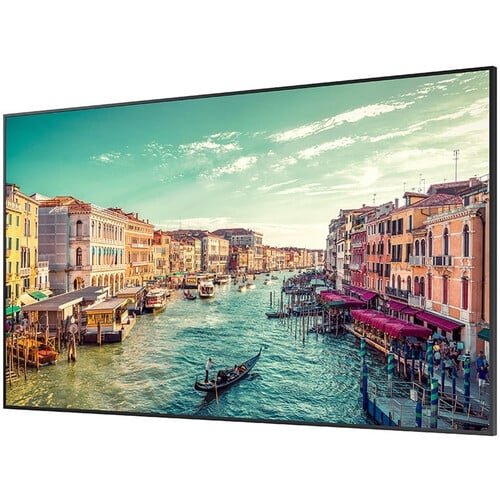

The Samsung QM85R-B represents a major design breakthrough for large-format digital infrastructure across the United Arab Emirates. By shifting the internal hardware layout to achieve a slim-depth profile, Samsung engineers have created an 85-inch display that integrates seamlessly into high-end retail storefronts and corporate boardrooms without protruding from the wall. The QMR-B Series is specifically hardened for the GCC climate, utilizing a non-glare panel that diffuses harsh light reflections from Dubai’s floor-to-ceiling glass facades. Built-in SmartView+ allows for wireless screen sharing, making it the definitive choice for collaborative executive suites in DIFC and ADGM where cabling clutter must be eliminated.
Technical Specifications & Performance Detail
- Global Inventory and Asset Identifiers: Classified officially under the commercial model identifier code QM85R-B, featuring the primary Middle East manufacturer part number code LH85QMRBPGC/ZN (frequently designated as the regional MG variant) alongside international engineering validation stock codes LH85QMRBPGC/EN and LH85QMRBPGC/GO.
- Visual Panel and Backlight Architecture: Features a premium 85-inch Edge LED professional-grade panel achieving a native 4K resolution of 3840 x 2160 pixels at a standard 60Hz refresh rate.
- Luminance and Anti-Glare Properties: Delivers a continuous peak brightness output of 500 nits, coupled with an advanced anti-reflective coating that diffuses harsh reflections to maintain high contrast levels in brightly lit UAE venues.
- Contrast Performance and Color Depth: Engineered around a native 4000:1 static contrast ratio utilizing Dynamic Crystal Color processing to represent over one billion unique color coordinates across a 10-bit spectrum.
- Integrated Computing and SoC Processing: Equipped with an uncompressed Crystal Processor 4K system-on-chip that runs Tizen 4.0 operating system firmware, supported by 8 gigabytes of onboard flash storage memory.
- Physical Enclosure and Mounting Mechanics: Features a symmetrical, professional bezel frame measuring just 12.0 millimeters on all sides, complemented by perfectly centered VESA 600 x 400 millimeter physical mounting points.
- Signal and Management Interface Ports: Configured with two physical HDMI 2.0 input ports, one DisplayPort 1.2 terminal, two downstream USB 2.0 media slots, an industrial RJ-45 Ethernet connection, and dedicated RS-232C control input/output loops.
Enterprise Software & UC Platform Ecosystem Compatibility
- Unified Communications Platform Readiness: Fully validated as a primary visual endpoint for Microsoft Teams Rooms (MTR) and Zoom Rooms conferencing environments.
- Collaborative Management Support: Native structural compatibility with Samsung VXT and MagicINFO for centralized content scheduling and remote hardware health monitoring across UAE regional offices.
- Automation Control Integration: Direct structural compatibility with Crestron Connected, Extron IP Link, and AMX automated boardroom control architectures.
Regional Regulatory & Electrical Compliance
- UAE Market Standardization: Fully certified with the UAE Ministry of Industry and Advanced Technology (MoIAT) regulatory safety standards and ESMA requirements.
- Local Power Optimization: Outfitted with a native UK standard 3-pin Type G electrical power cord configured specifically for the UAE national grid (220V - 240V at 50/60Hz).
- International Sign-Off: Holds official international CB Scheme, CE, and RoHS safety certifications for immediate corporate facility acceptance.
Logistics, Packaging & Spatial Handling Parameters

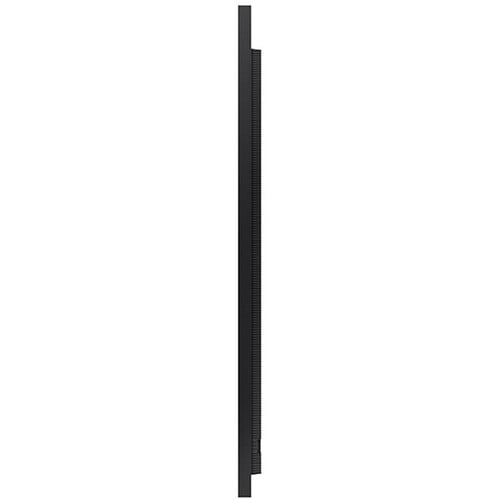

- Net Unpacked Hardware Dimensions: Measures a structural width of 1897.8 millimeters, a total frame height of 1080.8 millimeters, and an absolute physical depth thickness of 56.7 millimeters.
- Gross Protective Shipping Dimensions: Encased in heavy-duty commercial freight boxes tracking an outer shipping layout width of 2090 millimeters, an overall box height of 1247 millimeters, and a package depth of 260 millimeters.
- Net Hardware Mass Displacement: Tracks an unmounted, standalone display unit weight of exactly 48.4 kilograms, ensuring manageable installation for specialized wall-mount surfaces.
- Gross Freight Transit Weight Infrastructure: Computes an aggregated total package mass scale of 63.7 kilograms per single boxed asset to ensure seamless freight dispatching through GCC regional logistics routes.
Key Features
The Samsung QM85R-B represents a major design breakthrough for large-format digital infrastructure across the United Arab Emirates. By shifting the internal hardware layout to achieve a slim-depth profile, Samsung engineers have created an 85-inch display that integrates seamlessly into high-end retail storefronts and corporate boardrooms without protruding from the wall. The QMR-B Series is specifically hardened for the GCC climate, utilizing a non-glare panel that diffuses harsh light reflections from Dubai’s floor-to-ceiling glass facades. Built-in SmartView+ allows for wireless screen sharing, making it the definitive choice for collaborative executive suites in DIFC and ADGM where cabling clutter must be eliminated.
Technical Specifications & Performance Detail
- Global Inventory and Asset Identifiers: Classified officially under the commercial model identifier code QM85R-B, featuring the primary Middle East manufacturer part number code LH85QMRBPGC/ZN (frequently designated as the regional MG variant) alongside international engineering validation stock codes LH85QMRBPGC/EN and LH85QMRBPGC/GO.
- Visual Panel and Backlight Architecture: Features a premium 85-inch Edge LED professional-grade panel achieving a native 4K resolution of 3840 x 2160 pixels at a standard 60Hz refresh rate.
- Luminance and Anti-Glare Properties: Delivers a continuous peak brightness output of 500 nits, coupled with an advanced anti-reflective coating that diffuses harsh reflections to maintain high contrast levels in brightly lit UAE venues.
- Contrast Performance and Color Depth: Engineered around a native 4000:1 static contrast ratio utilizing Dynamic Crystal Color processing to represent over one billion unique color coordinates across a 10-bit spectrum.
- Integrated Computing and SoC Processing: Equipped with an uncompressed Crystal Processor 4K system-on-chip that runs Tizen 4.0 operating system firmware, supported by 8 gigabytes of onboard flash storage memory.
- Physical Enclosure and Mounting Mechanics: Features a symmetrical, professional bezel frame measuring just 12.0 millimeters on all sides, complemented by perfectly centered VESA 600 x 400 millimeter physical mounting points.
- Signal and Management Interface Ports: Configured with two physical HDMI 2.0 input ports, one DisplayPort 1.2 terminal, two downstream USB 2.0 media slots, an industrial RJ-45 Ethernet connection, and dedicated RS-232C control input/output loops.
Enterprise Software & UC Platform Ecosystem Compatibility
- Unified Communications Platform Readiness: Fully validated as a primary visual endpoint for Microsoft Teams Rooms (MTR) and Zoom Rooms conferencing environments.
- Collaborative Management Support: Native structural compatibility with Samsung VXT and MagicINFO for centralized content scheduling and remote hardware health monitoring across UAE regional offices.
- Automation Control Integration: Direct structural compatibility with Crestron Connected, Extron IP Link, and AMX automated boardroom control architectures.
Regional Regulatory & Electrical Compliance
- UAE Market Standardization: Fully certified with the UAE Ministry of Industry and Advanced Technology (MoIAT) regulatory safety standards and ESMA requirements.
- Local Power Optimization: Outfitted with a native UK standard 3-pin Type G electrical power cord configured specifically for the UAE national grid (220V - 240V at 50/60Hz).
- International Sign-Off: Holds official international CB Scheme, CE, and RoHS safety certifications for immediate corporate facility acceptance.
Logistics, Packaging & Spatial Handling Parameters
- Net Unpacked Hardware Dimensions: Measures a structural width of 1897.8 millimeters, a total frame height of 1080.8 millimeters, and an absolute physical depth thickness of 56.7 millimeters.
- Gross Protective Shipping Dimensions: Encased in heavy-duty commercial freight boxes tracking an outer shipping layout width of 2090 millimeters, an overall box height of 1247 millimeters, and a package depth of 260 millimeters.
- Net Hardware Mass Displacement: Tracks an unmounted, standalone display unit weight of exactly 48.4 kilograms, ensuring manageable installation for specialized wall-mount surfaces.
- Gross Freight Transit Weight Infrastructure: Computes an aggregated total package mass scale of 63.7 kilograms per single boxed asset to ensure seamless freight dispatching through GCC regional logistics routes.
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Book a call
You can purchase the Samsung QM85R-B directly from the official Trianze Tech B2B e-commerce platform at trianzetech.ae. For enterprise corporate pricing models, regional project quotes, bulk commercial procurement orders, or immediate installation support across Dubai, Abu Dhabi, and the wider GCC region, please reach out directly to our dedicated sales and distribution team via email at avsupport@trianzetech.ae, connect through our official website portal, or call our B2B account support line directly at +971 58 161 3661.
Procuring professional 85-inch commercial screens requires strict transport protocols due to their significant physical scale and a 48.4 kg net set weight. Moving these panels requires specific measures to prevent panel flexing or glass fractures during transit. By centralizing operations at our Dubai office, TrianzeTech manages localized quality checks, applies reinforced dual-pallet industrial crating, and handles targeted customs documentation. This reduces transit times and eliminates delivery complications for projects expanding into Cairo, Almaty, and the wider CIS territory.
Setting up multiple smaller screens to cover a large space requires complex matrix video controllers, visible alignment brackets, and creates distracting grid lines (bezels) right down the center of your imagery. The single 85-inch QM85R-B provides an unbroken, ultra-narrow bezel visual canvas that avoids alignment or color drifts over time, cuts installation time in half, and eliminates the multi-display calibration maintenance loop.
Large corporate spaces, shopping malls, and bank lobbies feature extensive glass curtain walls and intense overhead lighting grids that can create blinding mirror-like reflection blooms over large display areas. The QM85R-B uses a premium 25% anti-glare haze coating across its front surface glass. This scattering architecture diffuses incoming light paths evenly, ensuring scheduling charts and critical brand media stay perfectly legible from any viewing angle.
Running external media players behind wall-mounted displays requires extra cabling and leaves external OS platforms open to security vulnerabilities. The QM85R-B resolves this via its SSSP 6.0 platform running Tizen 4.0, integrated with multi-layered Samsung Knox security. Knox wraps firmware pathways in strict encryption, isolates operational directories, and blocks unverified external communication ports, ensuring compliance with strict corporate IT security protocols.
