Key Features

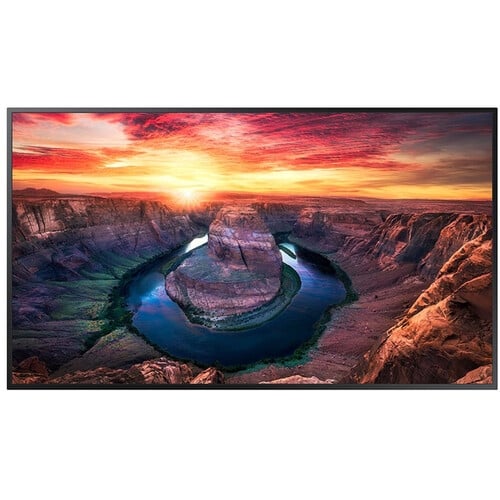

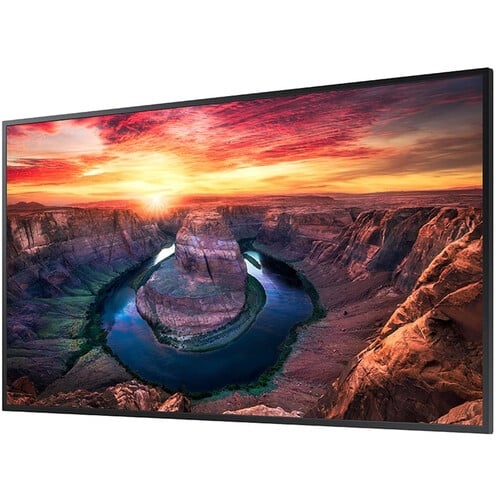

The Samsung QM75B represents a major design breakthrough for enterprise-level visual communication and professional Unified Communications (UC) across the United Arab Emirates. By shifting the internal hardware layout, Samsung engineers reduced the structural chassis depth to just 48.3 millimeters, making it significantly slimmer than its predecessors for a sophisticated, flush-mount aesthetic. The QMB Series is specifically hardened for the GCC climate, utilizing an industrial-grade thermal management system and IP5X-certified dust shielding. Built-in SmartView+ allows up to four concurrent users to share active client content wirelessly across mixed-operating systems, guaranteeing flawless brand compliance and collaborative efficiency in high-profile corporate real estate configurations.

Technical Specifications & Performance Detail

• Global Inventory and Asset Identifiers: Classified officially under the professional multipurpose model code QM75B, featuring the primary Middle East manufacturer part number code LH75QMBBGCXUE (frequently designated as the ZN or MG regional variant) alongside international engineering validation stock codes LH75QMBBGCXGO and LH75QMBBGCXXS. Trianze Tech maintains local stock variants to ensure rapid fulfillment for regional GCC and CIS project tenders.
• Visual Panel and Backlight Architecture: Features a premium 75-inch Edge LED professional-grade panel achieving a native 4K UHD resolution of 3840 x 2160 pixels. The display utilizes a 60Hz refresh rate and a rapid 8ms response time to ensure fluid motion for both high-end promotional video and detailed data visualization.
• Luminance and Anti-Glare Properties: Delivers a continuous peak brightness output of 500 nits (cd/m²), engineered specifically to remain visible in brightly lit UAE corporate atriums. The panel is outfitted with an advanced 25 percent haze non-glare glass coating that effectively diffuses harsh light reflections from floor-to-ceiling glass facades without sacrificing color depth.
• Contrast Performance and Color Depth: Engineered around a native 4000:1 static contrast ratio that utilizes Dynamic Crystal Color processing. This architecture is capable of representing 1.07 billion unique color coordinates across a 10-bit spectrum, providing the chromatic accuracy required for brand-sensitive retail and corporate assets.
• Integrated Computing and SoC Processing: Equipped with an uncompressed Quantum Processor 4K system-on-chip (SoC) running the Tizen 6.5 operating system. This onboard computing engine is supported by 16 gigabytes of onboard flash storage memory, allowing for standalone content scheduling and playback without the need for external media players.
• Physical Enclosure and Mounting Mechanics: Features a sophisticated symmetrical bezel frame measuring exactly 11.5 millimeters. This slim-profile chassis is complemented by perfectly centered VESA 400 x 400 millimeter physical mounting points, specifically designed to distribute the display weight of 36.3 kilograms evenly for secure structural installation on UAE interior fit-out wall systems.
• Signal and Management Interface Ports: Configured with three physical HDMI 2.0 (HDCP 2.2) input ports, one DisplayPort 1.2 interface terminal, and two downstream USB 2.0 media slots. Control and automation are managed via an industrial RJ-45 Ethernet network connection jack and dedicated RS-232C control input/output loops for integration with centralized boardroom systems.

Enterprise Software & UC Platform Ecosystem Compatibility

• Unified Communications Platform Readiness: Specifically certified and validated for native integration with Cisco Webex Room Kits, allowing the display to be automatically recognized and configured by the Cisco codec for optimized video conferencing.
• Collaborative Endpoint Support: Fully compatible with professional software ecosystems such as Microsoft Teams Rooms (MTR), Zoom Rooms, and Cisco Webex, as well as native web-engine support for wireless screen-sharing protocols.
• Automation Control Integration: Direct structural compatibility and driver availability for Crestron Connected, Extron IP Link, and AMX automated boardroom control architectures.

Regional Regulatory & Electrical Compliance

• UAE Market Standardization: Fully certified with the UAE Ministry of Industry and Advanced Technology (MoIAT) regulatory safety standards and the Emirates Authority for Standardization and Metrology (ESMA).
• Local Power Optimization: Outfitted with a native UK-standard 3-pin Type G electrical power cord specifically configured for the UAE national grid (220V - 240V at 50/60Hz).
• International Facilities Sign-Off: Holds official international CB Scheme, CE, and RoHS safety markers, ensuring immediate corporate facility acceptance for high-tier Dubai and Abu Dhabi real estate.

Logistics, Packaging & Spatial Handling Parameters

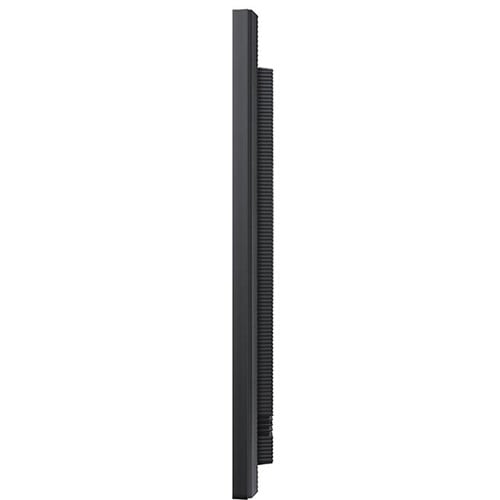

• Net Unpacked Hardware Dimensions: Measures a structural width of 1681.1 millimeters, a total frame height of 960.1 millimeters, and an absolute physical depth thickness of 48.3 millimeters.
• Gross Protective Shipping Dimensions: Encased in heavy-duty commercial freight boxes tracking an outer shipping layout width of 1871 millimeters, an overall box height of 1127 millimeters, and a package depth thickness of 223 millimeters.
• Net Hardware Mass Displacement: Tracks an unmounted, standalone display unit weight of exactly 36.3 kilograms, requiring specialized wall reinforcement for large-scale UAE corporate project sites.
• Gross Freight Transit Weight Infrastructure: Computes an aggregated total package mass scale of 48.3 kilograms per single crated cargo asset box to ensure seamless freight dispatching through industrial regional logistics routes across the GCC.
