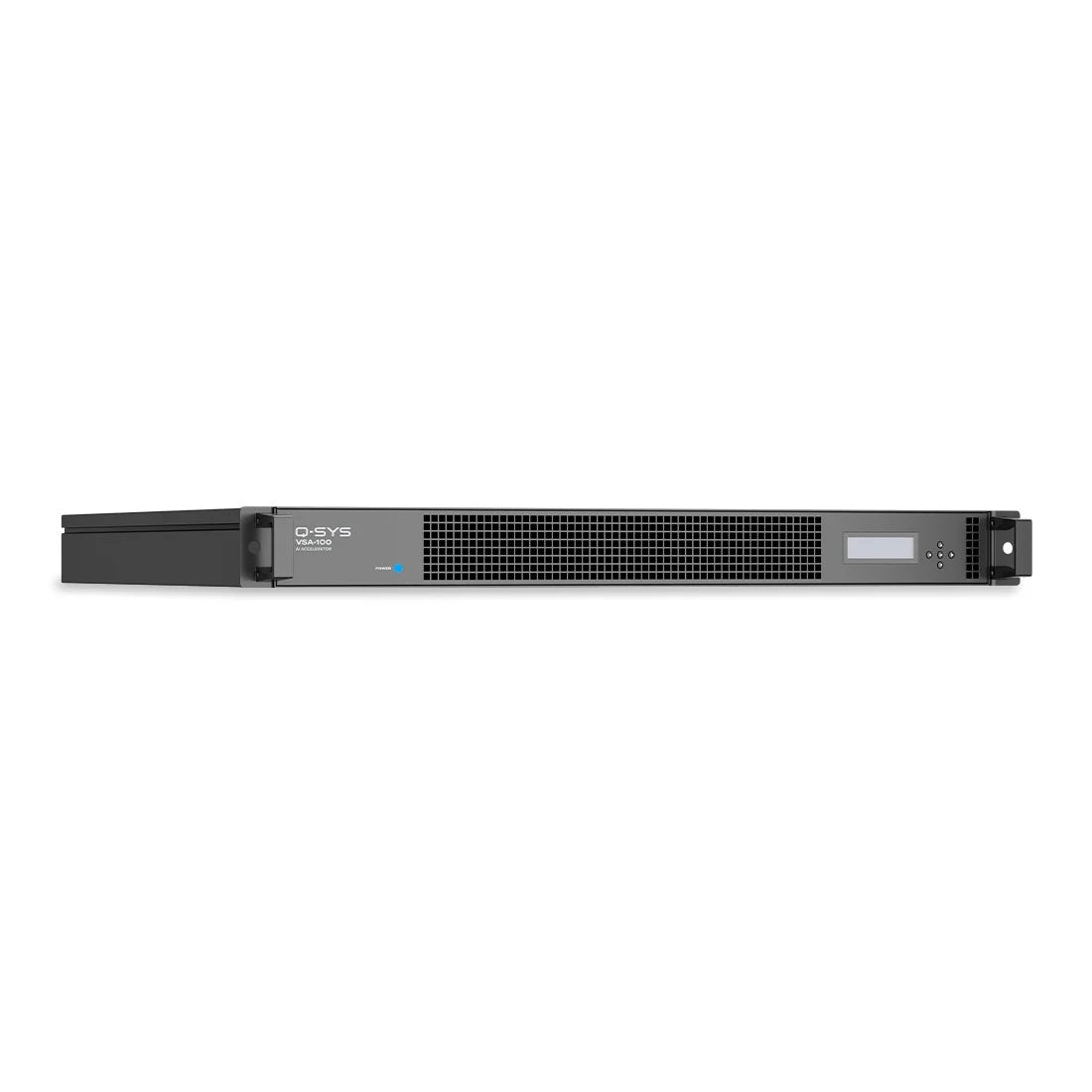

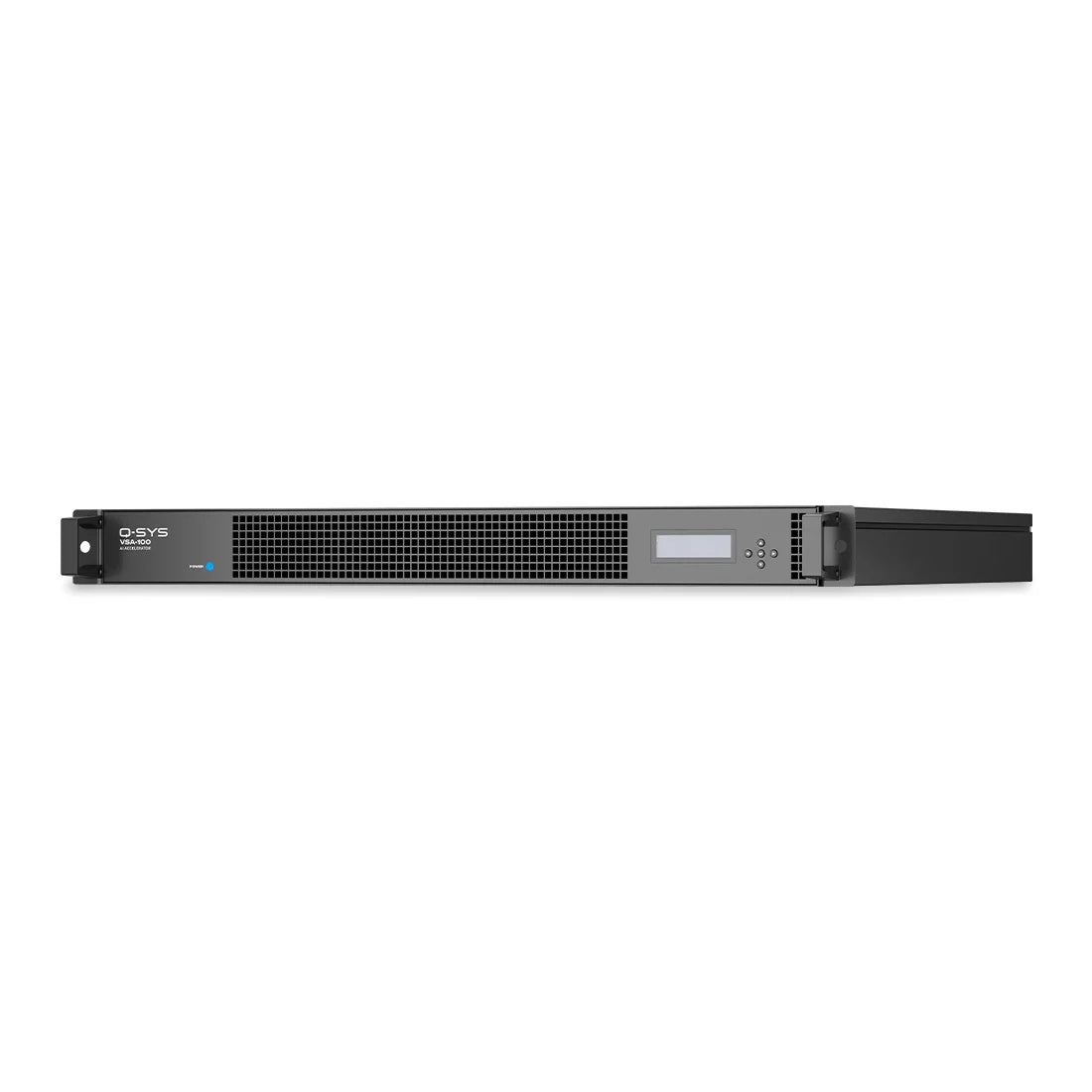

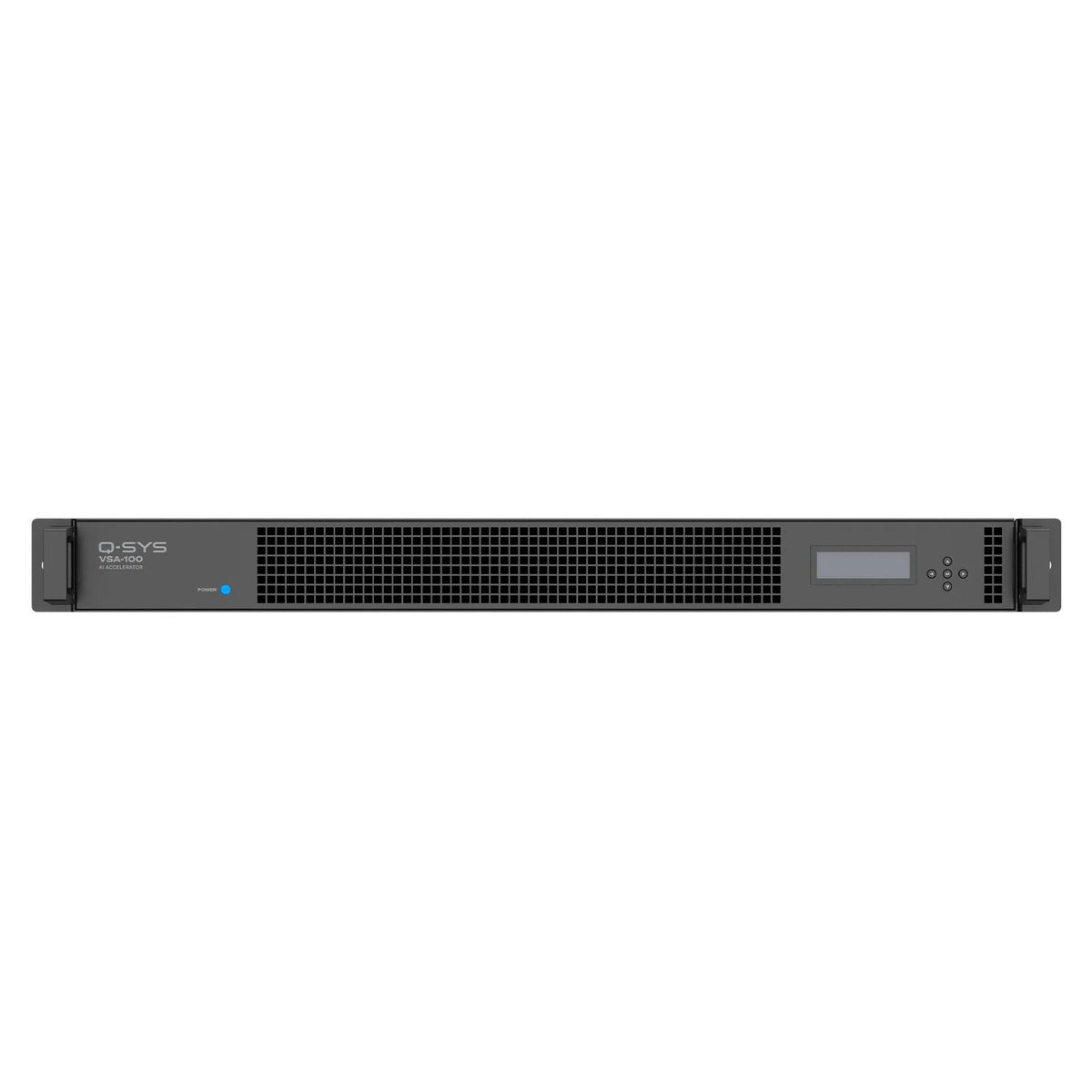

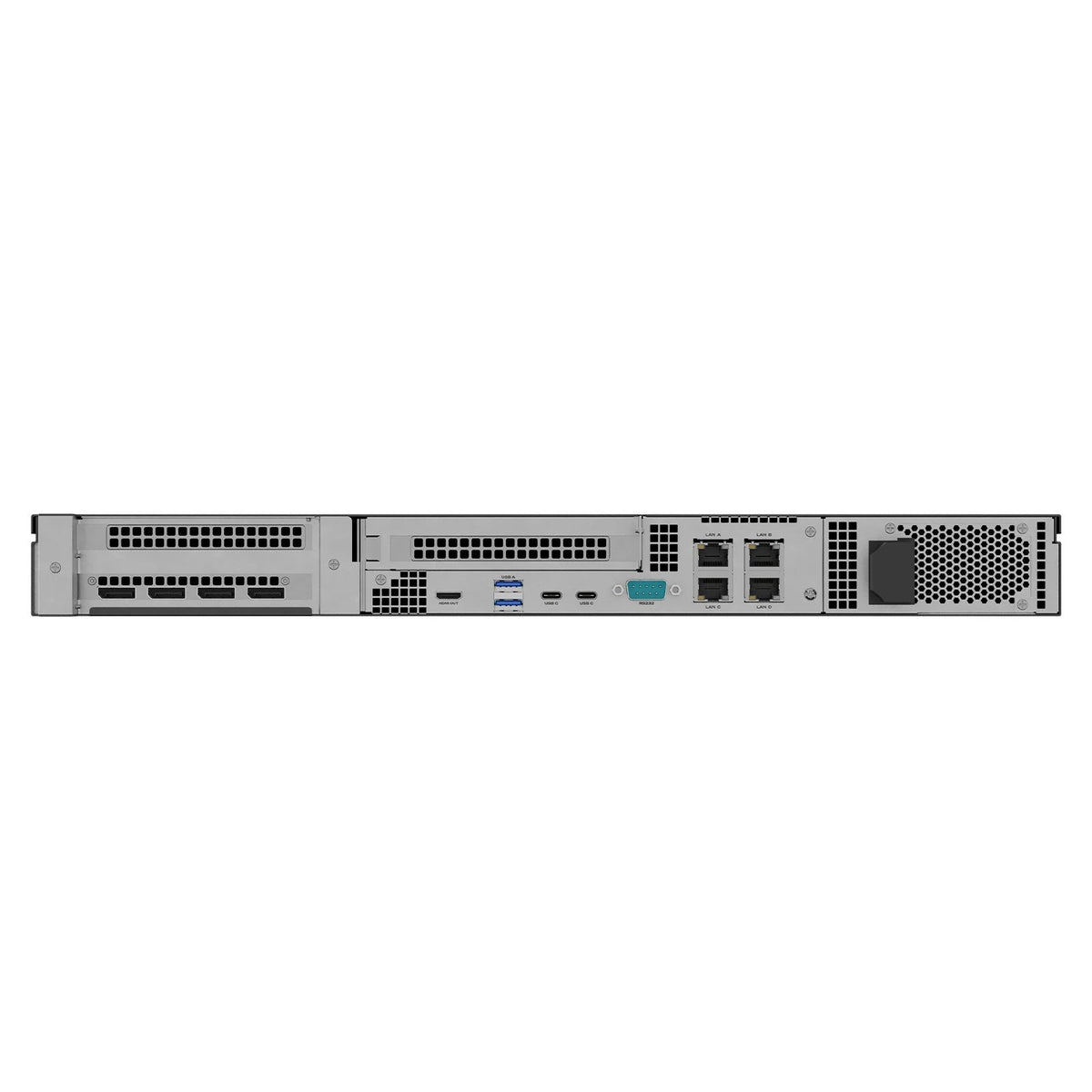

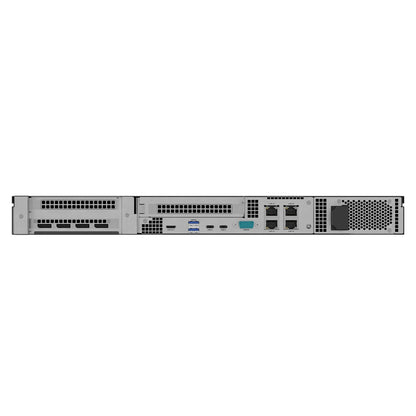

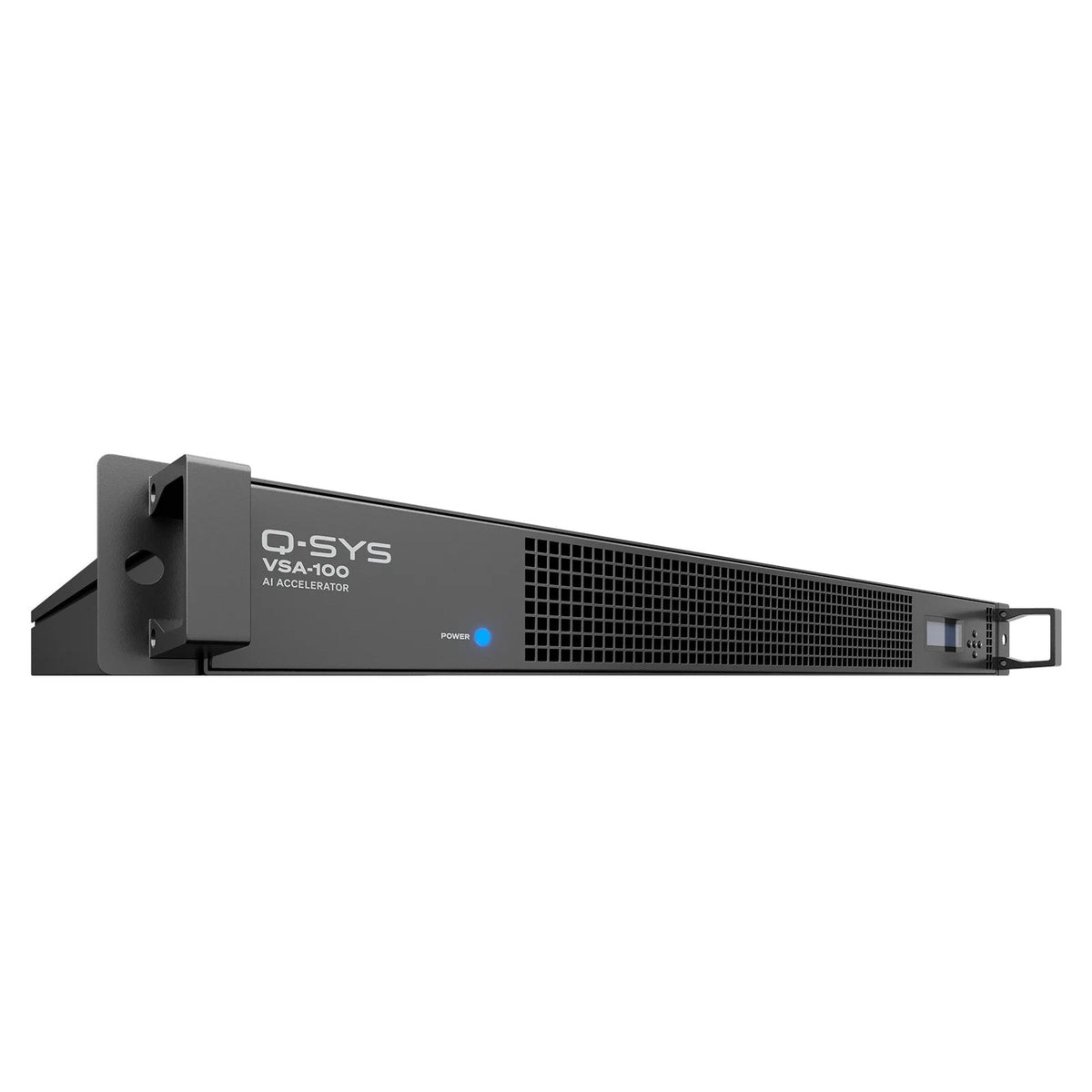

Q-SYS VSA-100: VisionSuite AI Accelerator for Camera Tracking
Model
:
VSA-100
Buying guides for this product
- Best Video Bar by Room Size
- All-in-One Video Conferencing Display vs TV and Video Bar
- Microsoft Teams Rooms on Windows vs Android
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Q-SYS VSA-100 at a Glance
- Brand
- Q-SYS
- Model
- VSA-100
- Category
- Video Conferencing Cameras
- Solution
- Video Conferencing
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Q-SYS VSA-100 Overview
The VSA-100 is an AI accelerator that combines computer vision-based scene analysis with Q-SYS dynamic camera switching and framing to deliver best-in-class presenter tracking and automatic camera switching. The result is a more natural and inclusive experience for in-room and remote participants alike. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- The result is a more natural and inclusive experience for in-room and remote participants alike.
- Q-SYS Capacities: Supported Q-SYS cameras: Presenter Spotlight: NC-12x80 / NC-20x60 Speaker Spotlight: NC-12x80 / NC-20x60 Conductor Camera: NC-12x80 / NC-20x60 /
- Q-SYS Capacities: Max number of Q-SYS cameras: 14 Speaker Spotlight, 1 Presenter Spotlight, and 1 audience-facing Conductor camera
- Q-SYS Capacities: Required Q-SYS Core processors: Core 24f, Server Core X10, Server Core X20r, Server Core X50r
- Q-SYS Capacities: Supported Microphones: Shure MXA920, Shure MXA925, Sennheiser TCC2 (up to 8 per room)
- Q-SYS Capacities: Maximum presenter tracking distance: 23 m / 75 ft (NC-20x60 at Half Body shot)
Technical Specifications:
| Spec | Value |
|---|---|
| Model | VSA-100 |
| Brand | Q-SYS |
| Q-SYS Capacities: Supported Q-SYS cameras | Presenter Spotlight: NC-12x80 / NC-20x60 Speaker Spotlight: NC-12x80 / NC-20x60 Conductor Camera: NC-12x80 / NC-20x60 / NC-90-G2 |
| Q-SYS Capacities: Max number of Q-SYS cameras | 14 Speaker Spotlight, 1 Presenter Spotlight, and 1 audience-facing Conductor camera |
| Q-SYS Capacities: Required Q-SYS Core processors | Core 24f, Server Core X10, Server Core X20r, Server Core X50r |
| Q-SYS Capacities: Supported Microphones | Shure MXA920, Shure MXA925, Sennheiser TCC2 (up to 8 per room) |
| Q-SYS Capacities: Maximum presenter tracking distance | 23 m / 75 ft (NC-20x60 at Half Body shot) |
| Q-SYS Capacities: Recommended active speaker distance from mic | 3m / 10ft |
| Q-SYS Capacities: Minimum camera distance | 2 m / 6.5 ft |
| Q-SYS Capacities: Number of VisionSuite rooms supported | 1 VisionSuite room per Core / Q-SYS Design |
| Q-SYS Capacities: Number of ceiling microphones supported | Up to 8 (Shure MXA920 / Sennheiser TCC2) per room |
| Q-SYS Capacities: Vision-assisted framing support | Supports up to 25 audience members. For greater than 25 people, framing will be based on audio location data. |
| Hardware: Power supply | 500 W |
| Hardware: Product dimensions (L x W x H) | 18.11 x 17.24 x 1.73 in (460 x 438 x 44.0 mm) |
| Hardware: Storage temperature range | -40 C to +85 C (-40 F to 185 F) |
| Hardware: Operating temperature range | 0 C to 40 C (32 F to 104 F) |
| Hardware: Storage humidity range | 10% to 95% @ 40 C |
| Hardware: Operating humidity range | 10% to 95% @ 40 C |
| Power Consumption: System idle | 225 W max ( to 220 W average) |
| Power Consumption: Full load | 289 W max |
| Thermal Dissipation: System idle | 767 BTU/hr max |
| Thermal Dissipation: Full load | 986 BTU/hr max |
| Miscellaneous: Regulatory compliance | FCC 47 CFR Part 15 Subpart B, Canada ICES-003, EN 55032, EN 55035, EU RoHS Directive 2011/65/EU, WEEE Directive 2012/19/EU, REACH, China RoHS GB/T26572, RCM, IEC/EN/UL 62368-1 |
| Miscellaneous: Battery chemistry (embedded, non-accessible) | Lithium Carbon Monofluoride |
Why Buy the Q-SYS VSA-100 from Trianze Tech?
- Genuine Q-SYS product supplied by Trianze Tech with local UAE support
- Pre-sales help designing the Q-SYS system around the VSA-100
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation advice for meeting rooms, classrooms and venues
What's Included and Support
Frequently asked
Q-SYS VSA-100: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
The VSA-100 is an AI accelerator that combines computer vision-based scene analysis with Q-SYS dynamic camera switching and framing to deliver best-in-class presenter tracking and automatic camera switching. The result is a more natural and inclusive experience for in-room and remote participants alike.
For the Q-SYS VSA-100, Q-SYS lists the following. Q-SYS Capacities: Supported Q-SYS cameras: Presenter Spotlight: NC-12x80 / NC-20x60 Speaker Spotlight: NC-12x80 / NC-20x60 Conductor Camera: NC-12x80 / NC-20x60 /; Q-SYS Capacities: Supported Microphones: Shure MXA920, Shure MXA925, Sennheiser TCC2 (up to 8 per room); Q-SYS Capacities: Number of VisionSuite rooms supported: 1 VisionSuite room per Core / Q-SYS Design; Q-SYS Capacities: Number of ceiling microphones supported: Up to 8 (Shure MXA920 / Sennheiser TCC2) per room; Q-SYS Capacities: Vision-assisted framing support: Supports up to 25 audience members. For greater than 25 people, framing will be based on audio location data.; Miscellaneous: Regulatory compliance: FCC 47 CFR Part 15 Subpart B, Canada ICES-003, EN 55032, EN 55035, EU RoHS Directive 2011/65/EU, WEEE Directive 2012/19/EU, REACH.
For the Q-SYS VSA-100, Q-SYS lists the following. Q-SYS Capacities: Supported Q-SYS cameras: Presenter Spotlight: NC-12x80 / NC-20x60 Speaker Spotlight: NC-12x80 / NC-20x60 Conductor Camera: NC-12x80 / NC-20x60 /; Q-SYS Capacities: Max number of Q-SYS cameras: 14 Speaker Spotlight, 1 Presenter Spotlight, and 1 audience-facing Conductor camera; Q-SYS Capacities: Required Q-SYS Core processors: Core 24f, Server Core X10, Server Core X20r, Server Core X50r; Q-SYS Capacities: Supported Microphones: Shure MXA920, Shure MXA925, Sennheiser TCC2 (up to 8 per room).
For the Q-SYS VSA-100, Q-SYS lists the following. Hardware: Power supply: 500 W; Power Consumption: System idle: 225 W max ( to 220 W average); Power Consumption: Full load: 289 W max.
For the Q-SYS VSA-100, Q-SYS lists the following. Q-SYS Capacities: Maximum presenter tracking distance: 23 m / 75 ft (NC-20x60 at Half Body shot); Hardware: Product dimensions (L x W x H): 18.11 x 17.24 x 1.73 in (460 x 438 x 44.0 mm); Hardware: Storage temperature range: -40 C to +85 C (-40 F to 185 F); Hardware: Operating temperature range: 0 C to 40 C (32 F to 104 F).
Trianze Tech stocks the Q-SYS VSA-100 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
