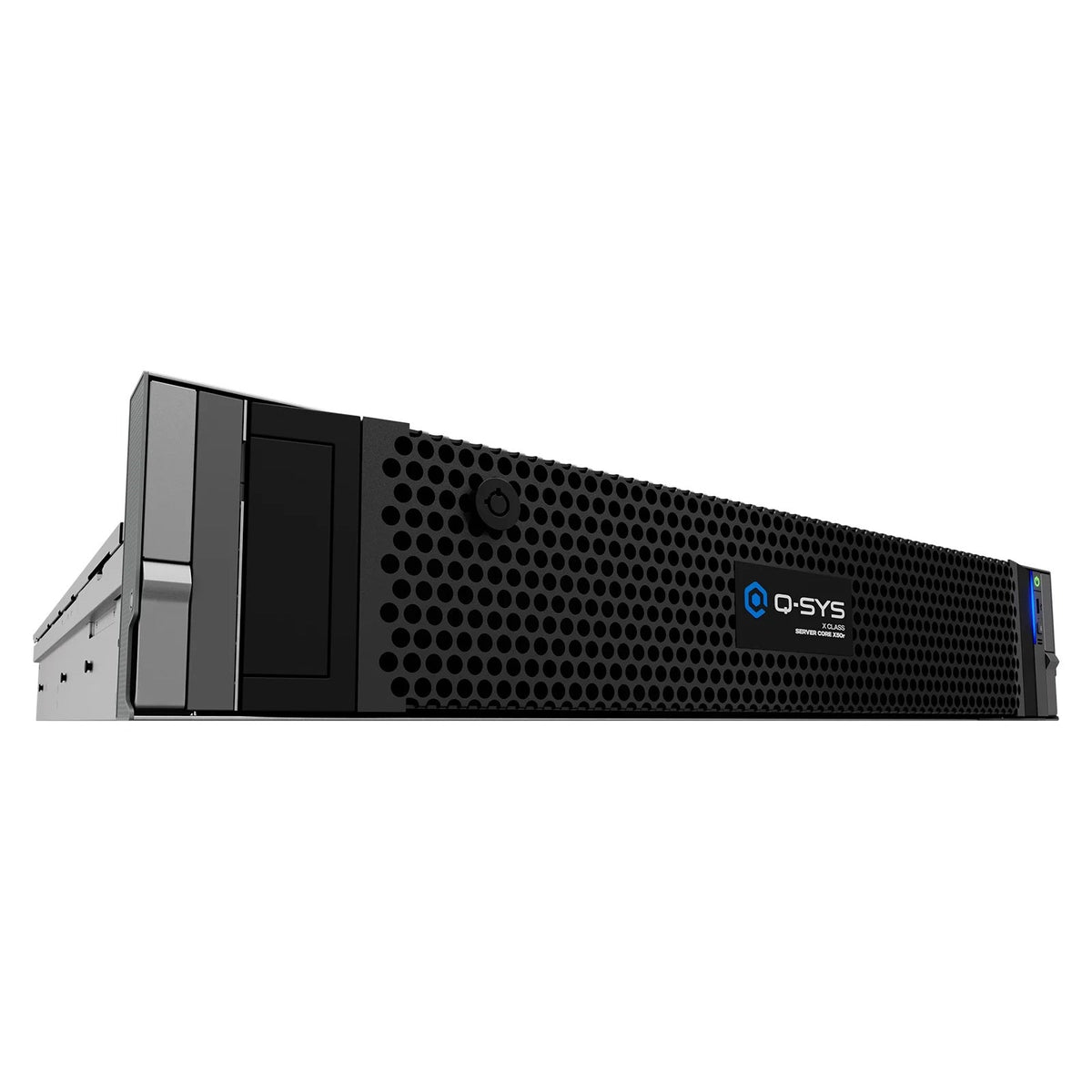

Q-SYS SERVER CORE X50r: X Class Server Core For Large Systems
Model
:
SERVER CORE X50r
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Q-SYS SERVER CORE X50r at a Glance
- Brand
- Q-SYS
- Model
- SERVER CORE X50r
- Category
- Video Conferencing Accessories
- Solution
- Boardroom AV
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Q-SYS SERVER CORE X50r Overview
The Q-SYS SERVER CORE X50r is designed for large, centralized AV systems that demand substantial processing headroom and networked audio capacity. Built on the Q-SYS Full Stack AV Platform and deployed on Dell server hardware, it supports complex enterprise, hospitality, entertainment, and large venue environments where a single Core may need to serve extensive edge I/O, distributed processing, and mission-critical services. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Q-SYS Capacities: @ 10Gbps: 4096 x 4096
- Q-SYS Capacities: @ 1Gbps: 512 x 512
- Q-SYS Capacities: Dante network I/O: 8 x 8 included (up to 512 x 512 with Software-based Dante feature license)
- Q-SYS Capacities: Media/WAN channel capacity: 256 x 256
- Q-SYS Capacities: VoIP softphones: 96
- Q-SYS Capacities: AEC channels (at 200 ms tail length): 256
Technical Specifications:
| Spec | Value |
|---|---|
| Model | SERVER CORE X50r |
| Brand | Q-SYS |
| Q-SYS Capacities: @ 10Gbps | 4096 x 4096 |
| Q-SYS Capacities: @ 1Gbps | 512 x 512 |
| Q-SYS Capacities: Dante network I/O | 8 x 8 included (up to 512 x 512 with Software-based Dante feature license) |
| Q-SYS Capacities: Media/WAN channel capacity | 256 x 256 |
| Q-SYS Capacities: VoIP softphones | 96 |
| Q-SYS Capacities: AEC channels (at 200 ms tail length) | 256 |
| Q-SYS Capacities: Audio recording / playback | 4 channels recording / 16 channels playback, [expandable up to 256 channels playback with optional multi track playback license (SLMTP-32) stackable up to 8x] |
| Q-SYS Capacities: Media drive capacity | 960 GB (at least 900 GB available for user media, or at least 1800 hours of uncompressed 48 kHz, 24 bit, mono WAV format audio files) |
| Hardware: Platform | Dell PowerEdge R570 |
| Hardware: Power | 2x universal input, 1100 W PSU module |
| Hardware: LAN | 4x 10Gbps capable SFP+ ports (pre-installed 2x 10Gbps multi-mode fiber / 2x 1Gbps copper RJ45; field-replaceable) |
| Hardware: USB | 2x USB-A |
| Hardware: iDRAC | 1x dedicated iDRAC v10 Ethernet port (rear) 1x iDRAC Direct (USB-C) port (front) |
| Hardware: Ventilation | Forced air, front intake, rear exhaust |
| Controls and Indicators: Front | Power button / LED System ID button |
| Packaging and Accessories: Product dimensions (L x W x H) | 32.09 x 19.0 x 3.42 in (815 x 482.0 x 86.8 mm), including rack ears and handles |
| Packaging and Accessories: Product weight | 40.0 lbs (18.1 kg) |
| Packaging and Accessories: Shipping carton dimensions (L x W x H) | 39.5 x 26.0 x 12.5 in (1003 x 660 x 318 mm) |
| Packaging and Accessories: Shipping weight | 54.3 lbs (24.6 kg) |
| Packaging and Accessories: Included accessories | Rail kit Environmental and Regulatory information booklet 2x Region-specific power cords (for dual power supplies) Quick Start Guide |
| Miscellaneous: Line voltage | 100-240 VAC, to 50/60 Hz |
| Miscellaneous: Current draw | to 12 A @100-120 VAC, to 6.1 A @200-240 VAC |
| Miscellaneous: Operating temperature range | 5 C to +45 C |
| Miscellaneous: Storage temperature | -40 C to +70 C |
| Miscellaneous: BTU/hour | 4100 BTU/Hr |
| Miscellaneous: Humidity | 8% to 90% |
| Miscellaneous: Regulatory | FCC 47 CFR Part 15 Subpart B, Canada ICES-003, EN 55032, EN 55035, EU RoHS directive 2011/65/EU, WEEE directive 2012/19/EU, REACH, China RoHS GB/T26572, RCM, IEC/EN/UL 62368-1 |
| Miscellaneous: Battery chemistry | Lithium manganese dioxide |
Why Buy the Q-SYS SERVER CORE X50r from Trianze Tech?
- Genuine Q-SYS product supplied by Trianze Tech with local UAE support
- Pre-sales help designing the Q-SYS system around the SERVER CORE X50r
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation advice for meeting rooms, classrooms and venues
What's Included and Support
Frequently asked
Q-SYS SERVER CORE X50r: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
The Q-SYS SERVER CORE X50r is designed for large, centralized AV systems that demand substantial processing headroom and networked audio capacity. Built on the Q-SYS Full Stack AV Platform and deployed on Dell server hardware, it supports complex enterprise, hospitality, entertainment, and large venue environments where a single Core may need to serve extensive edge I/O, distributed processing, and mission-critical services.
For the Q-SYS SERVER CORE X50r, Q-SYS lists the following. Q-SYS Capacities: Dante network I/O: 8 x 8 included (up to 512 x 512 with Software-based Dante feature license); Hardware: LAN: 4x 10Gbps capable SFP+ ports (pre-installed 2x 10Gbps multi-mode fiber / 2x 1Gbps copper RJ45; field-replaceable); Hardware: USB: 2x USB-A; Controls and Indicators: Front: Power button / LED System ID button; Miscellaneous: Line voltage: 100-240 VAC, to 50/60 Hz; Miscellaneous: Current draw: to 12 A @100-120 VAC, to 6.1 A @200-240 VAC.
For the Q-SYS SERVER CORE X50r, Q-SYS lists the following. Q-SYS Capacities: Media/WAN channel capacity: 256 x 256; Q-SYS Capacities: AEC channels (at 200 ms tail length): 256; Q-SYS Capacities: Media drive capacity: 960 GB.
For the Q-SYS SERVER CORE X50r, Q-SYS lists the following. Hardware: Power: 2x universal input, 1100 W PSU module; Miscellaneous: Line voltage: 100-240 VAC, to 50/60 Hz.
For the Q-SYS SERVER CORE X50r, Q-SYS lists the following. Packaging and Accessories: Product dimensions (L x W x H): 32.09 x 19.0 x 3.42 in (815 x 482.0 x 86.8 mm), including rack ears and handles; Packaging and Accessories: Product weight: 40.0 lbs (18.1 kg); Packaging and Accessories: Shipping carton dimensions (L x W x H): 39.5 x 26.0 x 12.5 in (1003 x 660 x 318 mm); Packaging and Accessories: Shipping weight: 54.3 lbs (24.6 kg).
Trianze Tech stocks the Q-SYS SERVER CORE X50r in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
