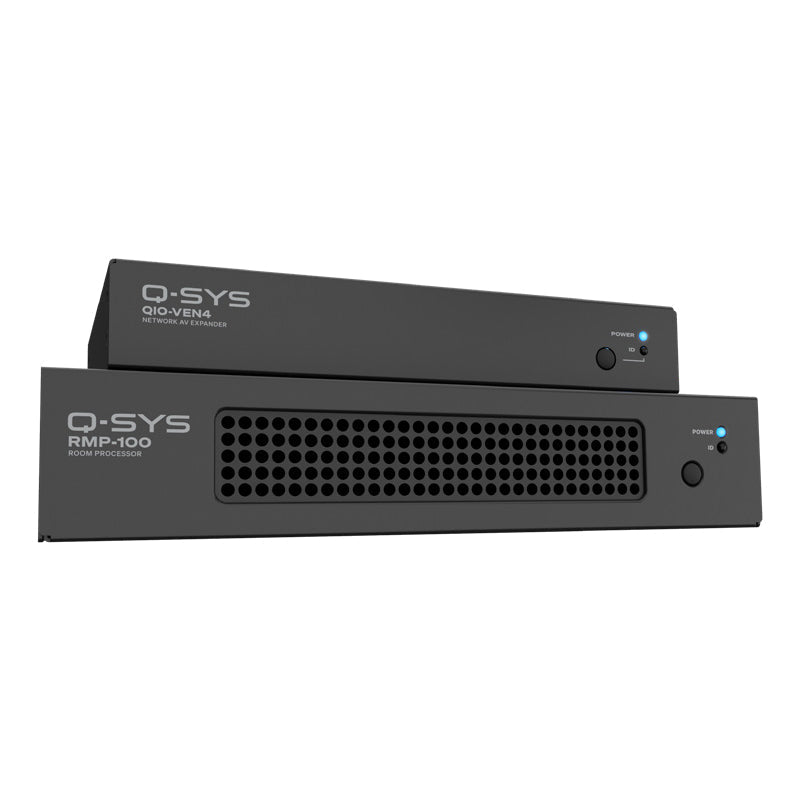

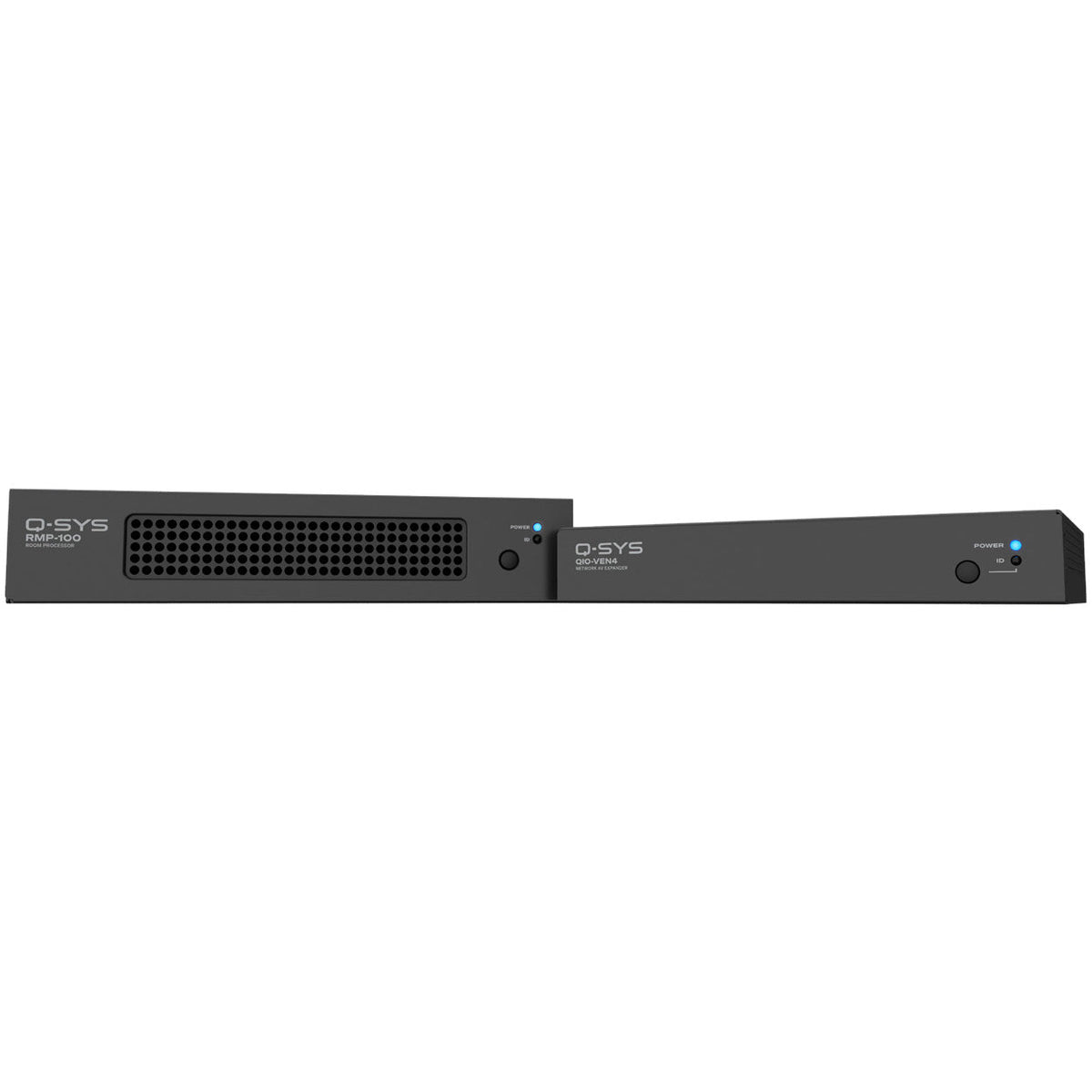

Q-SYS RS-MOD-BB: RoomSuite Modular System Base Bundle
Model
:
RS-MOD-BB
Buying guides for this product
- Best Video Bar by Room Size
- All-in-One Video Conferencing Display vs TV and Video Bar
- Microsoft Teams Rooms on Windows vs Android
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Q-SYS RS-MOD-BB at a Glance
- Brand
- Q-SYS
- Model
- RS-MOD-BB
- Category
- Video Conferencing Systems
- Solution
- Video Conferencing
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Q-SYS RS-MOD-BB Overview
The Q-SYS RoomSuite Modular System enables fast, standardized setup for medium to large collaboration spaces. Designed to work with leading UC platforms and BYOM functionality, it offers a web-based workflow for efficient design, commissioning, and deployment, supported by unified cloud management and remote monitoring through Q-SYS Reflect. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Designed to work with leading UC platforms and BYOM functionality, it offers a web-based workflow for efficient design, commissioning, and deployment, supported by unified cloud management and remote monitoring through Q-SYS Reflect.
- PERIPHERAL SUPPORT: Max Quantity
- Q-SYS Cameras: NC-90-G2; NC-12x80, NC-20x60: 2
- Q-SYS Loudspeakers NL-C4, NL-P4 (ceiling/pendant) NL-SB42 (soundbar): 4 2
- Microphones Q-SYS NM-T1 3rd party ceiling microphones (Dante): Audio Technica ATND1061, Sennheiser TCC M, Sennheiser TCC 2 Shure MXA901, Shure MXA902, Shure MXA920, Yamaha RM-CG: 4 (total) 3 or 4 1
- Q-SYS Touch Screen Controllers: TSC-101-G3, TSC-70-G3: 2
Technical Specifications:
| Spec | Value |
|---|---|
| Model | RS-MOD-BB |
| Brand | Q-SYS |
| PERIPHERAL SUPPORT | Max Quantity |
| Q-SYS Cameras: NC-90-G2; NC-12x80, NC-20x60 | 2 |
| Q-SYS Loudspeakers NL-C4, NL-P4 (ceiling/pendant) NL-SB42 (soundbar) | 4 2 |
| Microphones Q-SYS NM-T1 3rd party ceiling microphones (Dante): Audio Technica ATND1061, Sennheiser TCC M, Sennheiser TCC 2 Shure MXA901, Shure MXA902, Shure MXA920, Yamaha RM-CG | 4 (total) 3 or 4 1 |
| Q-SYS Touch Screen Controllers: TSC-101-G3, TSC-70-G3 | 2 |

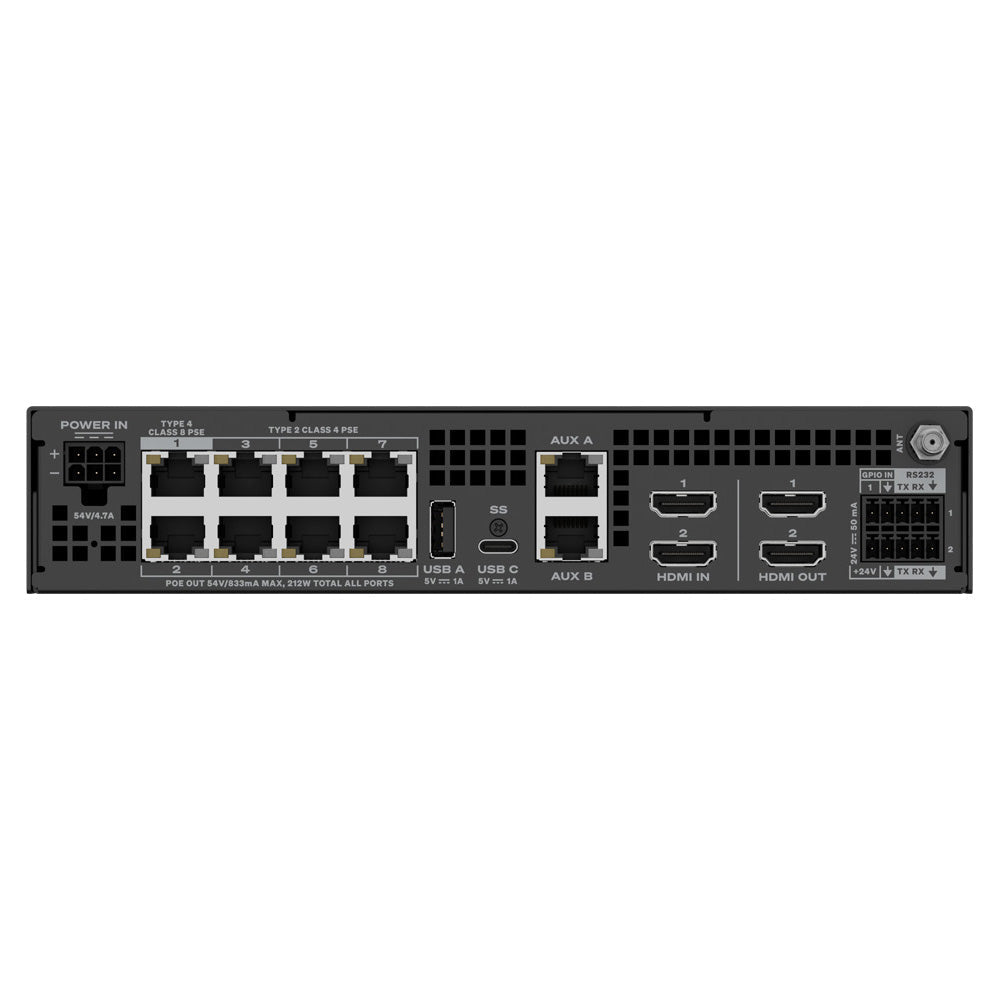

| Ethernet ports: AV LAN Ethernet ports | 7x 1 Gbps ports, PoE+ output |
| Ethernet ports: Expander Ethernet port | 1x 1 Gbps port, PoE++ output (IEEE 802.3bt Type 4) |
| Ethernet ports: External Ethernet ports | 2x Auxiliary ports (No PoE power) |
| Ethernet ports: PoE power budget | 212 W total, all ports (IEEE 802.3bt Type 4) |
| Video I/O: HDMI 2.0 inputs | 1x HDMI (BYOM: 4K60 capable with audio; ZR/MTR compatibility mode: 1080p60 capable with audio) 4:4:4 1x HDMI (BYOM: 4K60 capable with no audio; ZR/MTR compatibility mode: 1080p60 capable with no audio) 4:4:4 |
| Video I/O: HDMI 2.0 outputs | 2x HDMI (BYOM: 4K60 capable; ZR/MTR compatibility mode: 1080p60 capable) 4:4:4 |
| Video I/O: Scaler | None. Input source must match the output. |
| Video I/O: Color formats | Determined by source. |
| Control: RS-232 | 2 ports for display control |
| Control: GPIO | 1 input (occupancy sensor connectivity, +24 V / 50 mA) |
| Control: CEC | Supported on HDMI video outputs |
| USB | 1x USB-C port 1x USB-A (not supported) |

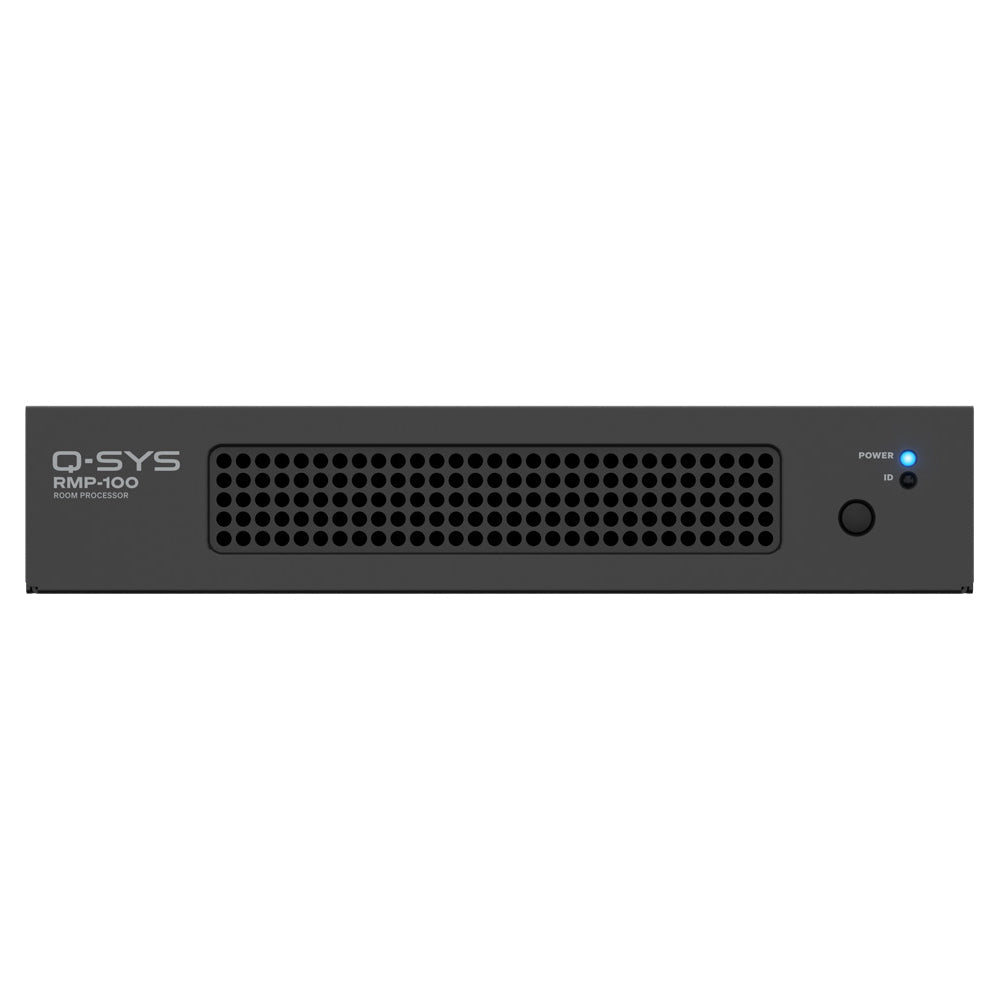

| Controls & indicators: Front | Power LED ID Button and indicator |
| Controls & indicators: RF antenna | Not supported |
| Power supply: Included 54 V DC Power Supply | 100 to 240 VAC, to 50 / 60 Hz, 4A Max |
| Physical: Product dimensions (L x W x H) | 10.5 x 8.6 x 8.7 in (266 x 217 mm x 220 mm) |
| Physical: Product weight | 4.30 lbs (1.95 kg) |
| Physical: Shipping carton dimensions (L x W x H) | 19.1 x 13.6 x 3.5 in (485 x 345 x 89 mm) |
| Physical: Included accessories | Surface mounting accessories 54 V DC Power Supply 1x AC mains power cords (country specific) I/O connector Regulatory and safety pamphlet Warranty statement |
| Environmental & safety: Storage temperature range | -4 degrees to 158 F (-20 degrees to 70 C) |
| Environmental & safety: Storage humidity range | 5% to 85% |
| Environmental & safety: Operating temperature range | 32 degrees to 104 F (0 degrees to 40 C) |
| Environmental & safety: Operating humidity range | 5% to 85% |
| Environmental & safety: Thermal dissipation (excluding POE Loads) | 69 BTU / hour (20 W) |
| Environmental & safety: Power consumption (including POE loads) | 200 W typical, 245 W maximum |
| Environmental & safety: Battery chemistry | Lithium Carbon Monofluoride |

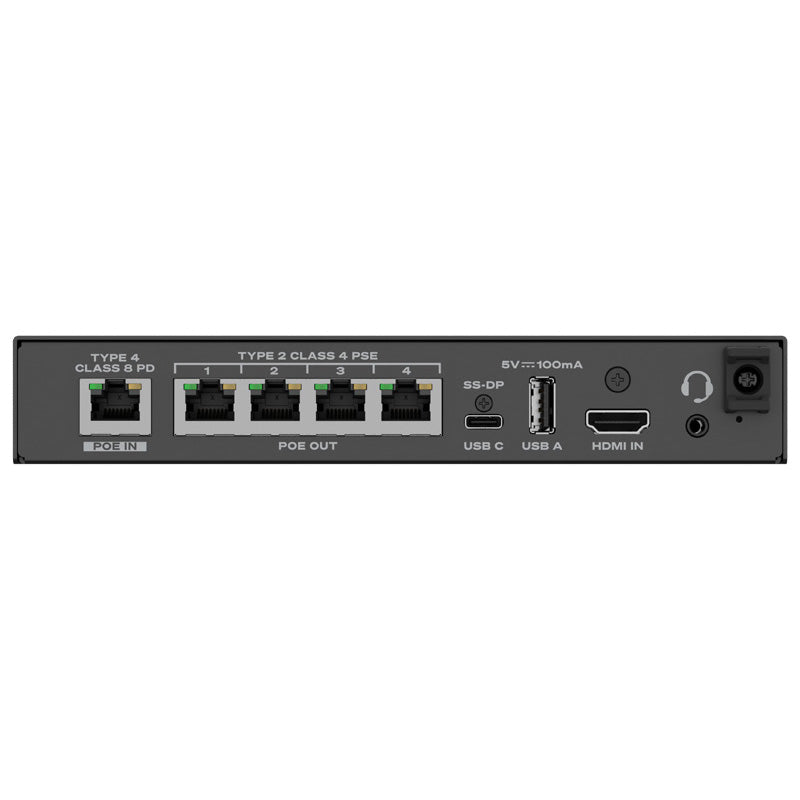

| VIDEO I/O: HDMI 2.0 inputs | 1x HDMI (1080p60 capable + Audio) 4:2:0 |
| VIDEO I/O: Scaler | GPU scaler can match resolution and frame rate. |
| VIDEO I/O: Color formats | Determined by source. |
| Ethernet ports: Processor (RMP-100) Ethernet port | 1x 1 Gbps, PD PoE++ (IEEE 802.3at Type 2) |
| Other: Headset | Not supported |
| Power supply: Power-over-Ethernet (supplied by RMP-100 processor) | PoE++ (IEEE 802.3bt Type 4) |
Why Buy the Q-SYS RS-MOD-BB from Trianze Tech?
- Genuine Q-SYS product supplied by Trianze Tech with local UAE support
- Pre-sales help designing the Q-SYS system around the RS-MOD-BB
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation advice for meeting rooms, classrooms and venues
What's Included and Support
Frequently asked
Q-SYS RS-MOD-BB: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
The Q-SYS RoomSuite Modular System enables fast, standardized setup for medium to large collaboration spaces. Designed to work with leading UC platforms and BYOM functionality, it offers a web-based workflow for efficient design, commissioning, and deployment, supported by unified cloud management and remote monitoring through Q-SYS Reflect.
For the Q-SYS RS-MOD-BB, Q-SYS lists the following. PERIPHERAL SUPPORT: Max Quantity; Microphones Q-SYS NM-T1 3rd party ceiling microphones (Dante): Audio Technica ATND1061, Sennheiser TCC M, Sennheiser TCC 2 Shure MXA901, Shure MXA902, Shure MXA920; Q-SYS Touch Screen Controllers: TSC-101-G3, TSC-70-G3: 2; Ethernet ports: AV LAN Ethernet ports: 7x 1 Gbps ports, PoE+ output; Ethernet ports: Expander Ethernet port: 1x 1 Gbps port, PoE++ output (IEEE 802.3bt Type 4); Ethernet ports: External Ethernet ports: 2x Auxiliary ports (No PoE power).
For the Q-SYS RS-MOD-BB, Q-SYS lists the following. PERIPHERAL SUPPORT: Max Quantity; Q-SYS Cameras: NC-90-G2; NC-12x80, NC-20x60: 2; Q-SYS Loudspeakers NL-C4, NL-P4 (ceiling/pendant) NL-SB42 (soundbar): 4 2; Microphones Q-SYS NM-T1 3rd party ceiling microphones (Dante): Audio Technica ATND1061, Sennheiser TCC M, Sennheiser TCC 2 Shure MXA901, Shure MXA902, Shure MXA920.
For the Q-SYS RS-MOD-BB, Q-SYS lists the following. Ethernet ports: PoE power budget: 212 W total, all ports (IEEE 802.3bt Type 4); Power supply: Included 54 V DC Power Supply: 100 to 240 VAC, to 50 / 60 Hz, 4A Max; Environmental & safety: Thermal dissipation (excluding POE Loads): 69 BTU / hour (20 W).
For the Q-SYS RS-MOD-BB, Q-SYS lists the following. Physical: Product dimensions (L x W x H): 10.5 x 8.6 x 8.7 in (266 x 217 mm x 220 mm); Physical: Product weight: 4.30 lbs (1.95 kg); Physical: Shipping carton dimensions (L x W x H): 19.1 x 13.6 x 3.5 in (485 x 345 x 89 mm); Environmental & safety: Storage temperature range: -4 degrees to 158 F (-20 degrees to 70 C).
Trianze Tech stocks the Q-SYS RS-MOD-BB in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
