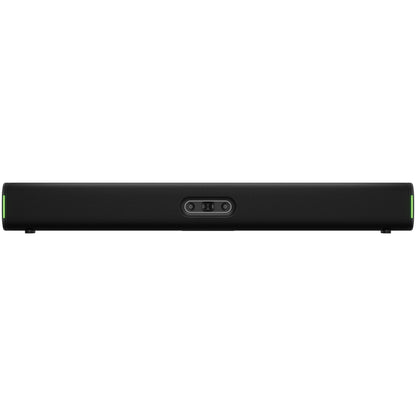

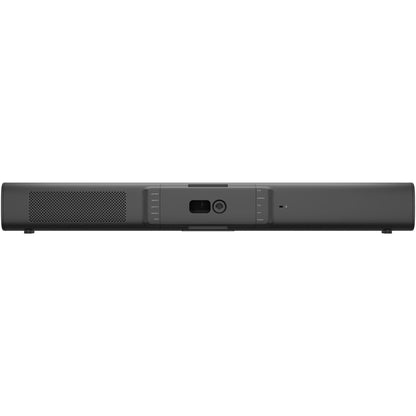

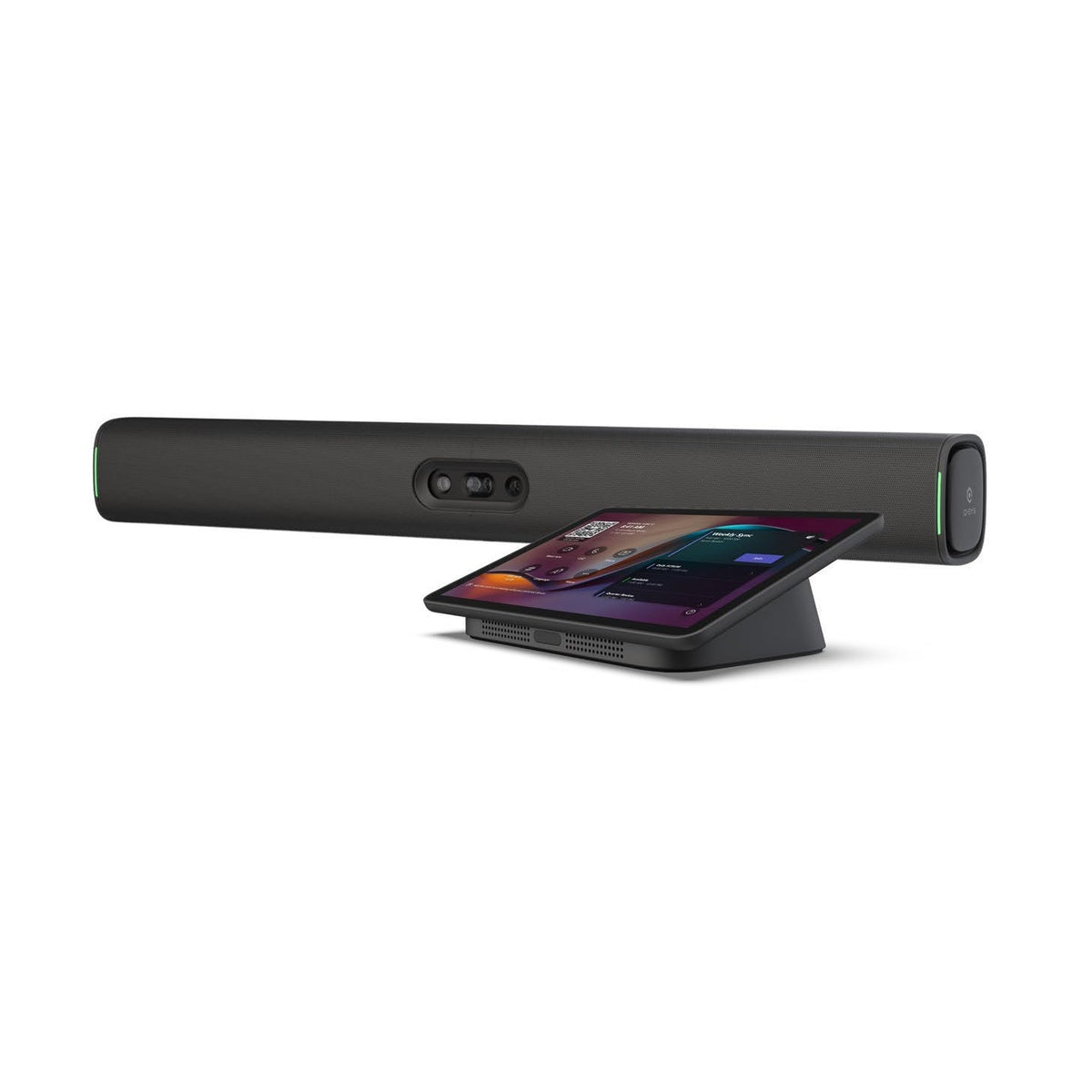

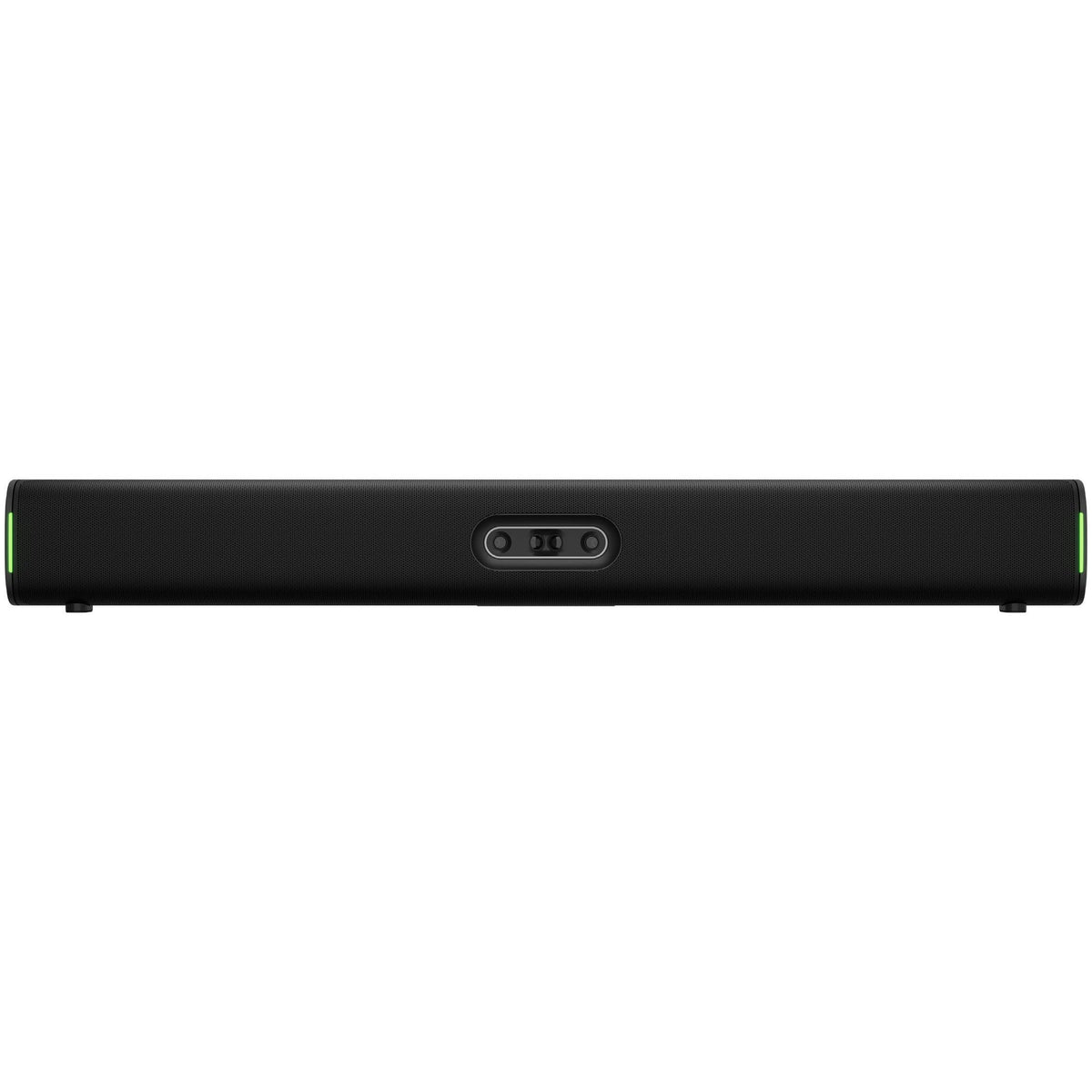

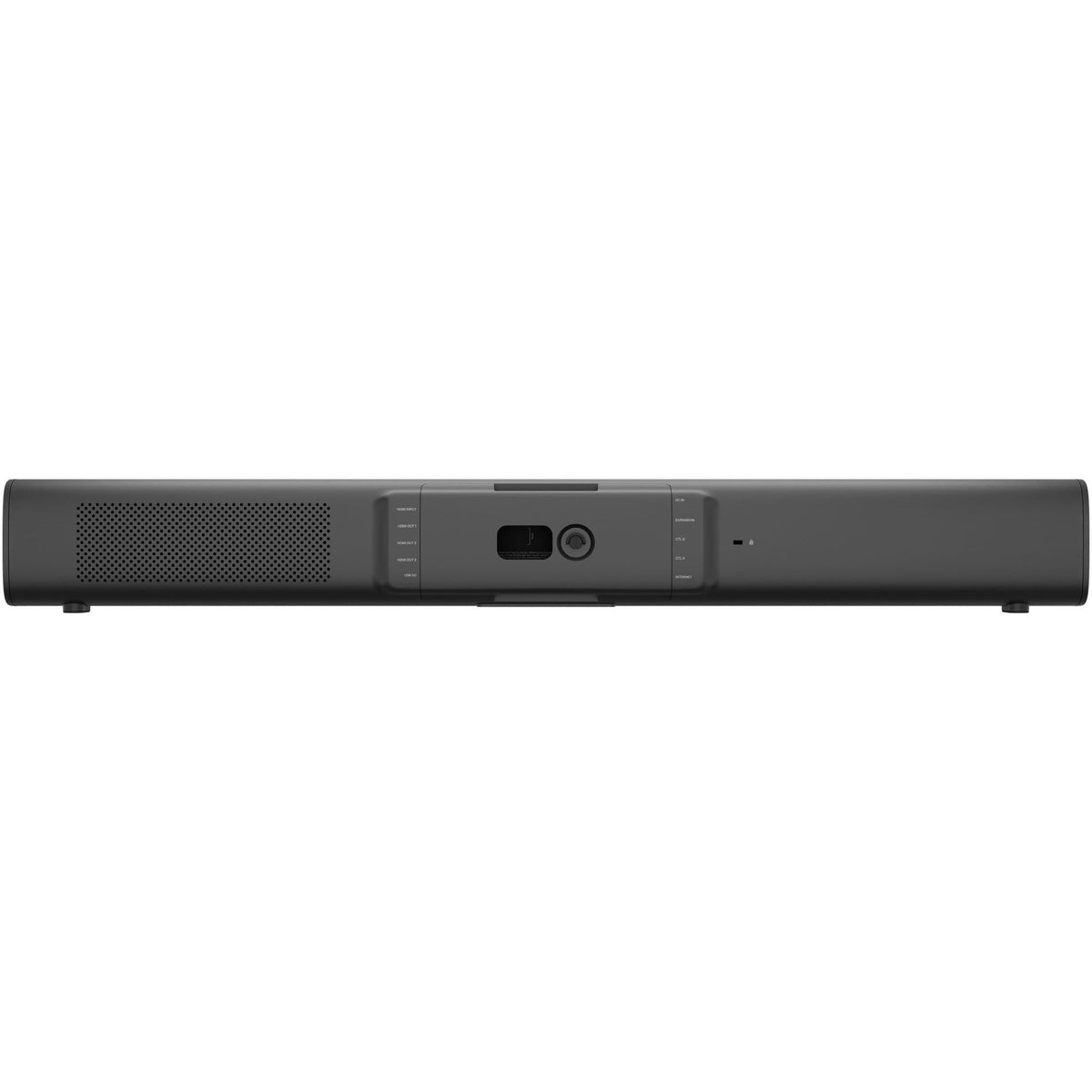

Q-SYS RS-CB-MTRW-B: RoomSuite Collaboration Bar for Microsoft Teams
Model
:
RS-CB-MTRW-B
Buying guides for this product
- Best Video Bar by Room Size
- All-in-One Video Conferencing Display vs TV and Video Bar
- Microsoft Teams Rooms on Windows vs Android
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Q-SYS RS-CB-MTRW-B at a Glance
- Brand
- Q-SYS
- Model
- RS-CB-MTRW-B
- Category
- Video Conferencing Systems
- Solution
- Video Conferencing
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Q-SYS RS-CB-MTRW-B Overview
The Q-SYS RoomSuite Collaboration Bar and expansion devices provide a scalable AV solution for standard small-to-large meeting spaces. This Windows-based solution features built-in audio, video, and supports Microsoft Teams Rooms and bring-your-own-meeting conferencing. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- This Windows-based solution features built-in audio, video, and supports Microsoft Teams Rooms and bring-your-own-meeting conferencing.
- System Details: Product type: Collaboration bar with integrated cameras, loudspeakers and microphone array
- System Details: Operating system: Windows 11 IoT Enterprise (x64)
- System Details: Power: 19V/19.5V DC Input (power supply included)
- System Details: Peripheral support: Up to 4 Q-SYS RoomSuite Table Microphones for the Collaboration Bar (sold separately)
- System Details: Controls & indicators: Microphone status LED indicators; Camera privacy screen
Technical Specifications:
| Spec | Value |
|---|---|
| Model | RS-CB-MTRW-B |
| Brand | Q-SYS |
| System Details: Product type | Collaboration bar with integrated cameras, loudspeakers and microphone array |
| System Details: Operating system | Windows 11 IoT Enterprise (x64) |
| System Details: Power | 19V/19.5V DC Input (power supply included) |
| System Details: Peripheral support | Up to 4 Q-SYS RoomSuite Table Microphones for the Collaboration Bar (sold separately) |
| System Details: Controls & indicators | Microphone status LED indicators; Camera privacy screen |
| Compute & performance: Processor | Intel i5 1340P |
| Compute & performance: Memory | 16 GB RAM |
| Compute & performance: Storage | 256 GB |
| Compute & performance: Graphics | Intel UHD Graphics (13th Gen) |
| Camera: Camera quantity | 2x wide-angle, 2x telephoto |
| Camera: Resolution | 4x 50 MP image sensors |
| Camera: Zoom | 8x hybrid zoom |
| Camera: Privacy | Automatic lens shutter |
| Audio: Configuration | Stereo (2.0) |
| Audio: Power Output | 20 W max per loudspeaker (40 W max total) |
| Audio: Max SPL | 89 dB SPL (+/- 3 dB) @ 1 W / 0.5 m |
| Audio: Frequency Range | 80 Hz, 20 kHz |
| Microphone: Microphone array | 16-element microphone array |
| Microphone: Pickup range | Up to 33 ft (10 m) |
| Microphone: Sensitivity | -36 dBFS |
| Microphone: Sample rate | 48 kHz |
| Microphone: Frequency range | 100 Hz, 10.5 kHz, +/-3 dB |
| Content sharing: HDMI | Local sharing 1080p30 |
| Wireless & Networking: Wi-Fi | Wi-Fi 6 (2x2 MIMO) |
| Wireless & Networking: Wi-Fi bands | 2.4 GHz + 5 GHz |

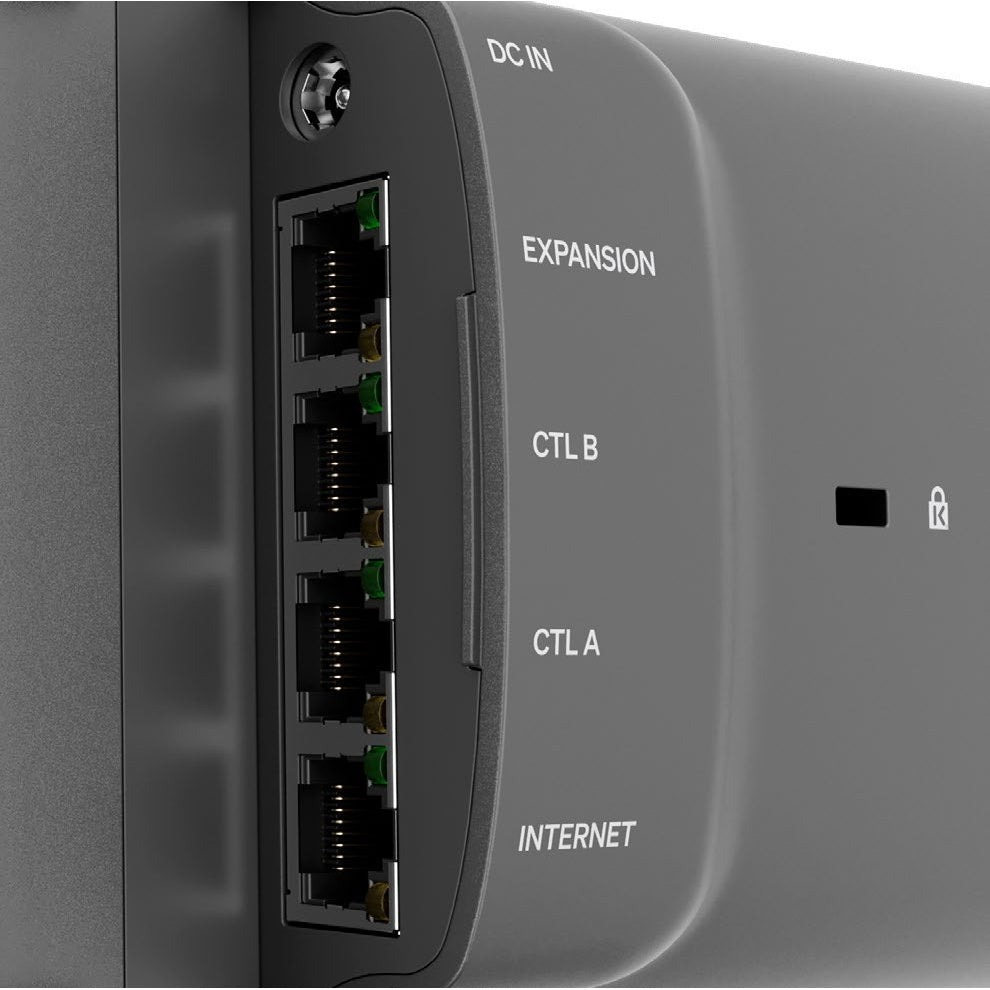

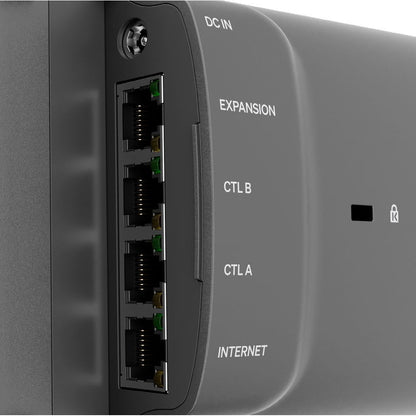

| Wireless & Networking: RJ45 ports (4) | 1x 1Gbps Ethernet port for internet connection; 1x USB-CAT PSE PoE+ Ethernet port for RS-CB-CTL11 Controller I/O; 1x 1Gbps Ethernet port for RS-CB-CTL11 Controller BYOM function; 1x 1Gbps PSE PoE Ethernet port for RS-CB-TM |
| Wireless & Networking: Bluetooth | Bluetooth 5.3 (Dual Mode: BR/EDR+BLE) |

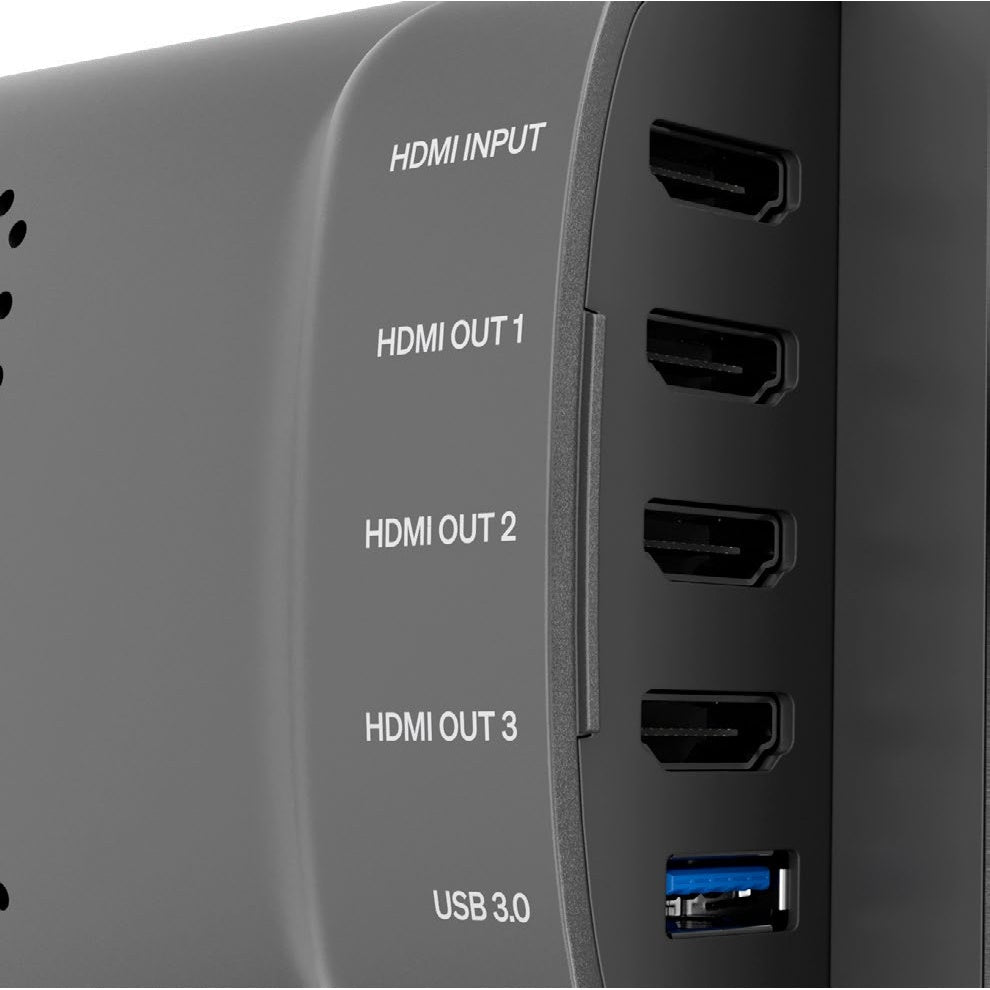

| Video I/O: HDMI inputs | 4k60 capable, 1080p30 supported for ingest |
| Video I/O: HDMI outputs | 3x total, 2x supported, (4K60 capable CEC supported) |
| USB I/O: USB ports | 1x USB-A 3.0; 1x USB-A 2.0 (under right endcap) |
| Physical: Collaboration Bar product dimensions (L x W x H) | 36.1 x 4.7 x 4.3 in (918 x 120.5 x 109 mm) |
| Physical: Collaboration Bar product weight | 11.8 lbs (5.4 kg) |

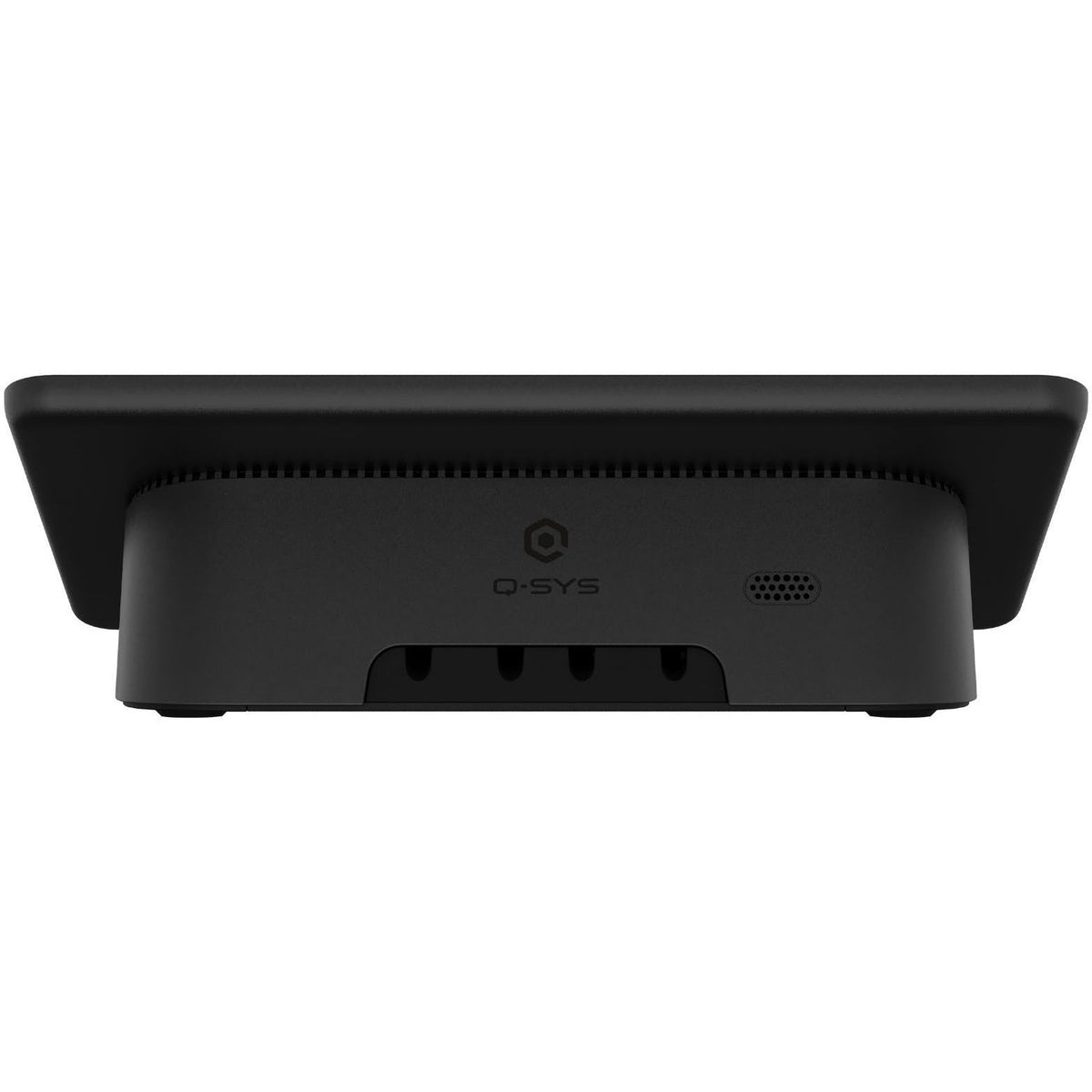

| Physical: Controller product dimensions (L x W x H) | 10.39 x 6.9 x 3.3 in (264 x 175.6 x 84.1 mm) |
| Physical: Controller product weight | 2.2 lbs (1 kg) |
| Physical: Included Accessories | 1x Power adapter; 1x 5 ft (1.5 m) AC cable (country-specific); 2x 6.56 ft (2 m) HDMI cables; 1x 6.56 ft (2 m) Ethernet cable; 2 x 24.6 ft (7.5 m) Ethernet cable; 1x 5 ft (1.5 m) USB-C cable; 1x Wall Mounting components |
| Environmental & safety: Storage temperature range | -4 degrees to 140 F (-20 to 60 C) |
| Environmental & safety: Storage humidity range | 10% to 90% |
| Environmental & safety: Operating temperature range | 32 degrees to 95 F (0 degrees to 35 C) |
Why Buy the Q-SYS RS-CB-MTRW-B from Trianze Tech?
- Genuine Q-SYS product supplied by Trianze Tech with local UAE support
- Pre-sales help designing the Q-SYS system around the RS-CB-MTRW-B
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation advice for meeting rooms, classrooms and venues
What's Included and Support
Frequently asked
Q-SYS RS-CB-MTRW-B: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
The Q-SYS RoomSuite Collaboration Bar and expansion devices provide a scalable AV solution for standard small-to-large meeting spaces. This Windows-based solution features built-in audio, video, and supports Microsoft Teams Rooms and bring-your-own-meeting conferencing.
For the Q-SYS RS-CB-MTRW-B, Q-SYS lists the following. System Details: Peripheral support: Up to 4 Q-SYS RoomSuite Table Microphones for the Collaboration Bar (sold separately); System Details: Controls & indicators: Microphone status LED indicators; Camera privacy screen; Audio: Power Output: 20 W max per loudspeaker (40 W max total); Content sharing: HDMI: Local sharing 1080p30; Wireless & Networking: Wi-Fi: Wi-Fi 6 (2x2 MIMO); Wireless & Networking: Wi-Fi bands: 2.4 GHz + 5 GHz.
For the Q-SYS RS-CB-MTRW-B, Q-SYS lists the following. Camera: Resolution: 4x 50 MP image sensors; Camera: Zoom: 8x hybrid zoom; Audio: Max SPL: 89 dB SPL (+/- 3 dB) @ 1 W / 0.5 m; Audio: Frequency Range: 80 Hz, 20 kHz; Microphone: Sensitivity: -36 dBFS.
For the Q-SYS RS-CB-MTRW-B, Q-SYS lists the following. System Details: Power: 19V/19.5V DC Input (power supply included); Audio: Power Output: 20 W max per loudspeaker (40 W max total); Ethernet: Power input: PoE+ Type 2 Class 4 (PD).
For the Q-SYS RS-CB-MTRW-B, Q-SYS lists the following. Physical: Collaboration Bar product dimensions (L x W x H): 36.1 x 4.7 x 4.3 in (918 x 120.5 x 109 mm); Physical: Collaboration Bar product weight: 11.8 lbs (5.4 kg); Physical: Controller product dimensions (L x W x H): 10.39 x 6.9 x 3.3 in (264 x 175.6 x 84.1 mm); Physical: Controller product weight: 2.2 lbs (1 kg).
