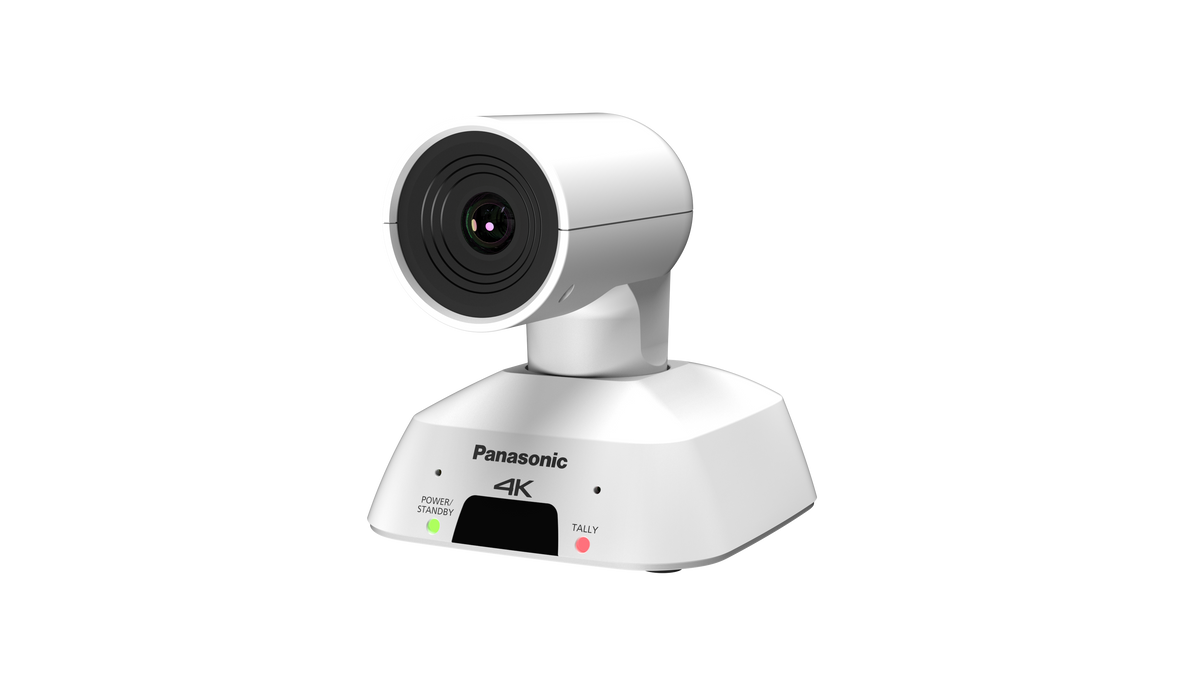

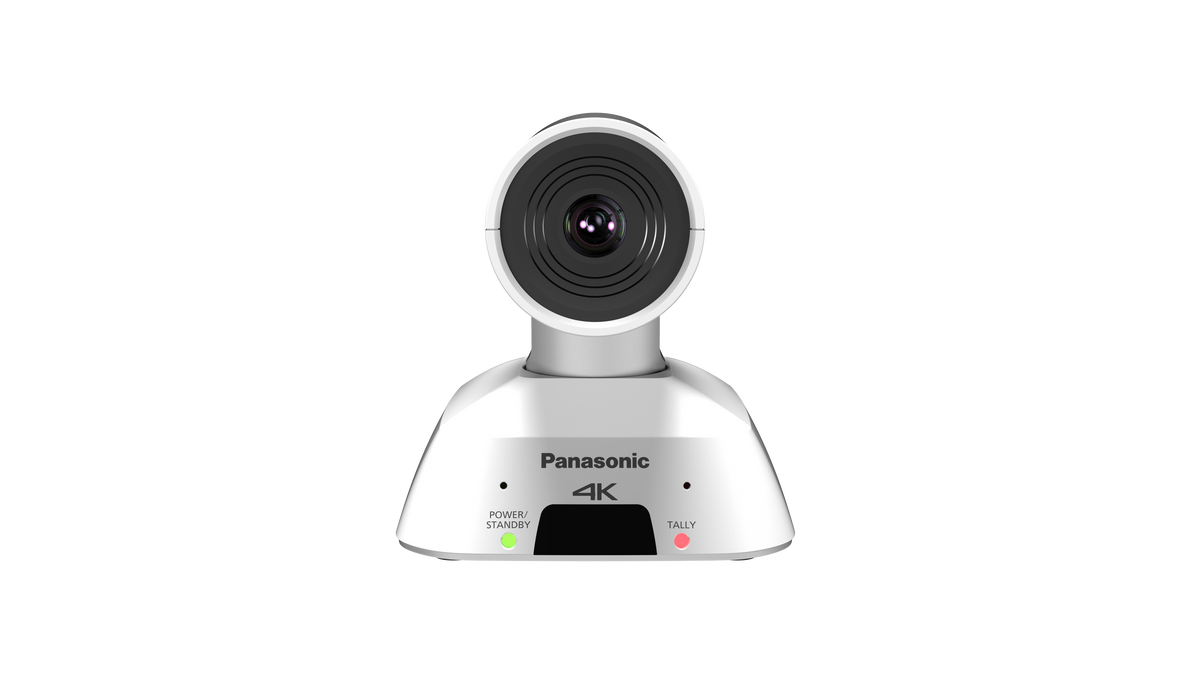

Panasonic AW-UE5WG: 4K PTZ Camera, NDI and IP, White
Brand
:Panasonic
Model
:
AW-UE5WG
Buying guides for this product
- Best Video Bar by Room Size
- All-in-One Video Conferencing Display vs TV and Video Bar
- Microsoft Teams Rooms on Windows vs Android
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Panasonic AW-UE5WG at a Glance
- Brand
- Panasonic
- Model
- AW-UE5WG
- Category
- Video Conferencing Cameras
- Solution
- Video Conferencing
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Panasonic AW-UE5WG Overview
The Panasonic AW-UE5WG is a 4K ptz camera and NDI and IP connectivity from Panasonic's professional remote camera range. This listing is the white model. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Imaging sensor: 1/2.8-type MOSx1
- Zoom: Digital Zoom: Up to 5x
- Lens: F2.45 (f=1.64 mm, 35mm conversion: 11.1mm)
- Angle of view: LDC Off: Horizontal field of view 121.8 degrees, vertical field of view 87.8 degrees, diagonal field of view 129.5 degrees
- Pan range +/-110 degrees (manual), tilt range +/-25 degrees (manual)
- Power: DC 5 V+/-5 % (4.75 V to 5.25 V)
Technical Specifications:
| Spec | Value |
|---|---|
| Model | AW-UE5WG |
| Type | Ptz camera |
| Power Requirements | DC 5 V+/-5 % (4.75 V to 5.25 V) |
| PoE | IEEE802.3at compliant: DC37 V to 57 V |
| Current Consumption | 3.0A (USB input), 0.3A (PoE power supply) |
| Ambient Operating Temperature | 0 C to 40 C (32 F to 104 F) |
| Ambient Operating Humidity | 20 % to 90 % (no condensation) |
| Storage Temperature | 20 C to 50 C (, 4 F to 122 F) |
| Weight | Approx. 0.5 kg (1.1 lb) (excluding mount bracket) |
| Dimensions | W 123 mm x H 131 mm x D 139 mm (4-53/64 inches x 5-5/32 inches x 5-15/32 inches) (excluding protrusions, mount bracket) |
| Controller Supported | AW-RP60, AW-RP150, AW-RP200,AW-RM50AG |
| Camera Unit: Imaging Sensor | 1/2.8-type MOSx1 |
| Camera Unit: Zoom | Digital Zoom: Up to 5x |
| Camera Unit: Lens | F2.45 (f=1.64 mm, 35mm conversion: 11.1mm) |
| Camera Unit: Angle of View Range | LDC Off: Horizontal field of view 121.8 degrees, vertical field of view 87.8 degrees, diagonal field of view 129.5 degrees |
| Camera Unit: Focus | Single focus |
| Camera Unit: Focus Distance | 300mm (0.98ft) |
| Camera Unit: Horizontal Resolution: 4K | 1,400 TV typ (HDMI Output, center area) |
| Camera Unit: Horizontal Resolution: HD | 900 TV typ (HDMI Output, center area) |
| Camera Unit: Gain Selection | Auto, 0 to 42 dB Can be set in 3 dB increments |
| Camera Unit: Electronic Shutter Speed: FullAuto | Full Auto Mode with Slow Shutter On / Shutter Priority Mode1/1, 1/2, 1/5, 1/10, 1/20, 1/30, 1/60, 1/120, 1/240, 1/480, 1/1000, 1/2000, 1/4000, 1/8000, 1/16000 [60Hz/59.94Hz]1/1, 1/2, 1/5, 1/10, 1/20, 1/25, 1/50, 1/100 |
| Camera Unit: Electronic Shutter Speed: Auto | Full Auto Mode with Slow Shutter Off1/60, 1/120, 1/240, 1/480, 1/1000, 1/2000, 1/4000, 1/8000, 1/16000 [60Hz/59.94Hz]1/50, 1/100, 1/250,1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/16000 [50Hz] |
| Camera Unit: Electronic Shutter Speed: Manual | 1/1, 1/2, 1/5, 1/10, 1/20, 1/30, 1/60, 1/120, 1/240, 1/480, 1/1000, 1/2000, 1/4000, 1/8000, 1/16000 [60Hz/59.94Hz]1/1, 1/2, 1/5, 1/10, 1/20, 1/25, 1/50, 1/100, 1/250,1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/16000 [50Hz] |
| Camera Unit: White Balance | ATW, AWB A, AWB B, 3200K, 5600K |
| Camera Unit: Chroma Amount Variability | 11 steps (0 to 10) |
| Camera Unit: Color Bar | [60Hz/59.94Hz]:SMPTE[50Hz]:FULL |
| Camera Unit: Output Format (HDMI): 4K | 2160/60p2160/59.94p2160/50p2160/30p2160/29.97p2160/25p |
| Camera Unit: Output Format (HDMI): HD | 1080/60p1080/59.94p1080/50p/30p1080/29.97p1080/25p/60p720/59.94p720/50p |

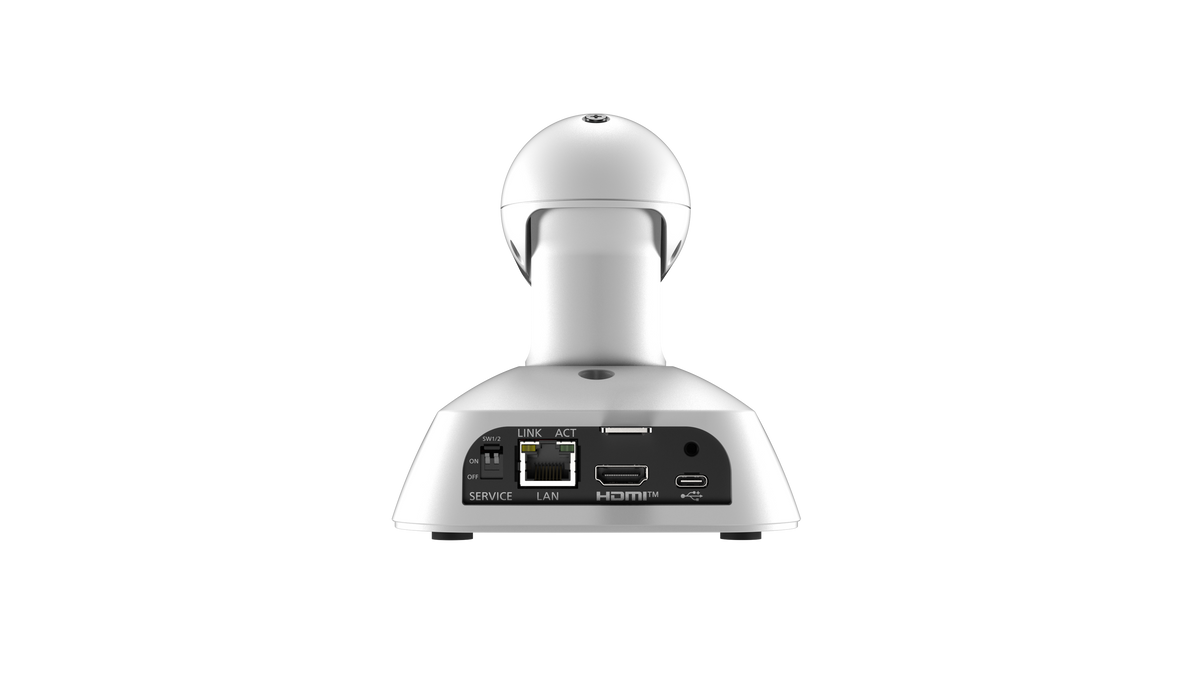

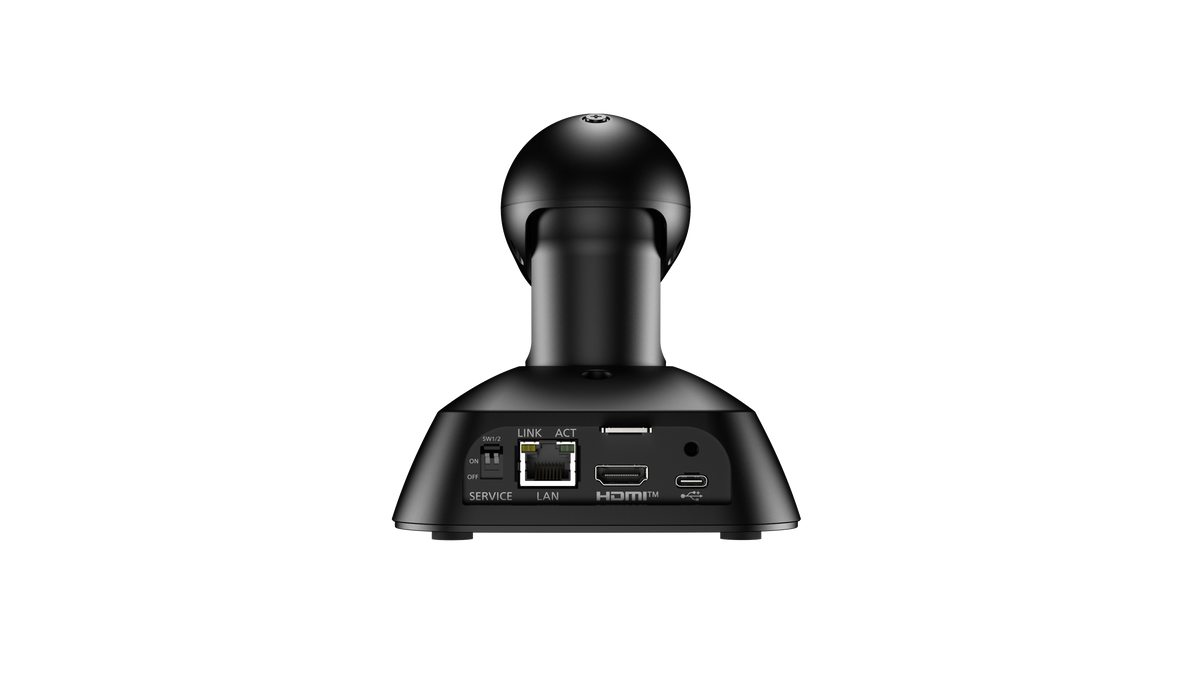

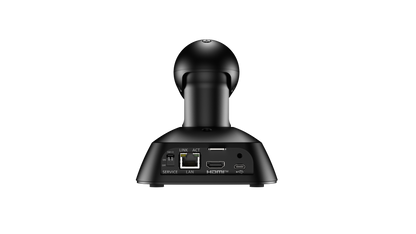

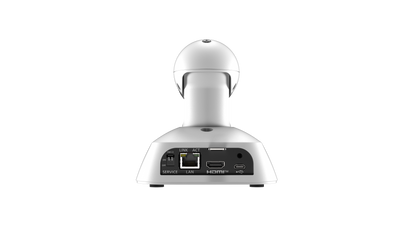

| Output Connector: HDMI | HDMI Connector, HDCP is not supported., Viera Link is not supported. |
| Input/Output Connector: LAN | LAN terminal for IP control (RJ-45) |
| Input/Output Connector: USB | Type-C connector |
| Pan-tilt Head Unit: IP connecting cable | When a PoE ethernet hub is used: LAN cable(category 5e or above), max. 100 m (328 ft), When a PoE ethernet hub is not used: LAN cable(category 5 or above), max.100 m (328 ft) |
| Pan-tilt Head Unit: Installation Method | Stand-alone (Desktop) or suspended (Hanging) |
| Pan-tilt Head Unit: Panning Range | +/-110 degrees (manual) |
| Pan-tilt Head Unit: Tilting range | +/-25 degrees (manual) |
| Supported Operating Systems and Web Browsers: Windows | Windows 11Microsoft EdgeChrome |
Why Buy the Panasonic AW-UE5WG from Trianze Tech?
- Genuine Panasonic ptz camera supplied by Trianze Tech with local UAE support
- Pre-sales help choosing the right accessories and installation for the AW-UE5WG
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation advice for meeting rooms, classrooms and venues
What's Included and Support
Frequently asked
Panasonic AW-UE5WG: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
For the Panasonic AW-UE5WG, Panasonic lists the following. Imaging sensor: 1/2.8-type MOSx1; Zoom: Digital Zoom: Up to 5x; Lens: F2.45 (f=1.64 mm, 35mm conversion: 11.1mm).
For the Panasonic AW-UE5WG, Panasonic lists the following. Output Connector: HDMI: HDMI Connector, HDCP is not supported., Viera Link is not supported.; Input/Output Connector: LAN: LAN terminal for IP control (RJ-45); Input/Output Connector: USB: Type-C connector.
For the Panasonic AW-UE5WG, Panasonic lists the following. Power Requirements: DC 5 V+/-5 % (4.75 V to 5.25 V); PoE: IEEE802.3at compliant: DC37 V to 57 V; Current Consumption: 3.0A (USB input), 0.3A (PoE power supply).
For the Panasonic AW-UE5WG, Panasonic lists the following. Panning range: +/-110 degrees (manual); Tilting range: +/-25 degrees (manual); Installation: Stand-alone (Desktop) or suspended (Hanging).
For the Panasonic AW-UE5WG, Panasonic lists the following. Dimensions: W 123 mm x H 131 mm x D 139 mm (4-53/64 inches x 5-5/32 inches x 5-15/32 inches) (excluding protrusions, mount bracket); Weight: Approx. 0.5 kg (1.1 lb) (excluding mount bracket); Operating temperature: 0 C to 40 C (32 F to 104 F).
Trianze Tech stocks the Panasonic AW-UE5WG in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
More in Video Conferencing
View all 331 products →-

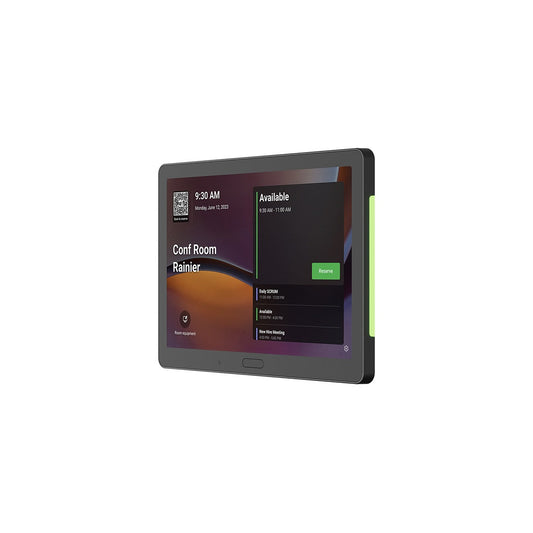

Q-SYS 36W-DC-PSU: DC Power Supply for QSP-11 Scheduling Panel
-

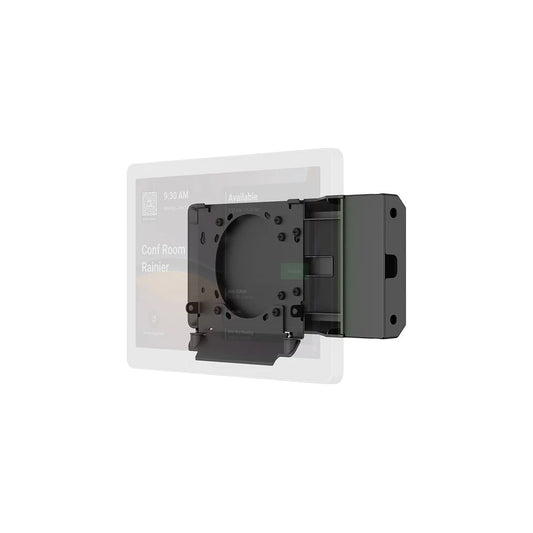

Q-SYS QSP-GMK: Glass and Mullion Mounting Kit for QSP-11 Panel
-
Q-SYS NS10-720++: 10-port Q-SYS switch, 8x PoE++, 720 W
-

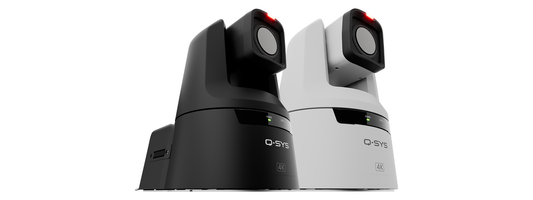

Q-SYS NC-Pro15x White: PTZ Network Camera Canon Optics 4K UHD, White
