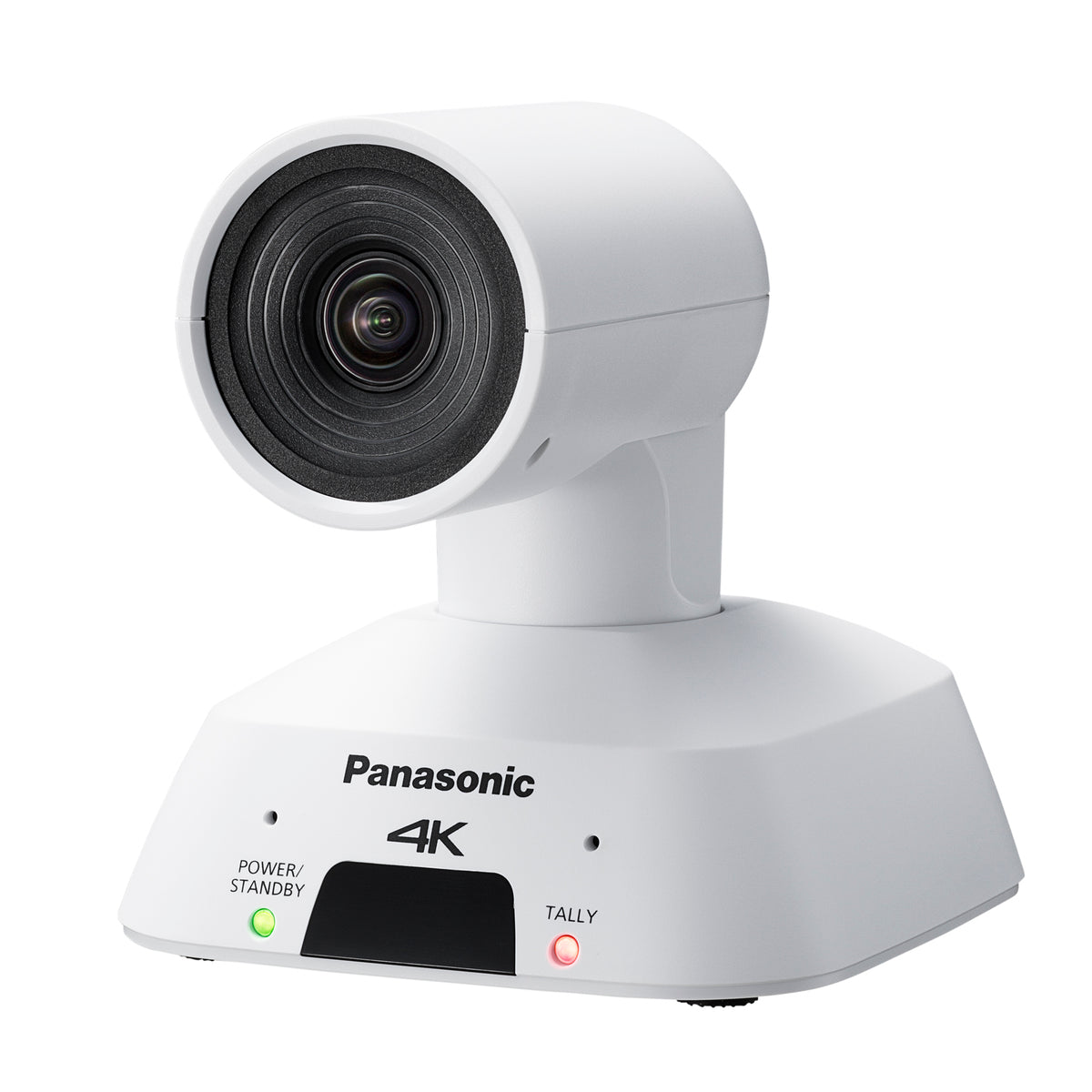

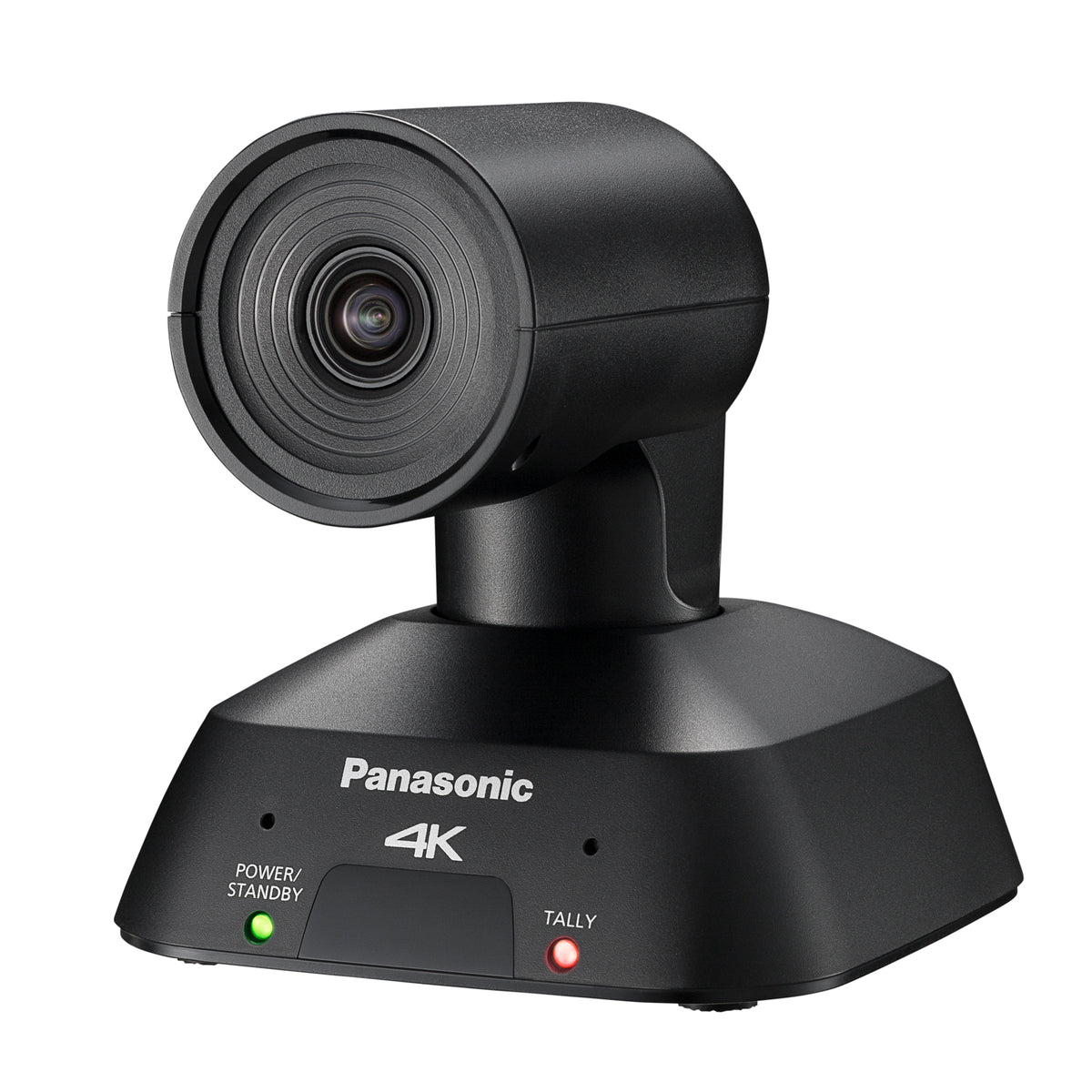

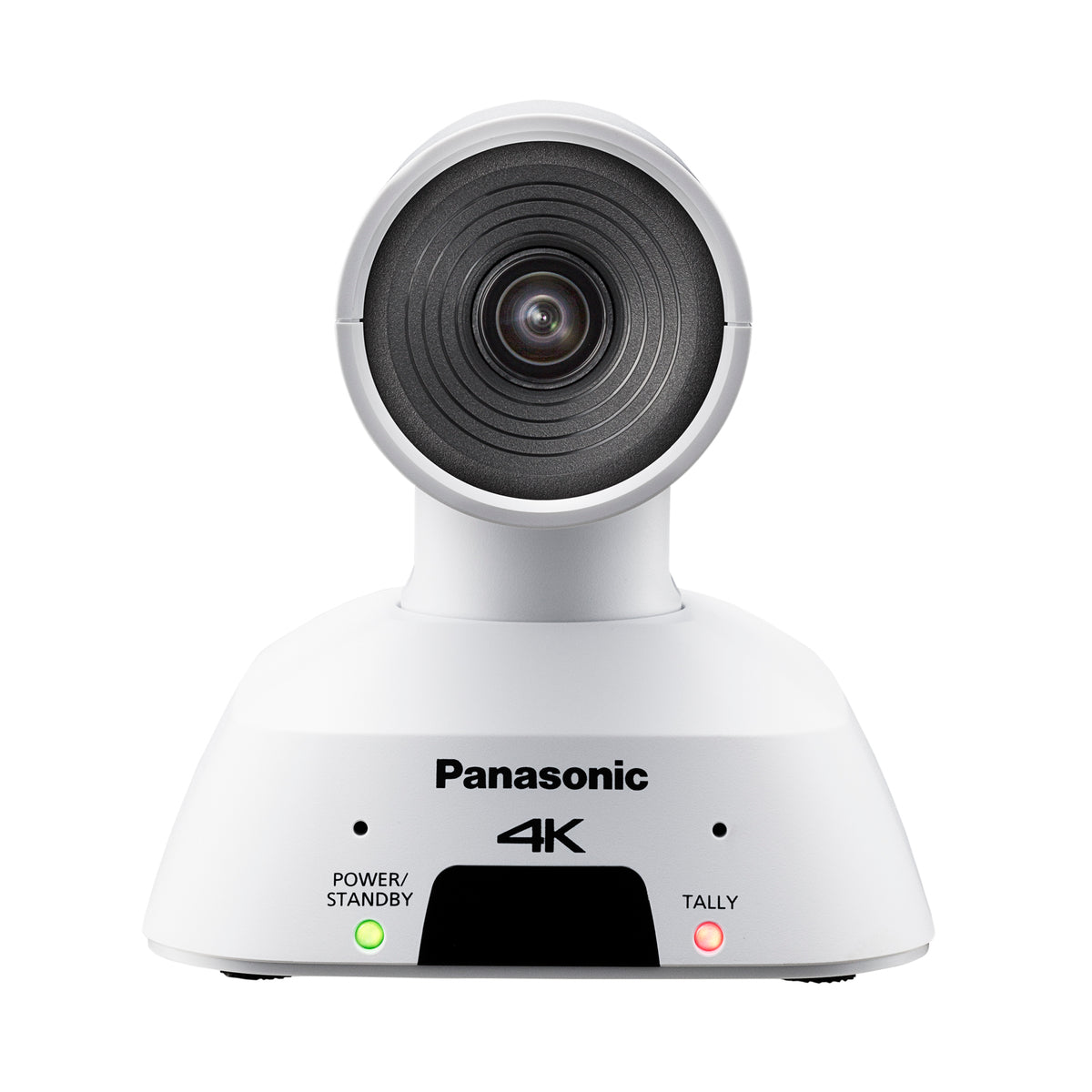

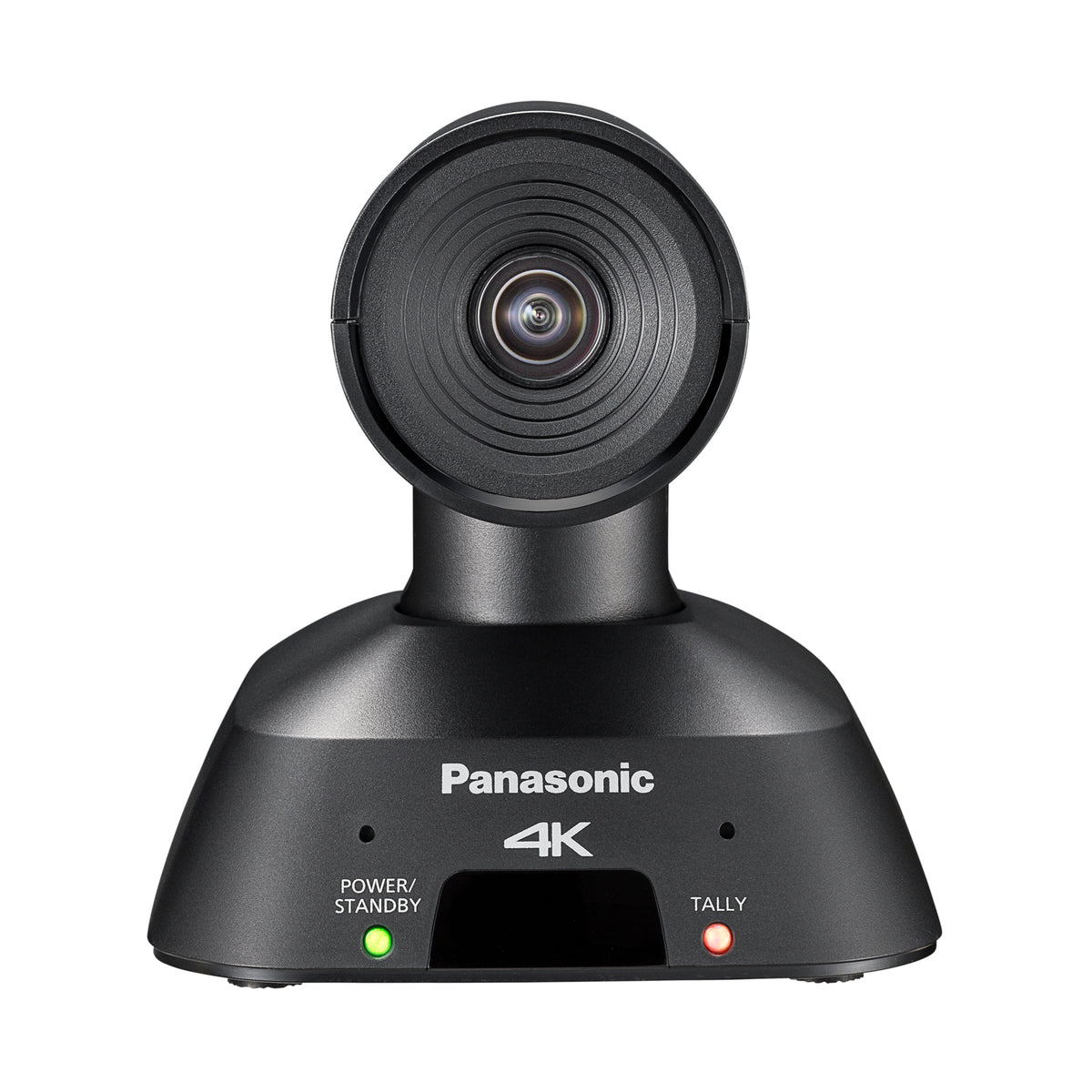

Panasonic AW-UE4: 4K PTZ Camera, IP
Model
:
AW-UE4
Buying guides for this product
- Best Video Bar by Room Size
- All-in-One Video Conferencing Display vs TV and Video Bar
- Microsoft Teams Rooms on Windows vs Android
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Panasonic AW-UE4 at a Glance
- Brand
- Panasonic
- Model
- AW-UE4
- Category
- Video Conferencing Cameras
- Solution
- Video Conferencing
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Panasonic AW-UE4 Overview
The Panasonic AW-UE4 is a 4K ptz camera and IP connectivity from Panasonic's professional remote camera range. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Imaging sensor: 1/2.5-type MOSx1
- Zoom: Digital Zoom: 4x
- Lens: F2.4 (f=2.21 mm, 35 mm conversion: 13.4 mm)
- Angle of view: LDC Off: Horizontal field of view 111 degrees, vertical field of view 75 degrees, diagonal field of view 120 degreesLDC On
- Pan range +/-110 degrees (manual), tilt range +/-25 degrees (manual)
- Power: DC 5 V+/-5 % (4.75 V to 5.25 V)
Technical Specifications:
| Spec | Value |
|---|---|
| Model | AW-UE4 |
| Type | Ptz camera |
| Power Requirements | DC 5 V+/-5 % (4.75 V to 5.25 V) |
| PoE | PoEIEEE802.3at compliant: DC37 V to 57 V |
| Current Consumption | 1.0A (USB input), 0.2A (PoE power supply) |
| Ambient Operating Temperature | 0 C to 40 C (32 F to 104 F) |
| Ambient Operating Humidity | 20 % to 90 % (no condensation) |
| Storage Temperature | -20 C to 50 C (-4 F to 122 F) |
| Weight | Approx. 0.5 kg (1.1 lb) (excluding mount bracket) |
| Dimensions | W 123 mm x H 131 mm x D 139 mm(4-53/64 inches x 5-5/32 inches x 5-29/64 inches)(excluding protrusions, mount bracket)W 123 mm x H 131 mm x D 152 mm(4-53/64 inches x 5-5/32 inches x 5-62/64 inches)(excluding mount bracket) |
| Controller Supported | See the Compatibility Chart for Operation Devices and Application Software page |
| Camera Unit: Imaging Sensor | 1/2.5-type MOSx1 |
| Camera Unit: Zoom | Digital Zoom: 4x |
| Camera Unit: Lens | F2.4 (f=2.21 mm, 35 mm conversion: 13.4 mm) |
| Camera Unit: Angle of View Range | LDC Off: Horizontal field of view 111 degrees, vertical field of view 75 degrees, diagonal field of view 120 degreesLDC On: Horizontal field of view 108 degrees, vertical field of view 75 degrees, diagonal field of view 116 |
| Camera Unit: Focus | Single focus |
| Camera Unit: Focus Distance | 700 mm |
| Camera Unit: Minimum Illumination | 4 lx (conditions: 50 IRE, gain 42 dB, shutter speed 1/60) |
| Camera Unit: Horizontal Resolution: 4K | 1,400 TV typ (center area) |
| Camera Unit: Horizontal Resolution: HD | 900 TV typ (central area) |
| Camera Unit: Digital Pan and Tilt Angle | 2x digital zoom: Pan approx. +/- 34 degrees, tilt approx. +/- 21 degrees4x digital zoom: Pan approx. +/- 45 degrees, tilt approx. +/- 30 degrees |
| Camera Unit: Gain Selection | Auto, 0 to 42 dB Can be set in 3 dB increments |
| Camera Unit: Electronic Shutter Speed: FullAuto | Full Auto Mode with Slow Shutter On / Shutter Priority Mode 1/1, 1/2, 1/5, 1/10, 1/20, 1/30, 1/60, 1/120, 1/240, 1/480, 1/1000, 1/2000, 1/4000, 1/8000, 1/16000 [60 Hz/59.94 Hz]1/1, 1/2, 1/5, 1/10, 1/20, 1/25, 1/50, 1/100, 1/250 |
| Camera Unit: Electronic Shutter Speed: Manual | 1/1, 1/2, 1/5, 1/10, 1/20, 1/30, 1/60, 1/120, 1/240, 1/480, 1/1000, 1/2000, 1/4000, 1/8000, 1/16000 [60 Hz/59.94 Hz]1/1, 1/2, 1/5, 1/10, 1/20, 1/25, 1/50, 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/16000 [50 Hz] |
| Camera Unit: White Balance | ATW, AWB A, AWB B, 3200K, 5600K |
| Camera Unit: Chroma Amount Variability | 11 steps (0 to 10) |
| Input Connector: DC IN | PoE |
| Output Connector: HDMI | HDMI Connector4:4:4/8 bit, HDCP is not supported., Viera Link is not supported. |
| Input/Output Connector: LAN | LAN terminal for IP control (RJ-45) |
| Input/Output Connector: USB | Type-C connector |
| Pan-tilt Head Unit: IP connecting cable | When a PoE ethernet hub is used: LAN cable (category 5e or above), max. 100 m (328 ft), When a PoE ethernet hub is not used: LAN cable (category 5 or above), max.100 m (328 ft) |
| Pan-tilt Head Unit: Installation Method | Stand-alone (Desktop) or suspended (Hanging) |
| Pan-tilt Head Unit: Panning Range | +/-110 degrees (manual) |
| Pan-tilt Head Unit: Tilting range | +/-25 degrees (manual) |
| IP Streaming: Image Streaming Mode | MJPEG (HTTP), H.264 (RTSP/RTMP/RTMPS), H.265 (RTSP) |
| IP Streaming: Image Resolution | [MJPEG]1280x720640x360[H.264/H.265]3840x21601920x10801280x720640x360 |
Why Buy the Panasonic AW-UE4 from Trianze Tech?
- Genuine Panasonic ptz camera supplied by Trianze Tech with local UAE support
- Pre-sales help choosing the right accessories and installation for the AW-UE4
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation advice for meeting rooms, classrooms and venues
What's Included and Support
Frequently asked
Panasonic AW-UE4: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
For the Panasonic AW-UE4, Panasonic lists the following. Imaging sensor: 1/2.5-type MOSx1; Zoom: Digital Zoom: 4x; Lens: F2.4 (f=2.21 mm, 35 mm conversion: 13.4 mm).
For the Panasonic AW-UE4, Panasonic lists the following. Input Connector: DC IN: PoE; Output Connector: HDMI: HDMI Connector4:4:4/8 bit, HDCP is not supported., Viera Link is not supported.; Input/Output Connector: LAN: LAN terminal for IP control (RJ-45); Input/Output Connector: USB: Type-C connector.
For the Panasonic AW-UE4, Panasonic lists the following. Power Requirements: DC 5 V+/-5 % (4.75 V to 5.25 V); PoE: PoEIEEE802.3at compliant: DC37 V to 57 V; Current Consumption: 1.0A (USB input), 0.2A (PoE power supply).
For the Panasonic AW-UE4, Panasonic lists the following. Panning range: +/-110 degrees (manual); Tilting range: +/-25 degrees (manual); Installation: Stand-alone (Desktop) or suspended (Hanging).
For the Panasonic AW-UE4, Panasonic lists the following. Dimensions: W 123 mm x H 131 mm x D 139 mm(4-53/64 inches x 5-5/32 inches x 5-29/64 inches)(excluding protrusions, mount bracket)W 123 mm x H 131 mm x D 152 mm; Weight: Approx. 0.5 kg (1.1 lb) (excluding mount bracket); Operating temperature: 0 C to 40 C (32 F to 104 F).
Trianze Tech stocks the Panasonic AW-UE4 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
