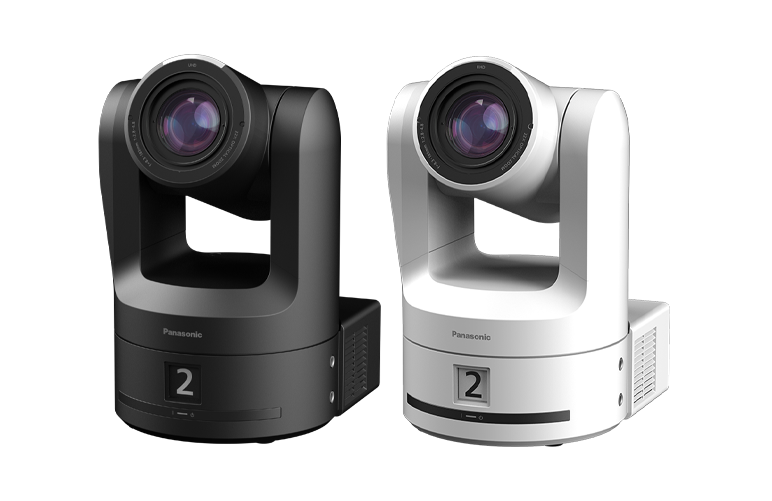

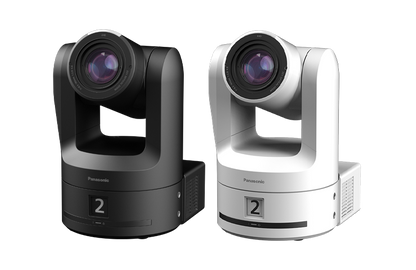

  • Panasonic AW-UE200: 4K PTZ Camera with 22x Optical Zoom, SDI and IP

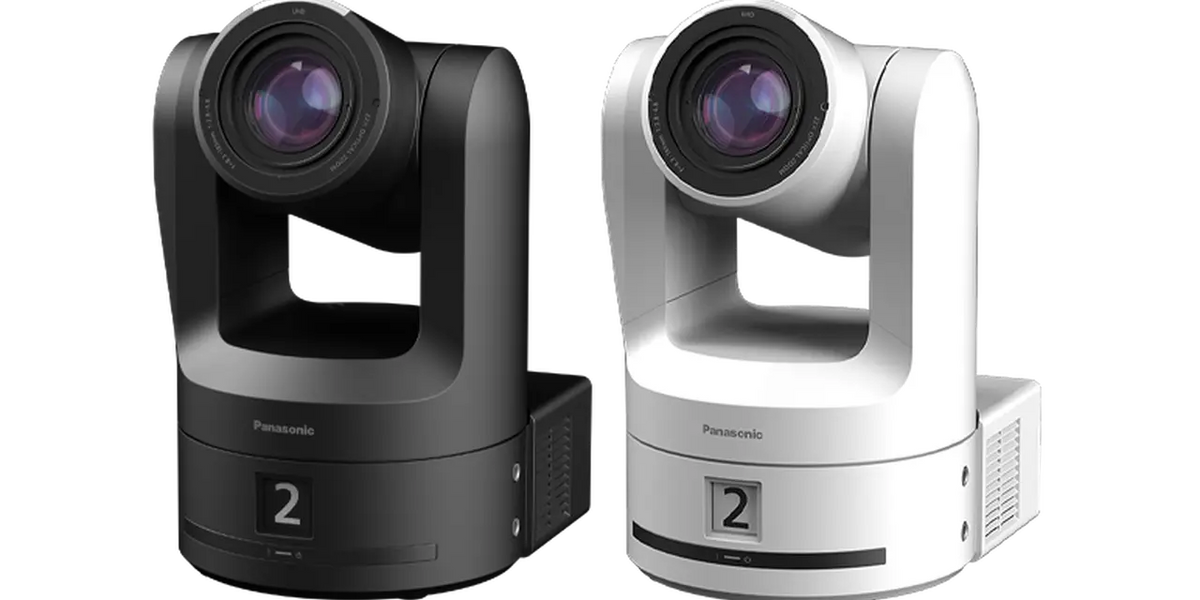

  • Panasonic AW-UE200: 4K PTZ Camera with 22x Optical Zoom, SDI and IP, view 2
1 2

Panasonic AW-UE200: 4K PTZ Camera with 22x Optical Zoom, SDI and IP

  • 4K PTZ camera, 22x optical zoom
  • Sensor: 1.2-type (1.2") Global Shutter 5K MOS x 1
  • Interfaces: SDI, IP
  • Pan +/-175 degrees, tilt 30 degrees to +210 degrees
Brand :Panasonic
Model : AW-UE200

Buying guides for this product

All AV buying guides ›
Part of Our Solution Video Conferencing
View full details
Genuine Products

Genuine Products

Original Brand Warranty

Original Brand Warranty

Product Training

Product Training

Installation, Maintenance & Support

Installation, Maintenance & Support

Request a Quote

Panasonic AW-UE200 at a Glance

Model
AW-UE200
Category
Video Conferencing Cameras
Supply
Dubai, Abu Dhabi and across the UAE
Pricing
Quoted per project

Applications & Use Cases

  • Video conferencing and hybrid meeting rooms
  • Lecture capture and training rooms
  • Live streaming and events
  • Houses of worship and auditoriums

Panasonic AW-UE200 Overview

The Panasonic AW-UE200 is a 4K ptz camera with 22x optical zoom and SDI and IP connectivity from Panasonic's professional remote camera range. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.

Key Features:

  • Imaging sensor: 1.2-type (1.2") Global Shutter 5K MOS x 1
  • Zoom: Motorized Optical Zoom: 22x; i.Zoom: UHD 28x, FHD 35x; D.Extender Zoom: 1.4x, 2x
  • Lens: F2.8 to F4.8
  • Angle of view: Horizontal angle of view: 80 degrees (wide) to 4 degrees (tele); Vertical angle of view: 49 degrees (wide) to 2 degrees (tele)
  • Pan range +/-175 degrees, tilt range 30 degrees to +210 degrees
  • Power: 12 V DC +/- 10% (10.8 V to 13.2 V)

Technical Specifications:

Spec Value
Model AW-UE200
Type Ptz camera
Power Requirements 12 V DC +/- 10% (10.8 V to 13.2 V)
PoE PoE++IEEE802.3bt standard: DC 42 V to 57 V (Camera Input)
Current Consumption less than 5.0A (DC IN), less than 1.5A (PoE++ power supply)
Weight Approx.7.5 kg (16.53 lbs.) (excluding mount bracket)
Dimensions 212 mm x 308 mm x 248 mm (8-3/8 inches x 12-1/8 inches x 9-3/4 inches) (excluding protrusions, ceiling mount bracket)
Camera Unit: Imaging Sensor 1.2-type (1.2") Global Shutter 5K MOS x 1
Camera Unit: Effective Pixels Approx. 14.0 mega pixels
Camera Unit: Zoom Motorized Optical Zoom: 22x; i.Zoom: UHD 28x, FHD 35x; D.Extender Zoom: 1.4x, 2x
Camera Unit: Lens F2.8 to F4.8 [8.3mm (5/16 inches) to 183.0 mm (7-3/16 inches), 35 mm (1-3/8 inches) equivalent: 22.5 mm (7/8 inches) to 500.0 mm (19-11/16 inches)]
Camera Unit: Angle of View Range Horizontal angle of view: 80 degrees (wide) to 4 degrees (tele); Vertical angle of view: 49 degrees (wide) to 2 degrees (tele); Diagonal angle of view: 88 degrees (wide) to 4 degrees (tele)
Camera Unit: Optical Filter: ND Filter ND: Through, 1/4, 1/16, 1/64IR: Night Mode OFF, ON
Camera Unit: Horizontal Resolution 1,800 TV lines Type (Center area, in UHD Mode, at the Wide end)
Camera Unit: Output Format (SDI): 4K 2160/60p, 2160/59.94p, 2160/50p, 2160/29.97p (Native), 2160/25p (Native), 2160/24p (Native), 2160/23.98p (Native)
Camera Unit: Output Format (SDI): HD 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p (Native), 1080/29.97PsF, 1080/25p (Native), 1080/25PsF, 1080/24p (Native), 1080/24PsF, 1080/23.98p (Native), 1080/23.98PsF, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p
Camera Unit: Output Format (HDMI): 4K 2160/60p, 2160/59.94p, 2160/50p, 2160/29.97p (Native), 2160/25p (Native), 2160/24p (Native), 2160/23.98p (Native)
Camera Unit: Output Format (HDMI): HD 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p (Native), 1080/29.97PsF, 1080/25p (Native), 1080/25PsF, 1080/24p (Native), 1080/24PsF, 1080/23.98p (Native), 1080/23.98PsF, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p
Input Connector: AUDIO INPUT: XLR XLR (2ch) or MIC/LINE Input compatibles (SDI/HDMI/IP)AAC compatibility (compatible with IP only)XLR 3-pin female balanced input: 2ch
Output Connector: HDMI HDMI 2.0 standard4: 2: 2/10bit
Output Connector: 12G-SDI OUT SMPTE2082-1, SMPTE424M/SMPTE292M/ 75 ohm (BNC x 1)
Output Connector: 3G-SDI OUT1 SMPTE424M/SMPTE292M/ 75 ohm (BNC x 1)
Output Connector: 3G-SDI MONI OUT SMPTE424M/SMPTE292M/ 75 ohm (BNC x 1)
Input/Output Connector: LAN LAN connector for IP control (RJ-45) 100BASE-T/100BASE-TX/1000BASE-T
Input/Output Connector: RS-422 CONTROL IN RS-422A (RJ-45)
Pan-tilt Head Unit: Pan/tilt Operation Speed: Speed range Speed Range: 0.004 degrees/s to 400 degrees/s (Normal mode)Acceleration Range: up to 1800 degrees/s2
Pan-tilt Head Unit: Panning Range +/-175 degrees
Pan-tilt Head Unit: Tilting range 30 degrees to +210 degrees
Input Connector: G/L IN (BNC) BBS (Black Burst Sync), tri-level sync supported

Why Buy the Panasonic AW-UE200 from Trianze Tech?

  • Genuine Panasonic ptz camera supplied by Trianze Tech with local UAE support
  • Pre-sales help choosing the right accessories and installation for the AW-UE200
  • Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
  • Installation advice for meeting rooms, classrooms and venues

Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

What's Included and Support

Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

Package Contents

  • Panasonic AW-UE200
  • Package contents are confirmed by Trianze Tech at order

Warranty

  • Manufacturer warranty from Panasonic applies; the term for the AW-UE200 is confirmed at order
  • Trianze Tech supports UAE installations and can advise on claims

Sustainability

  • Power: 12 V DC +/- 10% (10.8 V to 13.2 V)

Expandability

  • Trianze Tech can confirm accessories and fit before you order

Distribution

  • Supplied by Trianze Tech in Dubai and Abu Dhabi
  • Delivery across the UAE and to other GCC countries on request

Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

Frequently asked

Panasonic AW-UE200: Frequently Asked Questions

If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
For the Panasonic AW-UE200, Panasonic lists the following. Imaging sensor: 1.2-type (1.2") Global Shutter 5K MOS x 1; Zoom: Motorized Optical Zoom: 22x; i.Zoom: UHD 28x, FHD 35x; D.Extender Zoom: 1.4x, 2x; Effective pixels: Approx. 14.0 mega pixels; Lens: F2.8 to F4.8 [8.3mm (5/16 inches) to 183.0 mm (7-3/16 inches), 35 mm (1-3/8 inches) equivalent: 22.5 mm (7/8 inches) to 500.0 mm (19-11/16 inches)].
For the Panasonic AW-UE200, Panasonic lists the following. Input Connector: AUDIO INPUT: XLR: XLR (2ch) or MIC/LINE Input compatibles (SDI/HDMI/IP)AAC compatibility (compatible with IP only)XLR 3-pin; Output Connector: HDMI: HDMI 2.0 standard4: 2: 2/10bit; Output Connector: 12G-SDI OUT: SMPTE2082-1, SMPTE424M/SMPTE292M/ 75 ohm (BNC x 1); Output Connector: 3G-SDI OUT1: SMPTE424M/SMPTE292M/ 75 ohm (BNC x 1); Output Connector: 3G-SDI MONI OUT: SMPTE424M/SMPTE292M/ 75 ohm (BNC x 1); Input/Output Connector: LAN: LAN connector for IP control (RJ-45) 100BASE-T/100BASE-TX/1000BASE-T.
For the Panasonic AW-UE200, Panasonic lists the following. Power Requirements: 12 V DC +/- 10% (10.8 V to 13.2 V); PoE: PoE++IEEE802.3bt standard: DC 42 V to 57 V (Camera Input); Current Consumption: less than 5.0A (DC IN), less than 1.5A (PoE++ power supply).
For the Panasonic AW-UE200, Panasonic lists the following. Panning range: +/-175 degrees; Tilting range: 30 degrees to +210 degrees.
For the Panasonic AW-UE200, Panasonic lists the following. Dimensions: 212 mm x 308 mm x 248 mm (8-3/8 inches x 12-1/8 inches x 9-3/4 inches) (excluding protrusions, ceiling mount bracket); Weight: Approx.7.5 kg (16.53 lbs.) (excluding mount bracket).
Trianze Tech stocks the Panasonic AW-UE200 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
