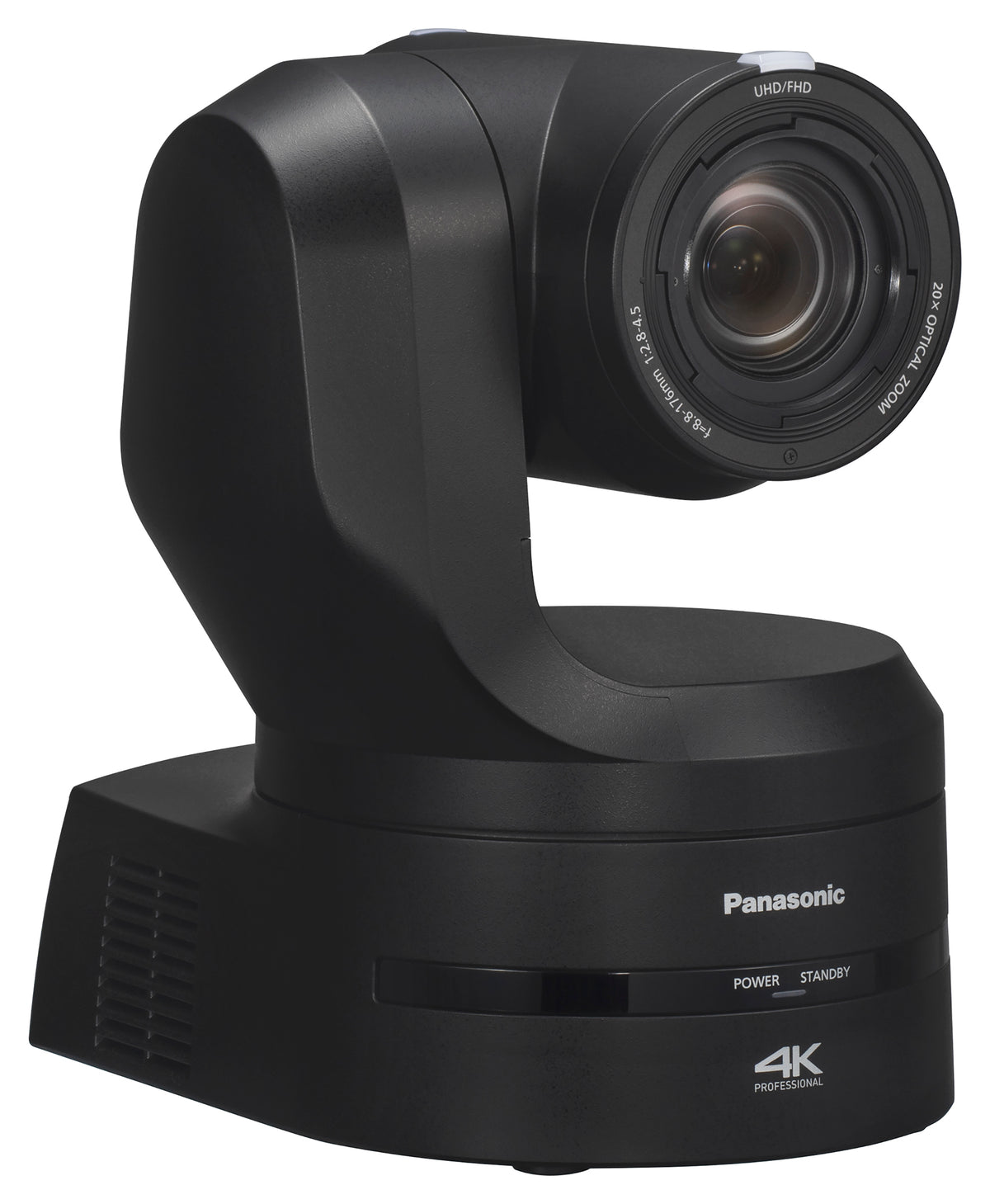

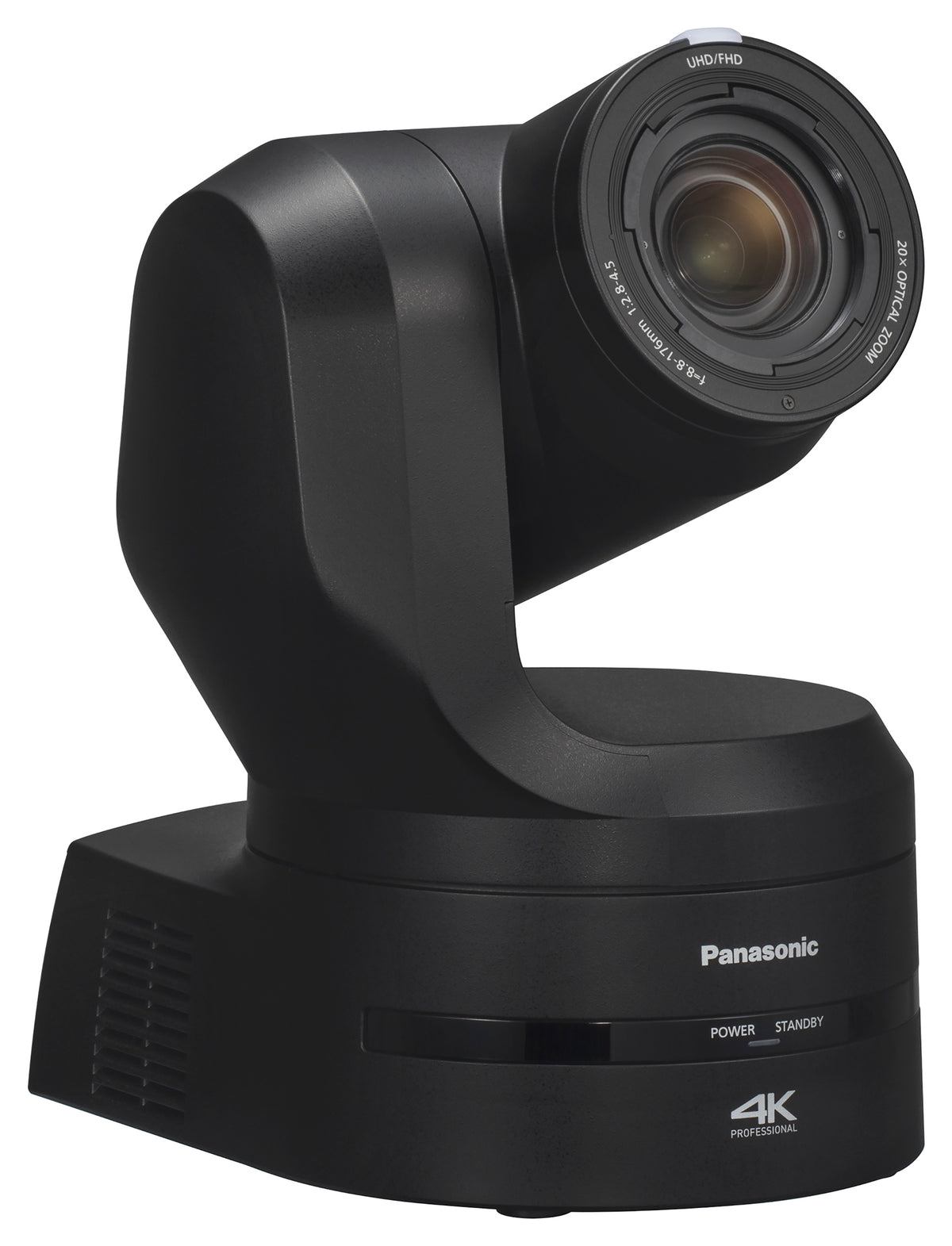

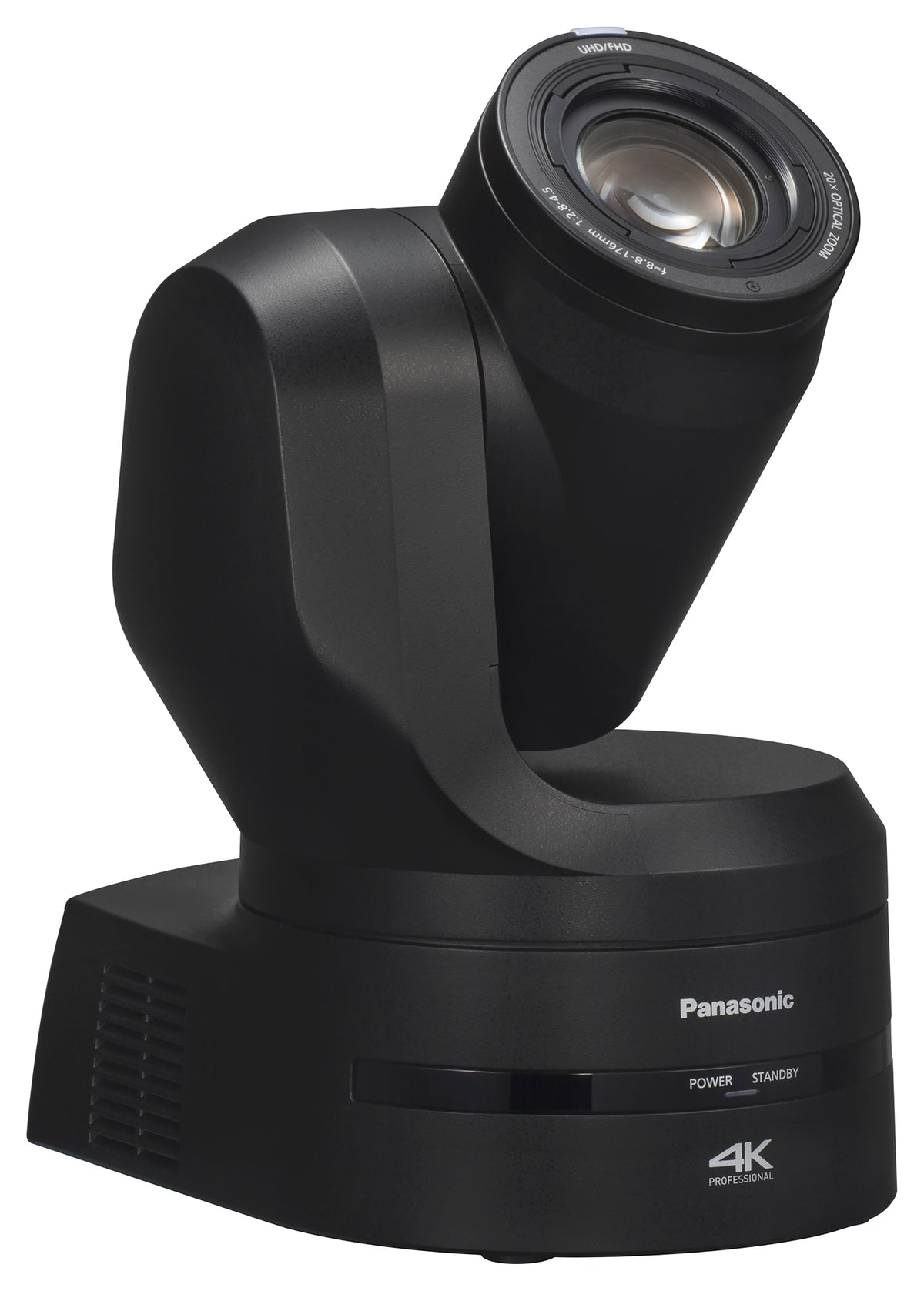

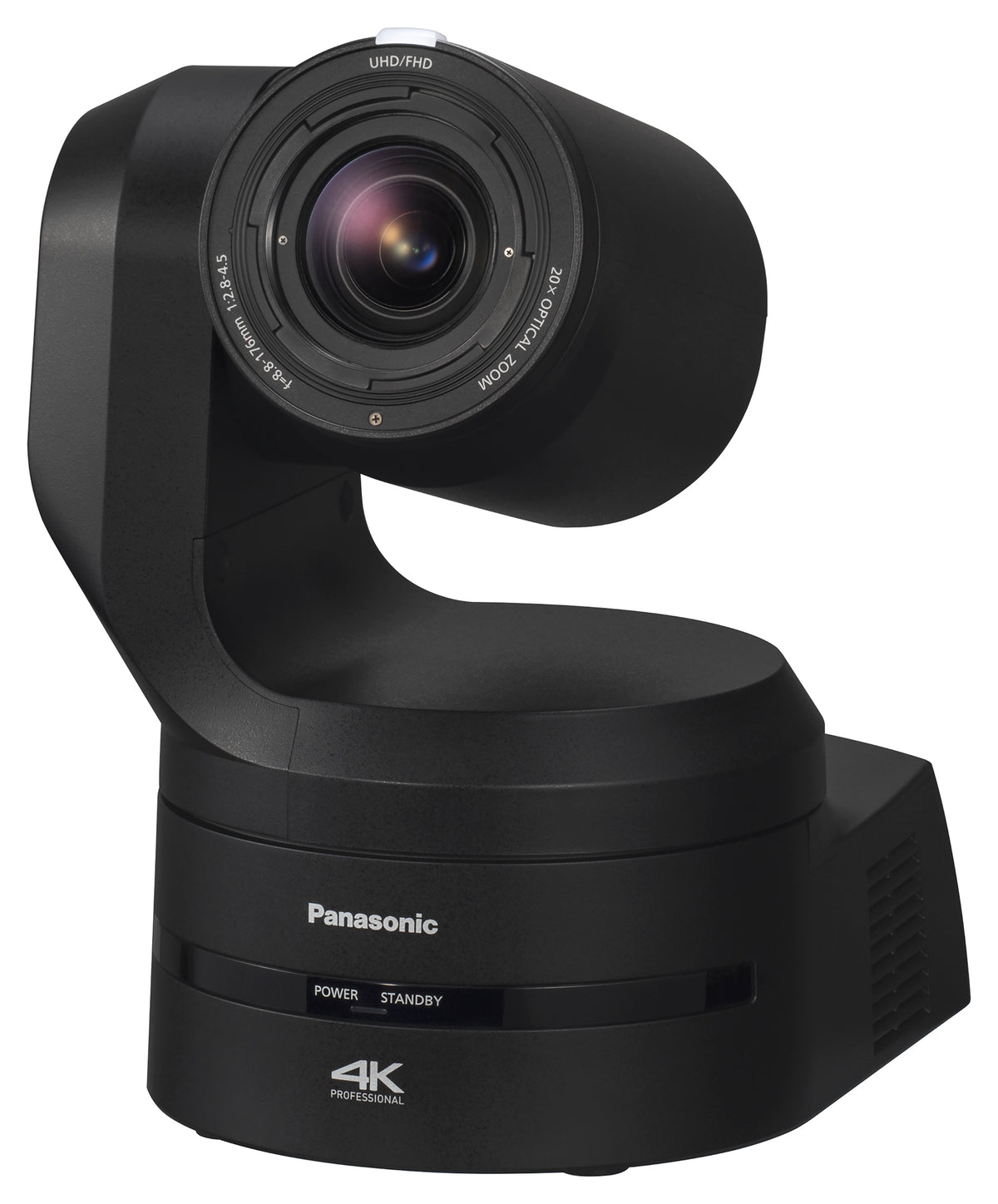

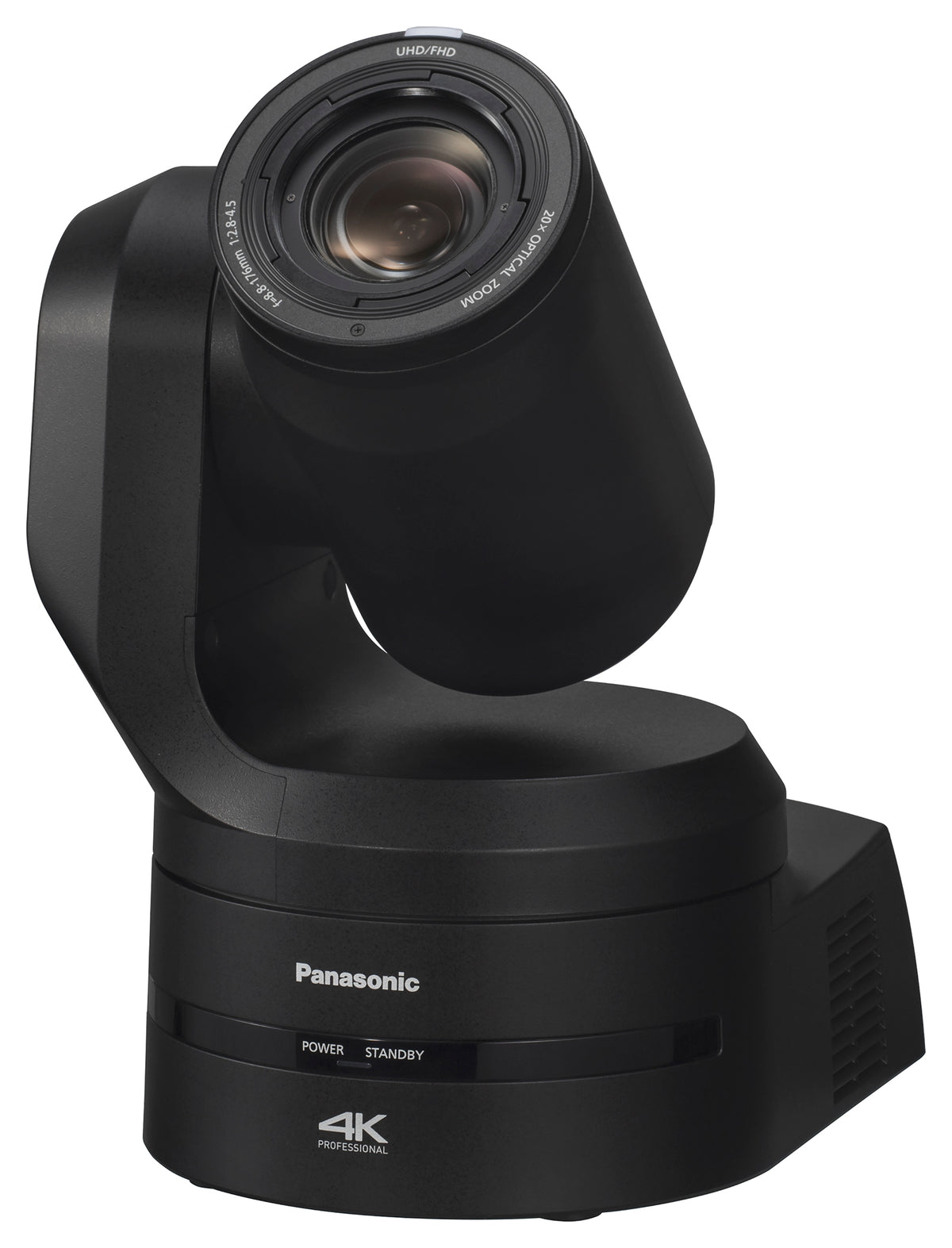

Panasonic AW-UE160: 4K PTZ Camera with 20x Optical Zoom, NDI and SRT
Brand
:Panasonic
Model
:
AW-UE160
Buying guides for this product
- Best Video Bar by Room Size
- All-in-One Video Conferencing Display vs TV and Video Bar
- Microsoft Teams Rooms on Windows vs Android
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Panasonic AW-UE160 at a Glance
- Brand
- Panasonic
- Model
- AW-UE160
- Category
- Video Conferencing Cameras
- Solution
- Video Conferencing
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Panasonic AW-UE160 Overview
The Panasonic AW-UE160 is a 4K ptz camera with 20x optical zoom and NDI and SRT and SDI and IP connectivity from Panasonic's professional remote camera range. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Imaging sensor: 1-type 4K MOSx1
- Zoom: Optical zoom: 20x, i.Zoom: UHD 24x, FHD 32x, D.Extender zoom: 1.4x, 2x
- Lens: Motorized Optical 20x zoom, F2.8 to F4.5
- Angle of view: Horizontal angle of view: 75.1 degrees (wide) to 4.0 degrees (tele)Vertical angle of view: 46.7 degrees (wide) to 2.3 degrees
- Pan range +/-175 degrees, tilt range 30 degrees to 210 degrees
- Power: 12 V DC +/- 10% (10.8 V to 13.2 V)
Technical Specifications:
| Spec | Value |
|---|---|
| Model | AW-UE160 |
| Type | Ptz camera |
| Power Requirements | 12 V DC +/- 10% (10.8 V to 13.2 V) |
| PoE | PoE++IEEE802.3bt standard: DC 42 V to 57 V (Camera Input) (Software authentication (LLDP) is supported). |
| Current Consumption | 5.0A (XLR IN connector), 1.5A (PoE++ power supply) |
| Ambient Operating Temperature | 0 C to 40 C (32 F to 104 F) |
| Ambient Operating Humidity | 20 % to 90 % (no condensation) |
| Storage Temperature | 20 C to 50 C (, 4 F to 122 F) |
| Weight | Approx. 4.6 kg (10.14 lbs) (excluding mount bracket) |
| Dimensions | W 213 mm x H 277 mm x D 240 mm(8.39 inches x 10.91 inches x 9.45 inches)(excluding protrusions, ceiling mount bracket) |
| Controller Supported | See the "Compatibility Chart for Operation Devices and Application Software" page |
| Camera Unit: Imaging Sensor | 1-type 4K MOSx1 |
| Camera Unit: Effective Pixels | Approx. 9,620,000 pixels |
| Camera Unit: Zoom | Optical zoom: 20x, i.Zoom: UHD 24x, FHD 32x, D.Extender zoom: 1.4x, 2x |
| Camera Unit: Lens | Motorized Optical 20x zoom, F2.8 to F4.5[f=8.8 mm (11/32 inches) to 176.0 mm (6-15/16 inches),35 mm (1-3/8 inches) equivalent: 24.5 mm (31/32 inches) to 490.0 mm (19-9/32 inches)] |
| Camera Unit: Conversion Lens | Not supported |
| Camera Unit: Angle of View Range | Horizontal angle of view: 75.1 degrees (wide) to 4.0 degrees (tele)Vertical angle of view: 46.7 degrees (wide) to 2.3 degrees (tele)Diagonal angle of view: 82.8 degrees (wide) to 4.6 degrees (tele) |
| Camera Unit: Optical Filter: ND Filter | Through, 1/4, 1/16, 1/64, (Through is used as "Night mode") |
| Camera Unit: Focus | Switching between auto and manual |
| Camera Unit: Focus Distance | Entire zooming range: 1000 mm (3.3 ft)Wide end: 100 mm (0.33 ft) |
| Camera Unit: Color Separation Optical System | 1MOS |
| Camera Unit: Standard Sensitivity | F14 / 2,000lx (Low Light), F11 / 2,000lx (Normal) (59.94Hz)F15 / 2,000lx (Low Light), F12 / 2,000lx (Normal) (50Hz) |
| Camera Unit: Horizontal Resolution: 4K | 1,600 TV lines Typ (Center area) |
| Camera Unit: Gain Selection | Auto, -6 dB to 12 dB |
| Camera Unit: Frame Mix | Auto, 0 dB, 6 dB, 12 dB, 18 dB, 24 dB |
| Camera Unit: Electronic Shutter Speed: 60p | 1/60, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000 |
| Camera Unit: Electronic Shutter Speed: 59.94p/59.94i | 1/60, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000 |
| Camera Unit: Electronic Shutter Speed: 50p/50i | 1/60, 1/100, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000 |
| Camera Unit: Electronic Shutter Speed: 29.97p | 1/48, 1/50, 1/60, 1/96, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000 |
| Camera Unit: Electronic Shutter Speed: 25p | 1/48, 1/50, 1/60, 1/96, 1/100, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000 |
| Camera Unit: Electronic Shutter Speed: 23.98p/24p | 1/48, 1/50, 1/60, 1/96, 1/100, 1/200, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000 |
| Camera Unit: Electronic Shutter Speed: 59.94p/120fps | 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000 |
| Camera Unit: Electronic Shutter Speed: 50p/100fps | 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000 |
| Camera Unit: Synchro Scan: 60p | 60.00 Hz to 7200 Hz |
| Camera Unit: Synchro Scan: 59.94p/59.94i | 60.00 Hz to 7200 Hz |
| Camera Unit: Synchro Scan: 50p/50i | 50.00 Hz to 7200 Hz |
Why Buy the Panasonic AW-UE160 from Trianze Tech?
- Genuine Panasonic ptz camera supplied by Trianze Tech with local UAE support
- Pre-sales help choosing the right accessories and installation for the AW-UE160
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation advice for meeting rooms, classrooms and venues
What's Included and Support
Frequently asked
Panasonic AW-UE160: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
For the Panasonic AW-UE160, Panasonic lists the following. Imaging sensor: 1-type 4K MOSx1; Zoom: Optical zoom: 20x, i.Zoom: UHD 24x, FHD 32x, D.Extender zoom: 1.4x, 2x; Effective pixels: Approx. 9,620,000 pixels; Lens: Motorized Optical 20x zoom, F2.8 to F4.5.

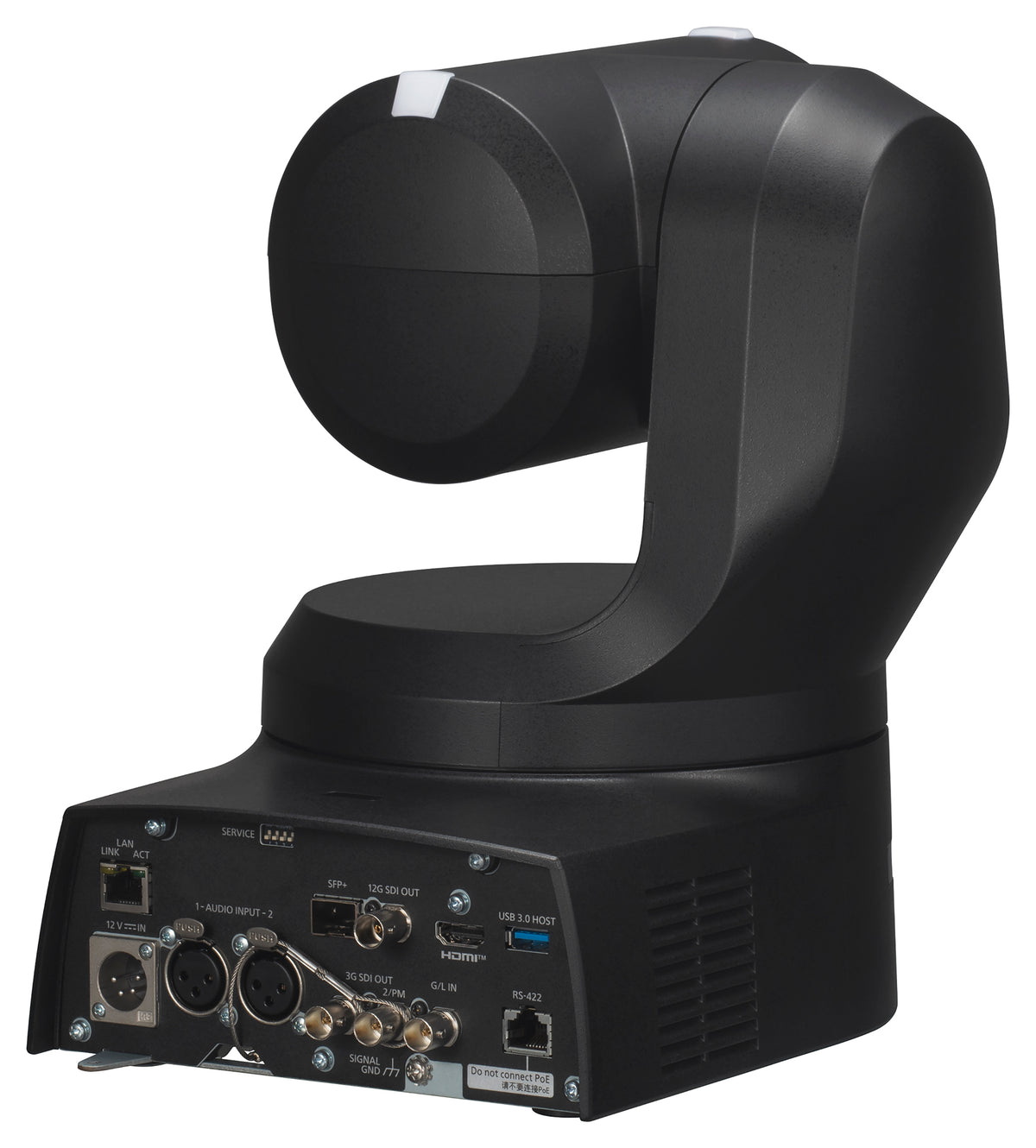

For the Panasonic AW-UE160, Panasonic lists the following. Input Connector: DC IN: DC 12 V IN; Input Connector: G/L IN (BNC): BBS (Black Burst Sync), tri-level sync supported; Input Connector: AUDIO INPUT: XLR: XLR (2ch) or MIC/LINE Input compatibles (SDI/HDMI/IP) AAC compatibility (compatible with IP only)XLR 3-pin; Output Connector: HDMI: HDMI 2.0 standard4:2:2/10bit; Output Connector: 12G-SDI OUT: SMPTE2082_1, SMPTE424M/SMPTE292M/ 75 ohm (BNC x 1); Output Connector: 3G-SDI OUT1: SMPTE424M/SMPTE292M/ 75 ohm (BNC x 1).
For the Panasonic AW-UE160, Panasonic lists the following. Power Requirements: 12 V DC +/- 10% (10.8 V to 13.2 V); PoE: PoE++IEEE802.3bt standard: DC 42 V to 57 V (Camera Input) (Software authentication (LLDP) is supported).; Current Consumption: 5.0A (XLR IN connector), 1.5A (PoE++ power supply).
For the Panasonic AW-UE160, Panasonic lists the following. Panning range: +/-175 degrees; Tilting range: 30 degrees to 210 degrees; Installation: Stand-alone (Desktop) or suspended (Hanging).
For the Panasonic AW-UE160, Panasonic lists the following. Dimensions: W 213 mm x H 277 mm x D 240 mm(8.39 inches x 10.91 inches x 9.45 inches)(excluding protrusions, ceiling mount bracket); Weight: Approx. 4.6 kg (10.14 lbs) (excluding mount bracket); Operating temperature: 0 C to 40 C (32 F to 104 F).
Trianze Tech stocks the Panasonic AW-UE160 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
