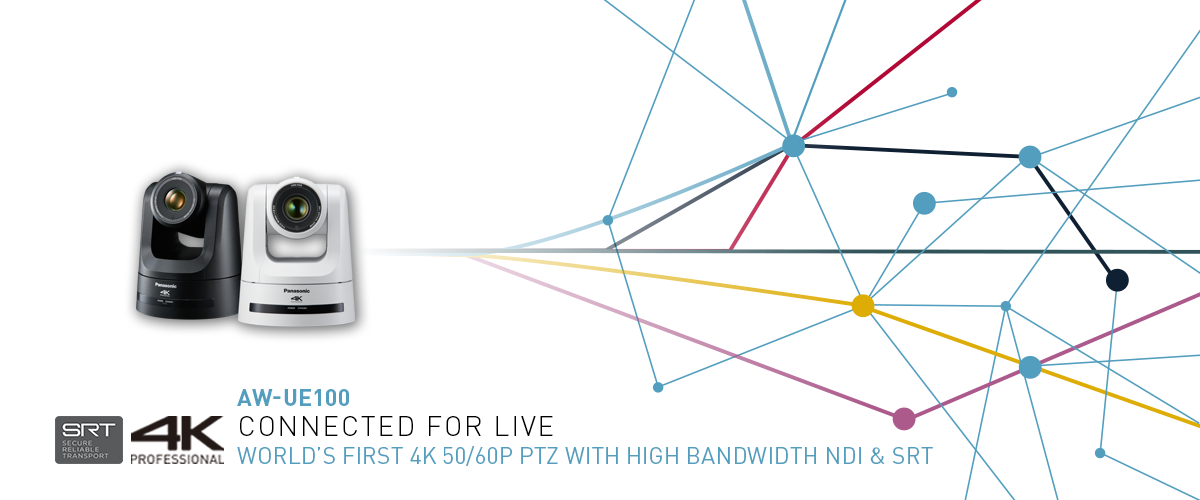

Panasonic AW-UE100W: 4K PTZ Camera with 24x Optical Zoom, NDI and SRT, White
Model
:
AW-UE100W
Buying guides for this product
- Best Video Bar by Room Size
- All-in-One Video Conferencing Display vs TV and Video Bar
- Microsoft Teams Rooms on Windows vs Android
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Panasonic AW-UE100W at a Glance
- Brand
- Panasonic
- Model
- AW-UE100W
- Category
- Video Conferencing Cameras
- Solution
- Video Conferencing
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Panasonic AW-UE100W Overview
The Panasonic AW-UE100W is a 4K ptz camera with 24x optical zoom and NDI and SRT and SDI and IP connectivity from Panasonic's professional remote camera range. This listing is the white model. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Imaging sensor: 1/2.5-type 4K MOS x 1
- Zoom: Optical zoom: 24x; i.Zoom: UHD 28x, FHD 36x; Digital zoom: 1.4x, 2x
- Lens: Motorized Optical 24x zoom, F1.8 to F4.0
- Angle of view: Horizontal angle of view: 74.1 degrees (wide) to 3.3 degrees (tele)Vertical angle of view: 46.0 degrees (wide) to 1.9 degrees
- Pan range +/-175 degrees, tilt range 30 degrees to 210 degrees
- Power: 12 V DC (10.8 V to 13.2 V) (Supplied AC adaptor), 42 V to 57 V DC (PoE++ power supply)
Technical Specifications:
| Spec | Value |
|---|---|
| Model | AW-UE100W |
| Type | Ptz camera |
| Power Requirements | 12 V DC (10.8 V to 13.2 V) (Supplied AC adaptor), 42 V to 57 V DC (PoE++ power supply) |
| PoE | PoE++IEEE802.3bt standard: DC 42 V to 57 V(Software authentication (LLDP) is supported) |
| Current Consumption | 3.0 A (Supplied AC adaptor), 1.0 A (PoE++ power supply) |
| Ambient Operating Temperature | 0 C to 40 C (32 F to 104 F) |
| Ambient Operating Humidity | 20 % to 90 % (no condensation) |
| Storage Temperature | 20 C to 50 C (, 4 F to 122 F) |
| Weight | Approx. 2.2 kg (4.84 lb) (excluding cable cover, mount bracket)Approx. 2.3 kg (5.06 lb) (including cable cover, excluding mount bracket) |
| Dimensions | W 169.2 mm x H 204.6 mm x D 170.6 mm(6-21/32 inches x 8-1/16 inches x 6-23/32 inches)(excluding protrusions, cable cover, mount bracket) |
| Controller Supported | See the "Compatibility Chart for Operation Devices and Application Software" page |
| Camera Unit: Imaging Sensor | 1/2.5-type 4K MOS x 1 |
| Camera Unit: Effective Pixels | Approx. 8,490,000 pixels |
| Camera Unit: Zoom | Optical zoom: 24x; i.Zoom: UHD 28x, FHD 36x; Digital zoom: 1.4x, 2x |
| Camera Unit: Lens | Motorized Optical 24x zoom, F1.8 to F4.0[f=4.12 mm (5/32 inches) to 98.9 mm (3-29/32 inches);35 mm (1-3/8 inches) equivalent: 25.0 mm (31/32 inches) to 600.0 mm (23-5/8 inches)] |
| Camera Unit: Conversion Lens | Not supported |
| Camera Unit: Angle of View Range | Horizontal angle of view: 74.1 degrees (wide) to 3.3 degrees (tele)Vertical angle of view: 46.0 degrees (wide) to 1.9 degrees (tele)Diagonal angle of view: 81.8 degrees (wide) to 3.8 degrees (tele) |
| Camera Unit: Optical Filter: ND Filter | Through, 1/4, 1/16, 1/64, IR through (IR through is used as "Night mode") |
| Camera Unit: Focus | Switching between auto and manual |
| Camera Unit: Focus Distance | Entire zooming range: 1200 mm (3.9 ft)Wide end: 100 mm (0.33 ft) |
| Camera Unit: Color Separation Optical System | 1MOS |
| Camera Unit: Standard Sensitivity | F4, 2000 lx (When normal mode is selected)F5.6, 2000 lx (When High Sens mode is selected) |
| Camera Unit: Minimum Illumination | 3 lx (F1.8, 59.94p, 50IRE, 42 dB, without accumulation) |
| Camera Unit | 60dB(typ) (When [Shooting Mode] is [Normal]) |
| Camera Unit: Horizontal Resolution: 4K | 1500 TV lines Typ (Center area) |
| Camera Unit: Gain Selection | Auto, 0 dB to 36 dB Super Gain function equipped: 37 dB to 42 dB |
| Camera Unit: Frame Mix | Auto, 0 dB, 6 dB, 12 dB, 18 dB, 24 dB |
| Camera Unit: Electronic Shutter Speed: 59.94p/59.94i | 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
| Camera Unit: Electronic Shutter Speed: 50p/50i | 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
| Camera Unit: Electronic Shutter Speed: 29.97p | 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
| Camera Unit: Electronic Shutter Speed: 25p | 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
| Camera Unit: Electronic Shutter Speed: 23.98p/24p | 1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
| Camera Unit: Synchro Scan: 59.94p/59.94i | 60.00 Hz to 7200 Hz |
| Camera Unit: Synchro Scan: 50p/50i | 50.00 Hz to 7200 Hz |
| Camera Unit: Synchro Scan: 29.97p | 30.00 Hz to 7200 Hz |
| Camera Unit: Synchro Scan: 25p | 25.00 Hz to 7200 Hz |
Why Buy the Panasonic AW-UE100W from Trianze Tech?
- Genuine Panasonic ptz camera supplied by Trianze Tech with local UAE support
- Pre-sales help choosing the right accessories and installation for the AW-UE100W
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation advice for meeting rooms, classrooms and venues
What's Included and Support
Frequently asked
Panasonic AW-UE100W: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
For the Panasonic AW-UE100W, Panasonic lists the following. Imaging sensor: 1/2.5-type 4K MOS x 1; Zoom: Optical zoom: 24x; i.Zoom: UHD 28x, FHD 36x; Digital zoom: 1.4x, 2x; Effective pixels: Approx. 8,490,000 pixels; Lens: Motorized Optical 24x zoom, F1.8 to F4.0.
For the Panasonic AW-UE100W, Panasonic lists the following. Input Connector: DC IN: DC 12 V IN; Input Connector: G/L IN (BNC): BBS (Black Burst Sync), tri-level sync supported75 ohm terminal (BNCx1); Input Connector: AUDIO INPUT: Stereo Mini Jack: Compatible (SDI/HDMI/IP)AAC compatible (compatible with IP only) 3.5 mm stereo mini jackInput impedance; Output Connector: HDMI: HDMI 2.0 connector4:2:2/10bit; HDCP is not supported.; Viera Link is not supported.; Output Connector: 12G-SDI OUT: SMPTE 2082-1, SMPTE424M/SMPTE292M / 75 ohm (BNC x 1); Level-A/Level-B supported; Output Connector: 3G-SDI OUT: SMPTE424M/SMPTE292M / 75 ohm (BNC x 1); Level-A/Level-B supported.
For the Panasonic AW-UE100W, Panasonic lists the following. Power Requirements: 12 V DC (10.8 V to 13.2 V) (Supplied AC adaptor), 42 V to 57 V DC (PoE++ power supply); PoE: PoE++IEEE802.3bt standard: DC 42 V to 57 V(Software authentication (LLDP) is supported); Current Consumption: 3.0 A (Supplied AC adaptor), 1.0 A (PoE++ power supply).
For the Panasonic AW-UE100W, Panasonic lists the following. Panning range: +/-175 degrees; Tilting range: 30 degrees to 210 degrees; Installation: Stand-alone (Desktop) or suspended (Hanging).
For the Panasonic AW-UE100W, Panasonic lists the following. Dimensions: W 169.2 mm x H 204.6 mm x D 170.6 mm(6-21/32 inches x 8-1/16 inches x 6-23/32 inches)(excluding protrusions, cable cover, mount bracket); Weight: Approx. 2.2 kg (4.84 lb) (excluding cable cover, mount bracket)Approx. 2.3 kg (5.06 lb) (including cable cover, excluding mount bracket); Operating temperature: 0 C to 40 C (32 F to 104 F).
Trianze Tech stocks the Panasonic AW-UE100W in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
