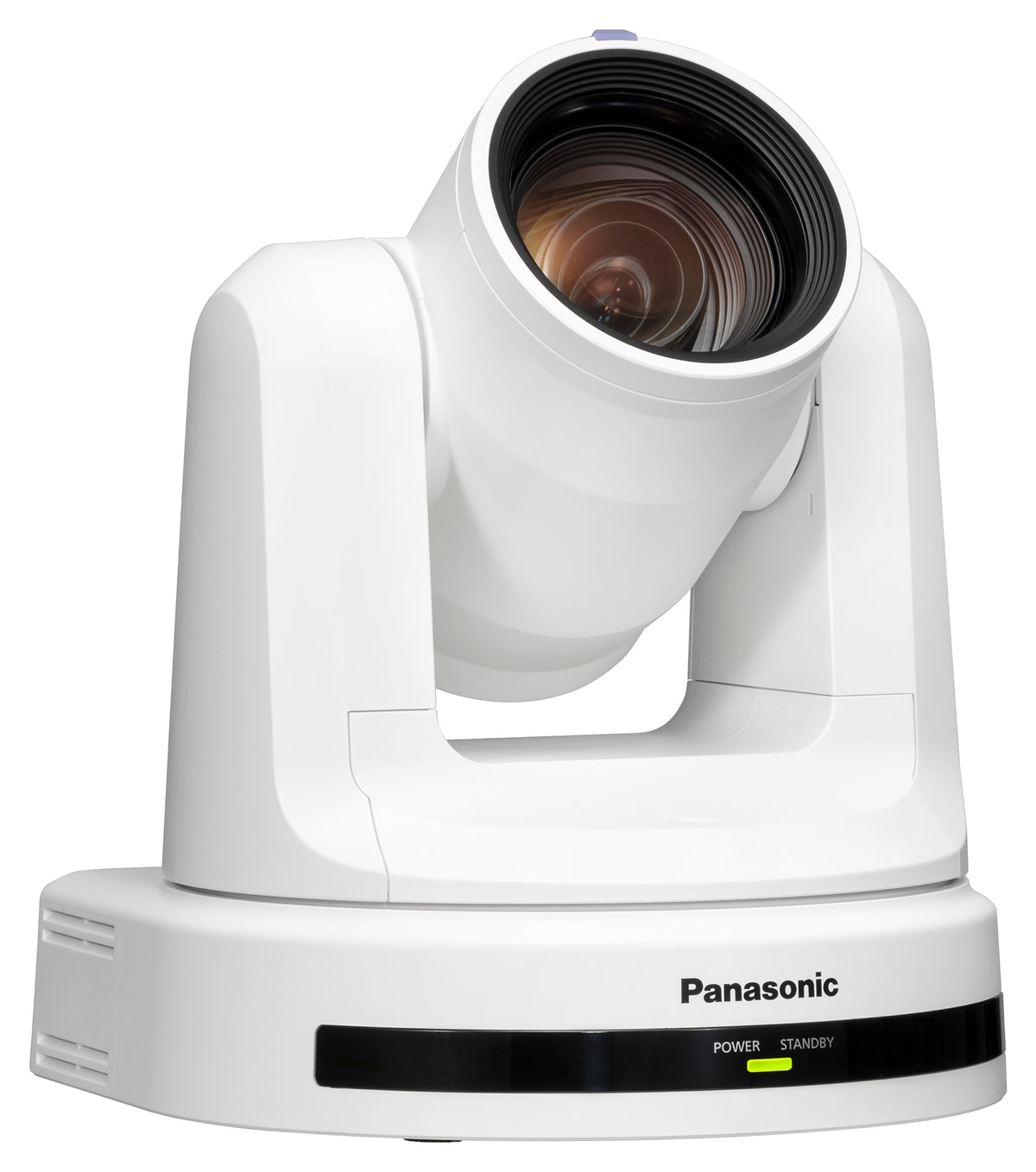

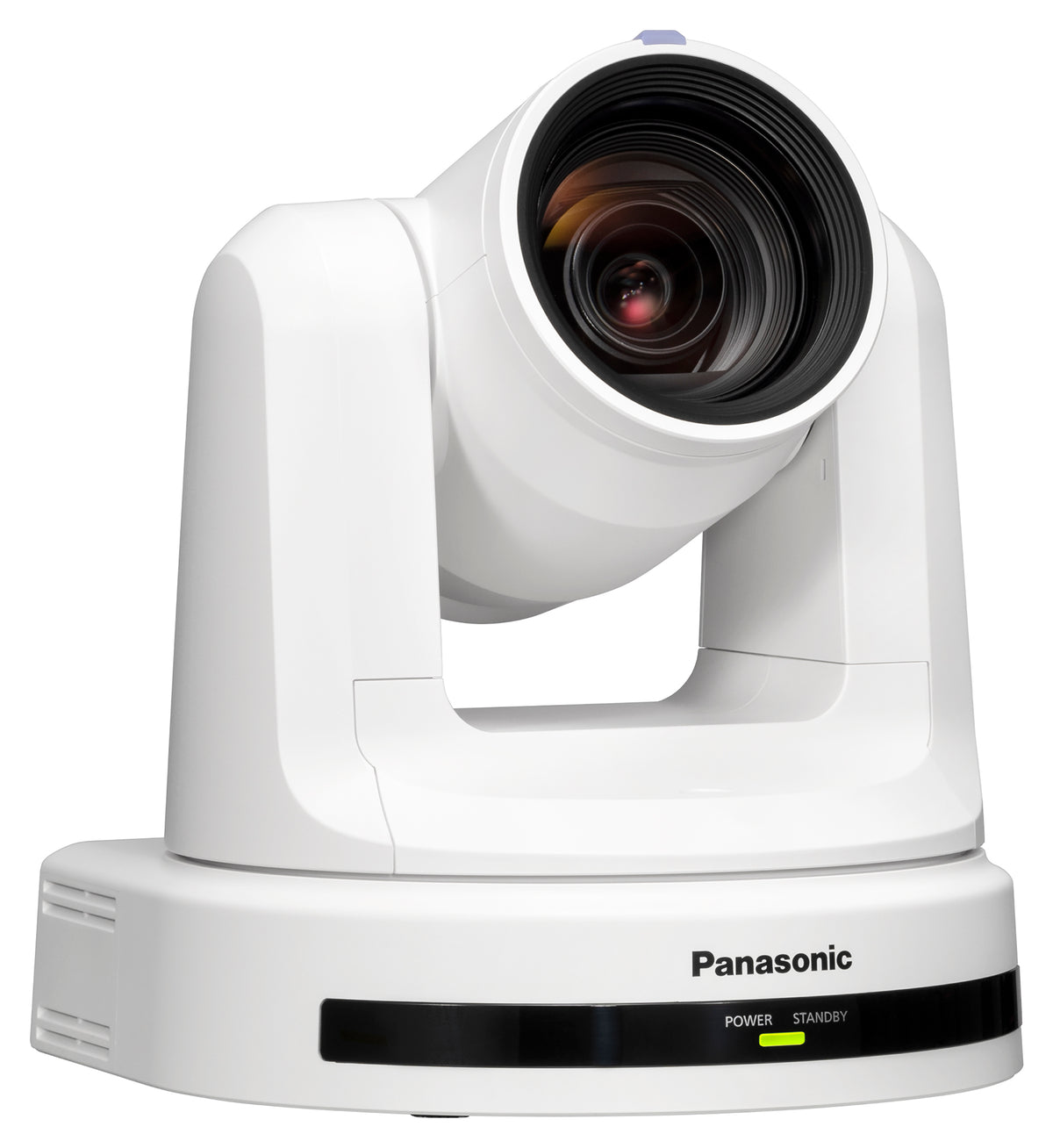

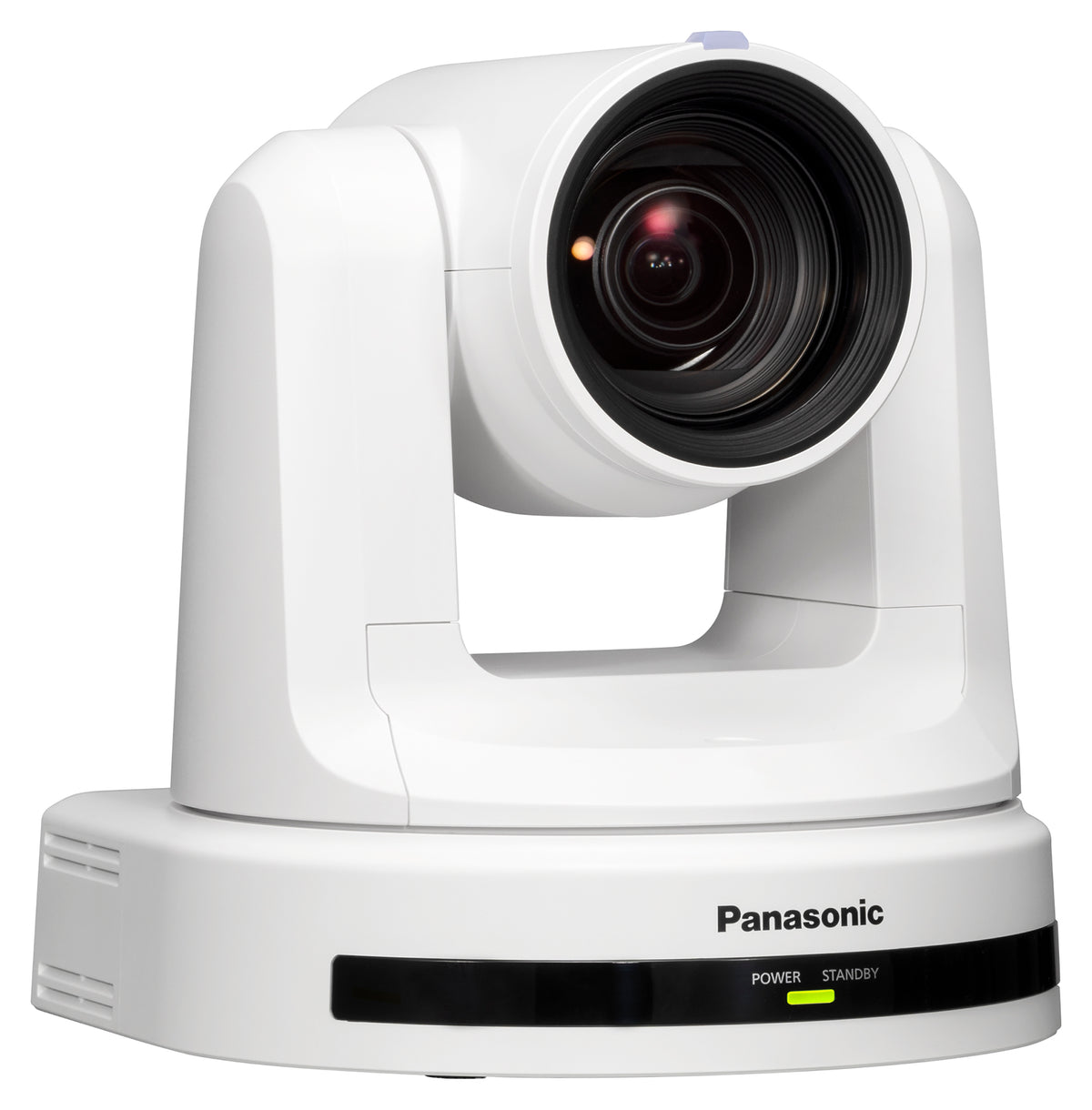

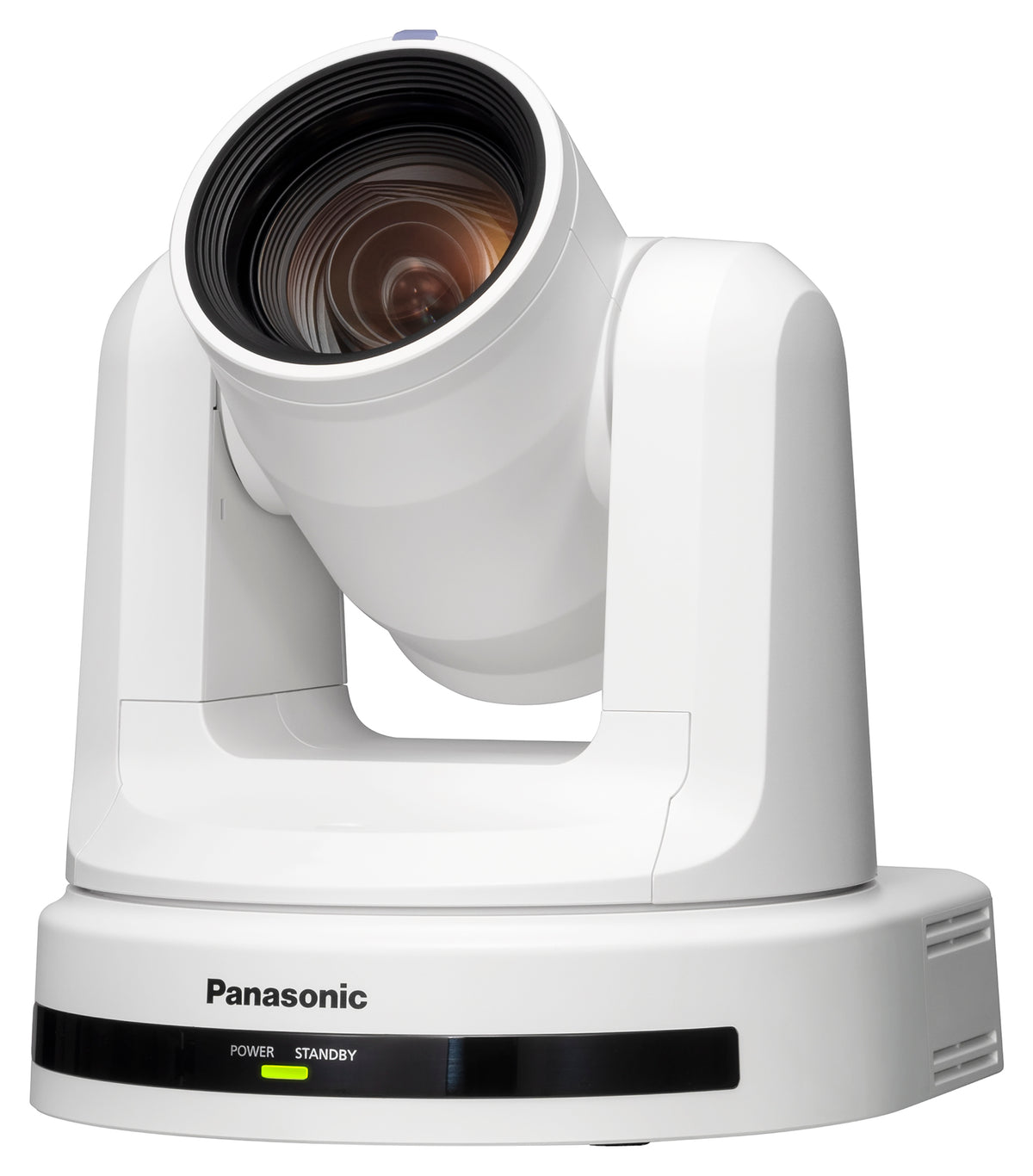

Panasonic AW-HE20: Full HD PTZ Camera with 12x Optical Zoom, SDI and IP
Model
:
AW-HE20
Buying guides for this product
- Best Video Bar by Room Size
- All-in-One Video Conferencing Display vs TV and Video Bar
- Microsoft Teams Rooms on Windows vs Android
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Panasonic AW-HE20 at a Glance
- Brand
- Panasonic
- Model
- AW-HE20
- Category
- Video Conferencing Cameras
- Solution
- Video Conferencing
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Panasonic AW-HE20 Overview
The Panasonic AW-HE20 is a Full HD ptz camera with 12x optical zoom and SDI and IP connectivity from Panasonic's professional remote camera range. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Imaging sensor: 1/2.8-type MOSx1
- Zoom: Optical zoom: 12x; i.Zoom UHD 1.33x, FHD 1.33x; Digital extender zoom: 1.4x, 2x; Max Digital Zoom: 2x, 3x, 4x
- Lens: Motorized Optical 12x zoom, F1.6 to F2.8[f=3.9 mm to 46.8 mm;35 mm equivalent: 26.4 mm to 316.4 mm]
- Angle of view: Horizontal angle of view: 71.0 degrees (wide) to 6.0 degrees (tele)Vertical angle of view: 43.0 degrees (wide) to 3.0 degrees
- Pan range +/-170 degrees, tilt range -30 degrees to 90 degrees
- Power: 12 V DC (10.8 V to 13.2 V) (Supplied AC adapter)
Technical Specifications:
| Spec | Value |
|---|---|
| Model | AW-HE20 |
| Type | Ptz camera |
| Power Requirements | 12 V DC (10.8 V to 13.2 V) (Supplied AC adapter) |
| PoE | PoE+IEEE802.3at compliant: DC42.5 to 57 V |
| Current Consumption | 1.3 A (Supplied AC adaptor), 0.4 A (PoE+ power supply) |
| Ambient Operating Temperature | 0 C to 40 C (32 to 104) |
| Storage Temperature | -20 C to 50 C (-4 F to 122 F) |
| Weight | Approx. 1.9 kg (4.19lbs) (excluding ceiling mounting bracket) |
| Dimensions | W 165.1 mm x H 176.2 mm x D 176.1mm(6.5 inches x 6.94 inches x 6.93 inches)(Excluding protrusions, cable cover, mounting bracket) |
| Controller Supported | See the "Compatibility Chart for Operation Devices and Application Software" page |
| Camera Unit: Imaging Sensor | 1/2.8-type MOSx1 |
| Camera Unit: Effective Pixels | Approx. 8,460,000 pixels |
| Camera Unit: Zoom | Optical zoom: 12x; i.Zoom UHD 1.33x, FHD 1.33x; Digital extender zoom: 1.4x, 2x; Max Digital Zoom: 2x, 3x, 4x |
| Camera Unit: Lens | Motorized Optical 12x zoom, F1.6 to F2.8[f=3.9 mm to 46.8 mm;35 mm equivalent: 26.4 mm to 316.4 mm] |
| Camera Unit: Conversion Lens | Not supported |
| Camera Unit: Angle of View Range | Horizontal angle of view: 71.0 degrees (wide) to 6.0 degrees (tele)Vertical angle of view: 43.0 degrees (wide) to 3.0 degrees (tele)Diagonal angle of view: 79.0 degrees (wide) to 7.0 degrees (tele) |
| Camera Unit: Minimum Illumination | 0.4 lx (50IRE, Gain=42dB, Shutter Speed 1/30, IRIS=F1.6) |
| Camera Unit: Horizontal Resolution: HD | 1,000 Typ (Center area) |
| Camera Unit: Gain Selection | Auto, 0dB to 42dB |
| Camera Unit: Frame Mix | Auto, 0dB, 6dB, 12dB, 18dB, 24dB |
| Camera Unit: Electronic Shutter Speed: Manual | 1/11/21/31/71/151/301/601/1201/2401/4801/10001/20001/40001/80001/1600060Hz/59.94Hz1/11/21/31/61/121/251/501/1001/2501/5001/10001/20001/40001/80001/1600050Hz |
| Camera Unit: Synchro Scan: 59.94p/59.94i | 60.0Hz to 660.0Hz |
| Camera Unit: Synchro Scan: 50p/50i | 50.0Hz to 570.1Hz |
| Camera Unit: Synchro Scan: 29.97p | 60.0Hz to 660.0Hz |
| Camera Unit: Synchro Scan: 25p | 50.0Hz to 570.1Hz |
| Camera Unit: White Balance | ATW, AWB A, AWB B, 3200K, 5600K |
| Camera Unit: Chroma Amount Variability | 11 steps (0 to 10) |
| Camera Unit: Output Format (SDI): HD | [60Hz]1080/60p, 1080/60i, 1080/30p, 720/60p[59.94Hz]1080/59.94p, 1080/59.94i, 1080/29.97p, 720/59.94p[50Hz]1080/50p, 1080/50i, 1080/25p, 720/50p |
| Camera Unit: Output Format (HDMI): 4K | [60Hz]1080/60p, 1080/60i, 1080/30p, 720/60p[59.94Hz]1080/59.94p, 1080/59.94i, 1080/29.97p, 720/59.94p[50Hz]1080/50p, 1080/50i, 1080/25p, 720/50p |

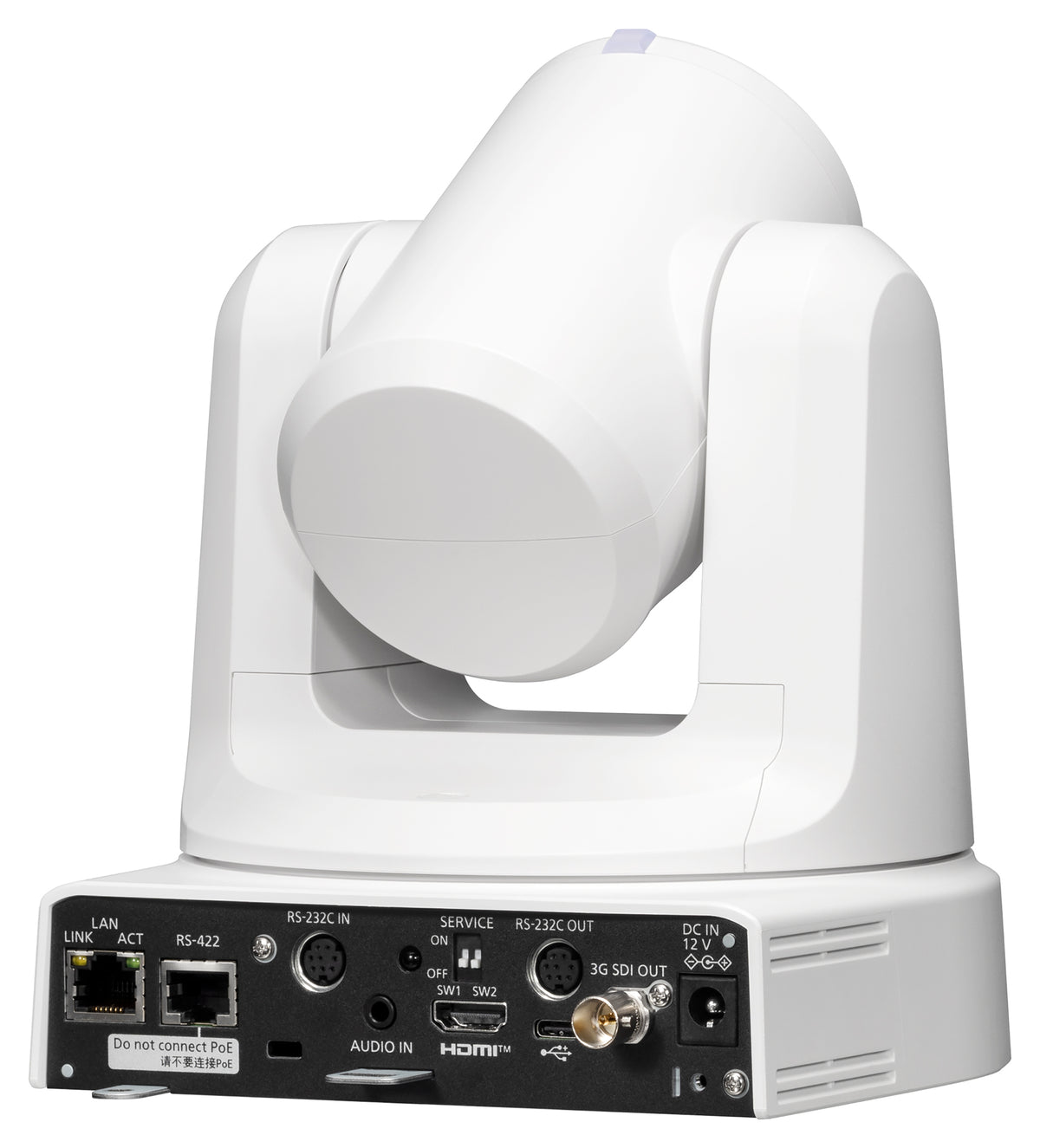

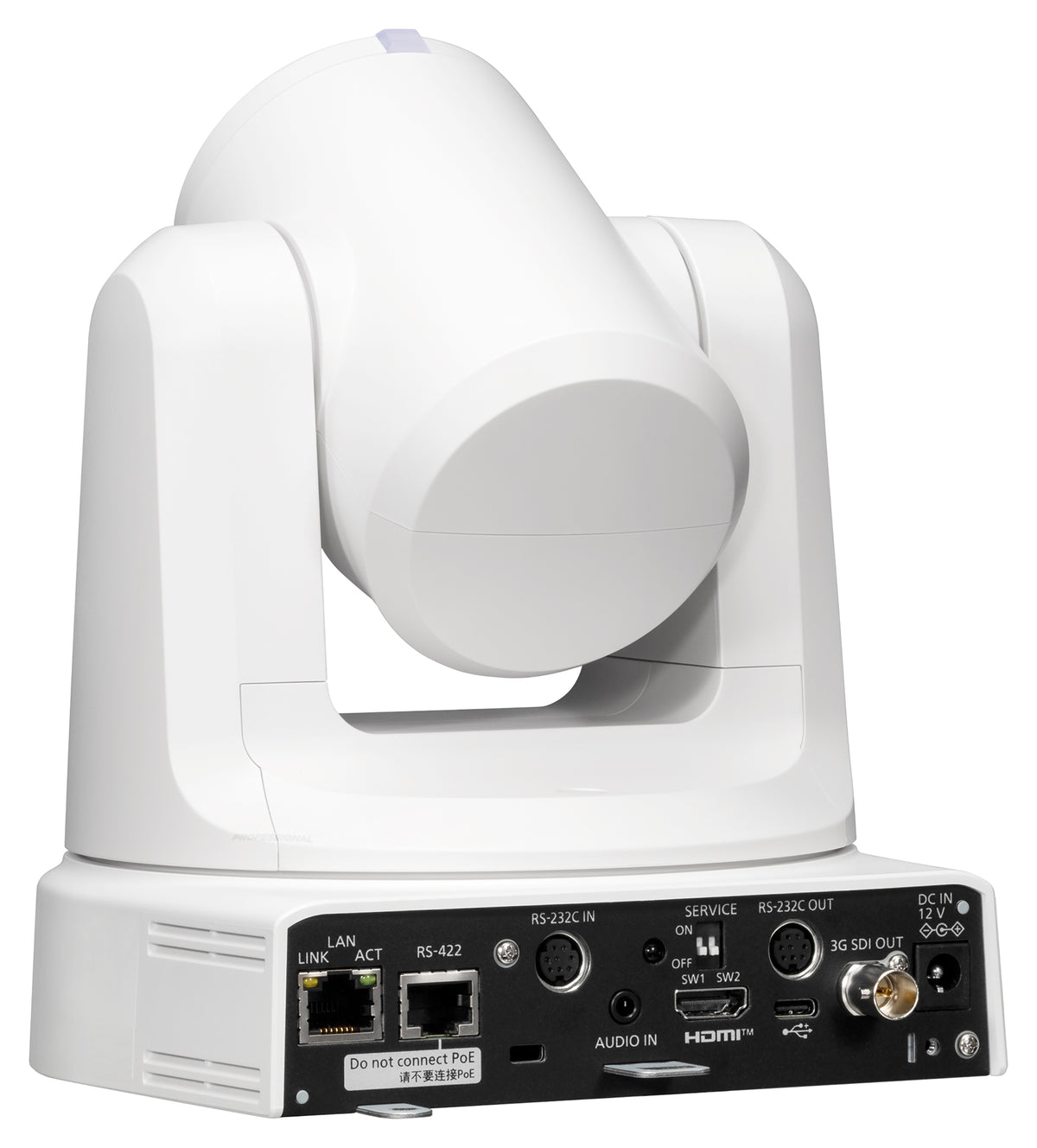

| Input Connector: DC IN | DC 12 V IN |
| Output Connector: HDMI | HDMI Connector4:4:4/8 bit; HDCP is not supported.; Viera Link is not supported. |
| Output Connector: 3G-SDI OUT | 75 ohm BNC; Level-A supported |
| Input/Output Connector: LAN | LAN terminal for IP control (RJ-45) 100BASE-TX/1000BASE-T |
| Input/Output Connector: RS-232C | Mini DIN 8-pin (IN)/Mini DIN 8-pin (OUT) |
| Input/Output Connector: RS-422 | CONTROL IN RS422A (RJ-45) |
| Input/Output Connector: USB | Type-C connector |
Why Buy the Panasonic AW-HE20 from Trianze Tech?
- Genuine Panasonic ptz camera supplied by Trianze Tech with local UAE support
- Pre-sales help choosing the right accessories and installation for the AW-HE20
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation advice for meeting rooms, classrooms and venues
What's Included and Support
Frequently asked
Panasonic AW-HE20: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
For the Panasonic AW-HE20, Panasonic lists the following. Imaging sensor: 1/2.8-type MOSx1; Zoom: Optical zoom: 12x; i.Zoom UHD 1.33x, FHD 1.33x; Digital extender zoom: 1.4x, 2x; Max Digital Zoom: 2x, 3x, 4x; Effective pixels: Approx. 8,460,000 pixels; Lens: Motorized Optical 12x zoom, F1.6 to F2.8[f=3.9 mm to 46.8 mm;35 mm equivalent: 26.4 mm to 316.4 mm].
For the Panasonic AW-HE20, Panasonic lists the following. Input Connector: DC IN: DC 12 V IN; Output Connector: HDMI: HDMI Connector4:4:4/8 bit; HDCP is not supported.; Viera Link is not supported.; Output Connector: 3G-SDI OUT: 75 ohm BNC; Level-A supported; Input/Output Connector: LAN: LAN terminal for IP control (RJ-45) 100BASE-TX/1000BASE-T; Input/Output Connector: RS-232C: Mini DIN 8-pin (IN)/Mini DIN 8-pin (OUT); Input/Output Connector: RS-422: CONTROL IN RS422A (RJ-45).
For the Panasonic AW-HE20, Panasonic lists the following. Power Requirements: 12 V DC (10.8 V to 13.2 V) (Supplied AC adapter); PoE: PoE+IEEE802.3at compliant: DC42.5 to 57 V; Current Consumption: 1.3 A (Supplied AC adaptor), 0.4 A (PoE+ power supply).
For the Panasonic AW-HE20, Panasonic lists the following. Panning range: +/-170 degrees; Tilting range: -30 degrees to 90 degrees; Installation: Stand-alone (Desktop) or suspended (Hanging).
For the Panasonic AW-HE20, Panasonic lists the following. Dimensions: W 165.1 mm x H 176.2 mm x D 176.1mm(6.5 inches x 6.94 inches x 6.93 inches)(Excluding protrusions, cable cover, mounting bracket); Weight: Approx. 1.9 kg (4.19lbs) (excluding ceiling mounting bracket); Operating temperature: 0 C to 40 C (32 to 104).
Trianze Tech stocks the Panasonic AW-HE20 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
