LG 65TC3D 65" Full HD Interactive Digital Board – Multi-Touch Display for Business & Education
Model
:
65TC3D
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 or Chat on WhatsApp

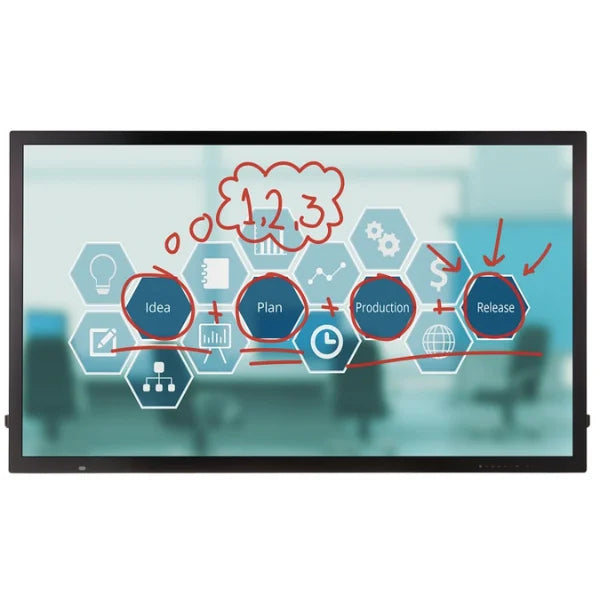

LG 65TC3D 65 Inch Interactive Digital Board
A precision P-Cap interactive digital board built for command centers, monitoring rooms, and corporate huddle spaces across Dubai, Abu Dhabi, and the UAE.
Key Features:
- 65 inch Full HD IPS panel with 178 degree wide viewing angles
- 40 point P-Cap Ag metal mesh multi touch
- LG webOS 3.0+ smart platform with embedded IDB app
- Built in Intel OPS expansion slot for a slide in PC module
- 3.2mm tempered anti glare, shatter proof safety glass
Technical Specifications:
| Feature/Parameter | Technical Specification Details |
| Screen Size & Panel | 65-inch Commercial-grade LG IPS Panel |
| Native Resolution | Full HD (1920 x 1080) at 16:9 Aspect Ratio |
| Brightness | 450 cd/m² (Module, Typical) |
| Viewing Angles | 178° Horizontal / 178° Vertical |
| Contrast Ratio | 1,200:1 (Static) | 500,000:1 (Dynamic) |
| Touch Technology | Premium Projected Capacitive (P-Cap) Ag Metal Mesh |
| Simultaneous Touch Points | Maximum 40 Points |
| Touch Precision & Object Size | Accuracy within 2mm | Recognizes objects 6 mm or larger |
| Screen Protection | 3.2T Tempered Anti-Glare, Shatter-Proof Safety Glass |
| Operating Hours / Lifecycle | 24 Hours / 7 Days continuous heavy-duty operational cycle |
| Embedded Platform | LG webOS 3.0+ Smart Signage Platform with Embedded IDB App |
| Input Interfaces | 3 x HDMI, 1 x DisplayPort, 1 x DVI-D, 1 x RGB (VGA), 1 x Audio In, 1 x USB 3.0, 1 x USB 2.0 |
| Output / Control | 2 x Touch USB 2.0 Out, 1 x RS232C In/Out, 1 x RJ45 (LAN) Network |
| Built-in Wireless | Built-in Wi-Fi (802.11n Combo) & SoftAP Functionality |
| Built-in Audio | Integrated Stereo Speaker System (2 x 10W) |
| Hardware Expansion | Intel Open Pluggable Specification (OPS) Slot (KT-OPSA compatible) |
| Physical Dimensions | 1530.8 mm x 883.8 mm x 71.7 mm (Without Handle) |
| Net Hardware Weight | 51.0 kg (Display Head Unit Alone) |
| Gross Packed Weight | 59.0 kg (Total Shipping Box Weight) |
| VESA Mount Interface | 300 mm x 300 mm standard patterns |
Why Buy the LG 65TC3D from Trianze Tech?
- Genuine LG stock with full manufacturer warranty
- Fast delivery and installation across Dubai, Abu Dhabi, and the wider GCC
- Dedicated AV integration support for classrooms and boardrooms
- Competitive pricing with flexible corporate and government quotes
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
P-Cap touch technology uses an Ag Metal Mesh sensor matrix embedded behind the front glass, eliminating the thick, extended frame bezels required by old Infrared (IR) screens. This enables a completely flat, sleek bezel layout. Functionally, it tracks up to 40 simultaneous touch points with exceptional precision, ignores accidental palm resting, and offers a highly responsive, zero-lag experience comparable to a modern smartphone.
Yes, it runs entirely PC-free. The display features a built-in LG webOS smart signage platform paired with a System-on-Chip (SoC) engine and a pre-loaded LG IDB interactive application. Presenters can plug a USB drive directly into the panel to instantly access, view, and annotate over files, spreadsheets, and documents without any additional software licenses or external hardware.
This time-saving feature allows the board to actively monitor incoming data feeds. When a new presenter connects a device (such as a laptop via HDMI or DisplayPort), the display immediately detects the incoming touch or video signal and switches the main screen source automatically, saving users from hunting through menus or using remote controls mid-meeting.
The LG 65TC3D is built for enterprise IT frameworks. It includes standard RJ45 LAN and RS232C control inputs, supporting Crestron Connected network-based control and SuperSign Control software. This allows IT teams to monitor panel health, control power states via Wake on LAN (WOL), and configure pin-protected virtual meeting spaces inside the IDB app to restrict access to sensitive business materials.
Yes. The screen features integrated Picture-by-Picture (PBP) and Picture-in-Picture (PIP) layout modes. This allows you to split the 65-inch display canvas to show two completely distinct input signals side by side (for example, comparing a local presentation feed next to a live remote video conferencing feed), making it ideal for collaborative corporate work environments.
