LG 55TR3BG 55" Class TR3BG Series 4K UHD IPS Interactive Digital Board (55TR3BG-B)
Model
:
55TR3BG
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 or Chat on WhatsApp

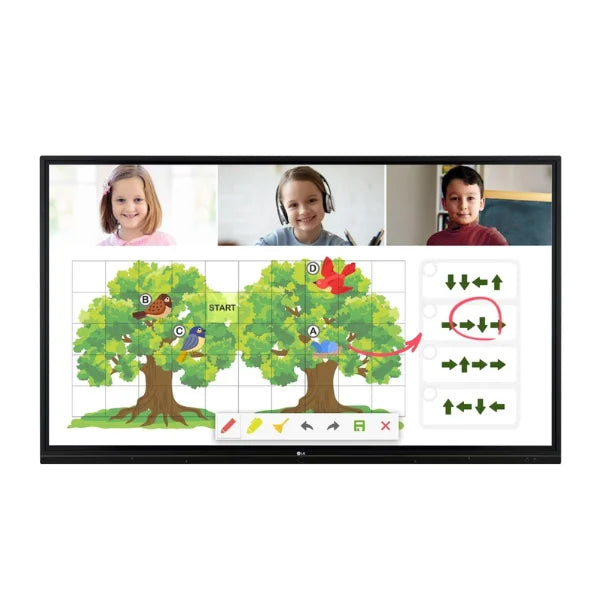

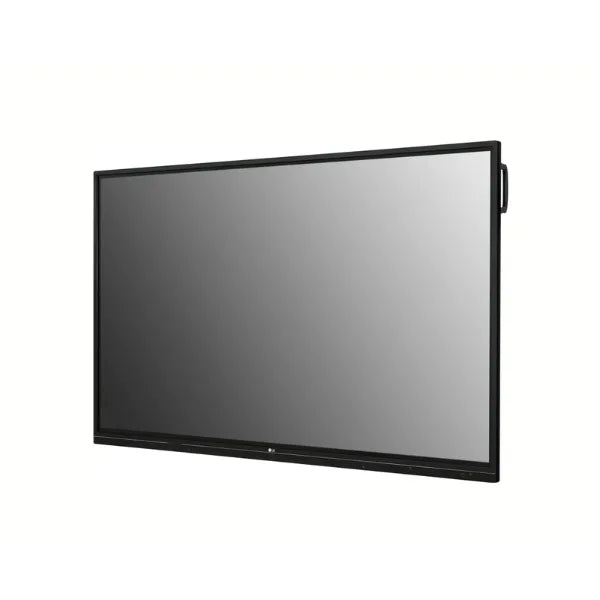

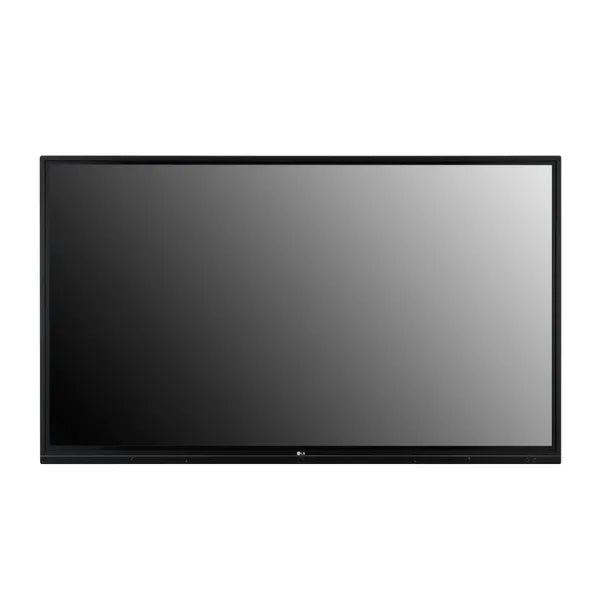

LG 55TR3BG 55 Inch 4K UHD Interactive Digital Board
A compact, high performance interactive display built for huddle rooms and executive offices across Dubai, Abu Dhabi, and the wider UAE and GCC region.
Key Features:
- 55 inch 4K UHD IPS panel with 178 degree wide viewing angles
- 20 point multi touch with 10 point simultaneous writing
- Built in Android 8.0 OS, no external PC required
- ScreenShare Pro wireless casting for up to 6 devices
- 4mm anti glare tempered glass protection
Technical Specifications:
| Technical Parameter | Industrial Specification |
| Brand & Model | LG 55TR3BG (55TR3BG-B) |
| Screen Size & Panel Technology | 55-inch In-Plane Switching (IPS) Panel |
| Native Resolution | 3840 x 2160 (4K Ultra HD / 2160p) |
| Aspect Ratio | 16:9 |
| Display Brightness | 350 cd/m² (Nits) With Touch Glass |
| Viewing Angles (H / V) | 178° / 178° Ultra-Wide Viewing Angle |
| Contrast Ratio | 1200:1 (Dynamic CR: 1,000,000:1) |
| Touch Technology Type | Advanced Infrared (IR) Sensing Frame |
| Simultaneous Touch Points | Up to 20 Points of Multi-Touch (Max 10 Points Writing) |
| Touch Response / Min Object | ≤ 12 ms / Ø 3 mm |
| Protection Glass Features | 4.0T (Thickness) Tempered Glass, Anti-Glare (Haze 8%-12%) |
| Operation Duty Cycle | 16 Hours / 7 Days Continuous Commercial Use |
| Smart Operating Platform | Android 8.0 (Embedded Operating System) |
| Internal Processing Core | Quad-Core CPU, Mali-G51 GPU |
| Memory & Storage | 3 GB RAM | 16 GB eMMC Internal Flash Storage |

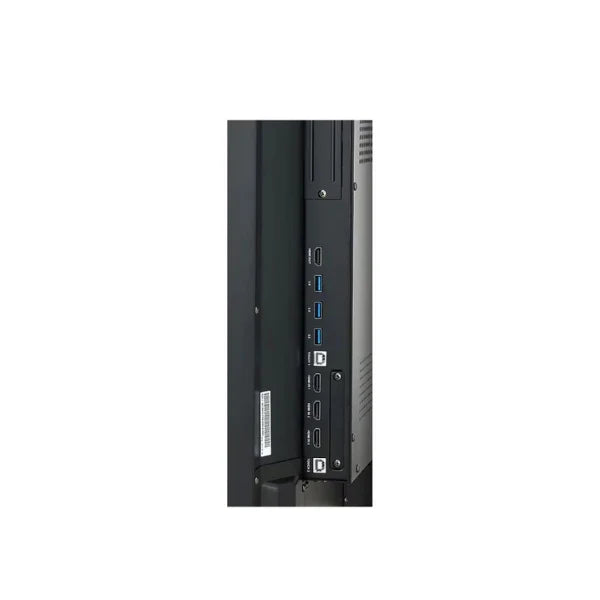

| Connectivity (Input) | 3 x HDMI, 1 x RGB (VGA), 1 x Audio In, 4 x USB (Type-A) |
| Connectivity (Output) | 1 x HDMI Out, 1 x Audio Out, 1 x Optical Out |
| Touch Interface Routing | 2 x USB Type-B Upstream Ports |
| External Device Control | RS232C In, RJ45 (LAN) In |
| Wireless Connectivity | Built-in Dual-Band Wi-Fi & Bluetooth |
| Integrated Audio Systems | Built-in Dual Speakers (12W + 12W Stereo) |
| Bezel Width | Top/Left/Right: 17.7 mm, Bottom: 45.7 mm |
| Physical Dimensions (W x H x D) | 1268.8 mm x 773.2 mm x 86 mm (Without Wall Mount) |
| Net Product Weight | 27.5 kg |
| VESA Mount Standards | 400 mm x 200 mm |
Why Buy the LG 55TR3BG from Trianze Tech?
- Genuine LG stock with full manufacturer warranty
- Fast delivery and installation across Dubai, Abu Dhabi, and the wider GCC
- Dedicated AV integration support for classrooms and boardrooms
- Competitive pricing with flexible corporate and government quotes
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
You can purchase the LG 55TR3BG directly through Trianze Tech, a premier provider of professional AV integration, IT hardware export, and interactive enterprise displays across Dubai, Abu Dhabi, and the wider GCC region. Trianze Tech provides full turn-key assistance, including safe structural mounting, system calibration, and local IT network onboarding.
ScreenShare Pro is an advanced, integrated wireless mirroring application. It allows users to cast screens from their laptops, tablets, or smartphones directly to the interactive board without messy cables. The platform can display up to six separate user screens simultaneously in a split-screen matrix, making it ideal for side-by-side data comparisons.
No, the LG 55TR3BG comes equipped with a native, built-in Android 8.0 operating system that contains its own internal processing core and embedded whiteboard software. You can power the monitor on and instantly begin drawing, taking notes, or manipulating files without connecting an external laptop or PC tower.
Huddle rooms and public touch displays face high daily wear, scratches, and constant finger friction. The 4.0mm heavy-duty tempered glass shields the costly underlying 4K IPS panel from damage. Simultaneously, its anti-glare treatment diffuses harsh overhead office light patterns, ensuring texts and numbers remain sharp and highly readable.
Yes. The LG 55TR3BG includes an integrated RJ45 (LAN) input terminal. This allows network administrators to connect the interactive board directly to the corporate network, enabling centralized IT helpdesks to remotely monitor system health, alter basic configurations, and deploy firmware updates across the office.
