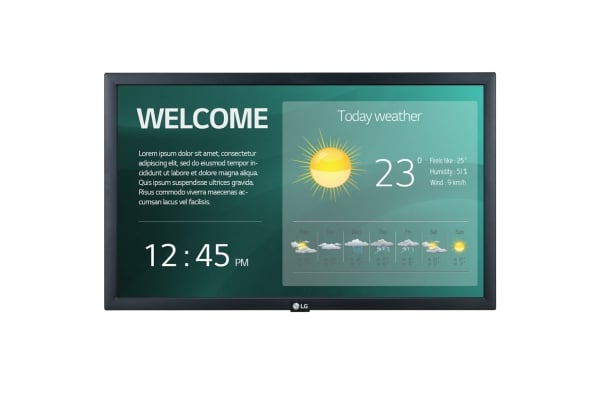

LG 22SM3G-B 22 Inch Compact Full HD Standard Signage Display

  • 22 Inch Compact Full HD Signage Display, 1920x1080 resolution, 250 nit brightness
  • webOS Platform with Embedded CMS, smooth multitasking without a separate media player
  • Built-In WiFi, can also act as a virtual router or wireless access point
  • Crestron Connected Certified, seamless AV control system integration
Brand :LG
Model : 22SM3G-B

Part of Our Solution Strategic Digital Signage & Managed Video Walls
View full details
Genuine Products

Genuine Products

Original Brand Warranty

Original Brand Warranty

Product Training

Product Training

Installation, Maintenance & Support

Installation, Maintenance & Support

Request a Quote

Applications & Use Cases

  • Compact Retail & Wayfinding Displays, small footprint fits tight spaces
  • Reception & Waiting Areas, information and guide displays for commercial spaces
  • Multi-Site Signage Networks, real-time remote monitoring via Control Manager
  • Custom Sensor Integrations, supports GPIO, NFC/RFID, and temperature sensors via USB
LG 22SM3G-B 22 Inch Compact Full HD Standard Signage Display
LG 22SM3G-B
  • Specifications
  • Details

Call for Best Price: +971 58 161 3661 or Chat on WhatsApp

LG 22SM3G-B 22 Inch Compact Full HD Standard Signage Display

The LG 22SM3G-B delivers information and guidance effectively in compact commercial spaces, running on the convenient webOS smart signage platform with embedded CMS. A built-in Quad Core SoC executes several tasks at once while providing smooth content playback without needing a separate media player, reducing overall maintenance costs. Built-in Wi-Fi means it can even act as a virtual router or wireless access point for mobile devices, and Crestron Connected certification enables seamless AV control system integration for reception areas, wayfinding, and tight-space installations across Dubai, Abu Dhabi, and the wider GCC.

Key Features

  • 21.5 inch Full HD (1920 x 1080) IPS display, 250 nit brightness
  • webOS platform with embedded CMS, no external media player required
  • Built-in Wi-Fi, can act as a virtual router or wireless access point
  • Crestron Connected certified for seamless AV control integration
  • Supports GPIO, NFC/RFID, and temperature sensor connections via USB plug-in
  • Failover function supports backup source preparation in case of unexpected errors
  • Real-time remote monitoring and control via Control Manager
  • Optional LG ConnectedCare cloud service for extended remote maintenance

Technical Specifications

Specification Detail
Screen Size 21.5 inch
Resolution 1920 x 1080 (Full HD)
Panel Type IPS, Edge LED backlight
Brightness 250 nit (typical)
Contrast Ratio 1000:1 static, 400,000:1 dynamic
Color Gamut BT709 95 percent
Viewing Angle 178 x 178 degrees
Bezel Width 16.3mm
Depth 53.8 mm

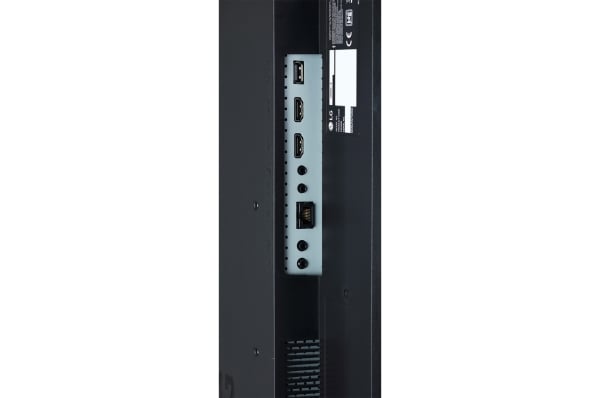

Connectivity 2x HDMI, USB 2.0, RS-232C, RJ45, IR, Audio, built-in Wi-Fi
Certification Crestron Connected certified, Pro:Idiom, webRTC
Warranty 3 year limited warranty

Why Buy the LG 22SM3G-B from Trianze Tech?

  • Genuine LG stock with manufacturer warranty
  • UAE based inventory for fast Dubai and GCC wide delivery
  • Pre sales consultation on compact signage and reception area deployment
  • Professional installation and commissioning available
  • Ongoing technical support from a Dubai based AV integration team

Call for Best Price: +971 58 161 3661 or Chat on WhatsApp

Call for Best Price: +971 58 161 3661 or Chat on WhatsApp

Package Contents

  • 1x LG 22SM3G-B signage display
  • Remote controller (2 batteries), power cord, HDMI cable, quick setup guide, phone to RS-232C gender adapter, external IR, IR sheet

Warranty

  • 3 year limited manufacturer warranty, honoured in the UAE through Trianze Tech

Sustainability

  • Embedded webOS platform removes the need for a separate media player, reducing hardware waste and overall energy use

Expandability

  • USB plug-in supports external sensors such as GPIO, NFC/RFID, and temperature sensors for custom integrations
  • Optional LG ConnectedCare cloud service available for extended remote maintenance

Distribution

  • Stocked and distributed in the UAE by Trianze Tech, serving retail and reception area AV integrators across Dubai, Abu Dhabi, and the GCC

Recommended Wall Mount (Fixed)

This 22 inch signage display suits a compact VESA mounting bracket. The VSYS VS01E-44F Fixed Wall Mount supports displays up to 75 inches and 45kg with a broad VESA range. Available as an optional add-on.

Recommended Wall Mount (Swivel / Full-Motion)

For adjustable viewing angles, the VSYS VS02US-464 Ultra-Slim Full-Motion Mount supports displays up to 75 inches and 50kg, with full tilt and swivel range. Available as an optional add-on.

Recommended Floor Stand

For a mobile installation, the VSYS VTL-1042T Mobile Cart supports 37-70 inch displays up to 45kg and includes a camera shelf for video conferencing. Available as an optional add-on.

Call for Best Price: +971 58 161 3661 or Chat on WhatsApp

Frequently asked

Questions our clients ask before signing.

If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Trianze Tech supplies the LG 22SM3G-B as genuine, manufacturer warranted stock from local Dubai inventory. Purchasing through Trianze Tech means authentic hardware, full UAE warranty coverage, compact signage consultation, and installation support across Dubai, Abu Dhabi, and the wider GCC. Contact the team via WhatsApp at +971 58 161 3661 for a quote.
No. The 22SM3G-B runs on the webOS smart signage platform with an embedded CMS, so a built-in Quad Core SoC executes tasks and plays content smoothly without needing a separate media player, reducing overall maintenance cost.
Yes. The 22SM3G-B has built-in Wi-Fi and can operate as a virtual router, functioning as a wireless access point for nearby mobile devices without needing separate networking hardware.
Yes. At 21.5 inches with a slim 53.8mm depth, the 22SM3G-B fits comfortably into tight commercial spaces such as reception desks, small retail counters, and wayfinding points.
Yes. Through the embedded Control Manager web monitoring solution, you can control and monitor the status of multiple 22SM3G-B displays in different locations in real time from any internet connected device.
