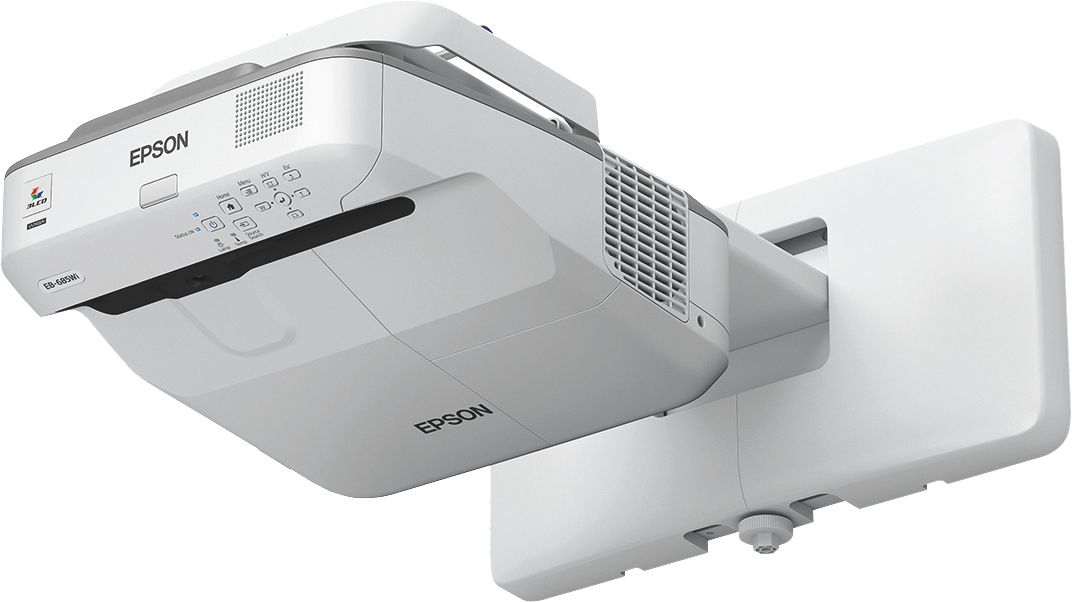

Epson EB-685W: 3,500 Lumens WXGA 2 3LCD Lamp Projector for Meeting Rooms and Classrooms
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Epson EB-685W at a Glance
- Brand
- Epson
- Model
- EB-685W
- Part Number
- V11H744041
- Category
- Projectors
- Solution
- Boardroom AV
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Epson EB-685W Overview
The Epson EB-685W is an Epson business and education projector with 3,500 lumens of colour brightness, WXGA 2 resolution and a lamp light source. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Resolution: WXGA 2
- Colour Light Output, Lumens: 3500 Lumens
- Colour Light Output, Luman (economy) in accodance with: 2900 Lumens
- Colour Light Output Testing Standard: In accordance with ISO 21118:2012
- Contrast Ratio, Ratio:1: 14000
- Light Source (Visual product): Lamp
- White Light Output, Lumens: 2900 Lumens
Technical Specifications:
| Spec | Value |
|---|---|
| Model | EB-685W |
| Epson part number | V11H744041 |
| Brand | Epson |
| Projector Colour | White / Grey |
| Loudspeaker | 16 W |
| Noise Level -Normal | 35 dB (A) |
| Noise Level -Economy | 30 dB (A) |
| Options | Connection and control box, Document camera, USB extension cable, Wireless LAN unit, Air filter ELPAF38, External Speaker |
| Positioning | Wall Mounted |
| Power consumption -(Normal On-Mode) | 309 W |
| Power consumption- (Eco On-Mode) | 258 W |
| Power consumption, (Energy saving standby) | 0.37 W |
| Product Dimensions | 367 x 400 x 149 mm (Width x Depth x Height) |
| Product Range | E9 |
| Room Type / Application | Meeting room / Classroom |
| Single Unit | ZN |
| Supply Voltage | 100 V to 240 V, 50 Hz to 60 Hz |
| Supported Humidity, Operation (from) | 20 % |
| Supported Humidity, Operation (to) | 80 % |
| Supported Humidity, Storage (from) | 10 % |
| Supported Humidity, Storage (to) | 90 % |
| Supported Temperature, Operation (from) | 5 |
| Supported Temperature, Operation (to) | 40 |
| Supported Temperature, Storage (from) | -10 C |
| Supported Temperature, Storage (to) | 60 C |
| LCD Panel (Type) | 0.59 inches with |
| LCD Panel | D9 |
| Projection System | 3LCD Technology |
| Resolution | WXGA 2 |
| Compatible Operating Systems | Ubuntu 16.04 LTS |
| Epson iProjection App | Ad-Hoc / Infrastructure |
| Included Software | EasyMP Multi PC Projection, Epson Projector Management |
| USB Display Function | 3 in 1: Image / Mouse / Sound |
| Warranty (Months) | 60 Months Carry-in |
| Warranty (Hours) | 8000 hr |
| 2D Colour Modes | Dynamic, Cinema, Presentation, sRGB, Blackboard |
| Projector control | AMX, Crestron, Control4 |
| Security (Visual product) | Kensington lock, Wireless LAN unit lock, Wireless LAN security, Password protection, Security cable hole, Password lock |
| Video Colour Modes | Blackboard, Dynamic, Presentation, Sports, sRGB, Theatre, Whiteboard |
| Colour Light Output, Lumens | 3500 Lumens |
| Colour Light Output, Luman (economy) in accodance with | 2900 Lumens |
| Colour Light Output Testing Standard | In accordance with ISO 21118:2012 |
| Colour Reproduction (Projector) | Upto 1.07 billion colours |
| Colour Video Processing | 10 Bits Color |
| Contrast Ratio, Ratio:1 | 14000 |
| High Definition | HD ready |
| Keystone Correction Type (Horizontal) | manual |
| Keystone Correction Angle (Horizontal) | 3 |
| Keystone Correction Type (Vertical) | manual |
| Keystone Correction Angle (Vertical) | 3 |
| Lamp | 5000 Hours Durability;10000 Hours Durability Eco;9000 Hours Durability Eco 2 |
| Light Source (Visual product) | Lamp |
| White Light Output, Lumens | 2900 Lumens |
| White Light Output, Lumens (economy) in accodance with | 2900 Lumens |
| White Light Output Testing Standard | In accordance with ISO 21118:2020 |
| Lens | Optical |
| Offset | 6 |
| Projection Distance from | 0.6 m |
| Projection Distance screen size | 100 inch screen |
| Projection Distance Wide from | 0.4 m |
| Projection Distance Wide screen size | 60 inch screen |
| Projection Lens F Number to | 1.6 |
| Projection Lens Focal Length (To) | 3.7 mm |
Why Buy the Epson EB-685W from Trianze Tech?
- Genuine Epson projector from Trianze Tech, sourced through authorized channels with local UAE support
- Pre-sales help matching the EB-685W to your room size, screen and seating distance
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Projector screen and ceiling mount advice from our installation team
What's Included and Support
Frequently asked
Epson EB-685W: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
The Epson EB-685W is an Epson business and education projector with 3,500 lumens of colour brightness, WXGA 2 resolution and a lamp light source. Trianze Tech supplies it in the UAE with project advice.
For the Epson EB-685W, Epson lists the following. Resolution: WXGA 2; Colour Light Output, Lumens: 3500 Lumens; Colour Light Output, Luman (economy) in accodance with: 2900 Lumens; Colour Light Output Testing Standard: In accordance with ISO 21118:2012; Contrast Ratio, Ratio:1: 14000; Light Source (Visual product): Lamp.
For the Epson EB-685W, Epson lists the following. Throw Ratio from: 0.28; Throw Ratio to: 0.37; Screen Size from: 60 in; Screen Size to: 100 in; Lens: Optical.
For the Epson EB-685W, Epson lists the following. USB Display Function: 3 in 1: Image / Mouse / Sound.
For the Epson EB-685W, Epson lists the following. Product Dimensions: 367 x 400 x 149 mm (Width x Depth x Height); Power consumption -(Normal On-Mode): 309 W; Power consumption- (Eco On-Mode): 258 W; Power consumption, (Energy saving standby): 0.37 W; Supply Voltage: 100 V to 240 V, 50 Hz to 60 Hz.
Trianze Tech stocks the Epson EB-685W in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
