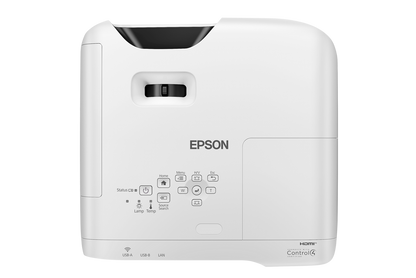

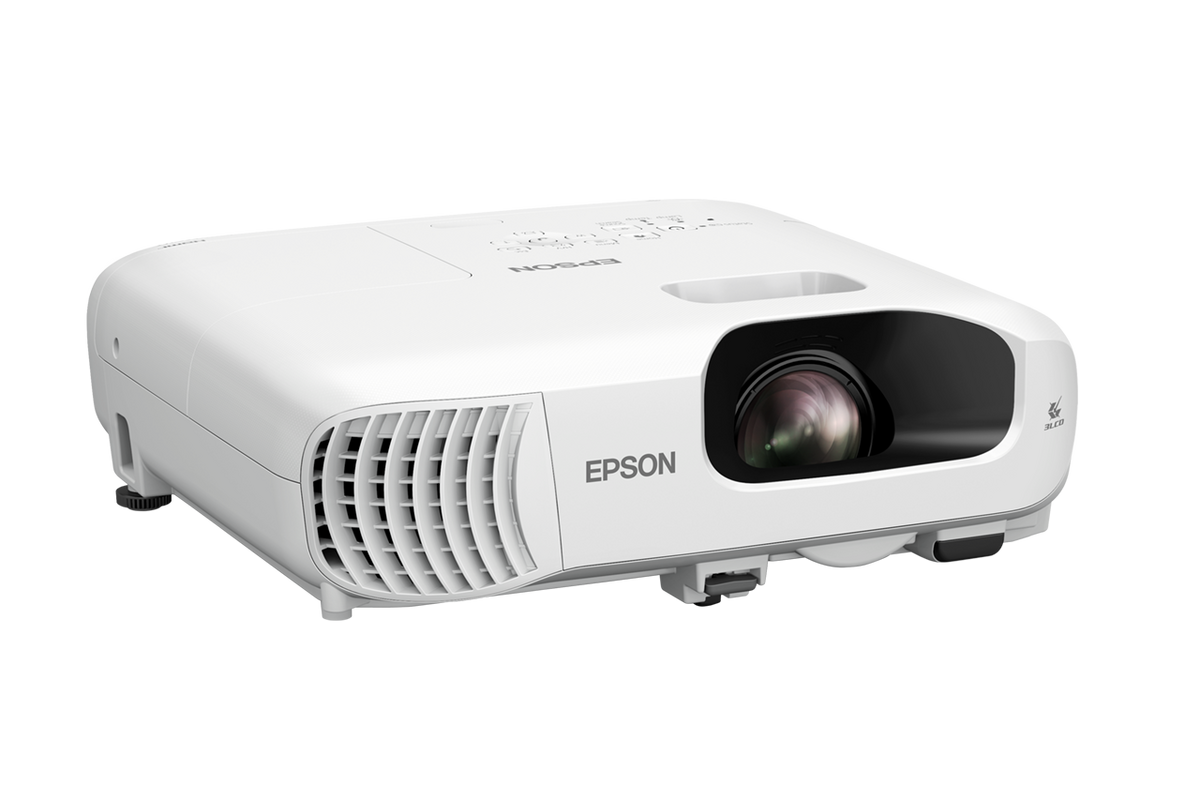

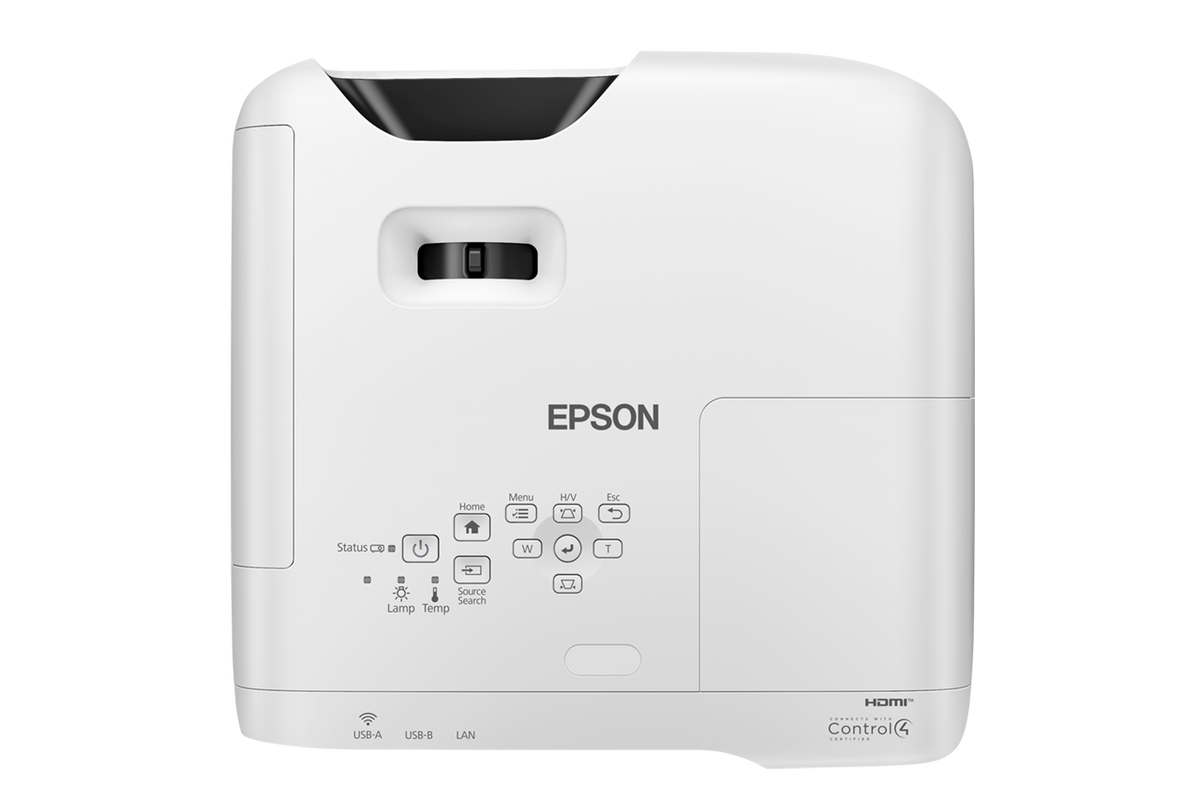

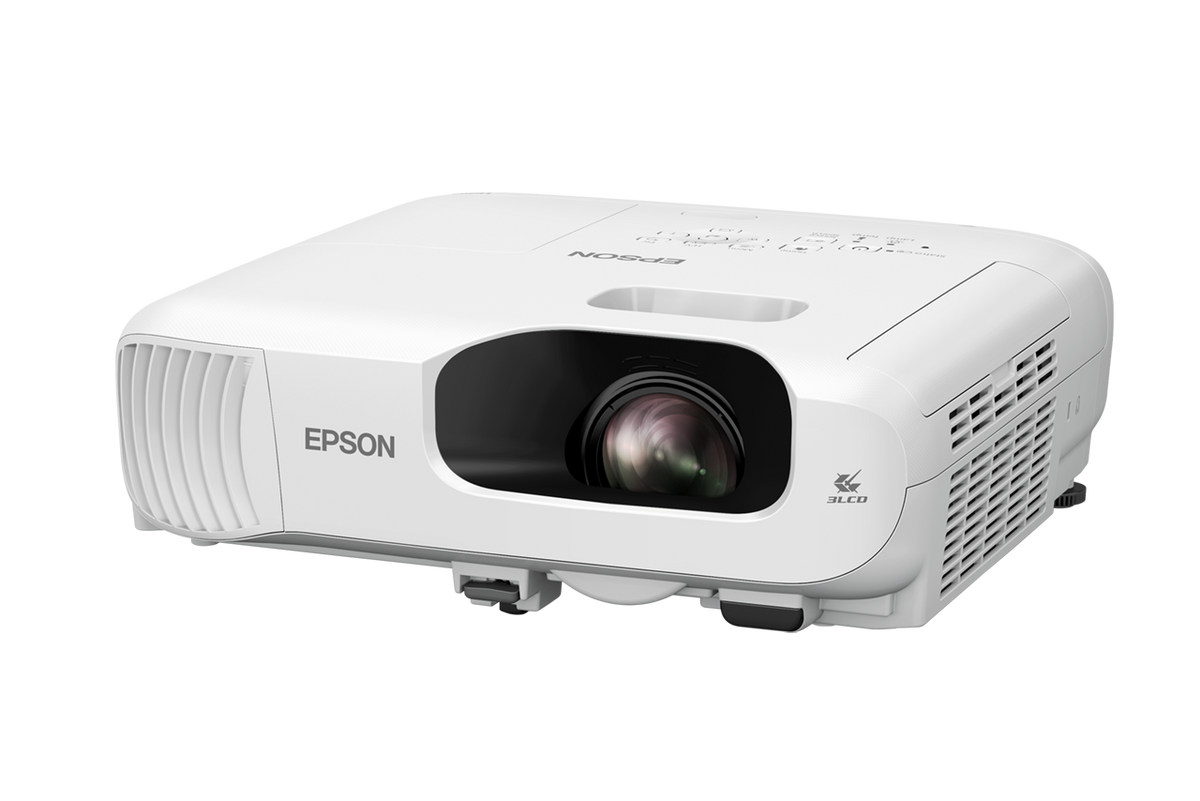

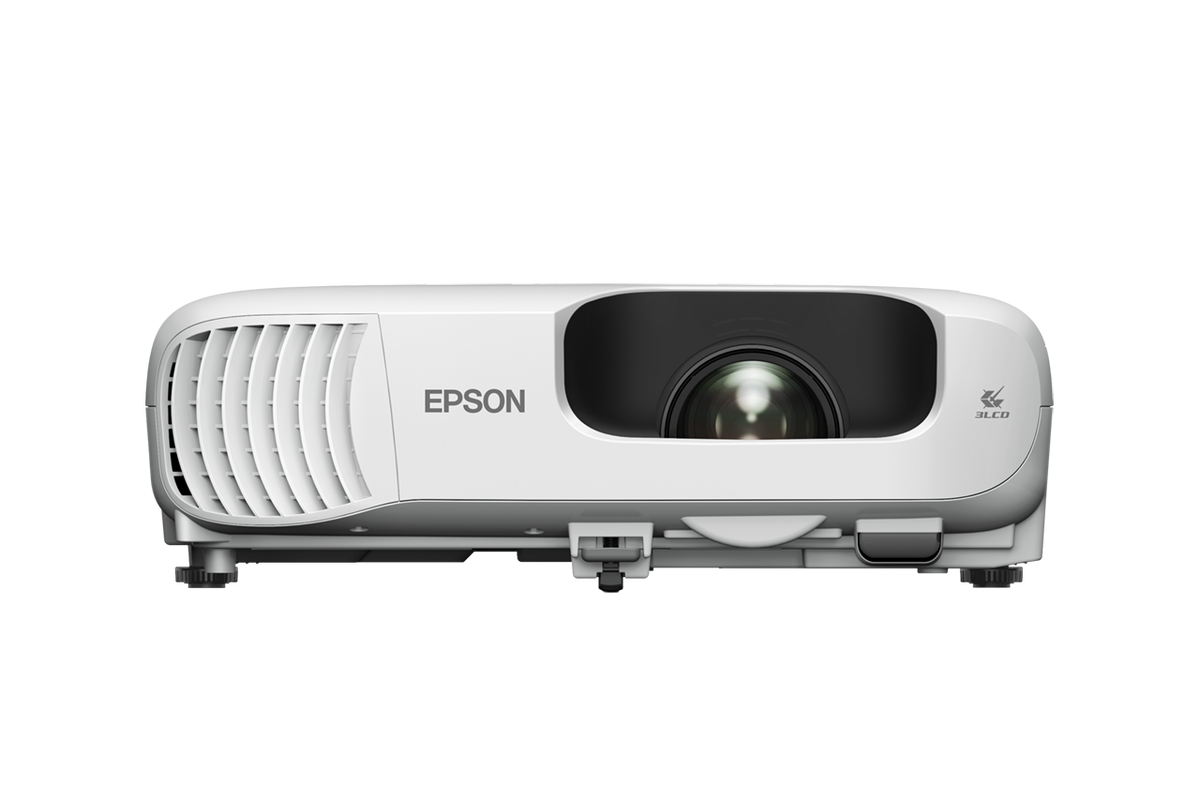

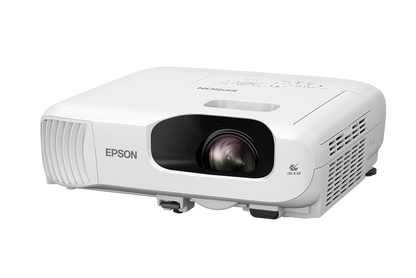

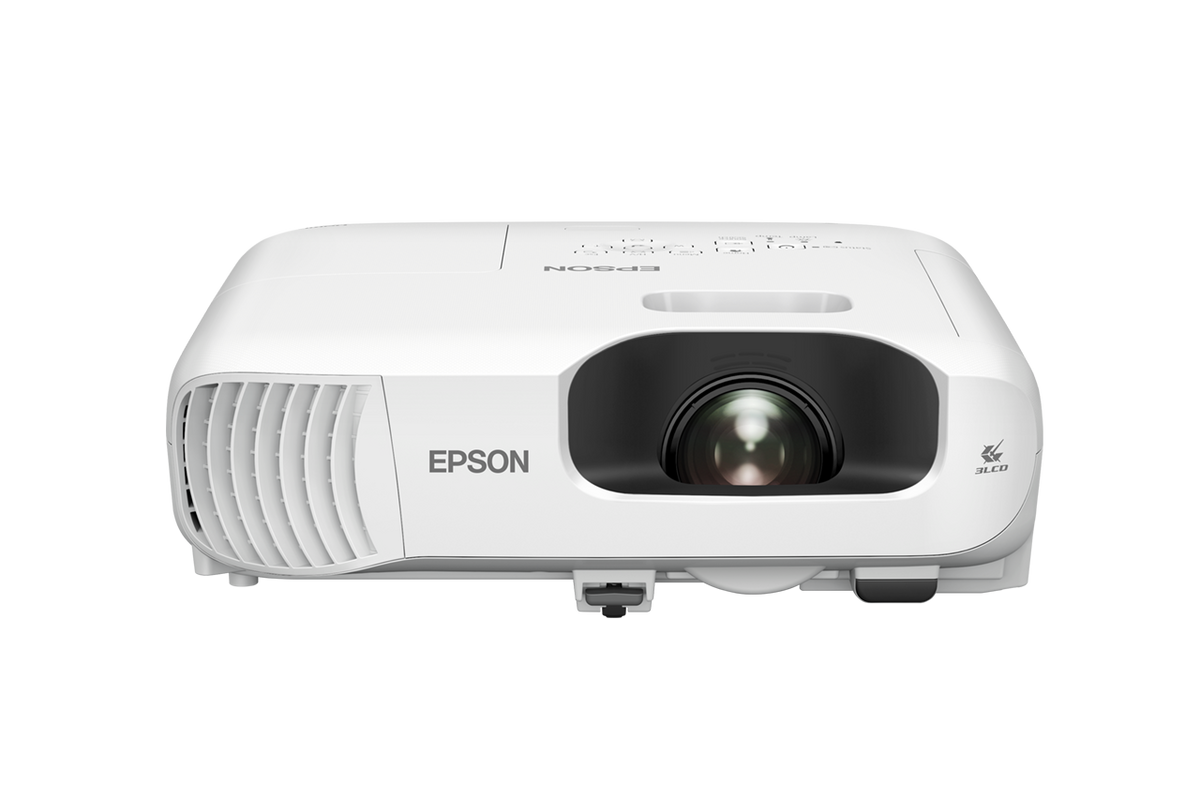

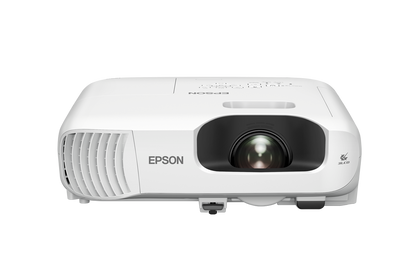

Epson EB-W56S: 3,700 Lumens WXGA 3LCD Lamp Short Throw Projector for Meeting Rooms and Classrooms
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Epson EB-W56S at a Glance
- Brand
- Epson
- Model
- EB-W56S
- Part Number
- V11HB62042DA
- Category
- Projectors
- Solution
- Boardroom AV
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Epson EB-W56S Overview
The Epson EB-W56S is an Epson business and education projector with 3,700 lumens of colour brightness, WXGA resolution and a lamp light source. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Colour Light Output: 3,700 lumens (2,000 lumens in economy mode)
- White Light Output: 3,700 lumens (2,000 lumens in economy mode), ISO 21118:2020
- Resolution: WXGA
- Contrast Ratio: 16,000:1
- Light Source (Visual product): Lamp
- Light Source Life: Lamp 6,500 hours, 17,000 hours in economy mode
- Throw Ratio from: 0.60
Technical Specifications:
| Spec | Value |
|---|---|
| Model | EB-W56S |
| Epson part number | V11HB62042DA |
| Brand | Epson |
| Projection System | 3LCD Technology, LCD panel 0.59 inch with C2 Fine |
| Colour Light Output | 3,700 lumens (2,000 lumens in economy mode) |
| White Light Output | 3,700 lumens (2,000 lumens in economy mode), ISO 21118:2020 |
| Resolution | WXGA |
| Resolution Enhancement | HD ready |
| Aspect Ratio | 16:10 |
| Contrast Ratio | 16,000:1 |
| Light Source (Visual product) | Lamp |
| Light Source Life | Lamp 6,500 hours, 17,000 hours in economy mode |
| Colour Reproduction | Up to 1.07 billion colours |
| Throw Ratio from | 0.60 |
| Throw Ratio to | 0.81 |
| Screen Size from | 50 |
| Screen Size to | 300 |
| Zoom | Digital zoom, factor 1 to 1.35 |
| Projection Lens | F number 1.8, focal length 7.8 mm, manual focus |
| Offset | 10:1 |
| Keystone Correction | Auto vertical +/-15 degrees, manual horizontal +/-15 degrees |
| Colour Modes | Dynamic, Cinema, Presentation, sRGB, Blackboard |

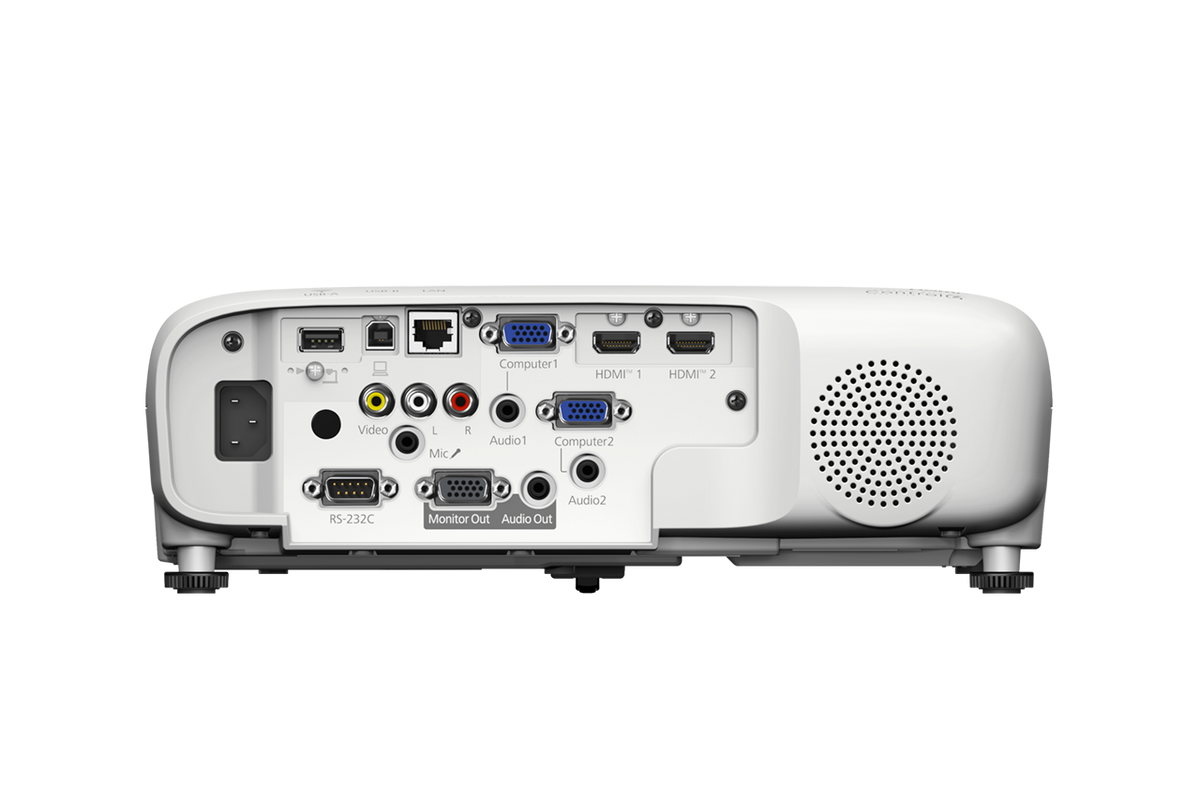

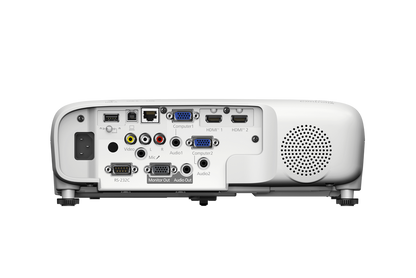

| Interfaces | HDMI in 2x, VGA in 2x, VGA out, composite in, microphone input, USB 2.0 Type-A, USB 2.0 Type-B (service), Ethernet 100Base-TX, RS-232C, audio jack out, optional wireless LAN IEEE 802.11a/b/g/n/ac (ELPAP11) |
| Network Protocols | IPv4, IPv6, SNMP, ESC/VP.net, PJLink |
| Control | Crestron Integrated Partner, Extron IP Link, AMX Device Discovery, Control4 Simple Device Discovery Protocol |
| Split Screen | Up to 4 inputs at once |
| Speaker | 16 W |
| Noise Level -Normal | Normal 38 dB(A), Economy 28 dB(A) |
| Power Consumption | Normal on 332 W, Eco on 231 W, Standby 0.3 W |
| Supply Voltage | AC 100 V to 240 V, 50 Hz to 60 Hz |
| Dimensions (W x D x H) | 309 x 282 x 90 mm |
| Weight | 3.1 kg |
| Operating Temperature | 5 C to 40 C, humidity 20% to 80% |
| Security | Kensington lock, password lock, security cable hole, wireless LAN unit lock |
| Warranty (Months) | 60 months |
| Positioning | Ceiling mounted, desktop |
Why Buy the Epson EB-W56S from Trianze Tech?
- Genuine Epson projector from Trianze Tech, sourced through authorized channels with local UAE support
- Pre-sales help matching the EB-W56S to your room size, screen and seating distance
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Projector screen and ceiling mount advice from our installation team
What's Included and Support
Frequently asked
Epson EB-W56S: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
The Epson EB-W56S is an Epson business and education projector with 3,700 lumens of colour brightness, WXGA resolution and a lamp light source. Trianze Tech supplies it in the UAE with project advice.
For the Epson EB-W56S, Epson lists the following. Colour Light Output: 3,700 lumens (2,000 lumens in economy mode); White Light Output: 3,700 lumens (2,000 lumens in economy mode), ISO 21118:2020; Resolution: WXGA; Contrast Ratio: 16,000:1; Light Source (Visual product): Lamp; Light Source Life: Lamp 6,500 hours, 17,000 hours in economy mode.
For the Epson EB-W56S, Epson lists the following. Throw Ratio from: 0.60; Throw Ratio to: 0.81; Screen Size from: 50; Screen Size to: 300.
For the Epson EB-W56S, Epson lists the following. Network Protocols: IPv4, IPv6, SNMP, ESC/VP.net, PJLink; Interfaces: HDMI in 2x, VGA in 2x, VGA out, composite in, microphone input, USB 2.0 Type-A, USB 2.0 Type-B (service), Ethernet 100Base-TX, RS-232C, audio jack out.
For the Epson EB-W56S, Epson lists the following. Dimensions (W x D x H): 309 x 282 x 90 mm; Weight: 3.1 kg; Power Consumption: Normal on 332 W, Eco on 231 W, Standby 0.3 W; Supply Voltage: AC 100 V to 240 V, 50 Hz to 60 Hz; Noise Level -Normal: Normal 38 dB(A), Economy 28 dB(A).
Trianze Tech stocks the Epson EB-W56S in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
