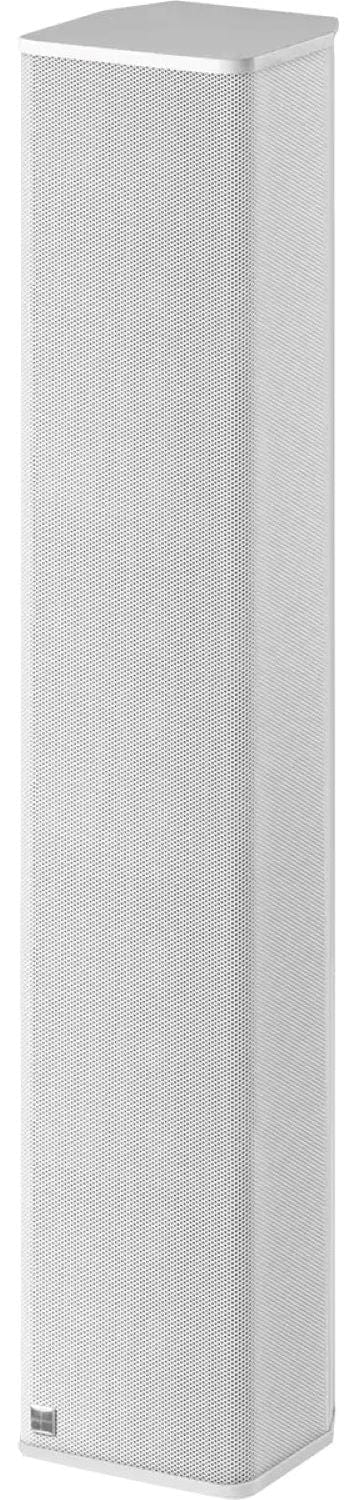

d&b audiotechnik 16C WR Weather Resistant Cardioid Column Passive Loudspeaker
The d&b audiotechnik 16C WR is the weather resistant version of the 16C cardioid column, with four 4 inch neodymium drivers and a 0.75 inch compression driver on a 90 x 40 degree CD horn. Its cardioid design gives around 18 dB of rear attenuation for clear speech in reflective spaces, and it uses a Faston connection. Trianze Tech supplies the 16C WR for outdoor and semi outdoor installations in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Weather Resistant (WR) version of the 16C column
- Four 4 inch neodymium drivers in a cardioid setup
- 0.75 inch compression driver on a 90 x 40 degree CD horn
- Around 18 dB broadband attenuation to the rear
- Faston type connection

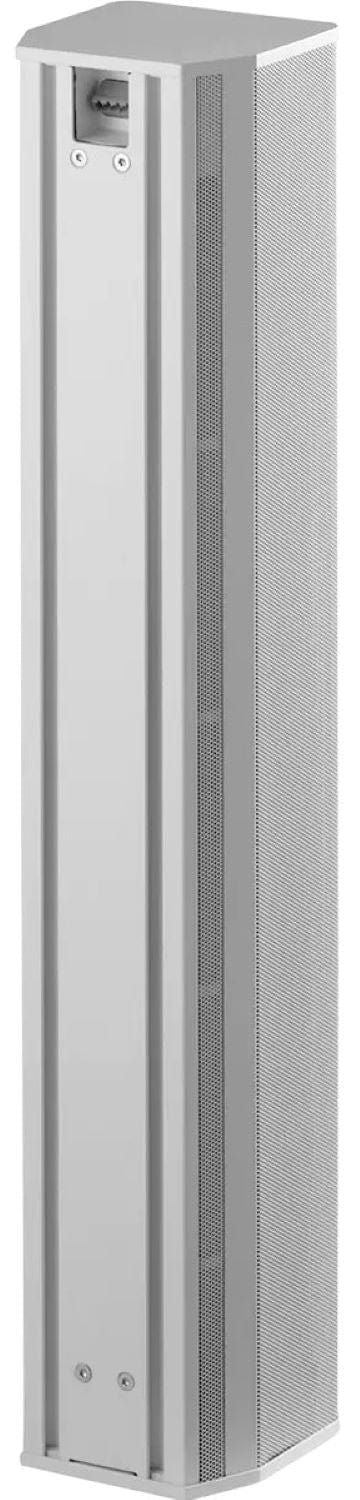

- T-slot rails on the rear for mounting
Technical Specifications:
| Spec | Value |
|---|---|
| Model | 16C WR |
| Type | Weather resistant cardioid column loudspeaker, 2-way passive |
| Components | 4 x 4 inch neodymium drivers, 1 x 0.75 inch compression driver on CD horn |
| Dispersion (h x v) | 90 x 40 degrees |
| Rear Attenuation | Approximately 18 dB |
| Frequency Response (-5 dB) | 110 Hz to 18 kHz |
| Max SPL | 122 dB |
| Power Handling (RMS/peak) | 100/500 W |
| Cabinets per Amplifier Channel | 3 |
| Connection | Faston connector |
| Dimensions (H x W x D) | 650 x 124.5 x 124 mm |
| Weight | 5 kg (11 lb) |
Why Buy the d&b audiotechnik 16C WR from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the 16C WR with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik 16C WR is the weather resistant version of the 16C cardioid column loudspeaker, with the same drivers and 90 x 40 degree dispersion.
The d&b audiotechnik 16C WR provides around 18 dB of broadband attenuation to the rear thanks to its cardioid driver arrangement.
The d&b audiotechnik 16C WR uses a Faston type connection instead of the NL4 and Phoenix terminals on the standard 16C.
The d&b audiotechnik 16C WR reaches a maximum SPL of 122 dB, with a frequency response of 110 Hz to 18 kHz.
The d&b audiotechnik 16C WR weighs 5 kg (11 lb) and measures 650 x 124.5 x 124 mm (H x W x D).
