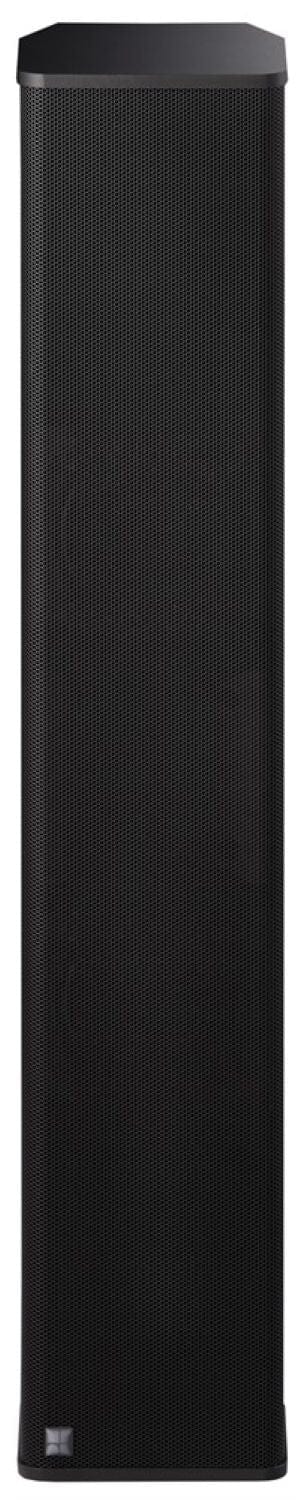

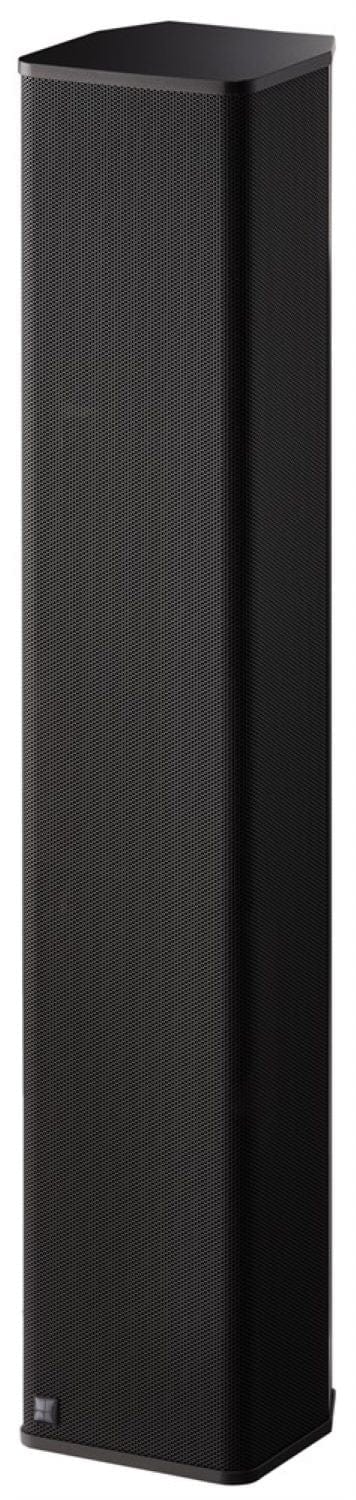

d&b audiotechnik 16C Cardioid Column Passive Installation Loudspeaker, Black
The d&b audiotechnik 16C is the smallest 2-way passive column in the xC-Series, with four 4 inch neodymium drivers in a cardioid arrangement and a 0.75 inch compression driver on a 90 x 40 degree CD horn. Around 18 dB of rear attenuation reduces reflections and raises gain before feedback with open microphones. Trianze Tech supplies the 16C for speech focused installations in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Four 4 inch neodymium drivers in a cardioid setup
- 0.75 inch compression driver on a 90 x 40 degree CD horn
- Around 18 dB broadband attenuation to the rear
- Higher gain before feedback with open microphones
- Extruded aluminium back with metal baffle and grill
- T-slot rails on the rear for mounting
Technical Specifications:
| Spec | Value |
|---|---|
| Model | 16C |
| Type | Installation cardioid column loudspeaker, 2-way passive |
| Components | 4 x 4 inch neodymium drivers, 1 x 0.75 inch compression driver on CD horn |
| Dispersion (h x v) | 90 x 40 degrees |
| Rear Attenuation | Approximately 18 dB |
| Frequency Response (-5 dB) | 110 Hz to 18 kHz |
| Max SPL | 122 dB |
| Power Handling (RMS/peak) | 100/500 W |
| Cabinets per Amplifier Channel | 3 |
| Connections | NL4, 4-pole Phoenix terminal |
| Dimensions (H x W x D) | 650 x 124.5 x 124 mm |
| Weight | 5 kg (11 lb) |
| Finish | Black |
Why Buy the d&b audiotechnik 16C from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the 16C with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik 16C arranges its four 4 inch drivers with front waveguides and damped rear ports, giving about 18 dB of rear attenuation and a constant 90 degree horizontal pattern.
The cardioid pattern of the d&b audiotechnik 16C puts minimal energy behind the loudspeaker, which reduces reflections and increases gain before feedback with open microphones.
The d&b audiotechnik 16C covers 110 Hz to 18 kHz (-5 dB) with a maximum SPL of 122 dB.

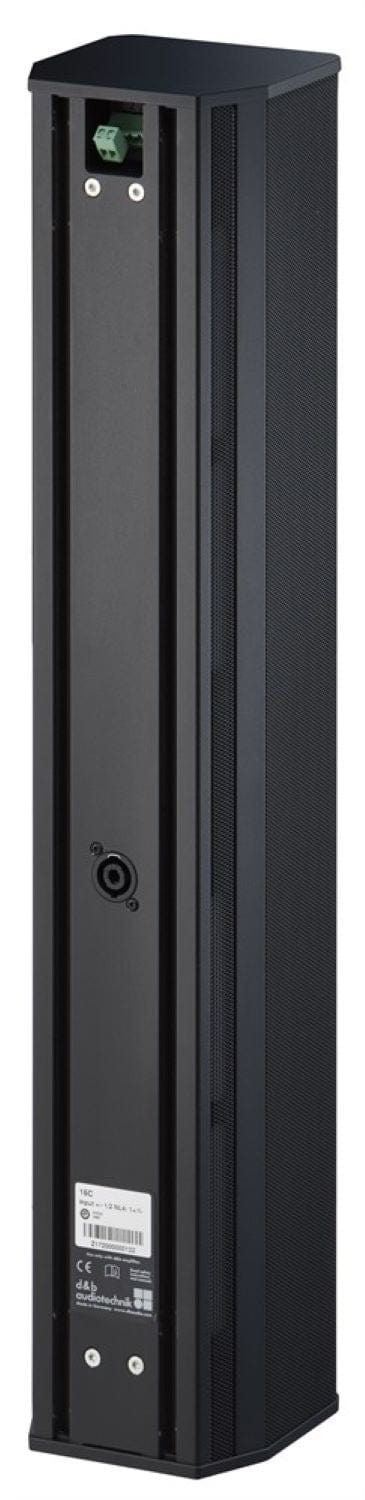

The d&b audiotechnik 16C has continuous T-slot rails on the rear for mounting, plus an NL4 input and a 4-pole Phoenix terminal connector.
The d&b audiotechnik 16C measures 650 x 124.5 x 124 mm (H x W x D) and weighs 5 kg (11 lb).
