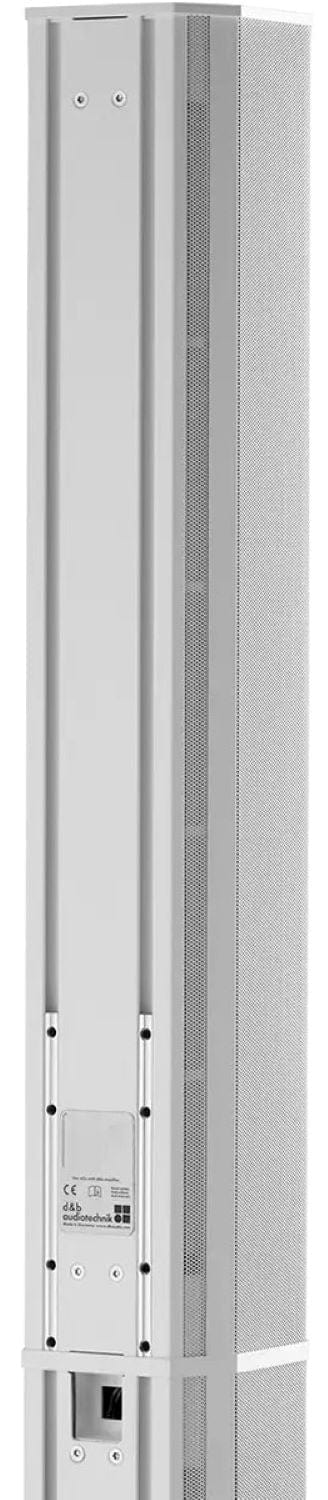

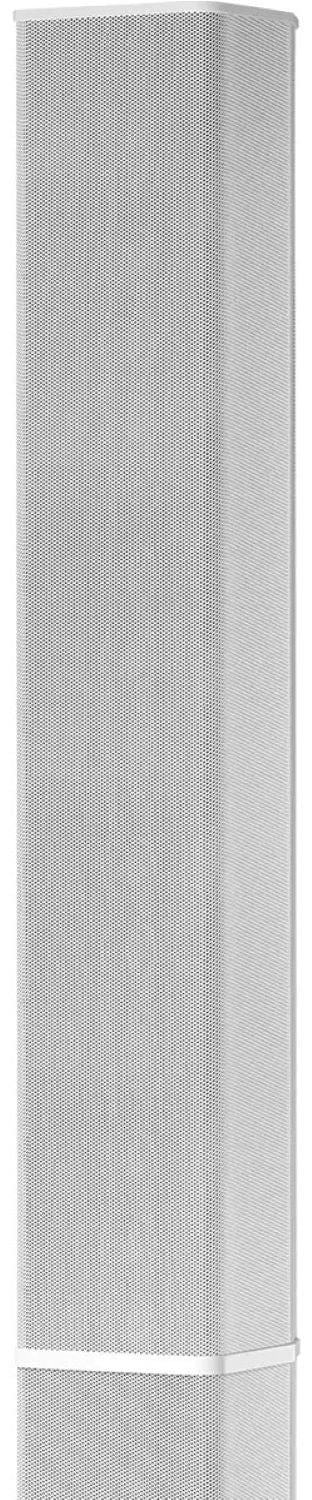

d&b audiotechnik 24C-E WR Weather Resistant Passive Column Extension
The d&b audiotechnik 24C-E WR is the weather resistant version of the 24C-E passive extender, with six 4 inch neodymium drivers that extend 24C vertical directivity down to 190 Hz. It links passively to the 24C, so both run from one amplifier channel. Trianze Tech supplies the 24C-E WR for outdoor and semi outdoor column installations in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Weather Resistant (WR) version of the 24C-E
- Six 4 inch neodymium drivers in a cardioid setup
- Extends 24C vertical directivity down to 190 Hz
- Passive link, one amplifier channel for both cabinets
- Around 18 dB broadband attenuation to the rear
- Extendable rails accept the 24C attachments
Technical Specifications:
| Spec | Value |
|---|---|
| Model | 24C-E WR |
| Type | Weather resistant cardioid column extender, passive |
| Components | 6 x 4 inch neodymium drivers |
| Dispersion (h x v) | 90 x 20 degrees (with 24C) |
| Frequency Response (-5 dB) | 110 Hz to 17 kHz standard, 150 Hz to 17 kHz CUT mode |
| Max SPL | 128 dB (with 24C) |
| Power Handling (RMS/peak) | 250/1200 W |
| Cabinets per Amplifier Channel | 1 |
| Connection | Fixed cable gland, 2-pole Mate-N-Lok mini through 24C |
| Dimensions (H x W x D) | 701 x 124.5 x 124 mm |
| Weight | 7 kg (15.4 lb) |
Why Buy the d&b audiotechnik 24C-E WR from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the 24C-E WR with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik 24C-E WR is designed for use with the 24C WR column loudspeaker, extending its vertical directivity down to 190 Hz in outdoor installations.
No. The d&b audiotechnik 24C-E WR is linked passively through the 24C, so both cabinets run from one amplifier channel.
The d&b audiotechnik 24C-E WR handles 250 W RMS and 1200 W peak, and reaches 128 dB maximum SPL together with the 24C.
The d&b audiotechnik 24C-E WR uses a cardioid driver arrangement with damped rear ports, giving around 18 dB of broadband attenuation to the rear.
The d&b audiotechnik 24C-E WR weighs 7 kg (15.4 lb) and measures 701 x 124.5 x 124 mm (H x W x D).
Trianze Tech supplies the d&b audiotechnik 24C-E WR in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
