d&b audiotechnik 24C-E: Passive Cardioid Column Extension for the 24C, Black
Model
:
24C-E
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

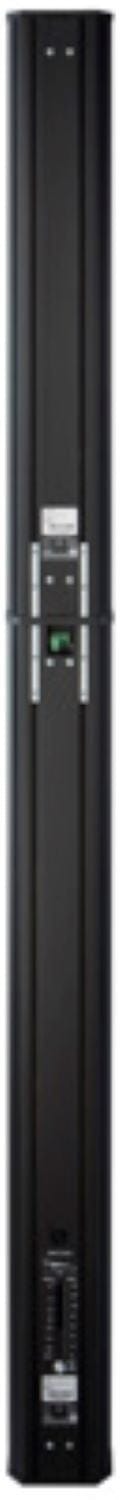

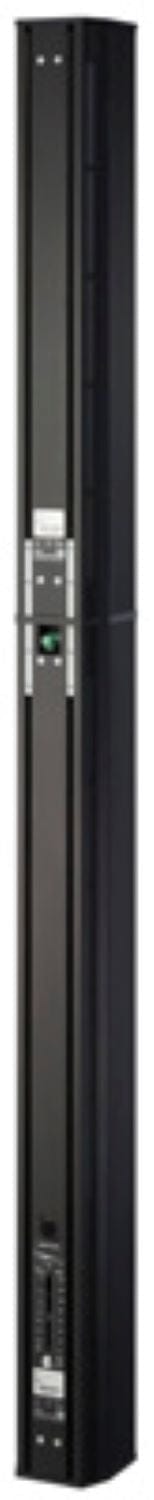

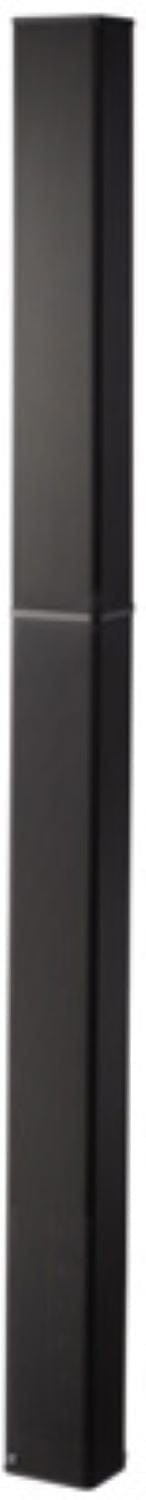

d&b audiotechnik 24C-E Passive Cardioid Column Extension for the 24C, Black
The d&b audiotechnik 24C-E is a passive extender for the 24C cardioid column, housing six 4 inch neodymium drivers that extend vertical directivity by a further octave down to 190 Hz. It links passively to the 24C, so the pair runs from one amplifier channel and reaches 128 dB maximum SPL. Trianze Tech supplies the 24C-E for column installations in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Six 4 inch neodymium drivers in a cardioid setup
- Extends 24C vertical directivity down to 190 Hz
- Passive link to the 24C, one amplifier channel for both
- Around 18 dB broadband attenuation to the rear
- Extendable rails accept the 24C attachments
- Fixed cable gland with 2-pole Mate-N-Lok mini link to the 24C
Technical Specifications:
| Spec | Value |
|---|---|
| Model | 24C-E |
| Type | Installation cardioid column extender, passive |
| Components | 6 x 4 inch neodymium drivers |
| Dispersion (h x v) | 90 x 20 degrees (with 24C) |
| Frequency Response (-5 dB) | 110 Hz to 17 kHz standard, 150 Hz to 17 kHz CUT mode |
| Max SPL | 128 dB (with 24C) |
| Power Handling (RMS/peak) | 250/1200 W |
| Cabinets per Amplifier Channel | 1 |
| Connection | Fixed cable gland, 2-pole Mate-N-Lok mini through 24C |
| Dimensions (H x W x D) | 701 x 124.5 x 124 mm |
| Weight | 7 kg (15.4 lb) |
| Finish | Black |
Why Buy the d&b audiotechnik 24C-E from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the 24C-E with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik 24C-E is a passive extender that mounts with a 24C column and extends its vertical directivity by a further octave, down to 190 Hz.
No. The d&b audiotechnik 24C-E connects passively through the 24C, so the 24C and 24C-E pair runs from a single amplifier channel.
No. The d&b audiotechnik 24C-E is an extender with no HF section and is designed only for use with the 24C column loudspeaker.
In combination with the 24C, the d&b audiotechnik 24C-E reaches a maximum SPL of 128 dB, with a power handling of 250 W RMS and 1200 W peak.
The d&b audiotechnik 24C-E measures 701 x 124.5 x 124 mm (H x W x D) and weighs 7 kg (15.4 lb).
Trianze Tech supplies the d&b audiotechnik 24C-E in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
