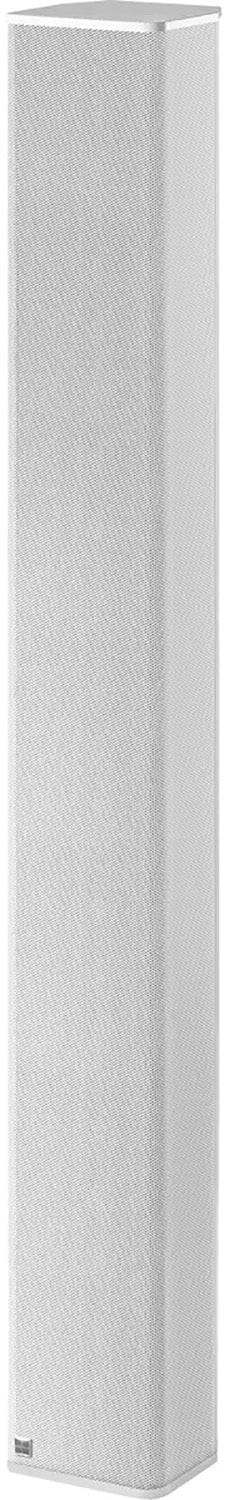

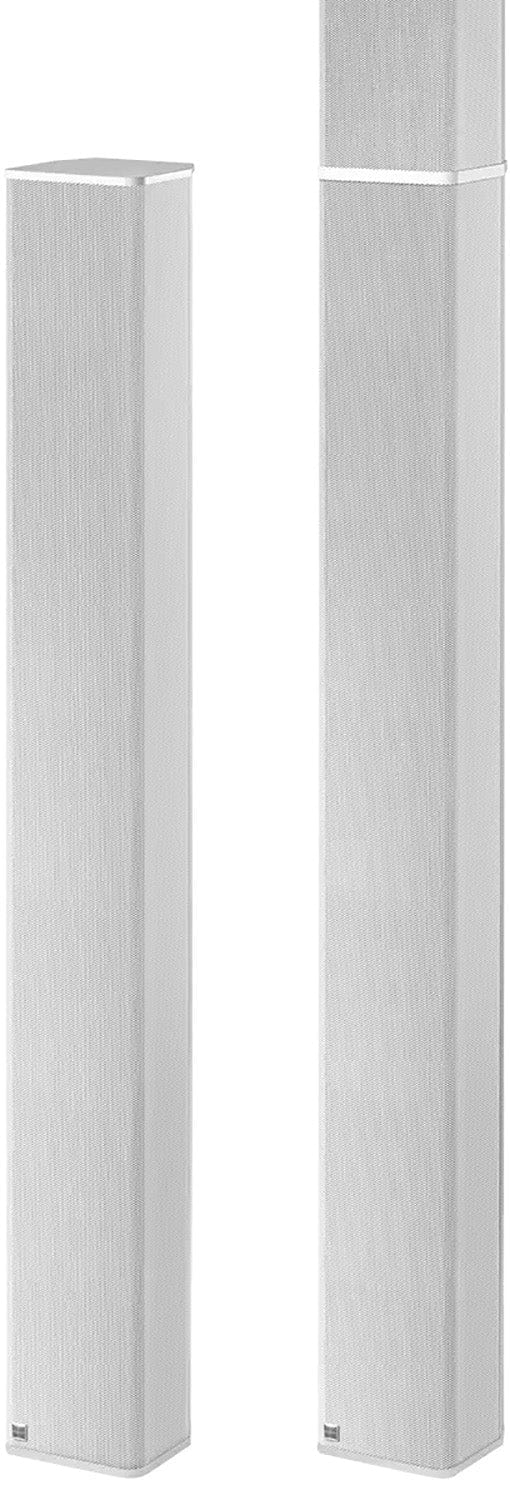

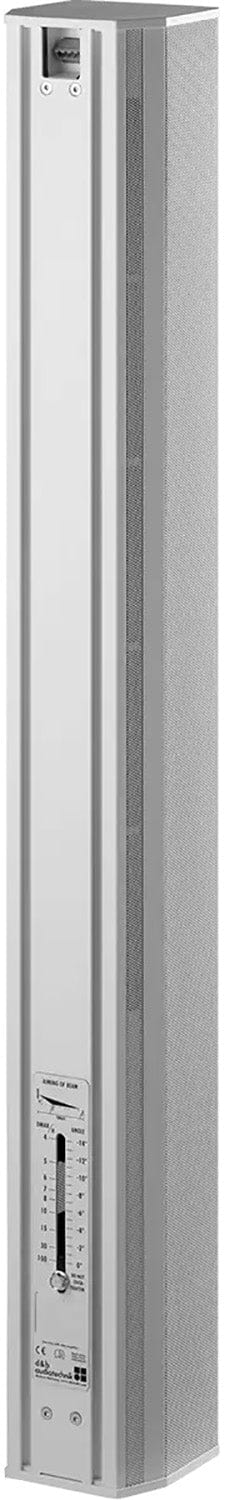

d&b audiotechnik 24C WR: Cardioid Column Passive Loudspeaker with Adjustable HF Array, Weather Resistant Version
Model
:
24C WR
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
d&b audiotechnik 24C WR Weather Resistant Cardioid Column Passive Loudspeaker
The d&b audiotechnik 24C WR is the weather resistant version of the 24C cardioid column, with six 4 inch neodymium drivers and an HF array of six 1.1 inch dome tweeters. Its HF beam can be steered between 0 and -14 degrees, and around 18 dB of rear attenuation keeps speech clear in reflective spaces. Trianze Tech supplies the 24C WR for outdoor and semi outdoor installations in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Weather Resistant (WR) version of the 24C column
- Six 4 inch neodymium drivers in a cardioid setup
- HF array of six 1.1 inch dome tweeters
- HF beam adjustable between 0 and -14 degrees
- Around 18 dB broadband attenuation to the rear

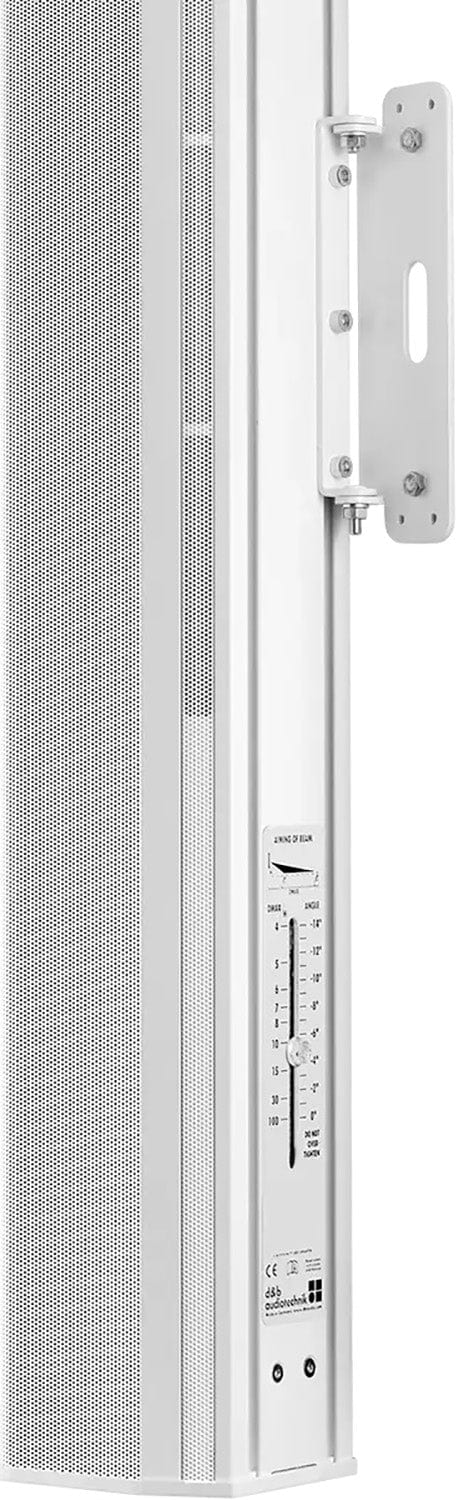

- T-slot rails on the rear for mounting
Technical Specifications:
| Spec | Value |
|---|---|
| Model | 24C WR |
| Type | Weather resistant cardioid column loudspeaker, 2-way passive |
| Components | 6 x 4 inch neodymium drivers, 6 x 1.1 inch dome tweeters |
| Dispersion (h x v) | 90 x 20 degrees |
| HF Vertical Adjustment | 0 to -14 degrees |
| Low/Mid Downtilt | 5 degrees |
| Frequency Response (-5 dB) | 110 Hz to 17 kHz standard, 150 Hz to 17 kHz CUT mode |
| Max SPL | 126 dB |
| Power Handling (RMS/peak) | 125/600 W |
| Cabinets per Amplifier Channel | 2 |
| Dimensions (H x W x D) | 1000 x 124.5 x 124 mm |
| Weight | 9 kg (19.8 lb) |
Why Buy the d&b audiotechnik 24C WR from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the 24C WR with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Yes. The d&b audiotechnik 24C WR is the weather resistant version of the 24C cardioid column, intended for outdoor and semi outdoor installations.
Yes. The d&b audiotechnik 24C WR has a 20 degree vertical HF beam that can be adjusted between 0 and -14 degrees, with the low and mid beam tilted down by 5 degrees.
The d&b audiotechnik 24C WR reaches a maximum SPL of 126 dB and covers 110 Hz to 17 kHz (-5 dB) in standard mode.
Two d&b audiotechnik 24C WR columns can be driven from a single amplifier channel, with a power handling of 125 W RMS and 600 W peak per column.
The d&b audiotechnik 24C WR measures 1000 x 124.5 x 124 mm (H x W x D) and weighs 9 kg (19.8 lb).
Trianze Tech supplies the d&b audiotechnik 24C WR in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
