d&b audiotechnik 24C White: Cardioid Column Passive Installation Loudspeaker with Adjustable HF Array, White
Model
:
24C White
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
d&b audiotechnik 24C Cardioid Column Passive Installation Loudspeaker, White

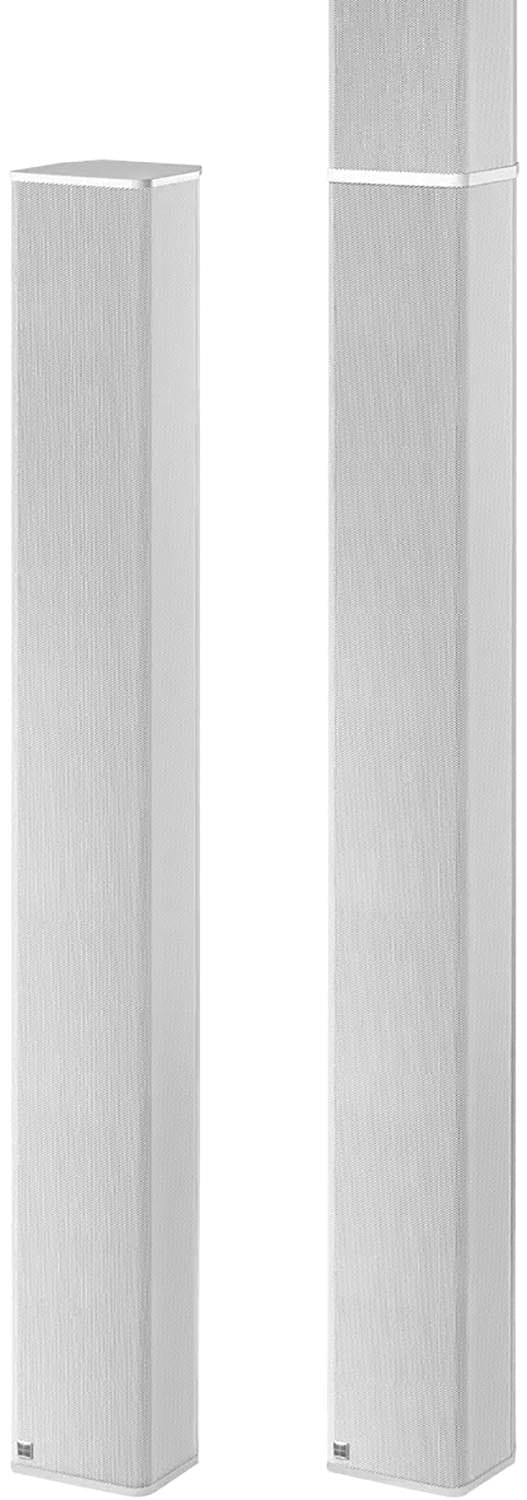

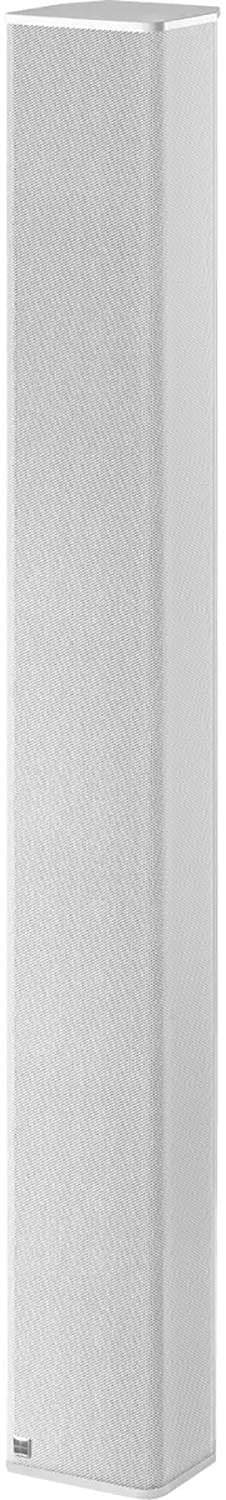

The d&b audiotechnik 24C in white is a 2-way passive cardioid column with six 4 inch neodymium drivers and an HF array of six 1.1 inch dome tweeters, finished to blend into light coloured interiors. Its 20 degree vertical HF beam can be steered between 0 and -14 degrees, and its cardioid design gives around 18 dB of rear attenuation. Trianze Tech supplies the white 24C for architectural installations in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- White finish for light coloured architecture
- Six 4 inch neodymium drivers in a cardioid setup
- HF array of six 1.1 inch dome tweeters
- HF beam adjustable between 0 and -14 degrees
- Around 18 dB broadband attenuation to the rear
- 4-pole Phoenix and NL4 connections
Technical Specifications:
| Spec | Value |
|---|---|
| Model | 24C (white) |
| Type | Installation cardioid column loudspeaker, 2-way passive |
| Components | 6 x 4 inch neodymium drivers, 6 x 1.1 inch dome tweeters |
| Dispersion (h x v) | 90 x 20 degrees |
| HF Vertical Adjustment | 0 to -14 degrees |
| Low/Mid Downtilt | 5 degrees |
| Frequency Response (-5 dB) | 110 Hz to 17 kHz standard, 150 Hz to 17 kHz CUT mode |
| Max SPL | 126 dB |
| Power Handling (RMS/peak) | 125/600 W |
| Cabinets per Amplifier Channel | 2 |
| Connections | 4-pole Phoenix terminal, NL4 |
| Dimensions (H x W x D) | 1000 x 124.5 x 124 mm |
| Weight | 9 kg (19.8 lb) |
| Finish | White |
Why Buy the d&b audiotechnik 24C White from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the 24C White with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
This listing is the white version of the d&b audiotechnik 24C cardioid column (part Z1700.001). Black and special RAL colour versions are also offered.
The d&b audiotechnik 24C White has a nominal dispersion of 90 x 20 degrees, with the HF beam steerable between 0 and -14 degrees vertically.
The cardioid driver arrangement of the d&b audiotechnik 24C White gives around 18 dB of rear attenuation, which reduces reflections and raises gain before feedback with open microphones.

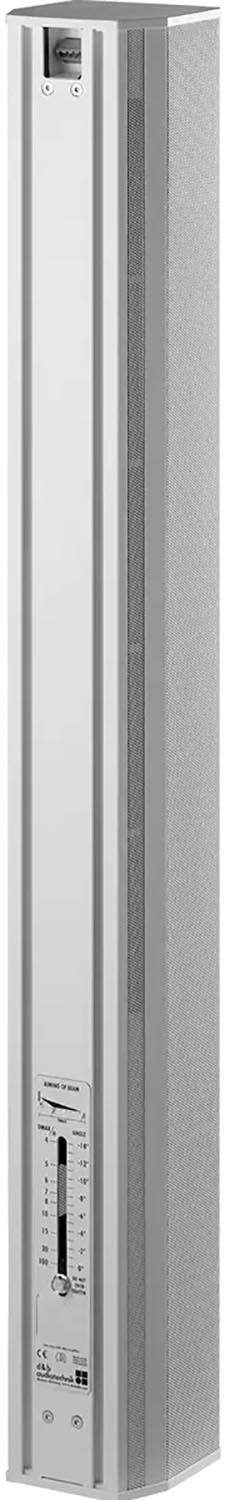

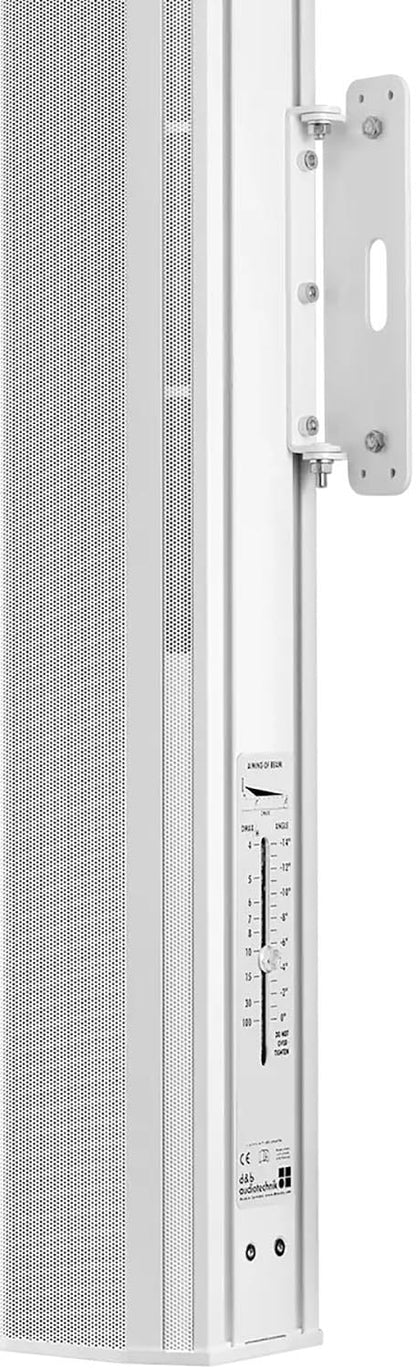

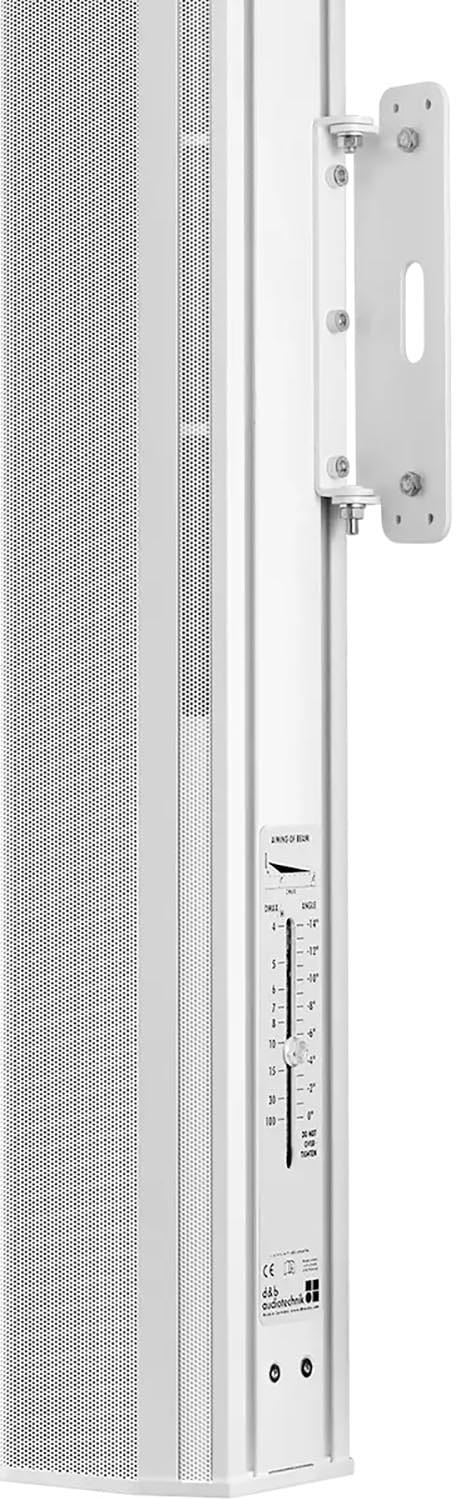

The d&b audiotechnik 24C White has a 4-pole Phoenix combicon terminal and an NL4 connector on the rear of the cabinet.
The d&b audiotechnik 24C White weighs 9 kg (19.8 lb) and measures 1000 x 124.5 x 124 mm (H x W x D).
Trianze Tech supplies the d&b audiotechnik 24C White in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
