d&b audiotechnik 24C: Cardioid Column Passive Installation Loudspeaker with Adjustable HF Array, Black
Model
:
24C
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

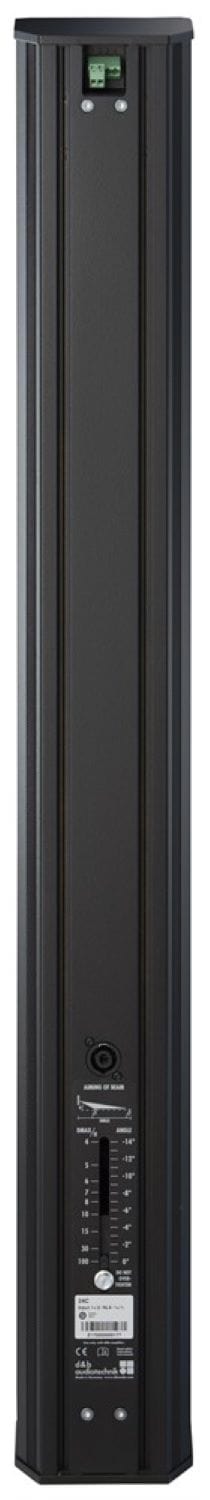

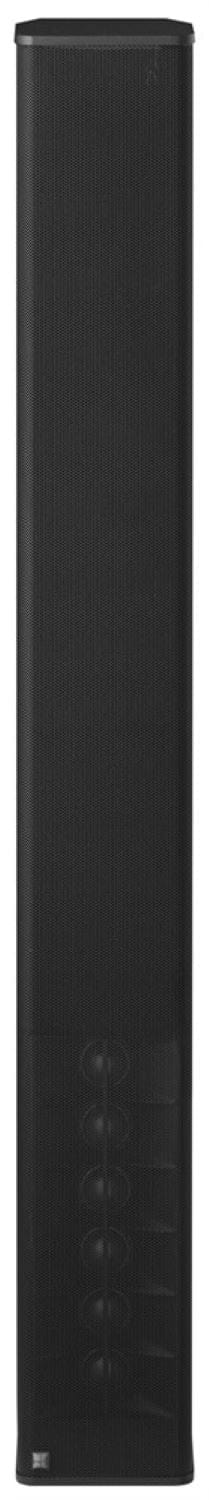

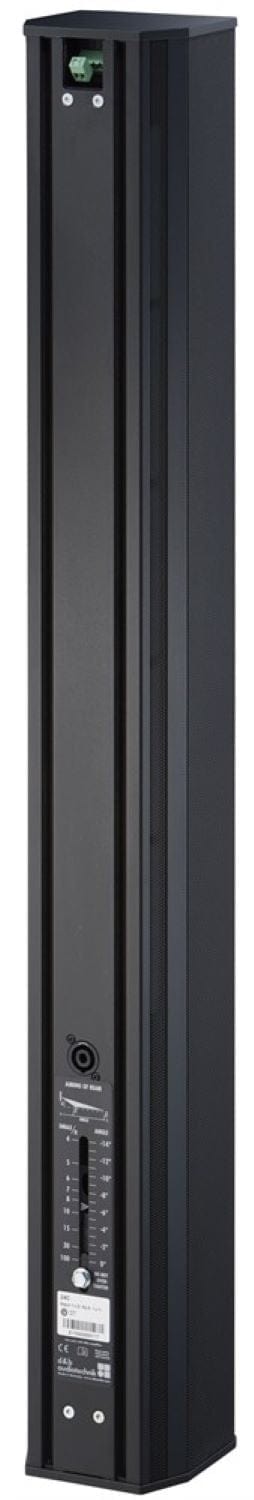

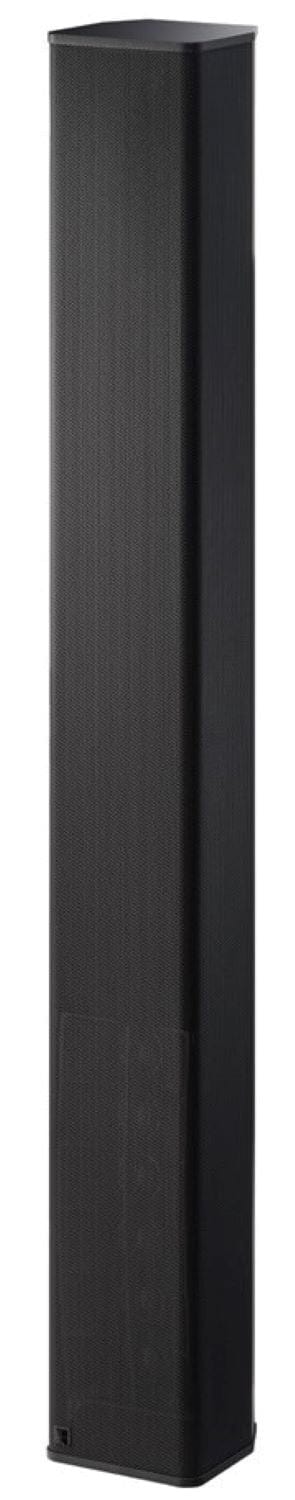

d&b audiotechnik 24C Cardioid Column Passive Installation Loudspeaker, Black
The d&b audiotechnik 24C is a 2-way passive cardioid column with six 4 inch neodymium drivers and an HF array of six 1.1 inch dome tweeters. Its 20 degree vertical HF beam can be steered between 0 and -14 degrees to target the audience, while the low and mid beam is tilted down by 5 degrees. Trianze Tech supplies the 24C for speech critical installations in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Six 4 inch neodymium drivers in a cardioid setup
- HF array of six 1.1 inch dome tweeters
- HF beam adjustable between 0 and -14 degrees
- Around 18 dB broadband attenuation to the rear
- Directivity control down to 370 Hz, 190 Hz with the 24C-E extension
- T-slot rails on the rear for mounting
Technical Specifications:
| Spec | Value |
|---|---|
| Model | 24C |
| Type | Installation cardioid column loudspeaker, 2-way passive |
| Components | 6 x 4 inch neodymium drivers, 6 x 1.1 inch dome tweeters |
| Dispersion (h x v) | 90 x 20 degrees |
| HF Vertical Adjustment | 0 to -14 degrees |
| Low/Mid Downtilt | 5 degrees |
| Frequency Response (-5 dB) | 110 Hz to 17 kHz standard, 150 Hz to 17 kHz CUT mode |
| Max SPL | 126 dB |
| Power Handling (RMS/peak) | 125/600 W |
| Cabinets per Amplifier Channel | 2 |
| Connections | 4-pole Phoenix terminal, NL4 |
| Dimensions (H x W x D) | 1000 x 124.5 x 124 mm |
| Weight | 9 kg (19.8 lb) |
| Finish | Black |
Why Buy the d&b audiotechnik 24C from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the 24C with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Yes. The d&b audiotechnik 24C has a 20 degree vertical HF beam that can be adjusted continuously between 0 and -14 degrees to aim sound at the listening area, while the low and mid beam is tilted down by 5 degrees.
The d&b audiotechnik 24C uses a cardioid driver arrangement that gives around 18 dB of broadband attenuation to the rear, reducing reflections and raising gain before feedback with open microphones.
The d&b audiotechnik 24C covers 110 Hz to 17 kHz (-5 dB) in standard mode and 150 Hz to 17 kHz in CUT mode, with a maximum SPL of 126 dB.
The 24C-E passive extension adds six more 4 inch drivers under the 24C and extends vertical pattern control by a further octave, down to 190 Hz, from the same amplifier channel.
The d&b audiotechnik 24C measures 1000 x 124.5 x 124 mm (H x W x D) and weighs 9 kg (19.8 lb).
