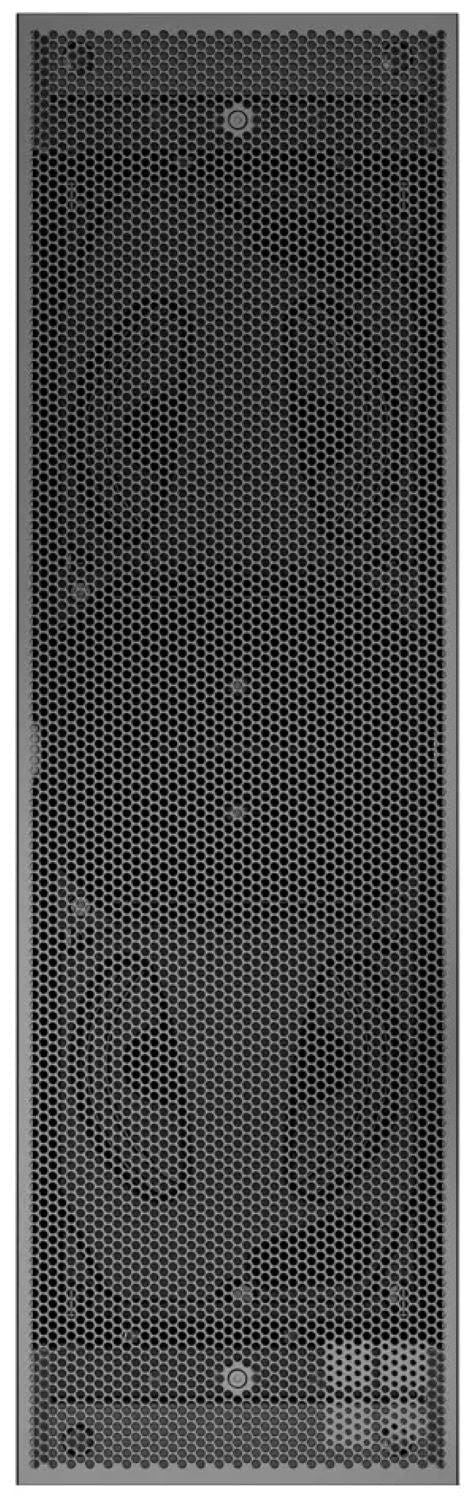

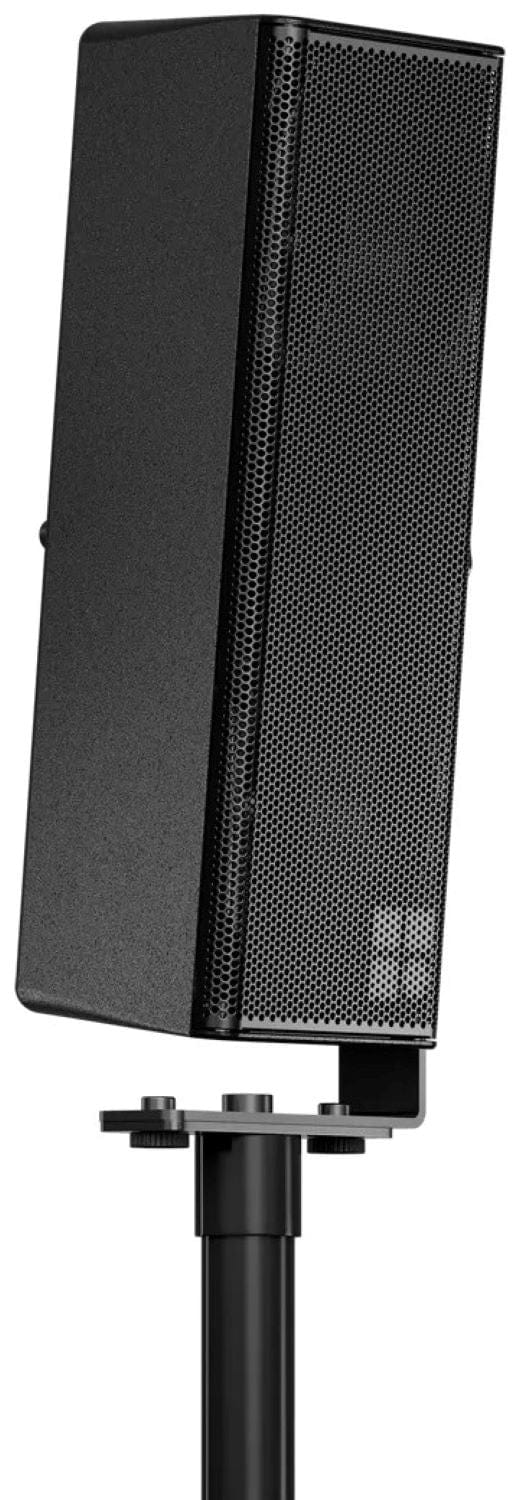

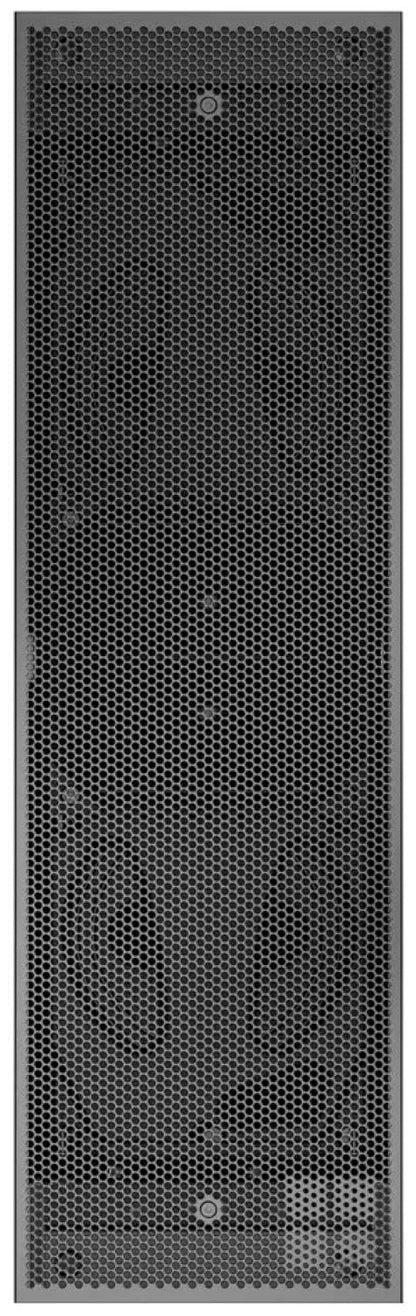

d&b audiotechnik 44S: 2 x 4.5 Inch Compact Passive Loudspeaker with Rotatable 90 x 30 Degree Horn, Black
Model
:
44S
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
d&b audiotechnik 44S 2 x 4.5 Inch Compact Passive Loudspeaker, Black

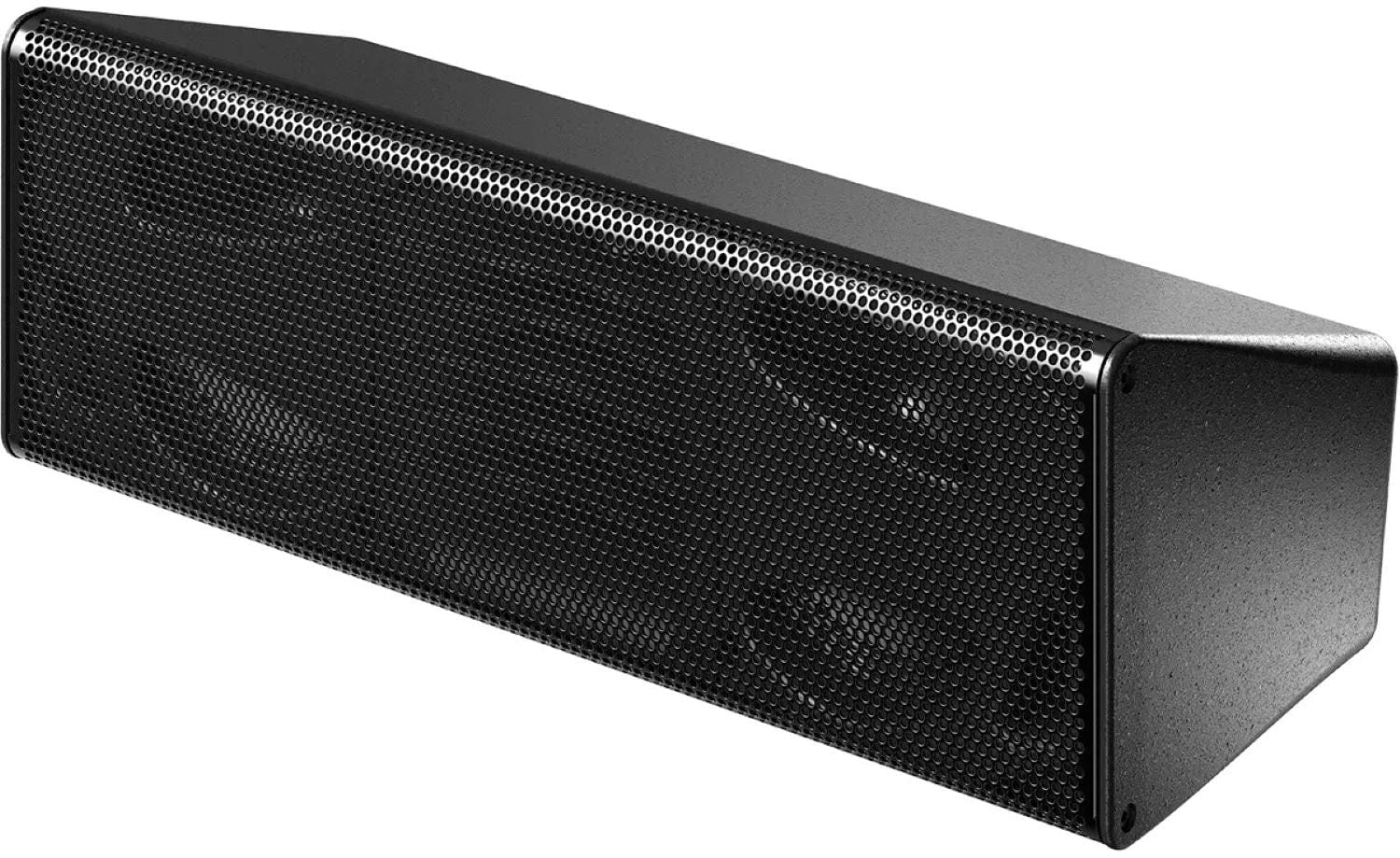

The d&b audiotechnik 44S is a compact passive 2-way loudspeaker with two 4.5 inch neodymium LF drivers and two 1.25 inch dome tweeters on a rotatable CD horn, giving a 90 x 30 degree pattern. Its asymmetric cabinet can be flush mounted in the optional Z5427 back box and angled by up to 20 degrees in 5 degree steps. Trianze Tech supplies the 44S for installed sound projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Two 4.5 inch neodymium LF drivers
- Two 1.25 inch dome tweeters on a rotatable CD horn
- Rotatable 90 x 30 degree dispersion
- Asymmetric cabinet, adjustable plus or minus 20 degrees in the back box

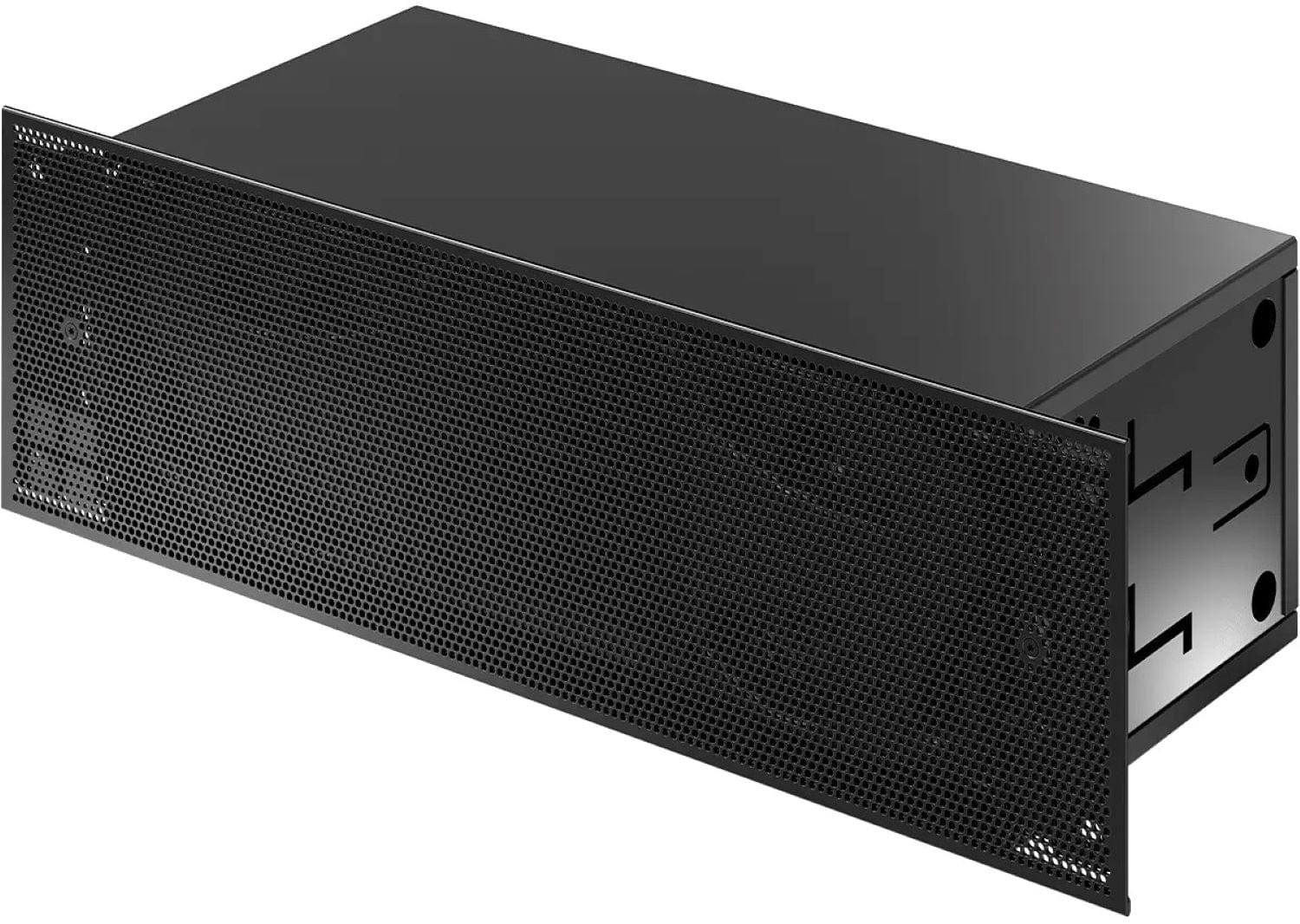

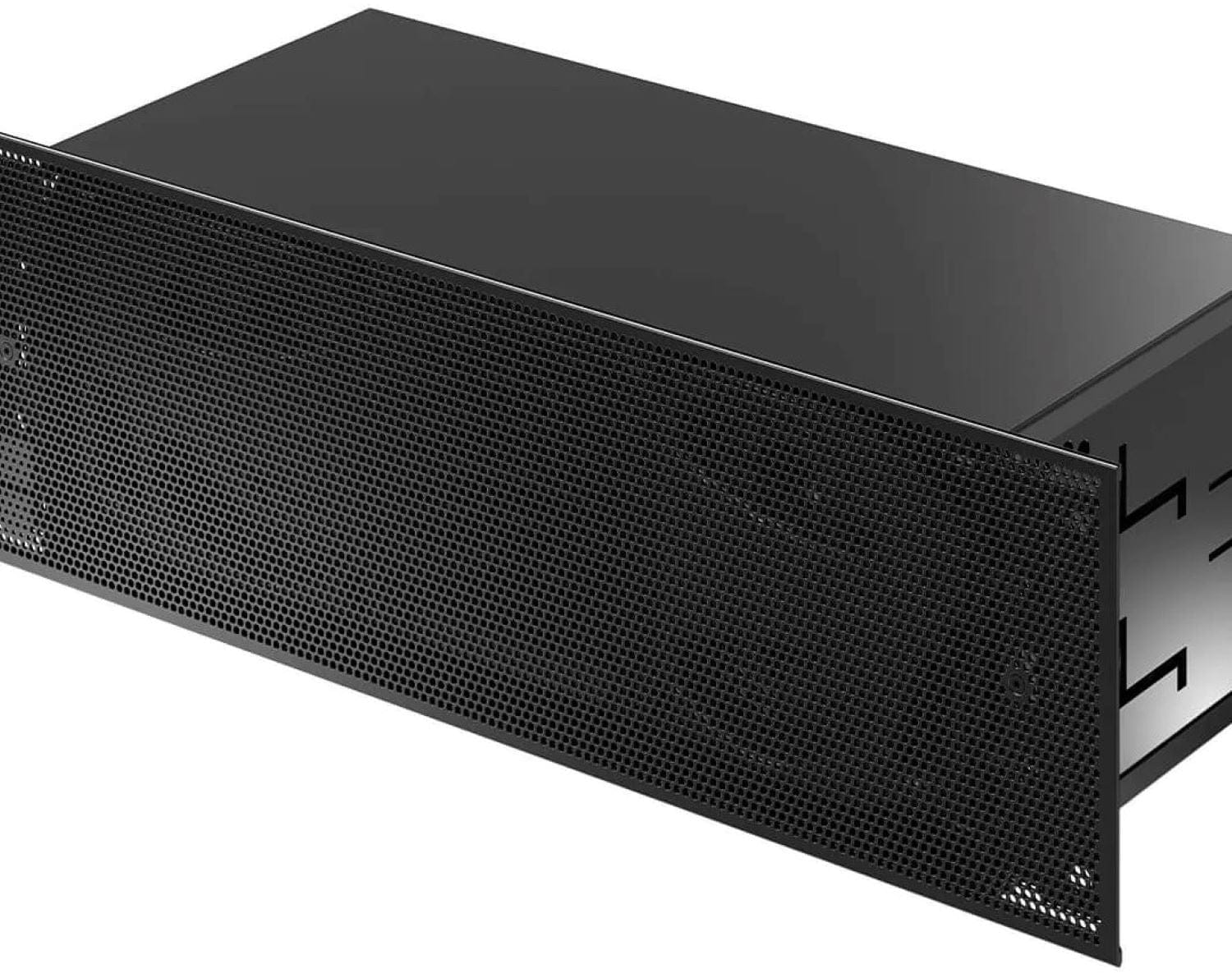

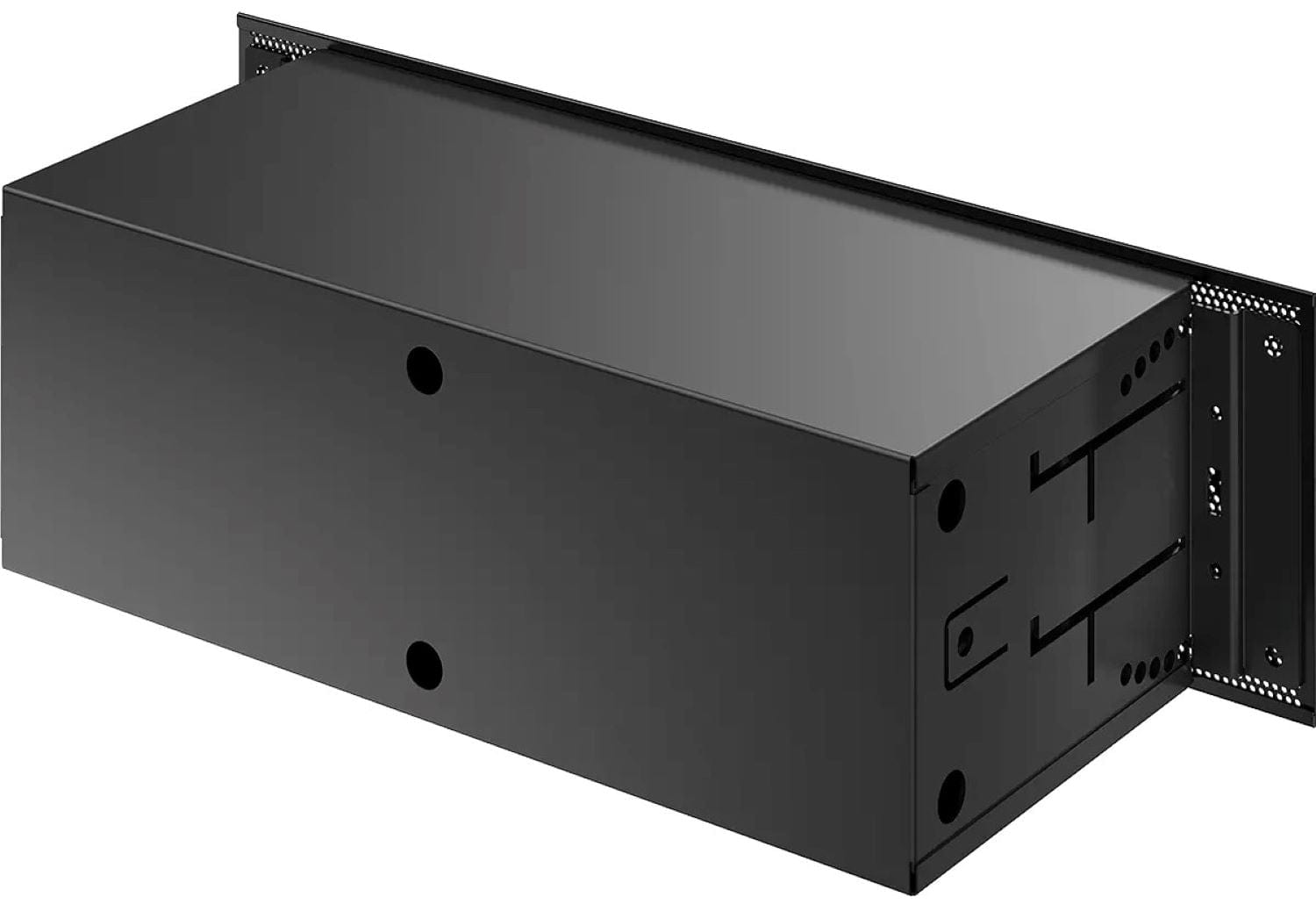

- Optional Z5427 back box for flush wall or ceiling mounting

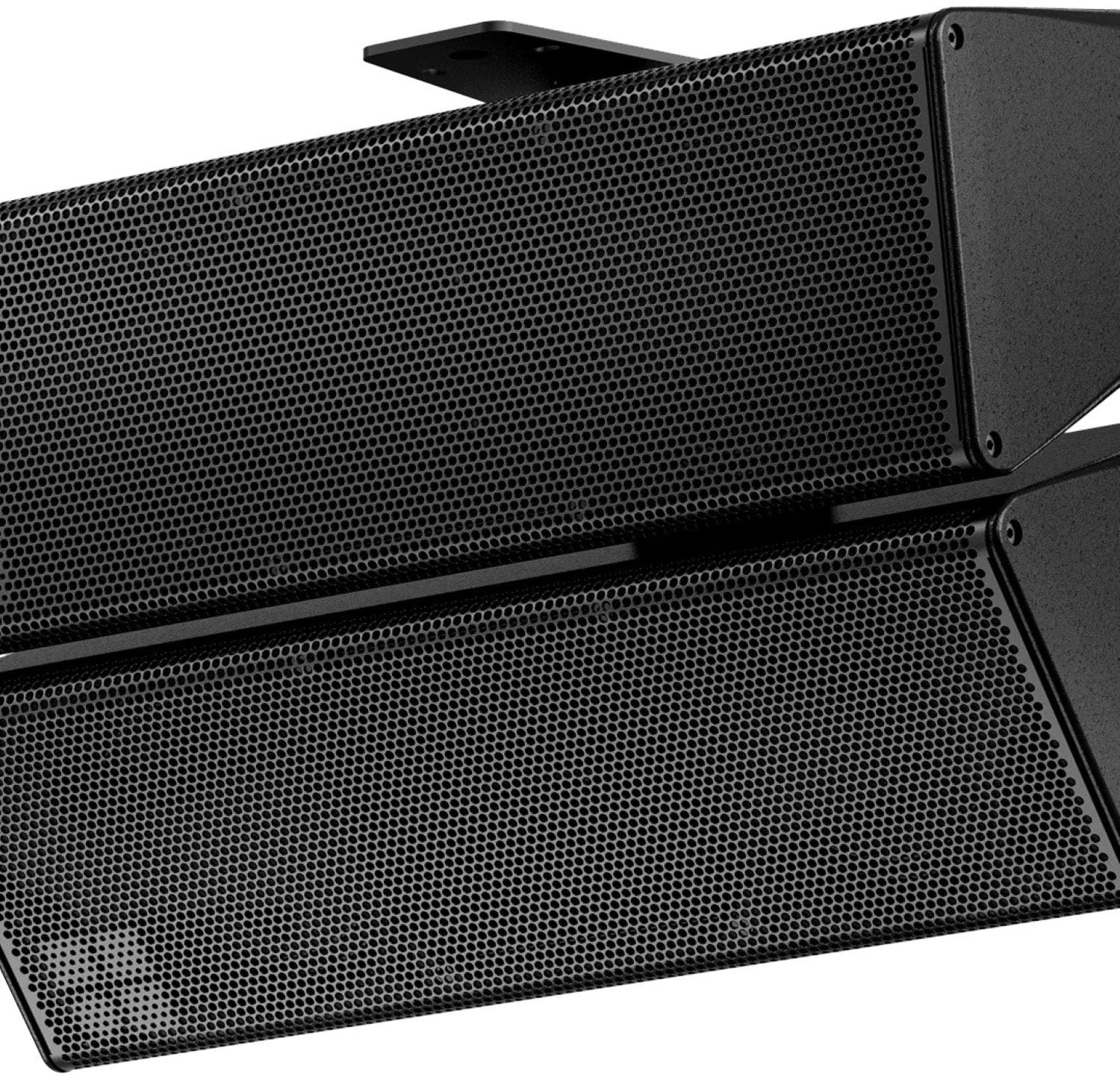

- Two M8 threaded inserts for rigging accessories
Technical Specifications:
| Spec | Value |
|---|---|
| Model | 44S |
| Type | Compact high performance 2-way loudspeaker, passive |
| Components | 2 x 4.5 inch neodymium drivers, 2 x 1.25 inch dome tweeters on CD horn |
| Dispersion (h x v) | 90 x 30 degrees, rotatable |
| Frequency Response (-5 dB) | 90 Hz to 17 kHz standard, 150 Hz to 17 kHz CUT mode |
| Max SPL | 121 dB (10D), 123 dB (D20/5D/30D/D40/D80/40D) |
| Nominal Impedance | 16 ohms |
| Power Handling (RMS/peak) | 150/500 W |
| Cabinets per Amplifier Channel | 4 |

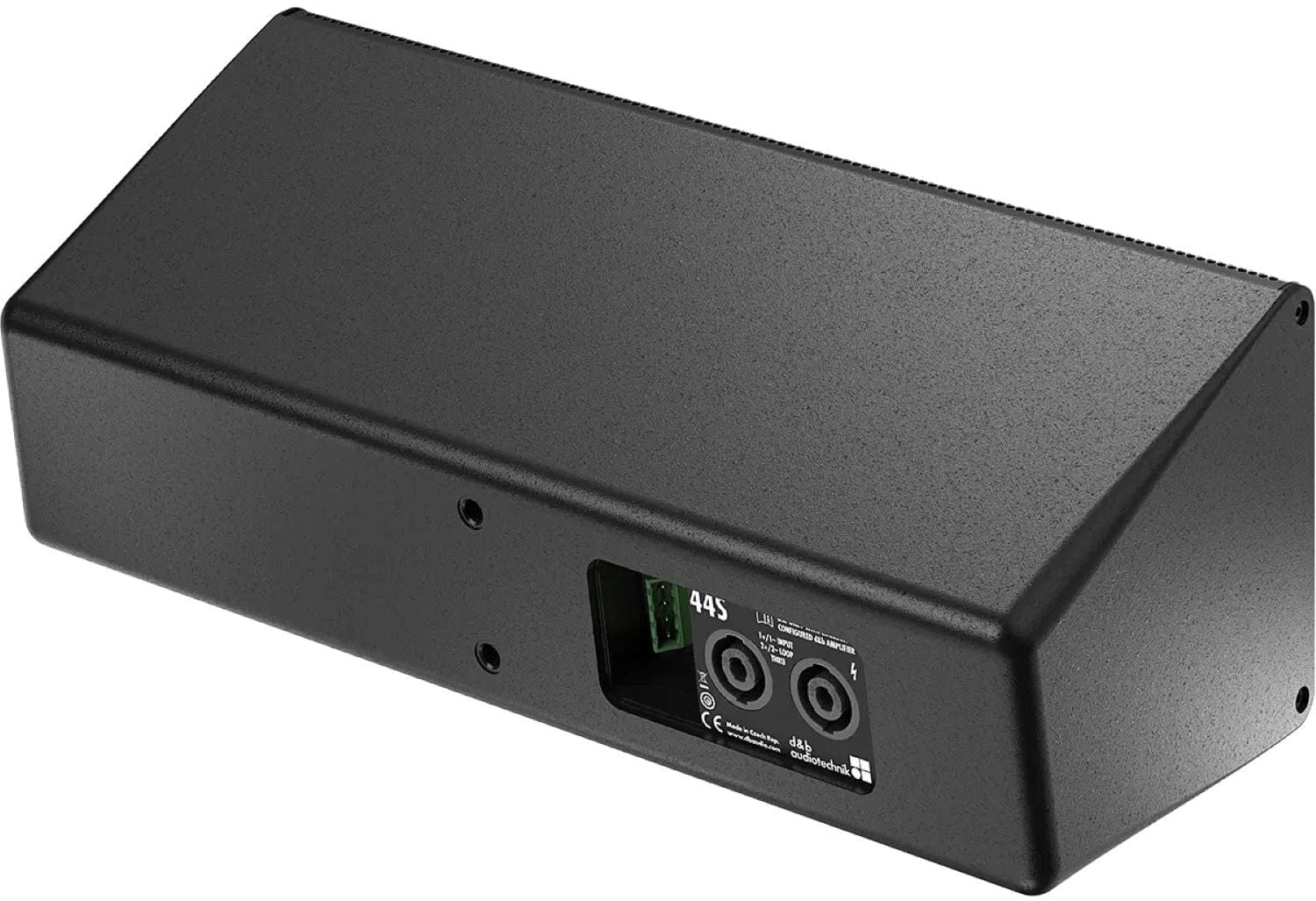

| Connections | 4-pin Phoenix Euroblock, 2 x NL4 |
| Dimensions (H x W x D) | 390 x 128 x 150 mm (480 x 140 x 180 mm with back box) |
| Weight | 3.6 kg (6.2 kg with back box) |
Why Buy the d&b audiotechnik 44S from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the 44S with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik 44S has a 90 x 30 degree pattern from a rotatable CD horn, so it can be mounted vertically or horizontally.
Yes. With the optional d&b Z5427 back box, the 44S can be flush mounted in walls or ceilings, and its asymmetric cabinet can be angled by up to 20 degrees in 5 degree steps.
The d&b audiotechnik 44S reaches 123 dB maximum SPL with D20, 5D, 30D, D40, D80 or 40D amplifiers, and 121 dB with the 10D.
Up to four d&b audiotechnik 44S loudspeakers can run on one amplifier channel, thanks to their 16 ohm nominal impedance.
The d&b audiotechnik 44S measures 390 x 128 x 150 mm and weighs 3.6 kg (8 lb), or 480 x 140 x 180 mm and 6.2 kg with the back box.
Trianze Tech supplies the d&b audiotechnik 44S in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
