d&b audiotechnik 12S-SUB: 12 Inch Compact Passive Installation Subwoofer for xS-Series
Model
:
12S-SUB
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

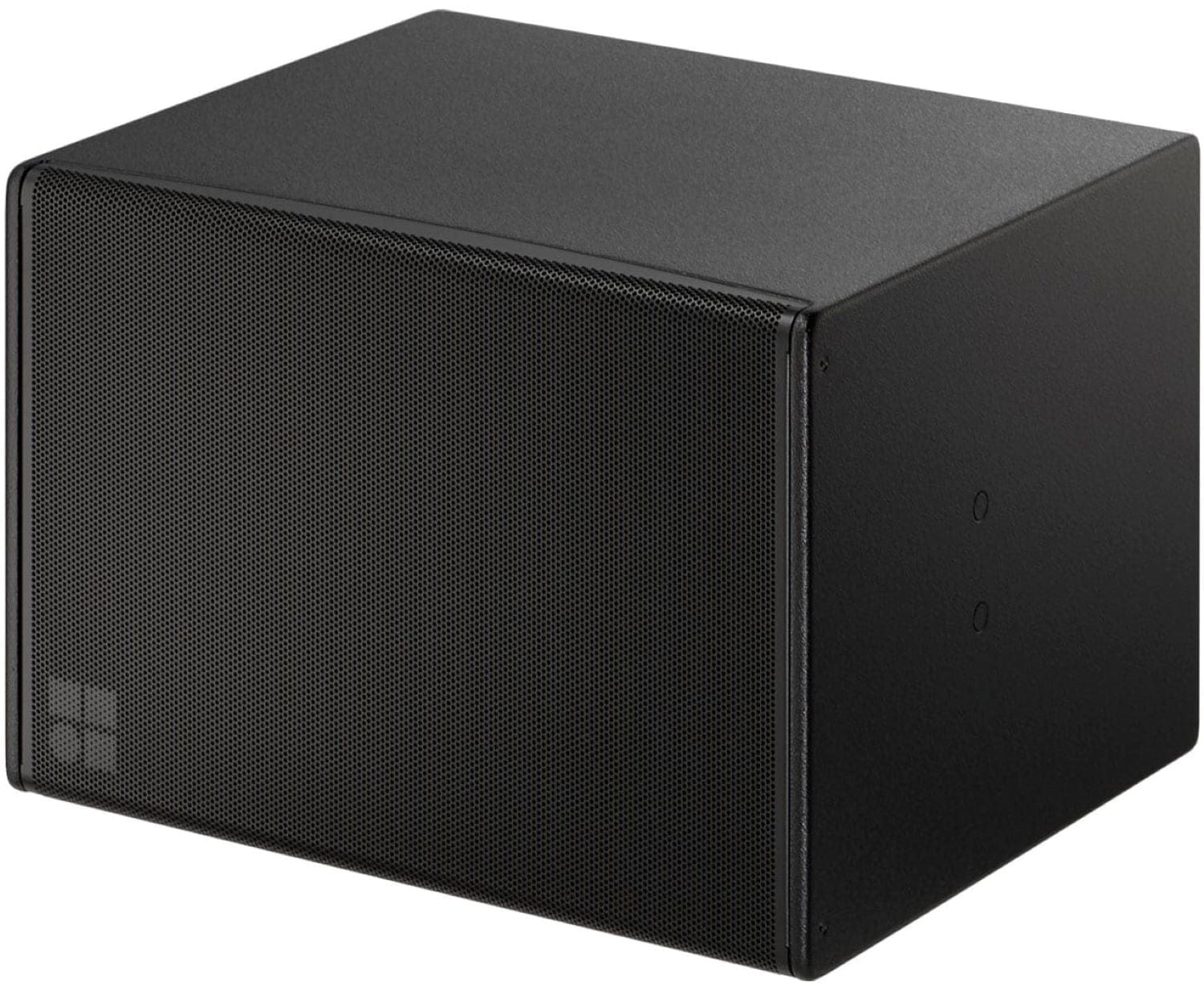

d&b audiotechnik 12S-SUB Compact 12 Inch Passive Installation Subwoofer
The d&b audiotechnik 12S-SUB is a compact high performance subwoofer for the xS-Series installation loudspeakers, with a long excursion 12 inch neodymium driver in a bass reflex cabinet. It covers 45 to 130 Hz and can be used stand alone, stacked or individually flown. Trianze Tech supplies the 12S-SUB for installed sound projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Long excursion 12 inch neodymium driver in a bass reflex design
- Frequency response from 45 Hz to 130 Hz
- Stand alone, stacked or individually flown
- Marine plywood cabinet, ball impact resistant to DIN 18032-3

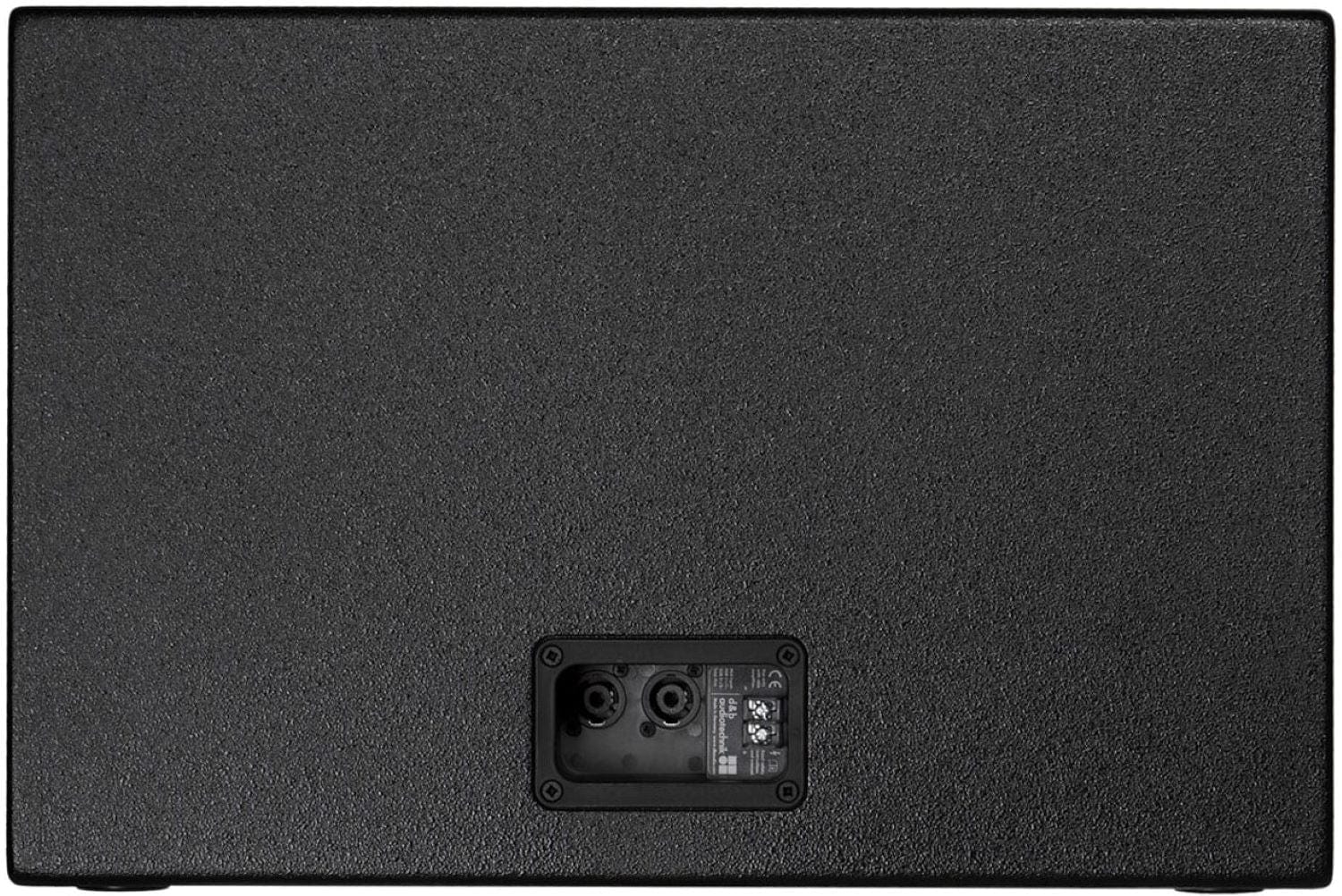

- 2 x NL4 connectors plus a screw terminal block
- M10 threaded inserts in the side panels
Technical Specifications:
| Spec | Value |
|---|---|
| Model | 12S-SUB |
| Type | Compact installation subwoofer, passive |
| Driver | 12 inch neodymium, long excursion |
| Frequency Response (-5 dB) | 45 to 130 Hz standard, 45 to 100 Hz CUT mode |
| Max SPL | 124 dB (10D), 127 dB (D20/5D/30D/D40/D80/40D) |
| Nominal Impedance | 8 ohms |
| Power Handling (RMS/peak) | 300/1600 W |
| Cabinets per Amplifier Channel | 2 |
| Connections | 2 x NL4, screw terminal block |
| Dimensions (H x W x D) | 354 x 530 x 448 mm |
| Weight | 16 kg (35 lb) |
Why Buy the d&b audiotechnik 12S-SUB from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the 12S-SUB with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik 12S-SUB covers 45 Hz to 130 Hz (-5 dB) in standard mode, or 45 Hz to 100 Hz in CUT mode.
The d&b audiotechnik 12S-SUB is designed as the compact subwoofer for xS-Series installation loudspeakers such as the 10S and 12S.
The d&b audiotechnik 12S-SUB reaches 127 dB maximum SPL with D20, 5D, 30D, D40, D80 or 40D amplifiers, and 124 dB with the 10D.
Yes. The d&b audiotechnik 12S-SUB can be used stand alone, stacked or individually flown using its M10 threaded inserts.
The d&b audiotechnik 12S-SUB measures 354 x 530 x 448 mm (H x W x D) and weighs 16 kg (35 lb).
Trianze Tech supplies the d&b audiotechnik 12S-SUB in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
