d&b audiotechnik 18S-SUB: 18 Inch Compact Passive Installation Subwoofer for xS and xA Series
Model
:
18S-SUB
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

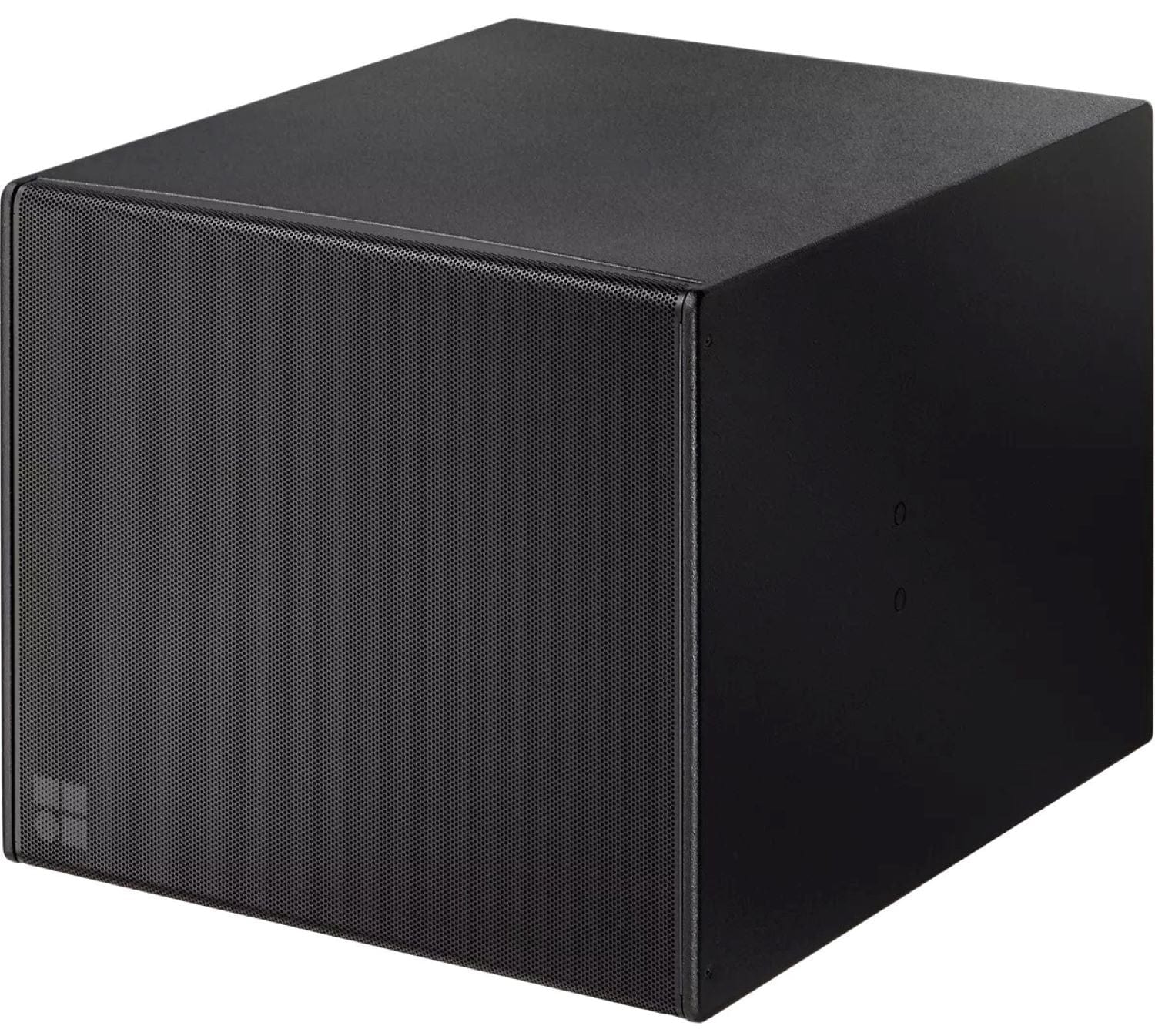

d&b audiotechnik 18S-SUB Compact 18 Inch Passive Installation Subwoofer
The d&b audiotechnik 18S-SUB is a compact high performance subwoofer for xS-Series and xA-Series loudspeakers, with a long excursion 18 inch neodymium driver in a bass reflex cabinet. It extends down to 37 Hz with 132 dB maximum SPL and can be used stand alone, stacked or individually flown. Trianze Tech supplies the 18S-SUB for installed sound projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Long excursion 18 inch neodymium driver in a bass reflex design
- Frequency response from 37 Hz to 140 Hz
- Works with xS-Series and xA-Series loudspeakers

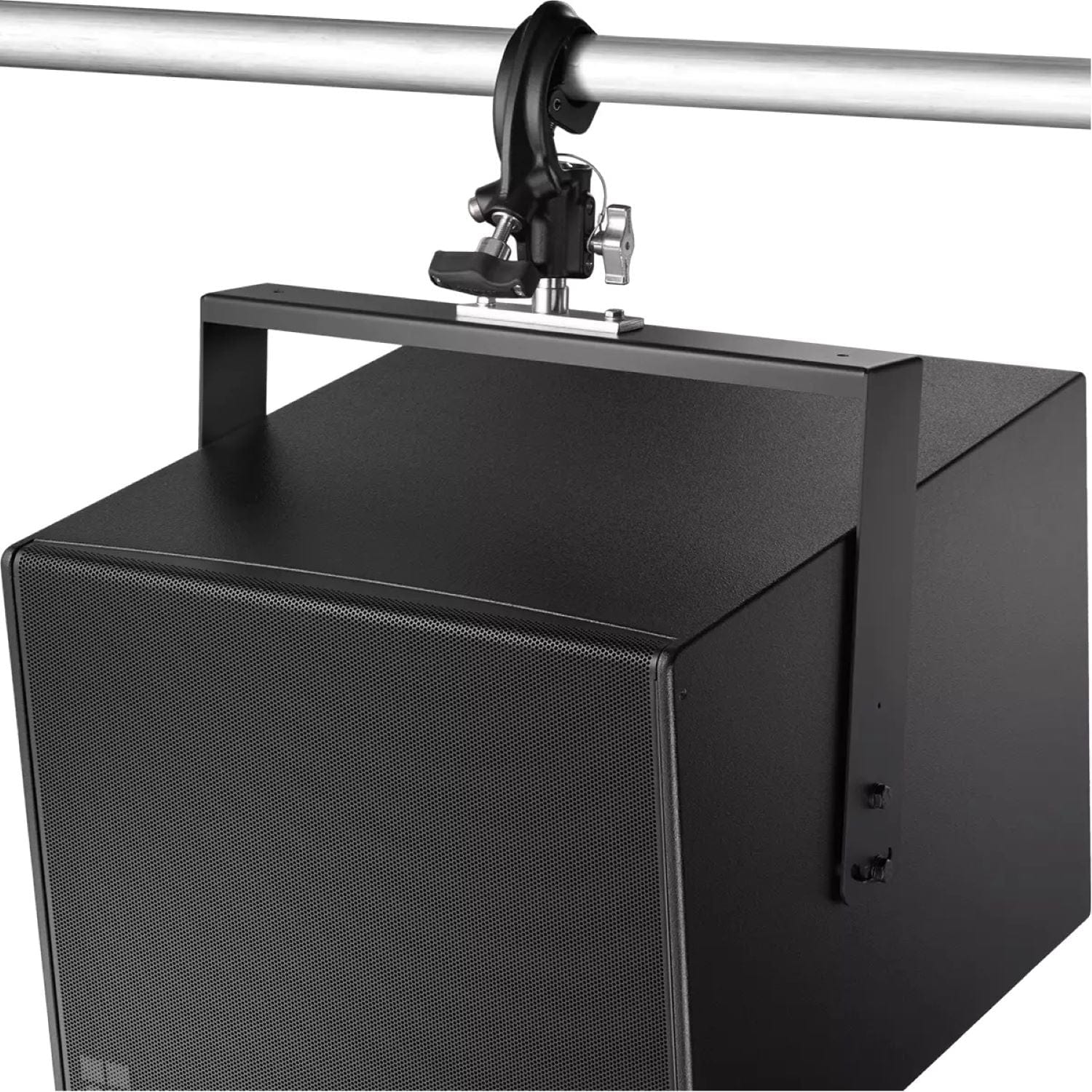

- Stand alone, stacked or individually flown
- Marine plywood cabinet, ball impact resistant to DIN 18032-3

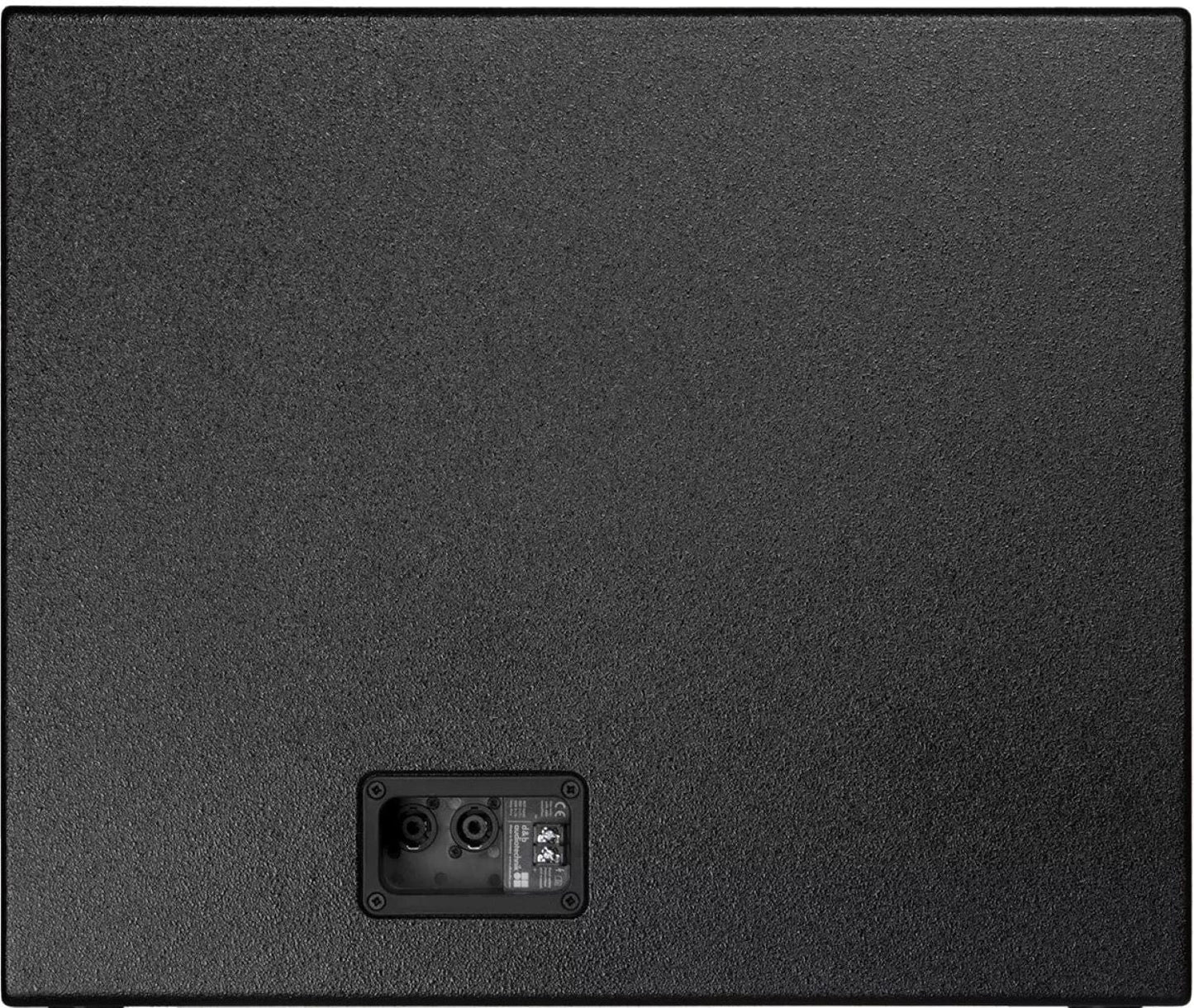

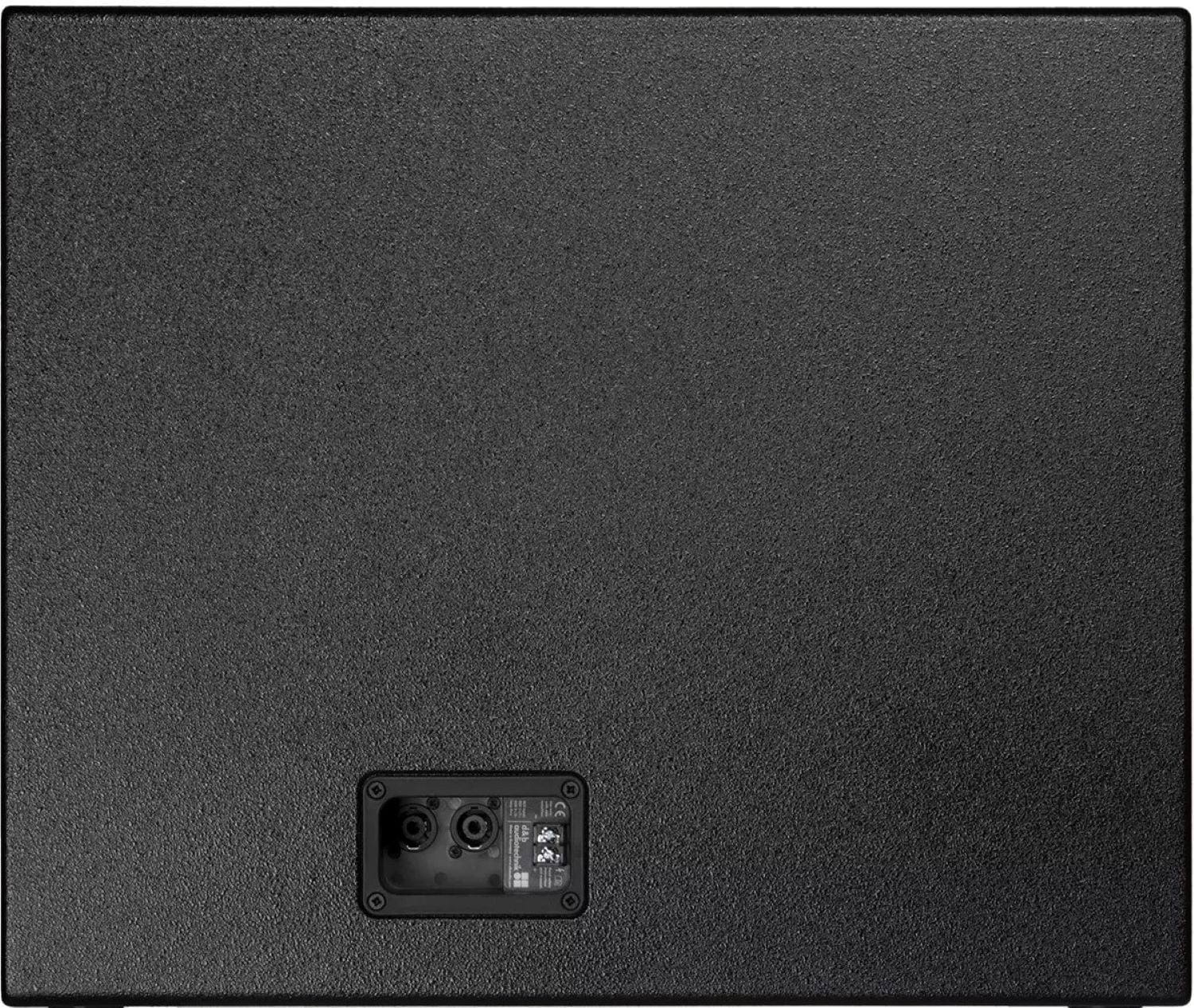

- 2 x NL4 connectors plus a screw terminal block
Technical Specifications:
| Spec | Value |
|---|---|
| Model | 18S-SUB |
| Type | Compact installation subwoofer, passive |
| Driver | 18 inch neodymium, long excursion |
| Frequency Response (-5 dB) | 37 to 140 Hz standard, 37 to 100 Hz CUT mode |
| Max SPL | 129 dB (10D), 132 dB (D20/5D/30D/D40/D80/40D) |
| Nominal Impedance | 8 ohms |
| Power Handling (RMS/peak) | 400/1600 W |
| Cabinets per Amplifier Channel | 2 |
| Connections | 2 x NL4, screw terminal block |
| Dimensions (H x W x D) | 490 x 580 x 700 mm |
| Weight | 32 kg (71 lb) |
Why Buy the d&b audiotechnik 18S-SUB from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the 18S-SUB with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik 18S-SUB extends down to 37 Hz (-5 dB), with an upper limit of 140 Hz in standard mode or 100 Hz in CUT mode.
The d&b audiotechnik 18S-SUB reaches 132 dB maximum SPL with D20, 5D, 30D, D40, D80 or 40D amplifiers, and 129 dB with the 10D.
The d&b audiotechnik 18S-SUB is designed for use with xS-Series and xA-Series loudspeakers.
The d&b audiotechnik 18S-SUB uses an 18 inch driver reaching 37 Hz and 132 dB, while the 12S-SUB uses a 12 inch driver reaching 45 Hz and 127 dB in a smaller cabinet.
The d&b audiotechnik 18S-SUB measures 490 x 580 x 700 mm (H x W x D) and weighs 32 kg (71 lb).
Trianze Tech supplies the d&b audiotechnik 18S-SUB in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
