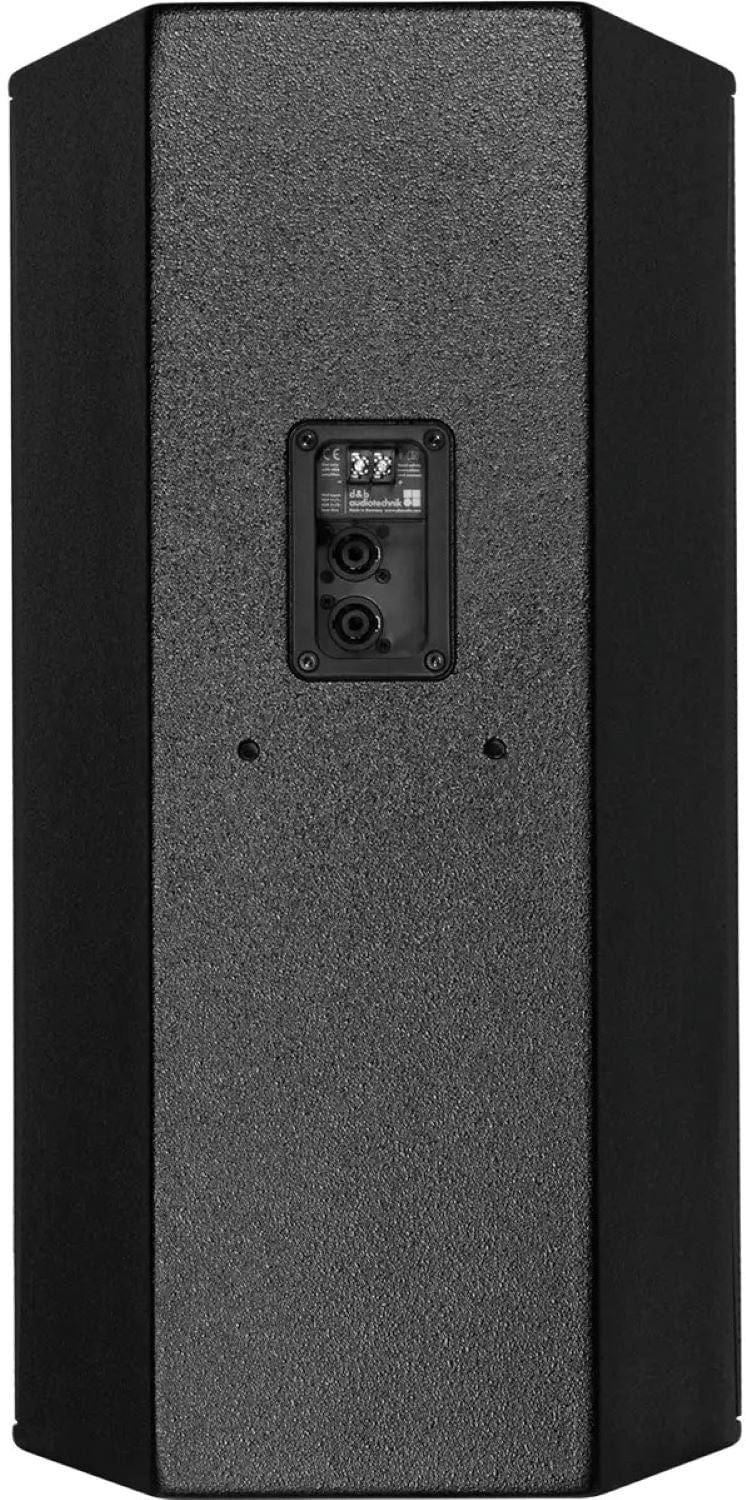

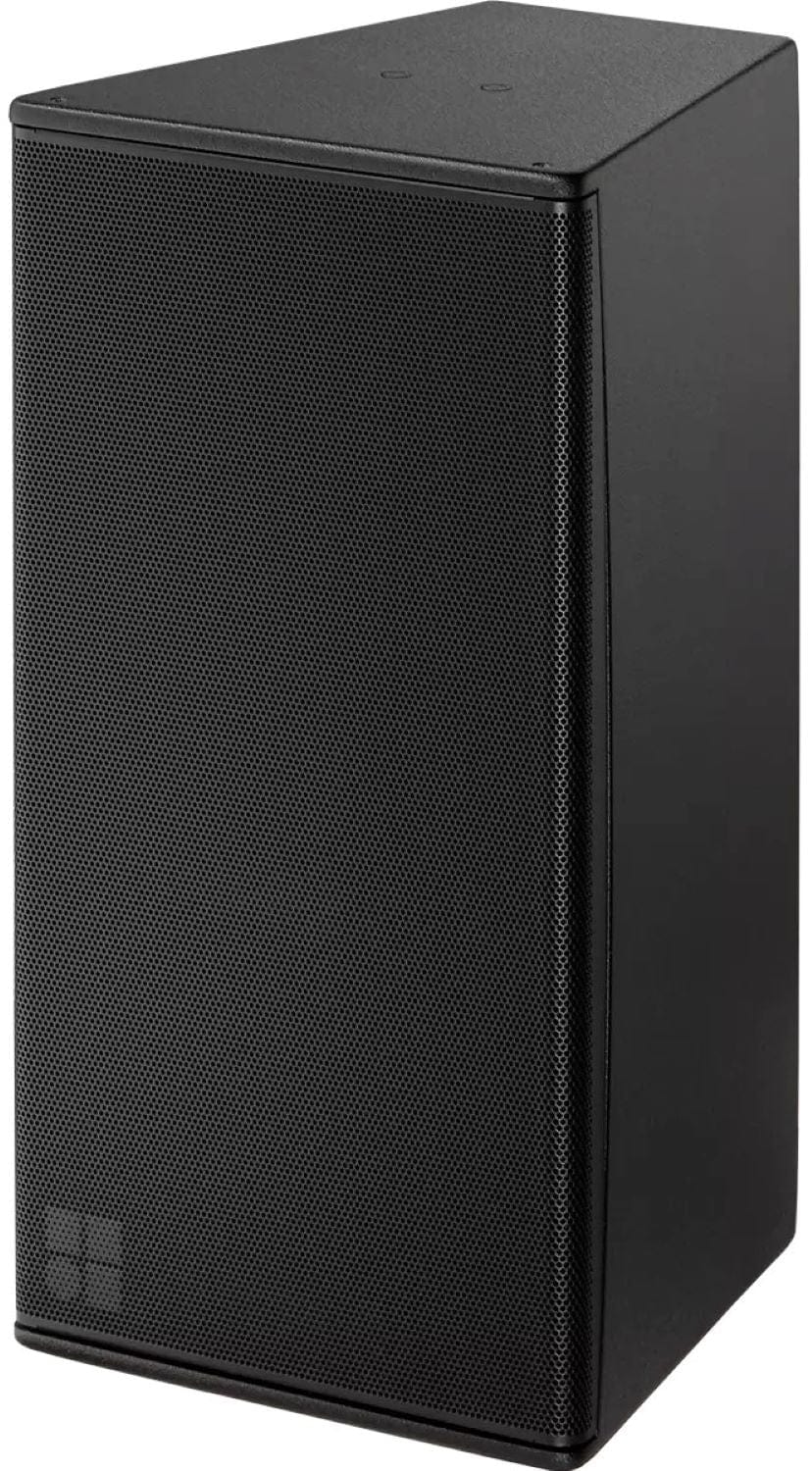

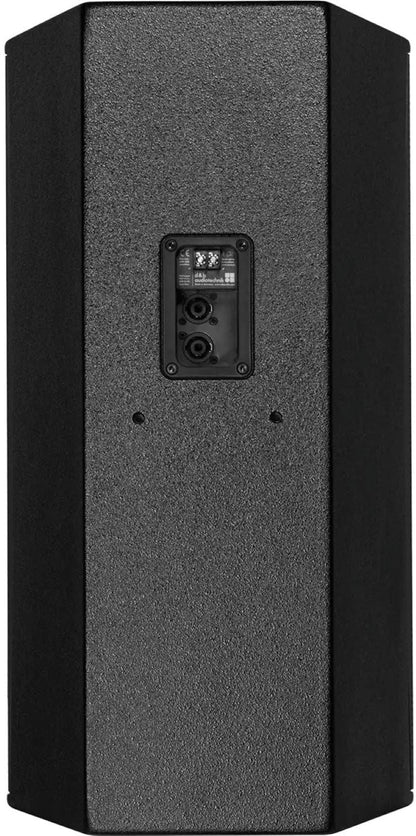

d&b audiotechnik 12S-D: 12 Inch Passive Installation Loudspeaker, Wide 110 x 55 Degree Dispersion
Model
:
12S-D
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
d&b audiotechnik 12S-D 12 Inch Passive Installation Loudspeaker with Wide 110 x 55 Degree Horn
The d&b audiotechnik 12S-D is the wide dispersion version of the 12S 2-way installation loudspeaker, with a 12 inch neodymium driver and a 1.4 inch compression driver on a rotatable 110 x 55 degree horn. It covers 48 Hz to 18 kHz and suits wide rooms and shorter throw distances. Trianze Tech supplies the 12S-D for installed sound projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- 12 inch neodymium LF driver in a bass reflex enclosure
- 1.4 inch compression driver on a rotatable 110 x 55 degree horn
- Extended response from 48 Hz to 18 kHz
- Marine plywood cabinet, ball impact resistant to DIN 18032-3
- 2 x NL4 connectors plus a screw terminal block

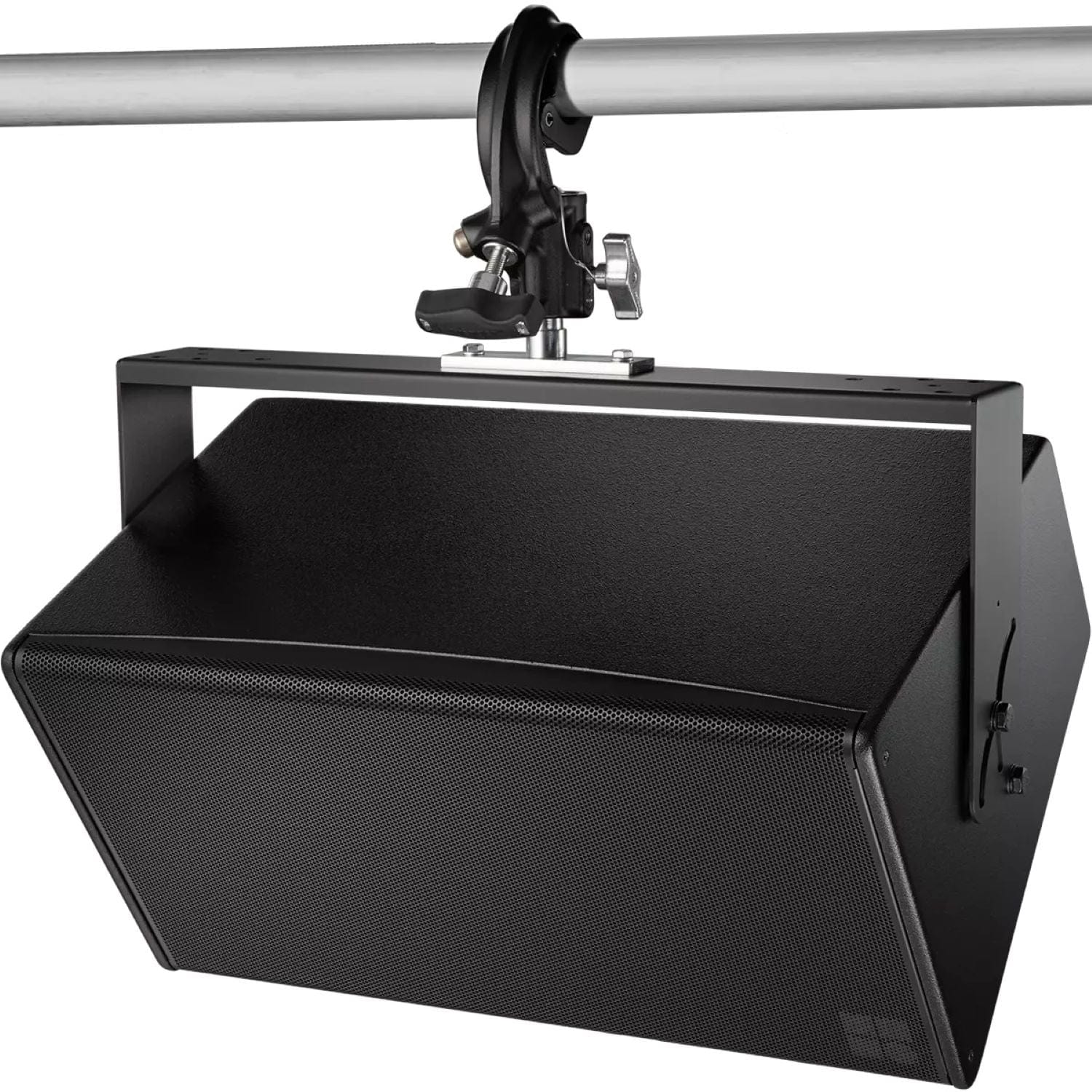

- M10 and M8 threaded inserts for mounting
Technical Specifications:
| Spec | Value |
|---|---|
| Model | 12S-D |
| Type | Installation 2-way passive loudspeaker, wide dispersion |
| Components | 12 inch neodymium driver, 1.4 inch compression driver with CD horn |
| Dispersion (h x v) | 110 x 55 degrees, rotatable |
| Frequency Response (-5 dB) | 48 Hz to 18 kHz standard, 100 Hz to 18 kHz CUT mode |
| Max SPL | 130 dB (10D), 133 dB (D20/5D/30D/D40/D80/40D) |
| Nominal Impedance | 8 ohms |
| Power Handling (RMS/peak) | 300/1600 W |
| Cabinets per Amplifier Channel | 2 |
| Connections | 2 x NL4, screw terminal block |
| Dimensions (H x W x D) | 638 x 338 x 365 mm |
| Weight | 17 kg (37 lb) |
Why Buy the d&b audiotechnik 12S-D from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the 12S-D with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Both use the same 12 inch and 1.4 inch drivers and cabinet. The d&b audiotechnik 12S-D has a wider 110 x 55 degree horn, while the 12S has 75 x 50 degrees.
The d&b audiotechnik 12S-D has a 110 x 55 degree dispersion pattern and the horn is rotatable for vertical or horizontal mounting.
The d&b audiotechnik 12S-D reaches 133 dB maximum SPL with D20, 5D, 30D, D40, D80 or 40D amplifiers.
The d&b audiotechnik 12S-D extends down to 48 Hz (-5 dB) in standard mode, with a response up to 18 kHz.
Up to two d&b audiotechnik 12S-D cabinets can be driven from one d&b amplifier channel, each with an 8 ohm nominal impedance.
Trianze Tech supplies the d&b audiotechnik 12S-D in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
