d&b audiotechnik 12S WR: 12 Inch Passive Installation Loudspeaker, Weather Resistant IP55 Version
Model
:
12S WR
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

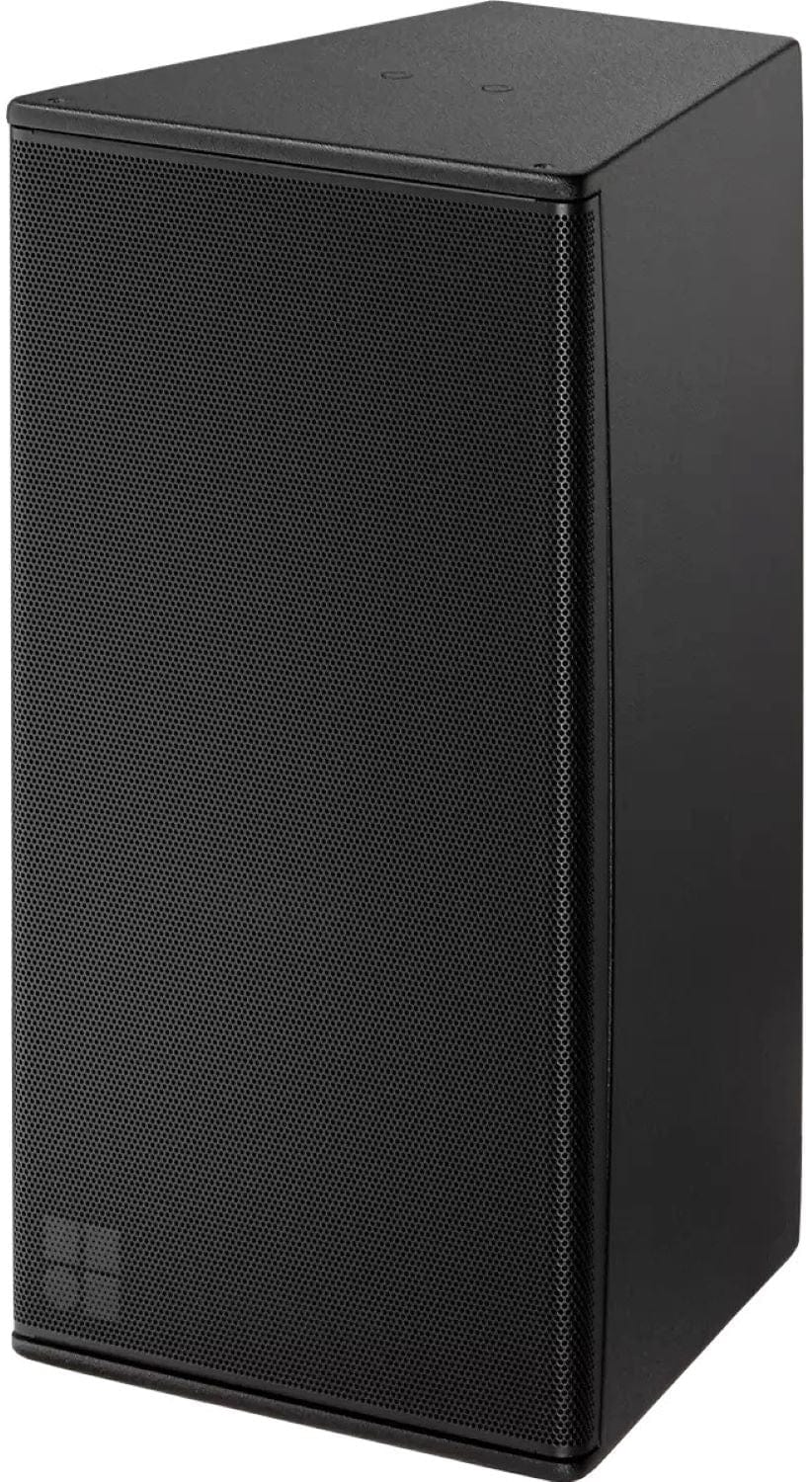

d&b audiotechnik 12S WR Weather Resistant 12 Inch Passive Installation Loudspeaker, IP55
The d&b audiotechnik 12S WR is the weather resistant version of the 12S installation loudspeaker, rated IP55 with an impact and weather protected PCP finish for outdoor use. It keeps the 12 inch neodymium driver, 1.4 inch compression driver and rotatable 75 x 50 degree horn, with a 48 Hz to 18 kHz response. Trianze Tech supplies the 12S WR for outdoor projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Weather Resistant (WR) option with IP55 rating
- Black PCP (Polyurea Cabinet Protection) finish
- Recessed connector panel with Faston connector (2 x 6.3 mm)
- Cover plate for single or dual PG13.5 cable glands
- 12 inch neodymium driver and 1.4 inch compression driver
- Rotatable 75 x 50 degree horn
Technical Specifications:
| Spec | Value |
|---|---|
| Model | 12S WR |
| Type | Weather resistant 2-way passive installation loudspeaker |
| Protection Rating | IP55 |
| Finish | Black PCP (Polyurea Cabinet Protection) |
| Components | 12 inch neodymium driver, 1.4 inch compression driver with CD horn |
| Dispersion (h x v) | 75 x 50 degrees, rotatable |
| Frequency Response (-5 dB) | 48 Hz to 18 kHz standard, 100 Hz to 18 kHz CUT mode |
| Max SPL | 133 dB (D20/5D/30D/D40/D80/40D) |
| Nominal Impedance | 8 ohms |
| Power Handling (RMS/peak) | 300/1600 W |
| Connection | Faston connector panel, PG13.5 cable gland plate (6 to 12 mm cable) |
| Dimensions (H x W x D) | 638 x 338 x 365 mm |
| Weight | 17 kg (37 lb) |
Why Buy the d&b audiotechnik 12S WR from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the 12S WR with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik 12S WR is the Weather Resistant version with an IP55 rating and an impact and weather protected black PCP finish for outdoor use.
The d&b audiotechnik 12S WR has a recessed connector panel with a Faston connector (2 x 6.3 mm, female) and a cover plate for single or dual PG13.5 cable glands for 6 to 12 mm cables.
The d&b audiotechnik 12S WR covers 48 Hz to 18 kHz (-5 dB) in standard mode, or 100 Hz to 18 kHz in CUT mode.
The d&b audiotechnik 12S WR reaches 133 dB maximum SPL with D20, 5D, 30D, D40, D80 or 40D amplifiers.
The d&b audiotechnik 12S WR weighs 17 kg (37 lb) and measures 638 x 338 x 365 mm (H x W x D).
