d&b audiotechnik 12S: 12 Inch Passive 2 Way Installation Loudspeaker, 75 x 50 Degree
Model
:
12S
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
d&b audiotechnik 12S 12 Inch Passive 2 Way Installation Loudspeaker with Rotatable 75 x 50 Degree Horn

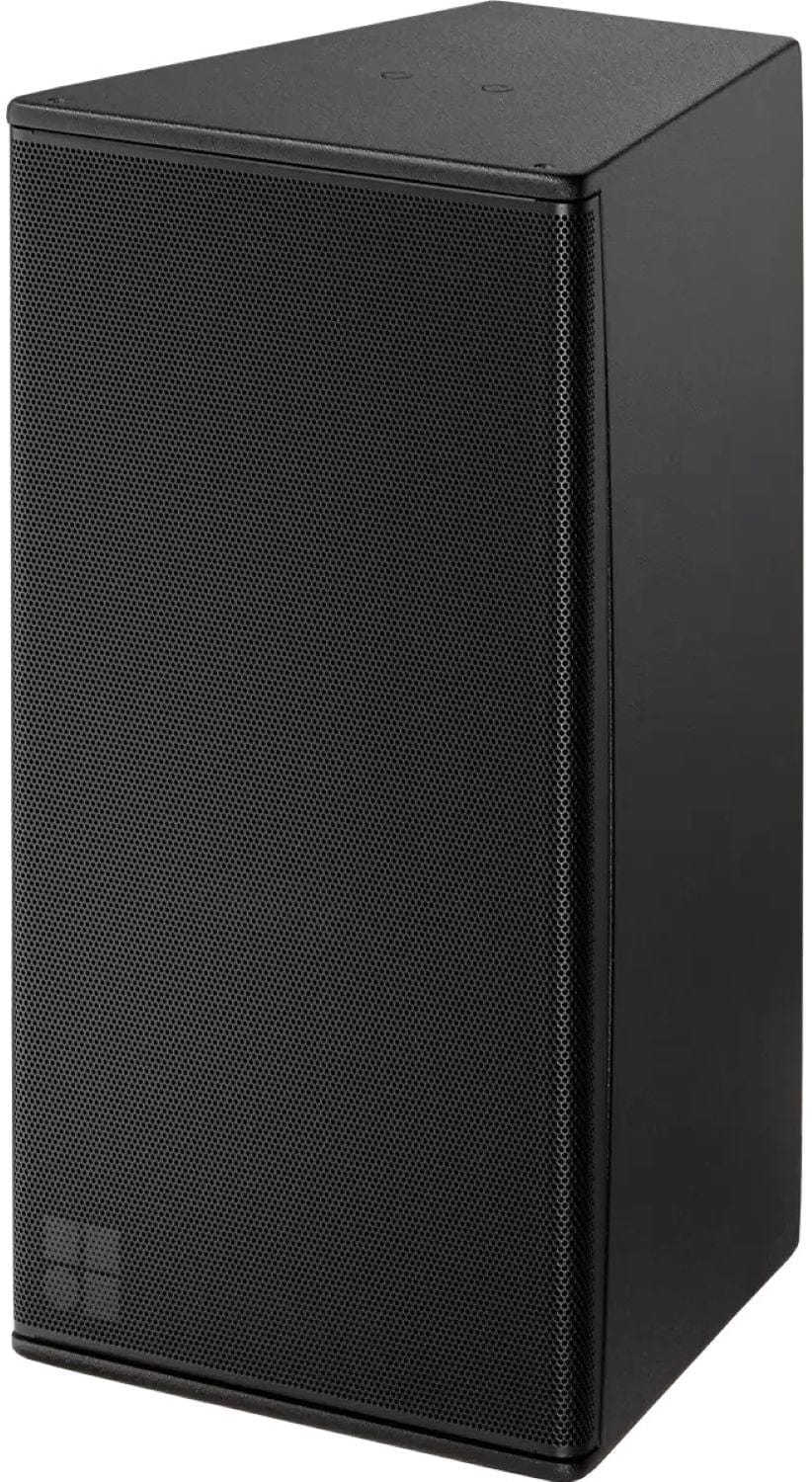

The d&b audiotechnik 12S is a high performance 2-way passive installation loudspeaker with a 12 inch neodymium driver in a bass reflex enclosure and a 1.4 inch compression driver on a rotatable 75 x 50 degree horn. Its extended 48 Hz to 18 kHz response makes it a strong full range choice, and it pairs with xS-Series subwoofers. Trianze Tech supplies the 12S for installed sound projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- 12 inch neodymium LF driver in a bass reflex enclosure
- 1.4 inch exit compression driver on a rotatable 75 x 50 degree horn
- Extended response from 48 Hz to 18 kHz
- Marine plywood cabinet, ball impact resistant to DIN 18032-3

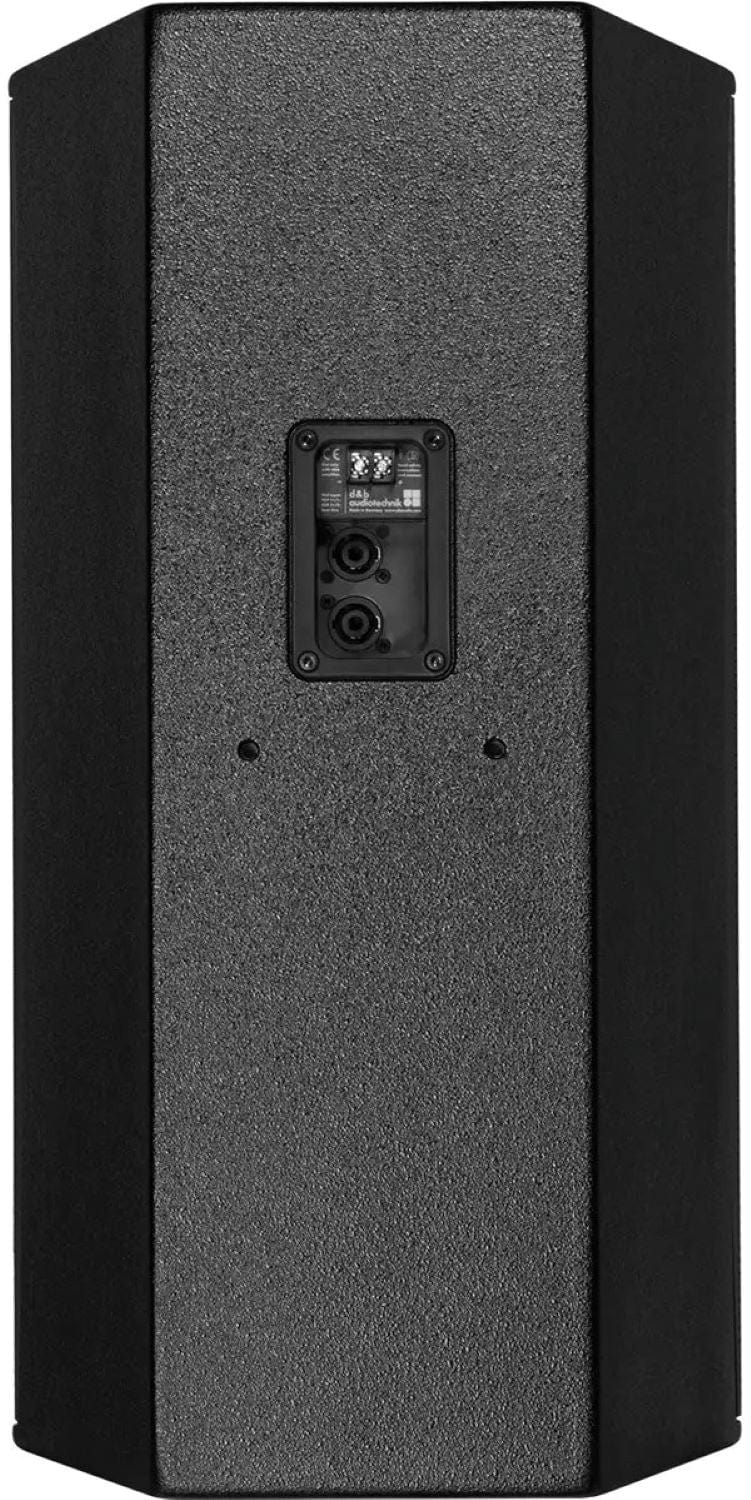

- 2 x NL4 connectors plus a screw terminal block

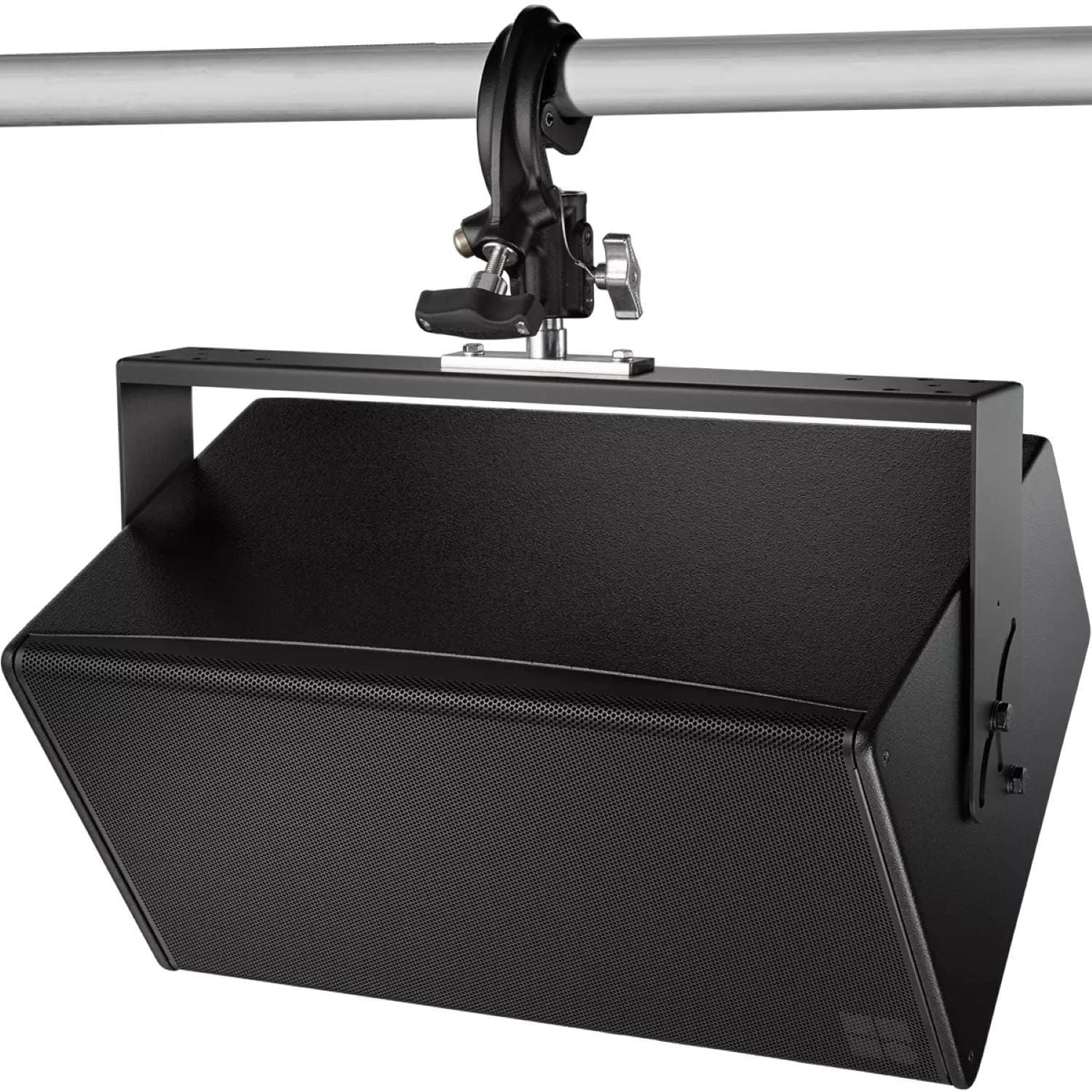

- M10 and M8 threaded inserts for mounting
Technical Specifications:
| Spec | Value |
|---|---|
| Model | 12S |
| Type | Installation 2-way passive loudspeaker |
| Components | 12 inch neodymium driver, 1.4 inch compression driver with CD horn |
| Dispersion (h x v) | 75 x 50 degrees, rotatable |
| Frequency Response (-5 dB) | 48 Hz to 18 kHz standard, 100 Hz to 18 kHz CUT mode |
| Max SPL | 130 dB (10D), 133 dB (D20/5D/30D/D40/D80/40D) |
| Nominal Impedance | 8 ohms |
| Power Handling (RMS/peak) | 300/1600 W |
| Cabinets per Amplifier Channel | 2 |
| Connections | 2 x NL4, screw terminal block |
| Dimensions (H x W x D) | 638 x 338 x 365 mm |
| Weight | 17 kg (37 lb) |
Why Buy the d&b audiotechnik 12S from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the 12S with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik 12S covers 48 Hz to 18 kHz (-5 dB) in standard mode, or 100 Hz to 18 kHz in CUT mode when used with subwoofers.
The d&b audiotechnik 12S reaches 133 dB maximum SPL with D20, 5D, 30D, D40, D80 or 40D amplifiers, and 130 dB with the 10D.
The d&b audiotechnik 12S uses a 12 inch driver for extended response down to 48 Hz and 133 dB max SPL, while the 10S uses a 10 inch driver reaching 60 Hz and 130 dB.
Up to two d&b audiotechnik 12S cabinets can run on one d&b amplifier channel, with an 8 ohm nominal impedance each.
The d&b audiotechnik 12S measures 638 x 338 x 365 mm (H x W x D) and weighs 17 kg (37 lb).
