d&b audiotechnik 10S-D WR: 10 Inch Wide Dispersion Installation Loudspeaker, Weather Resistant IP55
Model
:
10S-D WR
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

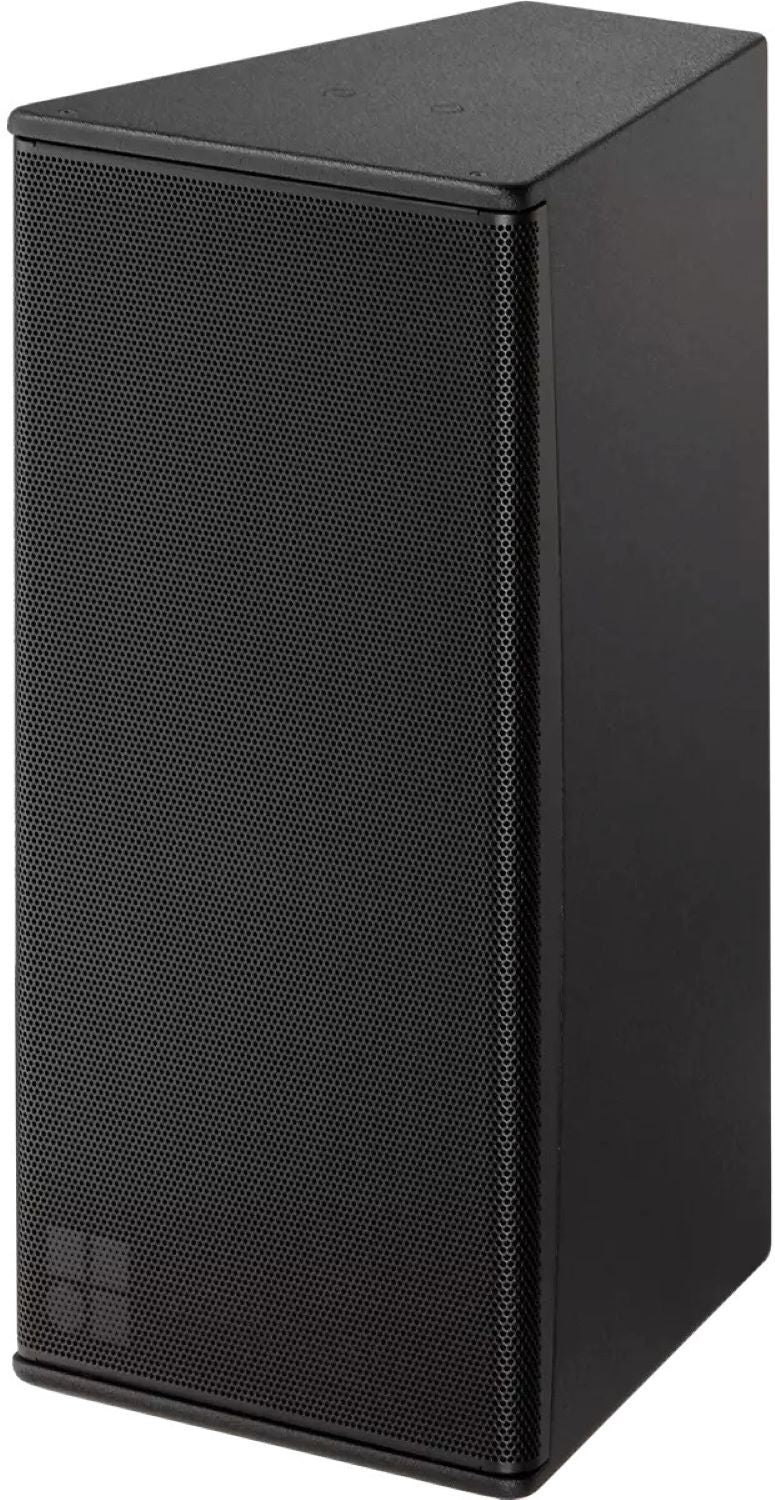

d&b audiotechnik 10S-D WR Weather Resistant 10 Inch Loudspeaker with 110 x 55 Degree Horn, IP55
The d&b audiotechnik 10S-D WR is the weather resistant version of the wide dispersion 10S-D, rated IP55 for operation in changing outdoor conditions. It combines a 10 inch neodymium driver and 1.4 inch compression driver with a rotatable 110 x 55 degree horn, and comes with a fixed input cable. Trianze Tech supplies the 10S-D WR for outdoor projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Weather Resistant (WR) option with IP55 rating
- Wide 110 x 55 degree rotatable horn
- Fixed input cable, H07RN-F 2 x 2.5 mm2, 5.5 m standard length
- 10 inch neodymium driver and 1.4 inch compression driver
- Full range response from 60 Hz to 18 kHz
- Ball impact resistant cabinet to DIN 18032-3
Technical Specifications:
| Spec | Value |
|---|---|
| Model | 10S-D WR |
| Type | Weather resistant 2-way passive installation loudspeaker |
| Protection Rating | IP55 |
| Components | 10 inch neodymium driver, 1.4 inch compression driver with CD horn |
| Dispersion (h x v) | 110 x 55 degrees, rotatable |
| Frequency Response (-5 dB) | 60 Hz to 18 kHz standard, 100 Hz to 18 kHz CUT mode |
| Max SPL | 130 dB (D20/5D/30D/D40/D80/40D) |
| Nominal Impedance | 12 ohms |
| Power Handling (RMS/peak) | 200/1200 W |
| Input | Fixed cable, H07RN-F 2 x 2.5 mm2, 5.5 m |
| Weight | 13 kg (29 lb) |
Why Buy the d&b audiotechnik 10S-D WR from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the 10S-D WR with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Yes. The d&b audiotechnik 10S-D WR is the Weather Resistant version with an IP55 rating for operation in changing outdoor conditions.
The d&b audiotechnik 10S-D WR has a wide 110 x 55 degree dispersion pattern with a rotatable horn.
The d&b audiotechnik 10S-D WR comes with a fixed input cable of type H07RN-F, 2 x 2.5 mm2, with a standard length of 5.5 m (18 ft).
The d&b audiotechnik 10S-D WR reaches 130 dB maximum SPL with D20, 5D, 30D, D40, D80 or 40D amplifiers.
The d&b audiotechnik 10S-D WR covers 60 Hz to 18 kHz (-5 dB), or 100 Hz to 18 kHz in CUT mode.
Trianze Tech supplies the d&b audiotechnik 10S-D WR in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
