d&b audiotechnik 10S-D: 10 Inch Passive Installation Loudspeaker, Wide 110 x 55 Degree Dispersion
Model
:
10S-D
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

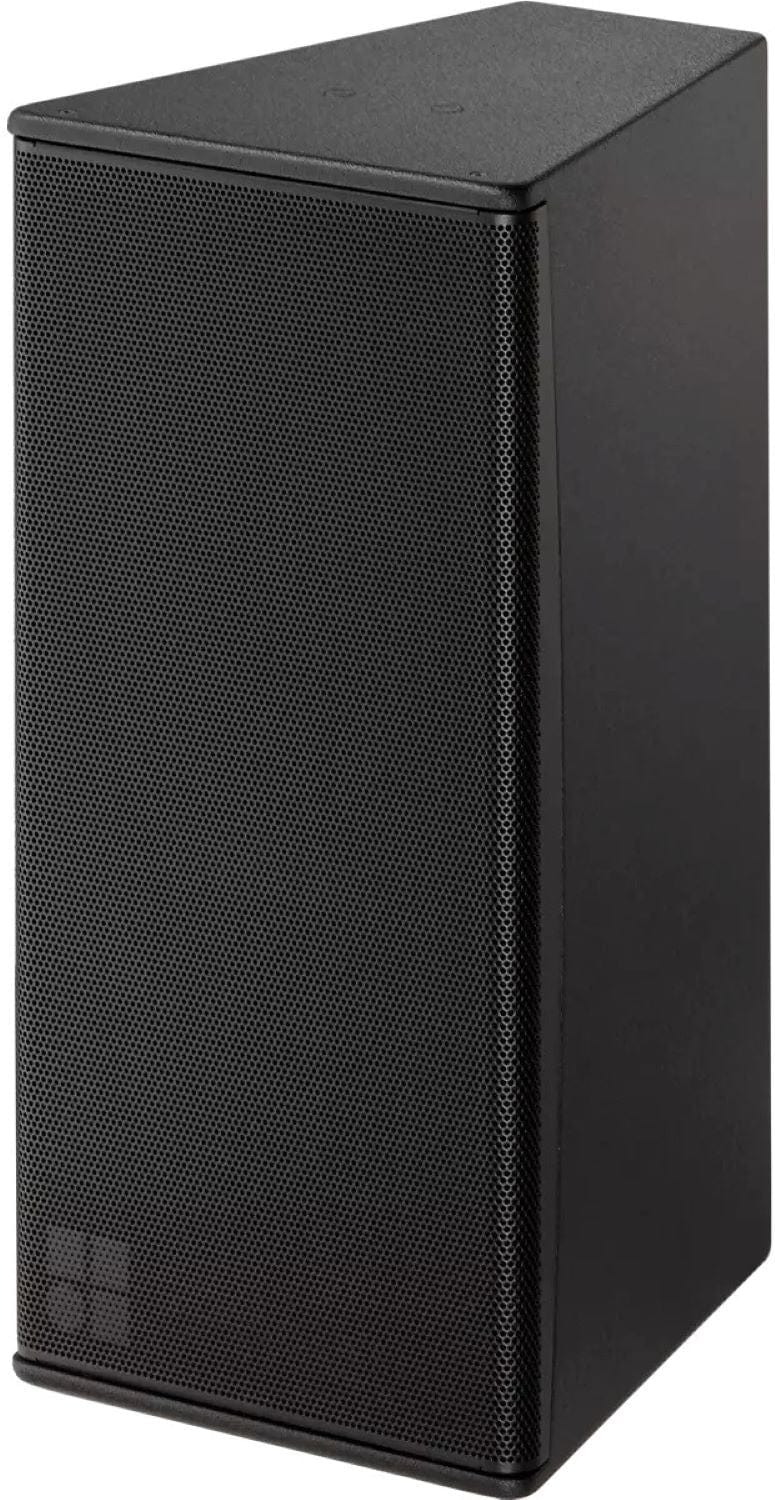

d&b audiotechnik 10S-D 10 Inch Passive Installation Loudspeaker with Wide 110 x 55 Degree Horn
The d&b audiotechnik 10S-D is the wide dispersion version of the 10S 2-way installation loudspeaker, with a 10 inch neodymium driver and a 1.4 inch compression driver on a rotatable 110 x 55 degree horn. It suits wide rooms and short throw distances, covering 60 Hz to 18 kHz. Trianze Tech supplies the 10S-D for installed sound projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- 10 inch neodymium LF driver in a bass reflex enclosure
- 1.4 inch compression driver on a rotatable 110 x 55 degree horn
- Wide dispersion for short throw and wide rooms
- Full range response from 60 Hz to 18 kHz
- Marine plywood cabinet, ball impact resistant to DIN 18032-3
- 2 x NL4 connectors plus a screw terminal block
Technical Specifications:
| Spec | Value |
|---|---|
| Model | 10S-D |
| Type | Installation 2-way passive loudspeaker, wide dispersion |
| Components | 10 inch neodymium driver, 1.4 inch compression driver with CD horn |
| Dispersion (h x v) | 110 x 55 degrees, rotatable |
| Frequency Response (-5 dB) | 60 Hz to 18 kHz standard, 100 Hz to 18 kHz CUT mode |
| Max SPL | 127 dB (10D), 130 dB (D20/5D/30D/D40/D80/40D) |
| Nominal Impedance | 12 ohms |
| Power Handling (RMS/peak) | 200/1200 W |
| Cabinets per Amplifier Channel | 3 |
| Connections | 2 x NL4, screw terminal block |
| Weight | 13 kg (29 lb) |
Why Buy the d&b audiotechnik 10S-D from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the 10S-D with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Both share the same 10 inch and 1.4 inch drivers and cabinet. The d&b audiotechnik 10S-D has a wider 110 x 55 degree horn, while the 10S has 75 x 50 degrees for longer throw.
The d&b audiotechnik 10S-D has a 110 x 55 degree dispersion pattern with a rotatable horn for vertical or horizontal mounting.
The d&b audiotechnik 10S-D covers 60 Hz to 18 kHz (-5 dB) in standard mode, or 100 Hz to 18 kHz in CUT mode.
Up to three d&b audiotechnik 10S-D cabinets can be driven from one d&b amplifier channel, with a 12 ohm nominal impedance each.

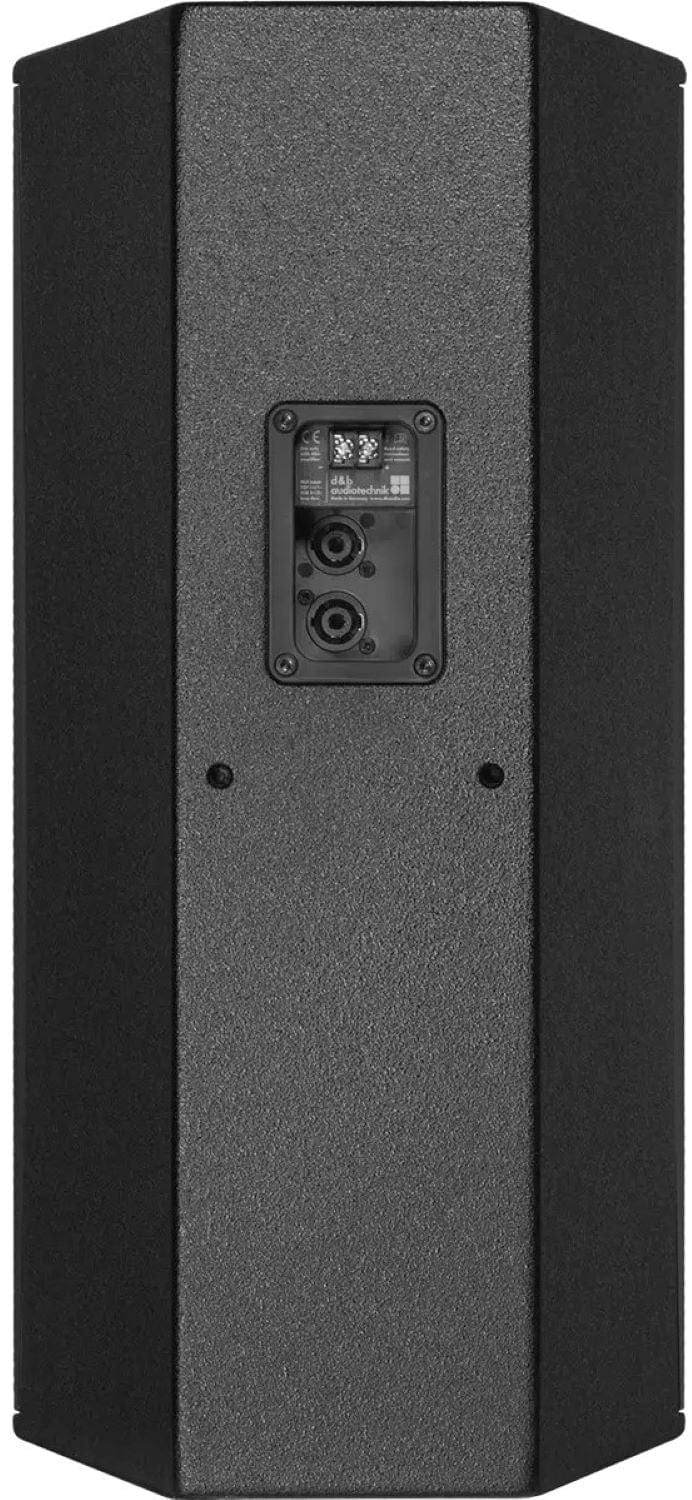

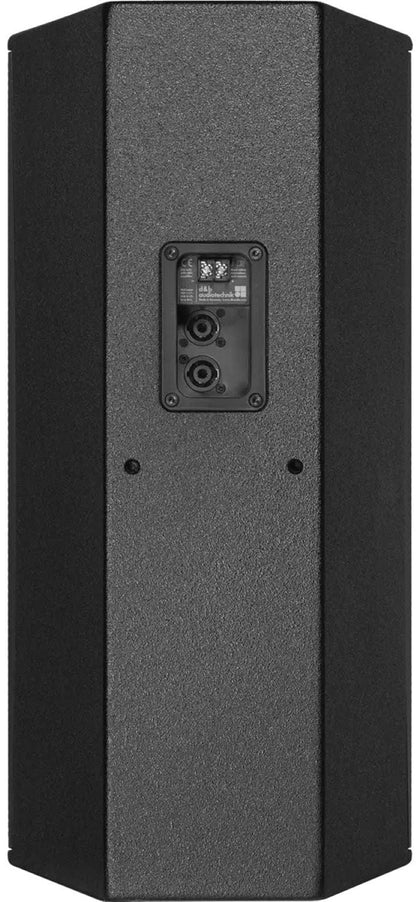

The d&b audiotechnik 10S-D has 2 x NL4 connectors and a two pole screw terminal block on the rear panel.
Trianze Tech supplies the d&b audiotechnik 10S-D in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
