d&b audiotechnik 10S: 10 Inch Passive 2 Way Installation Loudspeaker, 75 x 50 Degree
Model
:
10S
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

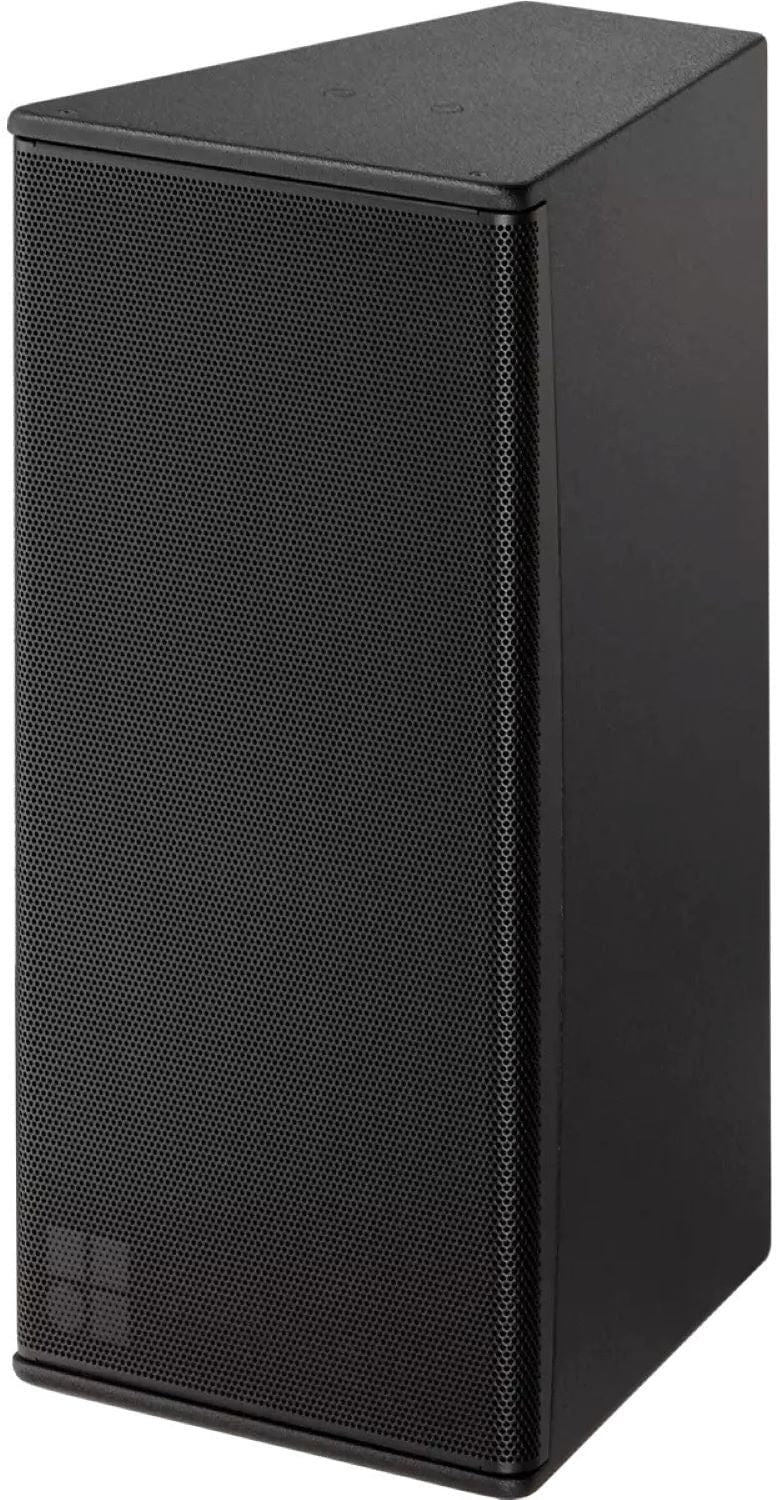

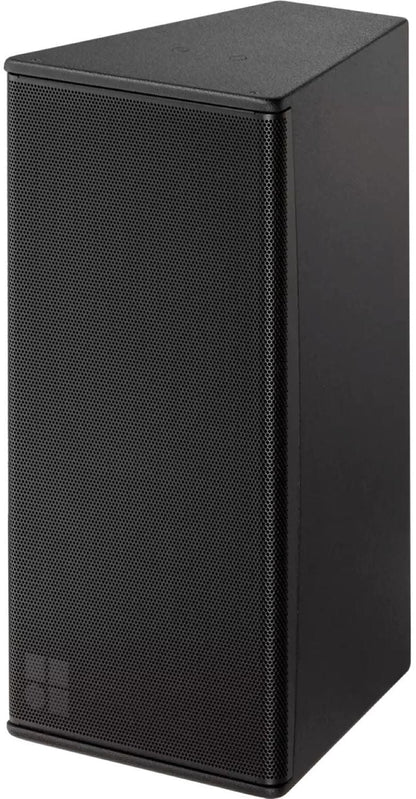

d&b audiotechnik 10S 10 Inch Passive 2 Way Installation Loudspeaker with Rotatable 75 x 50 Degree Horn
The d&b audiotechnik 10S is a high performance 2-way passive installation loudspeaker with a 10 inch neodymium driver in a bass reflex enclosure and a 1.4 inch compression driver on a rotatable 75 x 50 degree horn. It covers 60 Hz to 18 kHz as a full range system and pairs with xS-Series subwoofers. Trianze Tech supplies the 10S for installed sound projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- 10 inch neodymium LF driver in a bass reflex enclosure
- 1.4 inch compression driver on a rotatable 75 x 50 degree CD horn
- Full range response from 60 Hz to 18 kHz
- Marine plywood cabinet, ball impact resistant to DIN 18032-3

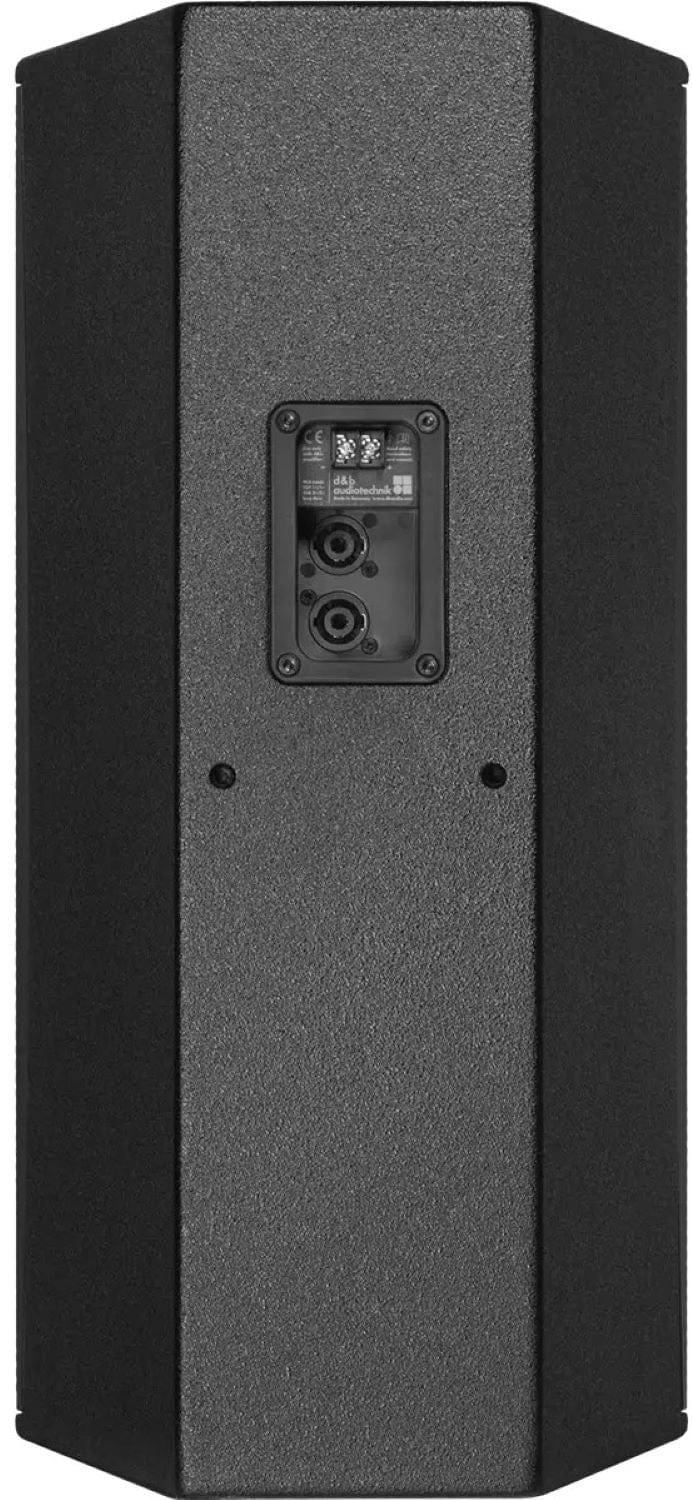

- 2 x NL4 connectors plus a screw terminal block

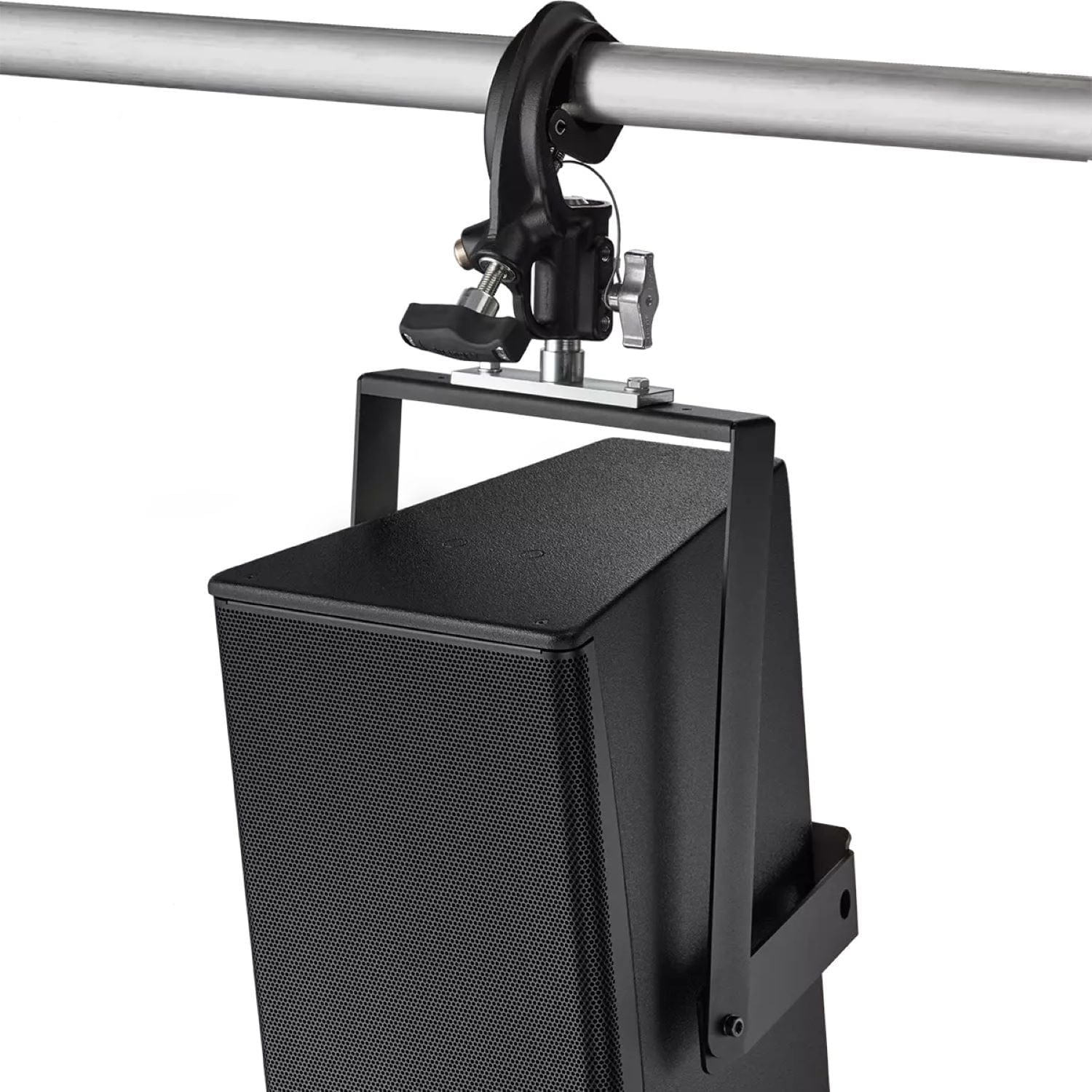

- M10 and M8 threaded inserts for mounting
Technical Specifications:
| Spec | Value |
|---|---|
| Model | 10S |
| Type | Installation 2-way passive loudspeaker |
| Components | 10 inch neodymium driver, 1.4 inch compression driver with CD horn |
| Dispersion (h x v) | 75 x 50 degrees, rotatable |
| Frequency Response (-5 dB) | 60 Hz to 18 kHz standard, 100 Hz to 18 kHz CUT mode |
| Max SPL | 127 dB (10D), 130 dB (D20/5D/30D/D40/D80/40D) |
| Nominal Impedance | 12 ohms |
| Power Handling (RMS/peak) | 200/1200 W |
| Cabinets per Amplifier Channel | 3 |
| Connections | 2 x NL4, screw terminal block |
| Dimensions (H x W x D) | 580 x 283 x 350 mm |
| Weight | 13 kg (29 lb) |
Why Buy the d&b audiotechnik 10S from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the 10S with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik 10S has a 75 x 50 degree dispersion pattern, and the horn can be rotated so the loudspeaker can be mounted vertically or horizontally.
The d&b audiotechnik 10S covers 60 Hz to 18 kHz (-5 dB) in standard mode, or 100 Hz to 18 kHz in CUT mode for use with subwoofers.
Up to three d&b audiotechnik 10S cabinets can run on one d&b amplifier channel, thanks to its 12 ohm nominal impedance.
The d&b audiotechnik 10S reaches 130 dB maximum SPL with D20, 5D, 30D, D40, D80 or 40D amplifiers, and 127 dB with the 10D.
Yes. The d&b audiotechnik 10S cabinet is ball impact resistant according to DIN 18032-3, which makes it suitable for schools and sports halls.
Trianze Tech supplies the d&b audiotechnik 10S in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
