d&b audiotechnik 8S 8 Inch Coaxial Full Range Passive Loudspeaker
The d&b audiotechnik 8S is a full range 2-way loudspeaker in a bass reflex enclosure, using an 8 inch neodymium LF driver with a coaxially mounted 1 inch compression driver. Its symmetrical 100 degree conical pattern and 70 Hz to 20 kHz response let it work as a full range system or with xS-Series subwoofers. Trianze Tech supplies the 8S for installed sound projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- 8 inch neodymium driver with coaxial 1 inch compression driver
- Symmetrical 100 degree conical dispersion
- Frequency response from 70 Hz to 20 kHz
- Marine plywood bass reflex cabinet
- M8 threaded inserts on top, bottom and rear panels
- 2 x NL4 connectors and a screw terminal block
Technical Specifications:
| Spec | Value |
|---|---|
| Model | 8S |
| Type | Installation 2-way compact coaxial loudspeaker, passive |
| Components | 8 inch neodymium driver, 1 inch coaxial compression driver |
| Dispersion | 100 degrees conical |
| Frequency Response (-5 dB) | 70 Hz to 20 kHz standard, 110 Hz to 20 kHz CUT mode |
| Max SPL | 124 dB (10D), 127 dB (D20/5D/30D/D40/D80/40D) |
| Nominal Impedance | 12 ohms |
| Power Handling (RMS/peak) | 150/800 W |
| Cabinets per Amplifier Channel | 3 |

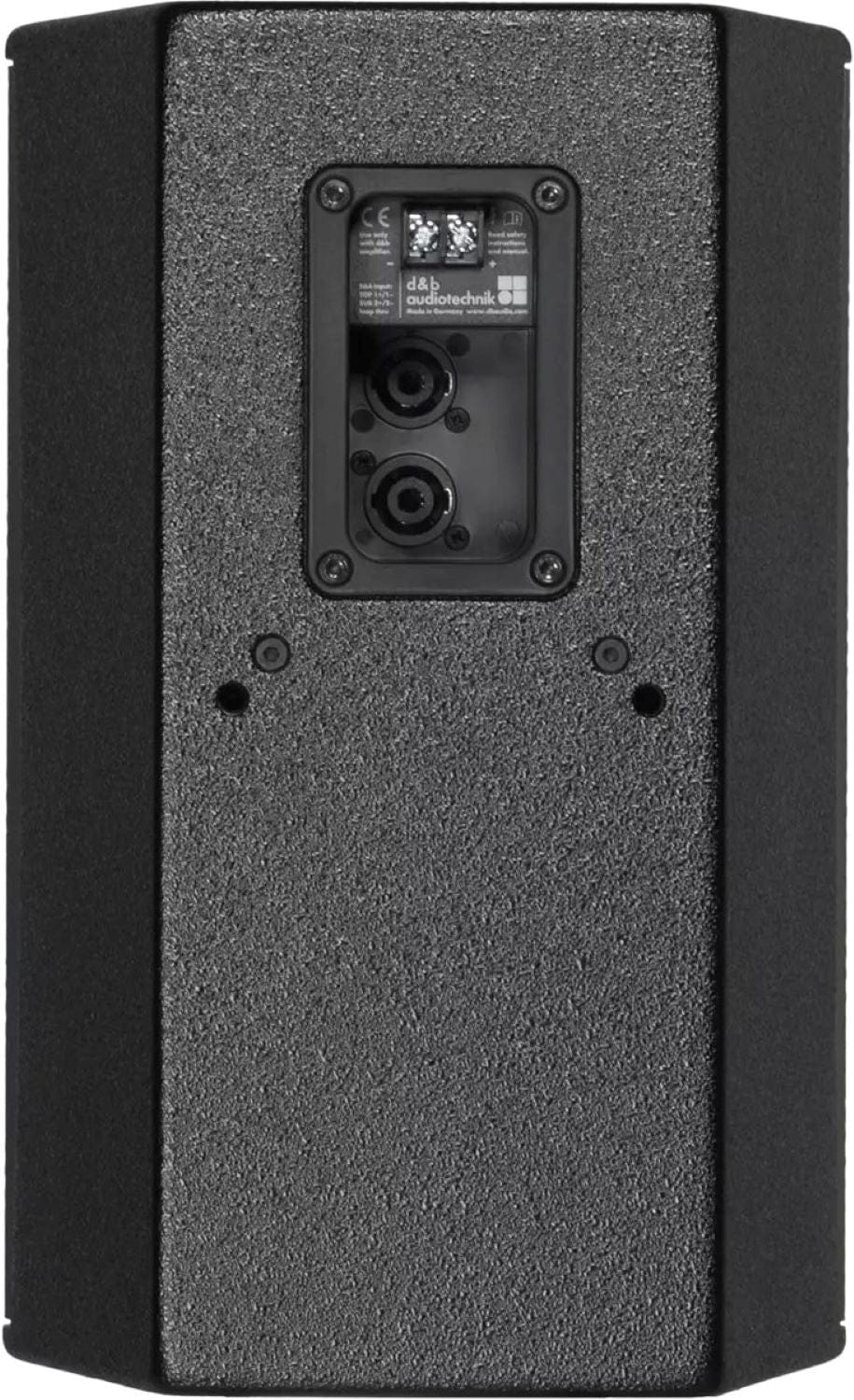

| Connections | 2 x NL4, screw terminal block |
| Dimensions (H x W x D) | 352 x 224 x 205 mm |
| Weight | 7.4 kg (16 lb) |
Why Buy the d&b audiotechnik 8S from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the 8S with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik 8S covers 70 Hz to 20 kHz (-5 dB) in standard mode and 110 Hz to 20 kHz in CUT mode.
The d&b audiotechnik 8S reaches 127 dB maximum SPL with D20, 5D, 30D, D40, D80 or 40D amplifiers, and 124 dB with the 10D.
The d&b audiotechnik 8S uses an 8 inch neodymium LF driver with a coaxially mounted 1 inch compression driver and a passive crossover.
With a 12 ohm nominal impedance, up to three d&b audiotechnik 8S loudspeakers can run on one amplifier channel.
The d&b audiotechnik 8S measures 352 x 224 x 205 mm (H x W x D) and weighs 7.4 kg (16 lb).
