d&b audiotechnik 5S: 5 Inch Compact Coaxial Passive Installation Loudspeaker, 100 Degree Conical
Model
:
5S
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

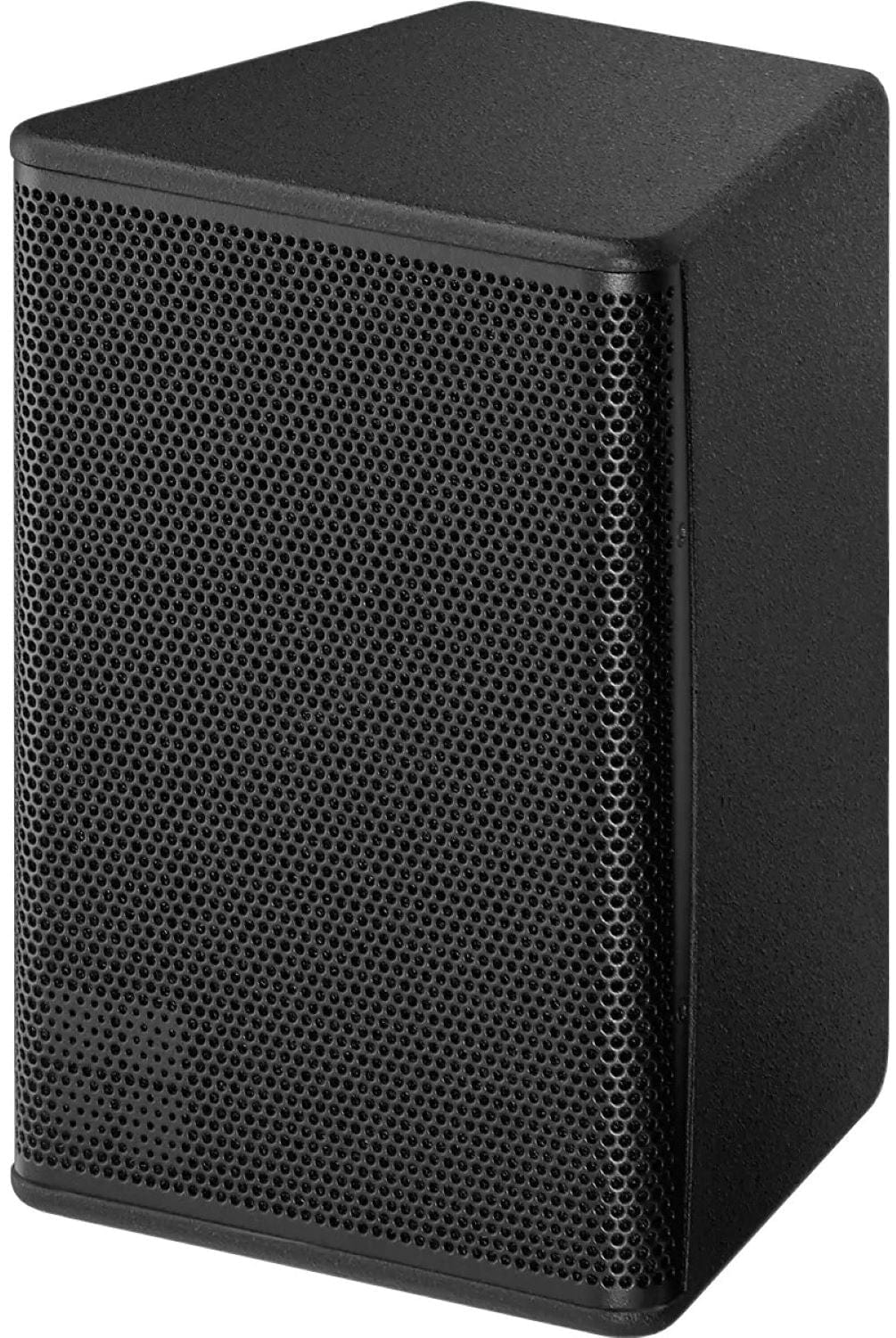

d&b audiotechnik 5S 5 Inch Compact Coaxial Passive Loudspeaker
The d&b audiotechnik 5S is a lightweight 2-way passive loudspeaker with a 5 inch LF driver and a coaxially mounted 1 inch dome tweeter in a compact bass reflex enclosure. It delivers a symmetrical 100 degree conical pattern and response down to 80 Hz, at just 2.5 kg. Trianze Tech supplies the 5S for installed sound projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- 5 inch driver with coaxial 1 inch dome tweeter
- Symmetrical 100 degree conical dispersion
- Compact bass reflex enclosure
- Frequency response from 80 Hz to 20 kHz
- Impact and weather resistant IP34 paint finish
- 2 x NL4 connectors and a screw terminal block
Technical Specifications:
| Spec | Value |
|---|---|
| Model | 5S |
| Type | Installation 2-way compact coaxial loudspeaker, passive |
| Components | 5 inch driver, 1 inch coaxial dome tweeter |
| Dispersion | 100 degrees conical |
| Frequency Response (-5 dB) | 80 Hz to 20 kHz standard, 130 Hz to 20 kHz CUT mode |
| Max SPL | 117 dB (10D), 118 dB (D20/5D/30D/D40/D80/40D) |
| Nominal Impedance | 16 ohms |
| Power Handling (RMS/peak) | 60/400 W |
| Cabinets per Amplifier Channel | 4 |
| Protection Rating | IP34 |

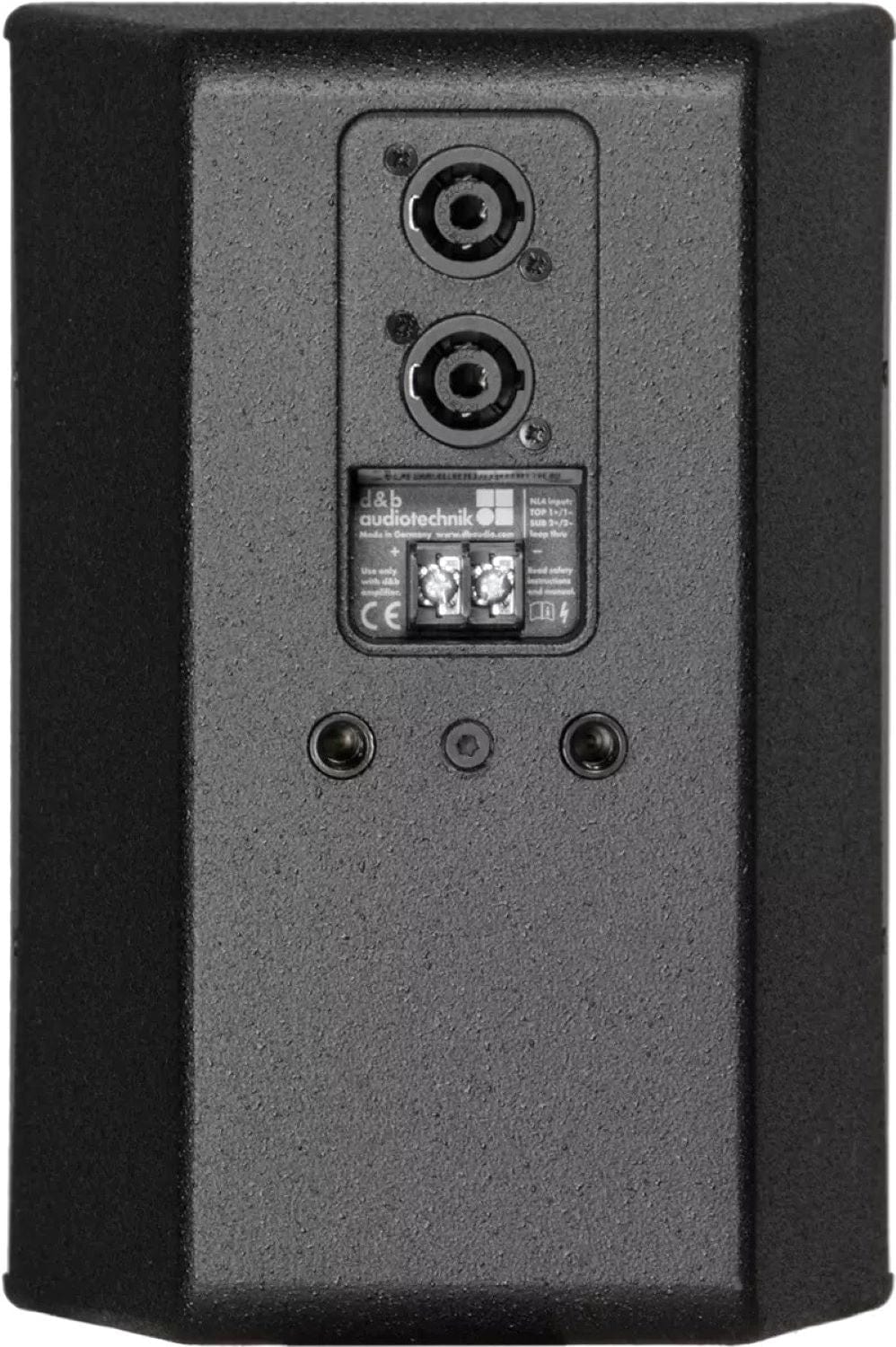

| Connections | 2 x NL4, screw terminal block |
| Dimensions (H x W x D) | 240 x 164 x 160 mm |
| Weight | 2.5 kg (5.5 lb) |
Why Buy the d&b audiotechnik 5S from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the 5S with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik 5S covers 80 Hz to 20 kHz (-5 dB) in standard mode and 130 Hz to 20 kHz in CUT mode.
The d&b audiotechnik 5S has a symmetrical 100 degree conical pattern from its coaxial driver, so it can be mounted in either orientation.
The d&b audiotechnik 5S reaches 118 dB maximum SPL with D20, 5D, 30D, D40, D80 or 40D amplifiers, and 117 dB with the 10D.
Up to four d&b audiotechnik 5S loudspeakers can run on one amplifier channel, thanks to their 16 ohm nominal impedance.
The d&b audiotechnik 5S measures 240 x 164 x 160 mm (H x W x D) and weighs 2.5 kg (5.5 lb).
Trianze Tech supplies the d&b audiotechnik 5S in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
