d&b audiotechnik 4S WR Weather Resistant 4 Inch Compact Coaxial Loudspeaker

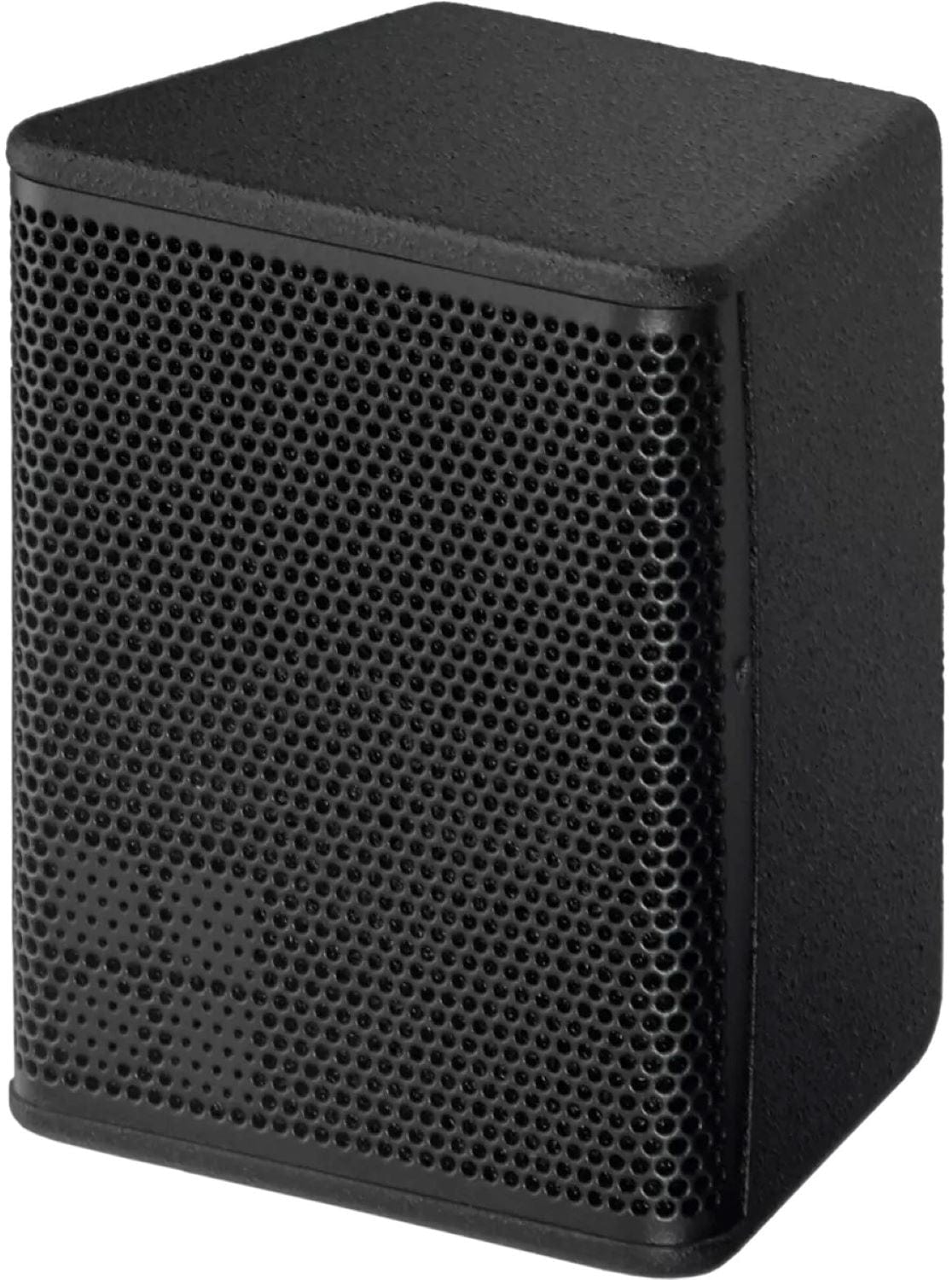

The d&b audiotechnik 4S WR is the weather resistant version of the 4S compact coaxial loudspeaker, with a 4 inch neodymium LF driver and a coaxial 0.75 inch dome tweeter giving a 100 degree conical pattern. It uses a recessed Faston connector panel with a PG13.5 cable gland plate for outdoor wiring. Trianze Tech supplies the 4S WR for outdoor and semi outdoor installations in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Weather resistant version of the 4S
- 4 inch neodymium driver with coaxial 0.75 inch dome tweeter
- Symmetrical 100 degree conical dispersion
- Recessed Faston connector panel with PG13.5 cable gland plate
- Compact sealed enclosure weighing 1 kg
- Two M8 threaded inserts for mounting
Technical Specifications:
| Spec | Value |
|---|---|
| Model | 4S WR |
| Type | Weather resistant 2-way compact coaxial loudspeaker, passive |
| Components | 4 inch neodymium driver, 0.75 inch coaxial dome tweeter |
| Dispersion | 100 degrees conical |
| Frequency Response (-5 dB) | 130 Hz to 20 kHz standard, 180 Hz to 20 kHz CUT mode |
| Max SPL | 114 dB (10D), 115 dB (D20/5D/30D/D40/D80/40D) |
| Nominal Impedance | 16 ohms |
| Power Handling (RMS/peak) | 60/400 W |
| Cabinets per Amplifier Channel | 4 |
| Connection | Faston connector, PG13.5 cable gland plate |
| Dimensions (H x W x D) | 150 x 120 x 102 mm |
| Weight | 1 kg (2 lb) |
Why Buy the d&b audiotechnik 4S WR from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the 4S WR with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Yes. The d&b audiotechnik 4S WR is the weather resistant version of the 4S, with a recessed Faston connector panel and PG13.5 cable gland plate for outdoor wiring.
The d&b audiotechnik 4S WR has a symmetrical 100 degree conical pattern from its coaxial 4 inch driver and 0.75 inch dome tweeter.
The d&b audiotechnik 4S WR uses a Faston type connector (2 x 6.3 mm, female) and a cover plate that accepts single or dual PG13.5 cable glands for 6 to 12 mm cables.
The d&b audiotechnik 4S WR covers 130 Hz to 20 kHz (-5 dB) in standard mode, with 115 dB maximum SPL.
The d&b audiotechnik 4S WR weighs 1 kg (2 lb) and measures 150 x 120 x 102 mm (H x W x D).
