d&b audiotechnik 4S: 4 Inch Compact Coaxial Passive Installation Loudspeaker, 100 Degree Conical
Model
:
4S
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

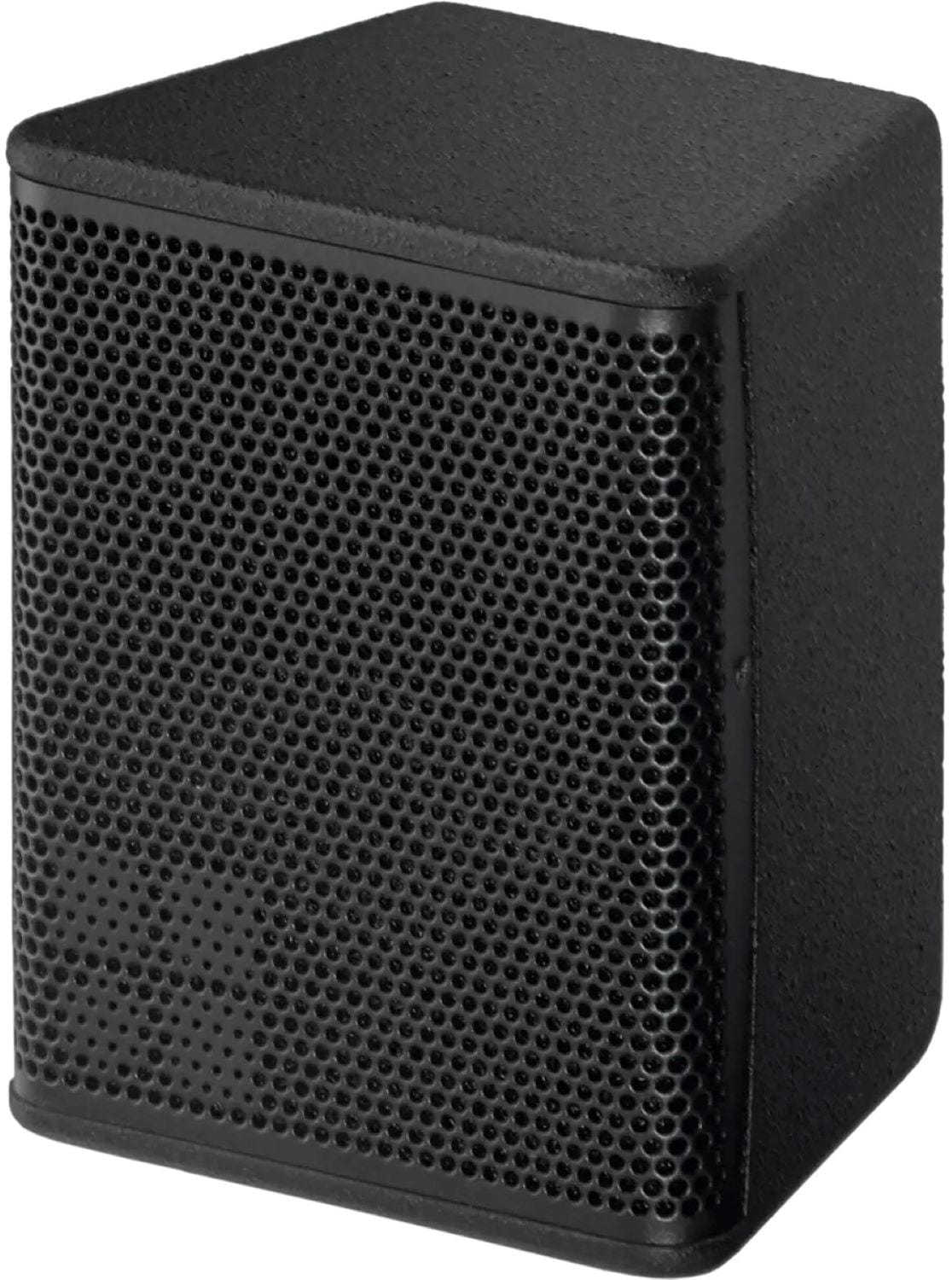

d&b audiotechnik 4S 4 Inch Compact Coaxial Passive Loudspeaker
The d&b audiotechnik 4S is a lightweight 2-way passive loudspeaker with a 4 inch neodymium LF driver and a coaxially mounted 0.75 inch dome tweeter in a compact sealed enclosure. Its 100 degree conical pattern is symmetrical, so it can be mounted vertically or horizontally, and it weighs just 1 kg. Trianze Tech supplies the 4S for installed sound projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- 4 inch neodymium driver with coaxial 0.75 inch dome tweeter
- Symmetrical 100 degree conical dispersion
- Compact sealed enclosure weighing 1 kg
- Impact and weather resistant IP34 paint finish

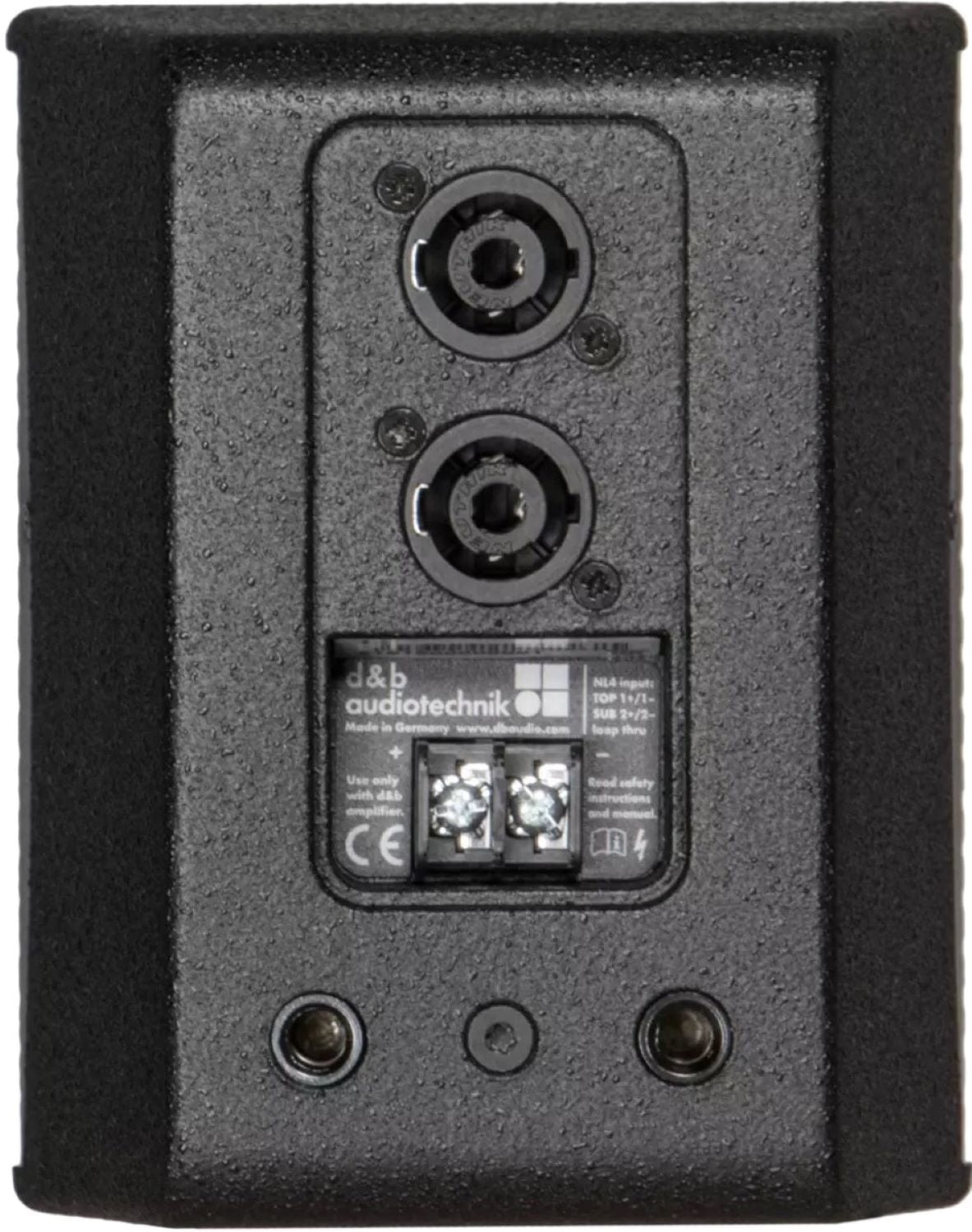

- Two M8 threaded inserts, 2 x NL4 and a screw terminal block
- Use stand alone or with xS-Series subwoofers
Technical Specifications:
| Spec | Value |
|---|---|
| Model | 4S |
| Type | Installation 2-way compact coaxial loudspeaker, passive |
| Components | 4 inch neodymium driver, 0.75 inch coaxial dome tweeter |
| Dispersion | 100 degrees conical |
| Frequency Response (-5 dB) | 130 Hz to 20 kHz standard, 180 Hz to 20 kHz CUT mode |
| Max SPL | 114 dB (10D), 115 dB (D20/5D/30D/D40/D80/40D) |
| Nominal Impedance | 16 ohms |
| Power Handling (RMS/peak) | 60/400 W |
| Cabinets per Amplifier Channel | 4 |
| Protection Rating | IP34 |
| Connections | 2 x NL4, screw terminal block |
| Dimensions (H x W x D) | 150 x 120 x 102 mm |
| Weight | 1 kg (2 lb) |
Why Buy the d&b audiotechnik 4S from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the 4S with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik 4S has a symmetrical 100 degree conical dispersion from its coaxial driver, so it can be mounted in either orientation.
The d&b audiotechnik 4S weighs just 1 kg (2 lb) and measures 150 x 120 x 102 mm (H x W x D).
The d&b audiotechnik 4S reaches 115 dB maximum SPL with D20, 5D, 30D, D40, D80 or 40D amplifiers, and 114 dB with the 10D.
With a 16 ohm nominal impedance, up to four d&b audiotechnik 4S loudspeakers can run on one amplifier channel.
The d&b audiotechnik 4S covers 130 Hz to 20 kHz (-5 dB), so it is often supplemented with xS-Series subwoofers for music, while it can work stand alone for speech.
Trianze Tech supplies the d&b audiotechnik 4S in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
