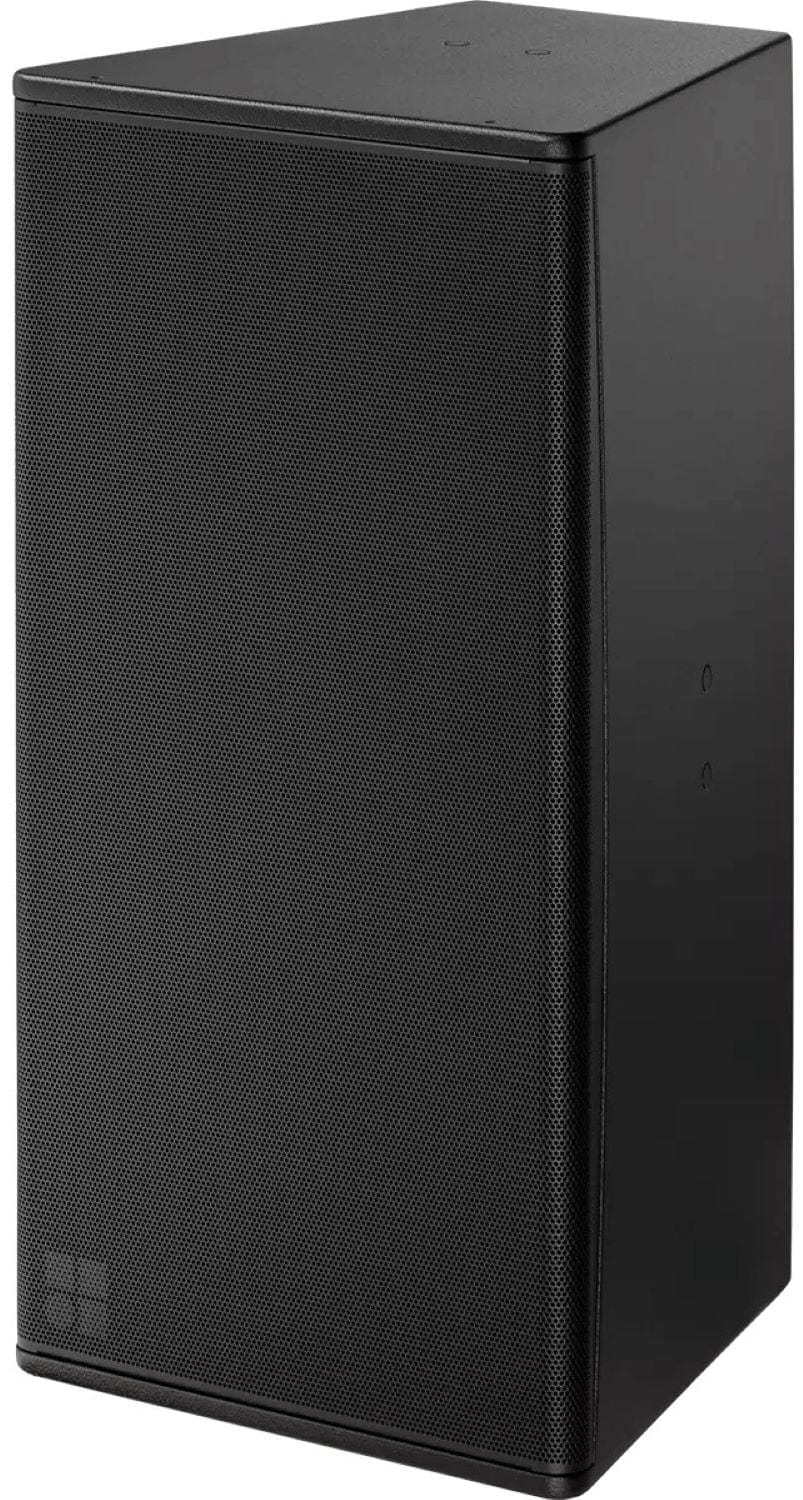

d&b audiotechnik 24S-D WR: 2 x 12 Inch Wide Dispersion Passive Loudspeaker, Weather Resistant IP55 Version
Model
:
24S-D WR
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
d&b audiotechnik 24S-D WR Weather Resistant Wide Dispersion 2 x 12 Inch Loudspeaker, IP55
The d&b audiotechnik 24S-D WR is the weather resistant version of the wide dispersion 24S-D, rated IP55 for operation in changing outdoor conditions. It keeps the two dipolar 12 inch drivers and the 1.4 inch compression driver on a rotatable 110 x 45 degree CD horn, with 137 dB maximum SPL. Trianze Tech supplies the 24S-D WR for outdoor installations in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Weather Resistant (WR) option with IP55 rating
- Wide 110 x 45 degree rotatable dispersion
- Two 12 inch neodymium drivers in a dipolar arrangement
- 1.4 inch exit compression driver on a CD horn
- Recessed Faston connector panel with PG13.5 cable gland plate
- Frequency response from 55 Hz to 18 kHz
Technical Specifications:
| Spec | Value |
|---|---|
| Model | 24S-D WR |
| Type | Weather resistant full range 2-way loudspeaker, wide dispersion, passive |
| Protection Rating | IP55 |
| Components | 2 x 12 inch neodymium drivers, 1.4 inch exit compression driver |
| Dispersion (h x v) | 110 x 45 degrees, rotatable |
| Frequency Response (-5 dB) | 55 Hz to 18 kHz standard, 90 Hz to 18 kHz CUT mode |
| Max SPL | 137 dB |
| Nominal Impedance | 4 ohms |
| Power Handling (RMS/peak) | 500/2000 W |
| Connection | Faston connector panel, PG13.5 cable gland plate |
| Dimensions (H x W x D) | 800 x 410 x 420 mm |
| Weight | 33 kg (73 lb) |
Why Buy the d&b audiotechnik 24S-D WR from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the 24S-D WR with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik 24S-D WR has a wide 110 x 45 degree nominal dispersion, and the CD horn can be rotated by 90 degrees for horizontal cabinet orientation.
Yes. The d&b audiotechnik 24S-D WR has the Weather Resistant option with an IP55 rating for operation in changing ambient conditions.
The d&b audiotechnik 24S-D WR reaches 137 dB maximum SPL and covers 55 Hz to 18 kHz (-5 dB) in standard mode.
The d&b audiotechnik 24S-D WR has a recessed connector panel with a Faston type connector and a cover plate for single or dual PG13.5 cable glands, suitable for 6 to 12 mm cables.
The d&b audiotechnik 24S-D WR weighs 33 kg (73 lb) and measures 800 x 410 x 420 mm (H x W x D).
Trianze Tech supplies the d&b audiotechnik 24S-D WR in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
