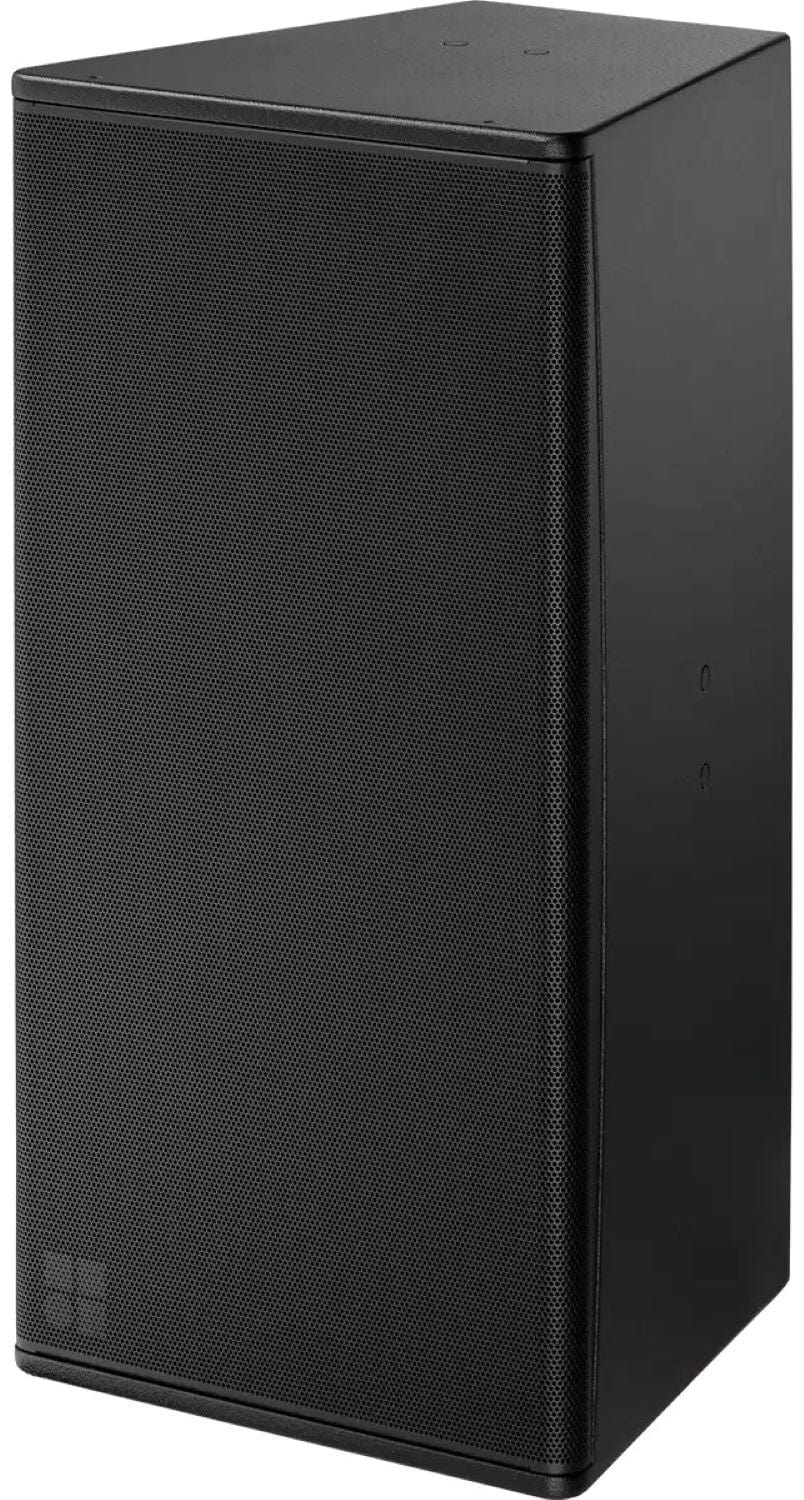

d&b audiotechnik 24S WR Weather Resistant 2 x 12 Inch Passive Loudspeaker, IP55
The d&b audiotechnik 24S WR is the weather resistant version of the 24S, rated IP55 for operation in changing outdoor conditions. It keeps the two dipolar 12 inch drivers, 1.4 inch compression driver on a rotatable CD horn and 138 dB maximum SPL of the standard model. Trianze Tech supplies the 24S WR for outdoor installations in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Weather Resistant (WR) option with IP55 rating
- Recessed Faston connector panel with PG13.5 cable gland plate
- Two 12 inch neodymium drivers in a dipolar arrangement
- 1.4 inch exit compression driver on a rotatable CD horn
- Frequency response from 55 Hz to 18 kHz
- M10 threaded inserts for d&b rigging
Technical Specifications:
| Spec | Value |
|---|---|
| Model | 24S WR |
| Type | Weather resistant full range 2-way loudspeaker, passive |
| Protection Rating | IP55 |
| Components | 2 x 12 inch neodymium drivers, 1.4 inch exit compression driver |
| Dispersion (h x v) | 75 x 45 degrees, rotatable |
| Frequency Response (-5 dB) | 55 Hz to 18 kHz standard, 90 Hz to 18 kHz CUT mode |
| Max SPL | 138 dB |
| Nominal Impedance | 4 ohms |
| Power Handling (RMS/peak) | 500/2000 W |
| Connection | Faston connector panel, PG13.5 cable gland plate |
| Dimensions (H x W x D) | 800 x 410 x 420 mm |
| Weight | 33 kg (73 lb) |
Why Buy the d&b audiotechnik 24S WR from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the 24S WR with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
WR is the d&b audiotechnik Weather Resistant option. The 24S WR has an IP55 rating for operation in changing ambient conditions.
The d&b audiotechnik 24S WR has a recessed connector panel with a Faston type connector and a cover plate that accepts single or dual PG13.5 cable glands for 6 to 12 mm cables.
The d&b audiotechnik 24S WR reaches 138 dB maximum SPL and covers 55 Hz to 18 kHz (-5 dB) in standard mode.
Yes. The CD horn of the d&b audiotechnik 24S WR can be rotated by 90 degrees so the 75 x 45 degree pattern suits a horizontal cabinet orientation.
The d&b audiotechnik 24S WR weighs 33 kg (73 lb) and measures 800 x 410 x 420 mm (H x W x D).
